NUY Shield for Wi-Fi and Linux to the Arduino Board

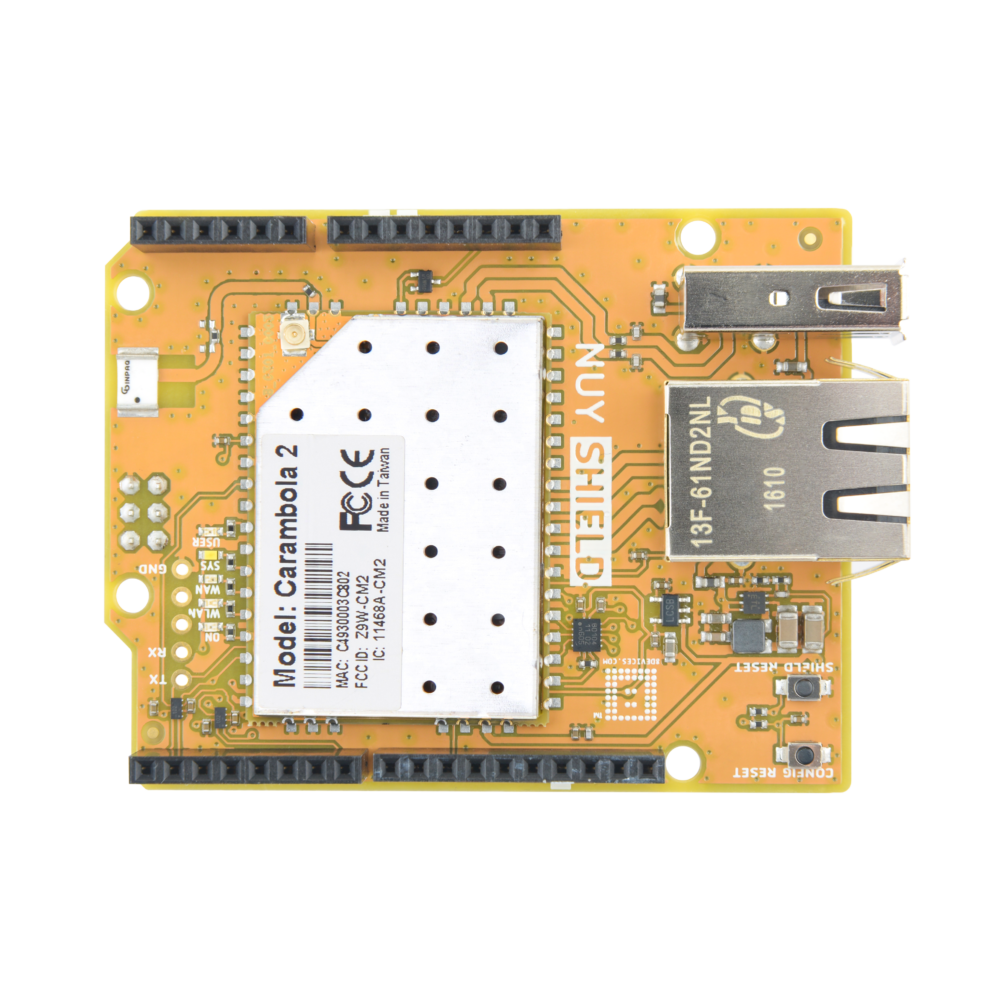

NUY is a shield that adds the power of Wi-Fi and Linux to the Arduino Board. It is built around Carambola2, a leading industry module based on the Atheros SoC AR9331. The shield runs OpenWrt-Yun, an embedded Linux distribution created by the Arduino team based on OpenWRT. It is an open hardware product made by 8Devices. Schematics and layouts in Eagle format are available in the downloads section below.
NUY interfaces include:
- Wi-Fi 802.11
- Ethernet 100Mbit
- USB host
- TTL Serial
- Standard external antenna connector (U.FL / IPEX)
Software
Fully compatible with the Arduino Yun sketches: use your existing Arduino Leonardo and make it wireless, or match it with an Arduino Mega 2560, Arduino Due, or Arduino Zero and take advantage of the higher-performance microcontroller.
Apps
Select from about 3000 ready-build application packages made for OpenWrt and install
them with a click. For example, you can easily connect more storage, a dynamic web server, a webcam, or an audio device.
Caraboot
Wi-Fi shield features a new bootloader called Caraboot. It simplifies the process of firmware upgrades. The new firmware image can be read from the USB flash after the shield is rebooted by pressing the reboot button.
