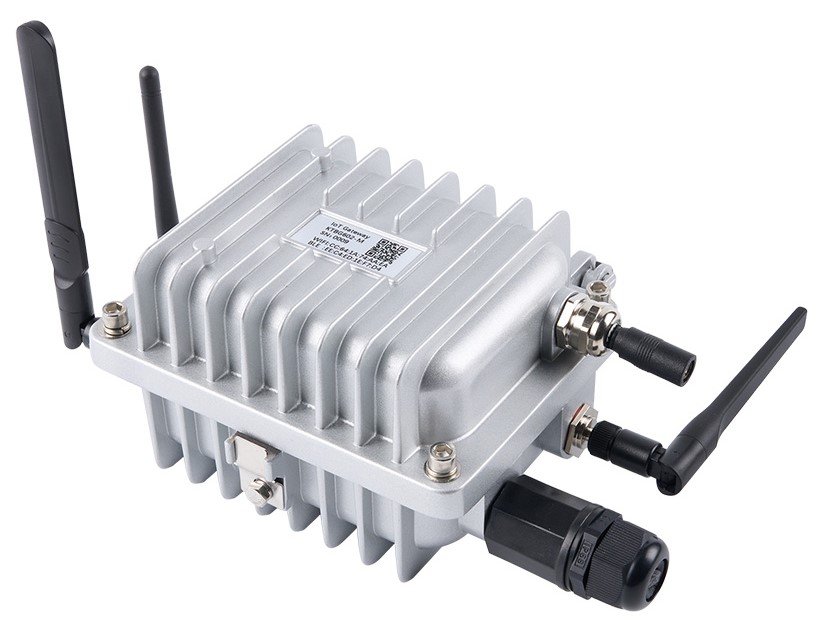

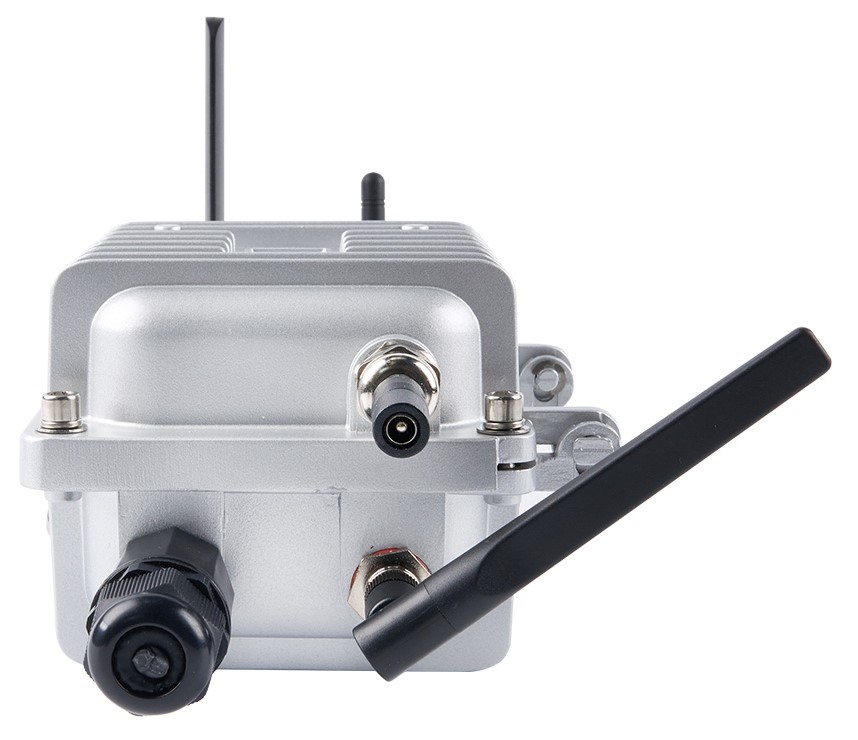

Outdoor Waterproof IP68 RTLS Asset Tracking iBeacon Reader Scanner Beacon Gateway
HCBG01 is a Bluetooth to wifi gateway that supports Bluetooth 4.2/5.0. A kind of Bluetooth hub. The main processor uses a 580MHz MIPS24KEc processor, and the DRAM is DDR2 64 MB and 16 MB FLASH. HCBG01 Bluetooth gateway integrates PA and LNA, and the Bluetooth scanning and connection distance can reach more than 100 meters, significantly increasing the coverage and reducing the user cost.HCBG01 can support POE power supply (according to IEEE 802.3at ( Type 1 ) requirements) or power adapter power supply (wide voltage range: 6V-2 4 V). HCBG01 can be compatible with different Bluetooth terminal devices, which is convenient for users to collect data and remote control of Bluetooth terminal devices (such as Bluetooth bracelets, Bluetooth skipping ropes, Bluetooth door locks, various Bluetooth sensors, etc.).
Two-way transmission of data. HCBG01 and background communication support: UDP, TCP, and MQTT. Supported Bluetooth filtering methods include Bluetooth name filtering, signal strength filtering, MAC address filtering, etc. HCBG01 supports the software remote upgrade function. Through the signal strength (RSSI value) of the Bluetooth signal of the Bluetooth terminal received by the Bluetooth gateway, the distance from the Bluetooth terminal to multiple Bluetooth gateways can be calculated, and then triangulation can be realized. HCBG01 is widely used in indoor localization, indoor positioning, RTLS asset tracking, medical care, elderly care, sports, fitness, education, family, and various industrial applications.
Features
- Support a PoE power supply or a power adapter
- Support IEEE 802.11n, IEEE 802.11g, and IEEE 802.11b protocols
- Support Bluetooth® 4.2/ 5.0
- Integrated Bluetooth PA /LNA
- Support LTE-TDD/LTE-FDD/TD-SCDMA/UMTS / EVDO/EDGE/GPRS/GSM/CDMA
- One WAN/LAN adaptive port
Specifications
Product Size | Indoor type: diameter: 124mm; height: 40mm Outdoor type: length 153 mm* width 137 mm* height 97 mm |
power supply | Supply voltage range: DC 6 – 28 V HCBG01-P/PC /PC/PC factory standard power adapter: DC12V/1A HCBG01-M/MC factory standard power adapter: DC12V/2A POE switch: Standard P O E, output 48V, follows IEEE 802.3at standard |
Working current | 2 80 mA@ 12 V (with 4 G module) 1 80mA @12V ( without 4G module ) |
Operating temperature | -20ºC~70ºC |
interface | Network port, power port, reset button |
WiFi | |
WiFi protocol | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
data rate | IEEE 802.11b Standard Mode: 1, 2, 5.5, 11 Mbps |
IEEE 802.11 g Standard Mode: 6,9,12,18,24,36,48,54Mbps | |
IEEE 802.11n : 72Mbps @ HT20 150Mbps @ HT40 |
|
Receiver sensitivity | HT40 MCS7 : -67dBm@10% PER(MCS7) |
HT20 MCS7 : -73dBm@10% PER(MCS7) | |
54M: -76dBm@10%PER | |
11M: -91dBm@ 8% PER | |
transmit power | IEEE 802.11n: 15dBm @HT40 MCS7 15dBm@HT20 MCS7 |
IEEE 802.11g: 16 dBm | |
IEEE 802.11b: 18 dBm | |
wireless security | WPA/WPA2, WEP, TKIP, and AES |
Operating mode | Bridge, Gateway, AP Client |
Bluetooth | |
bluetooth protocol | Bluetooth® 4.2/Bluetooth® 5.0 |
data rate | Uncoded: 1Mbps/2Mbps |
wireless security | AES HW Encryption |
Scanning distance | > 100m _ |
transmit power | 0~ + 18dBm |
Receiver sensitivity | -104dBm |
connection distance | 30-50m |
4G LTE | |
Protocol | LTE-TDD/LTE-FDD/TD-SCDMA/UMTS/ EVDO/EDGE/GPRS/GSM/CDMA |
