3-5 Years Long Lifespan RTLS Indoor Positioning System Asset Tracking BLE Tag Bluetooth Beacon

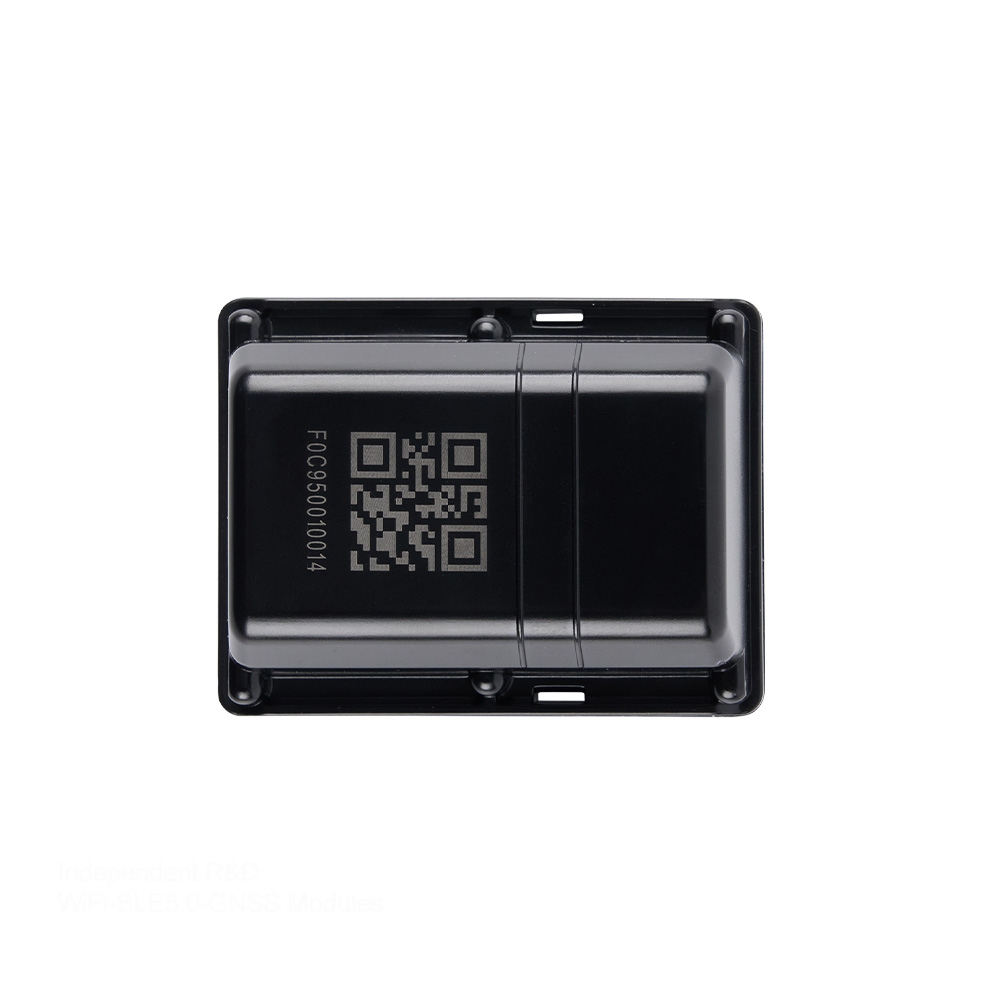

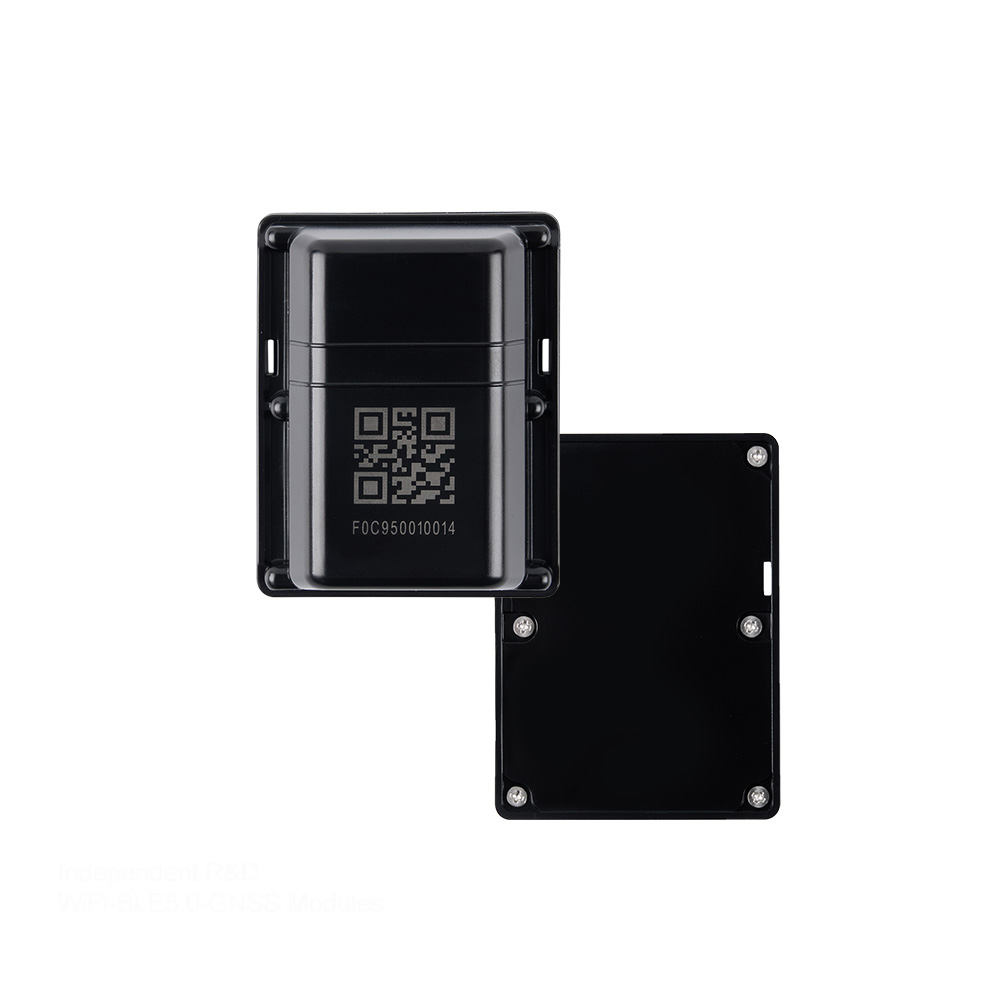

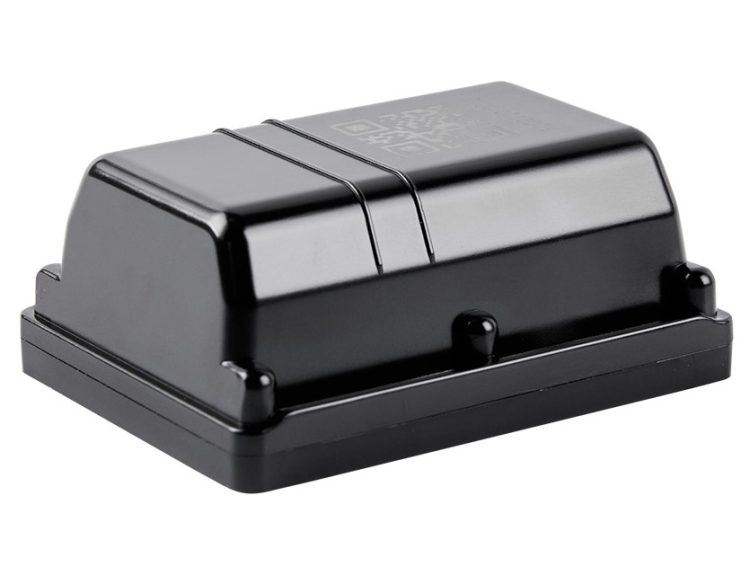

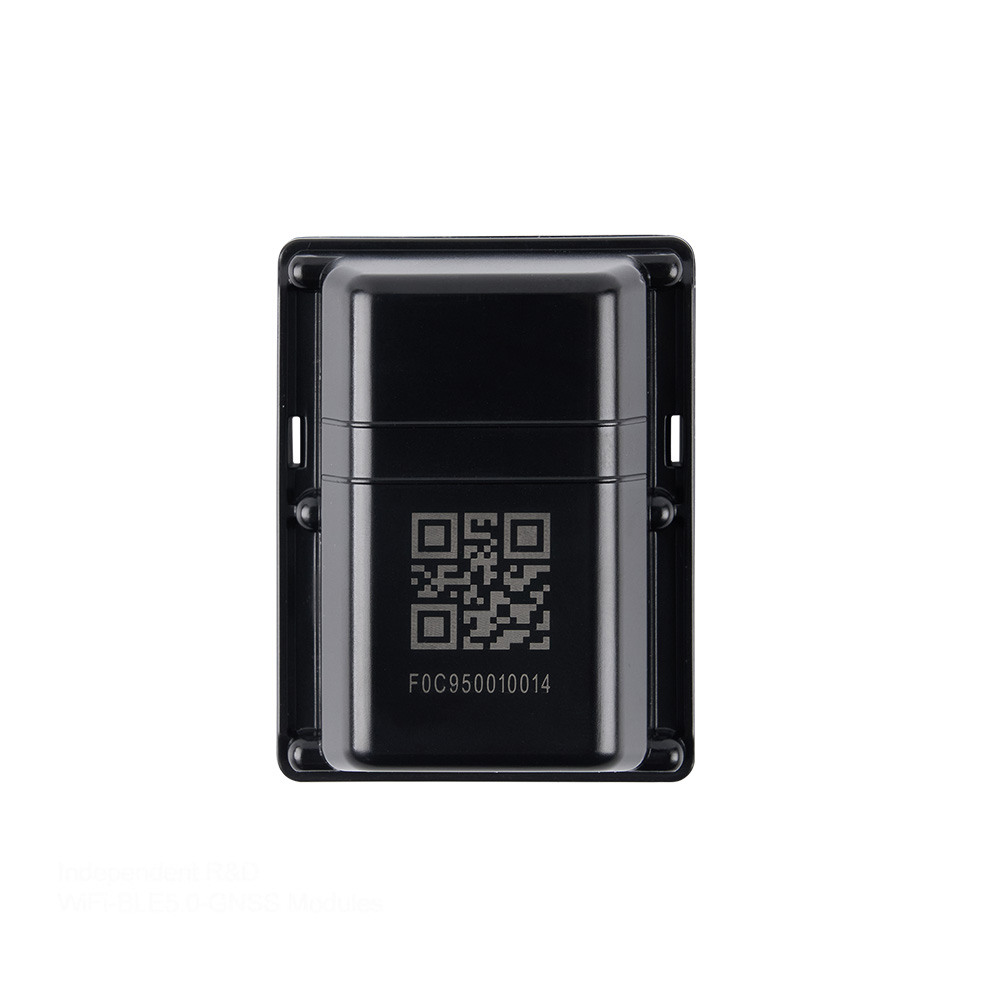

HCBB62 is a Bluetooth beacon based on a low-power Bluetooth chip nRF52810, powered by one ER14505 battery, and can be used for up to 5 years. It can broadcast UUlD, Major, Minor, battery power, Bluetooth name, Bluetooth MAC address, and other information, where UUlD, Major, Minor, Bluetooth name can be set through the mobile phone APP. The iBeaconHCBB62 broadcast distance can reach 100 meters, and a 3M sticker or a metal tie can be easily installed and fixed. BLEBeacon HCBB62 firmware is divided into connectable type and non-connectable type. Connectable type can change Bluetooth beacon parameters anytime through a mobile phone connection.
Features
- Low power consumption, battery life last up to 5 years[0dBm/500ms.at room temperature 25°C)
- Support for the BLE 4.2/5.0 protocol
- Support OTA upgrade
- The Beacon parameters can be flexibly configured through the mobile phone APP.
- Reading distance up to 100 m (0 dBm broadcast)
- IP68 waterproof grade
Specifications
Physical characteristics | |
Product P/N | HCBB62 |
Antenna | PCBÂ Antenna |
Product size(Diagram*Height) | 66*50*27.9mm |
Case material/color | PC/Black(default) |
Waterproof grade | IP68 |
Installation method | 3M sticker or metal tie |
Battery | Lithium argon battery ER14505 |
Battery Voltage | 3.6V |
Battery Capacity | 2600mAh |
Is the battery replaceable | Yes |
OTAÂ function | Support |
Configuration APP | BLE Beacon |
Specification parameters | |
BLE Version | BLE4.2/5.0 |
Broadcast data protocol | iBeacon, Eddystone, or customized according to the customer’s requirement |
Frequency range | 2400MHz~2483.5MHz |
Transmission power | -20dBm~+4dBm(default 0dBm) |
Broadcast interval | 100ms~10s(default 500ms) |
Receive sensitivity | -96dBm |
Broadcast distance | 100 meters(Open sight line) |
Average current | 29uA(0dBm,500ms) |
Battery life | 5 years(0dBm,500ms,room temperature 25°C)* |
Working temperature | -40℃~85℃ |
Storage temperature | -40℃~85℃ |
Working humidity | 10%~90% (non-condensation state) |
Storage humidity | 5%~90% (non-condensation state) |
