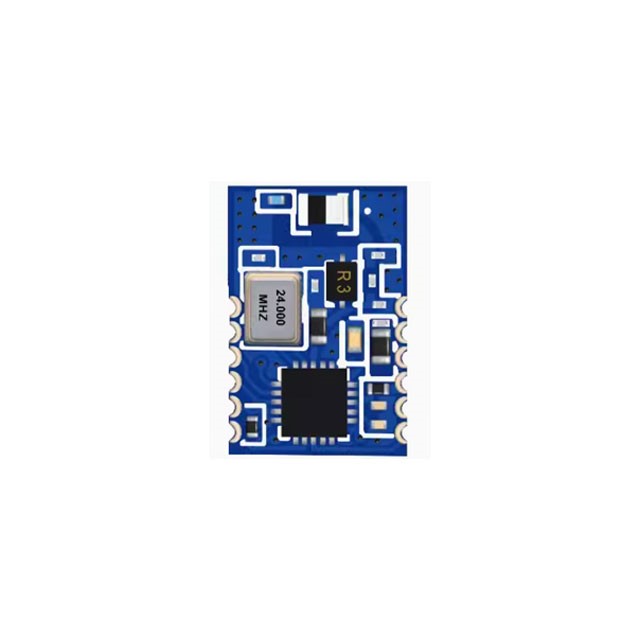

Ultra-Small Size Stable Ultra Low Cost Bluetooth Module TS-M1021
The TS-M1021 is a diminutive Bluetooth module measuring merely eight by 12 millimeters. It is designed for applications requiring minimal size and low power consumption without compromising on cost-effectiveness. This module is renowned for its remarkable stability and wide-ranging compatibility. It has a default setting that facilitates transparent Bluetooth serial port transmission, allowing users to modify serial port baud rates, device names, and additional parameters using the supplied AT commands.
Features
- Model No.: TS-M1021
- Bluetooth Version: BLE 5.1
- Frequency Band: 2.402GHz-2.480GHz ISM band
- TX Power: -20 dBm~+10 dBm
- Receive Sensitivity: -97 dBm
- Air Rate: 250Kbps/1Mbps/2Mbps
- Antenna: Ceramic Antenna
- Advise Range: 100m
- Memory: 512KB FLASH+56KB RAM
- Size: 12*8*1.5mm
- Pin/GPIO: 12/7
- Power Supply: 2.0~3.6V
- Operating Temperature: -40℃~+85℃
- Peripheral Interface: UART/I2C/ADC
- Serial Transparent Transmission Rate: BLE 20KB/s
Applications
- Smart home
- Location tracking
- Intelligent educational equipment
- Measurement and monitoring system
- Industrial sensors and controls
- Medical equipment monitoring and wireless control
