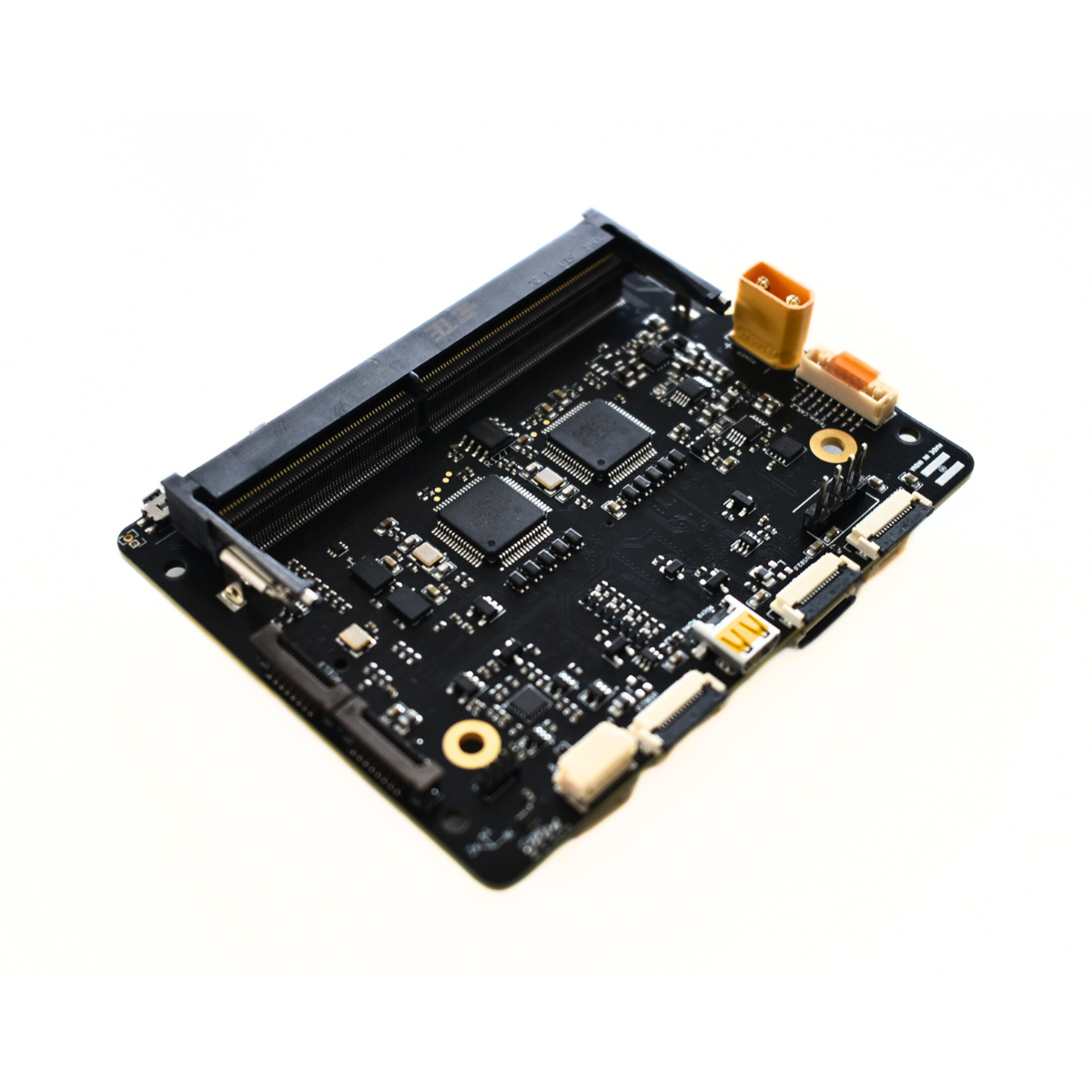

VECROS Jetcore Carrier Board for Nvidia Jetson Modules

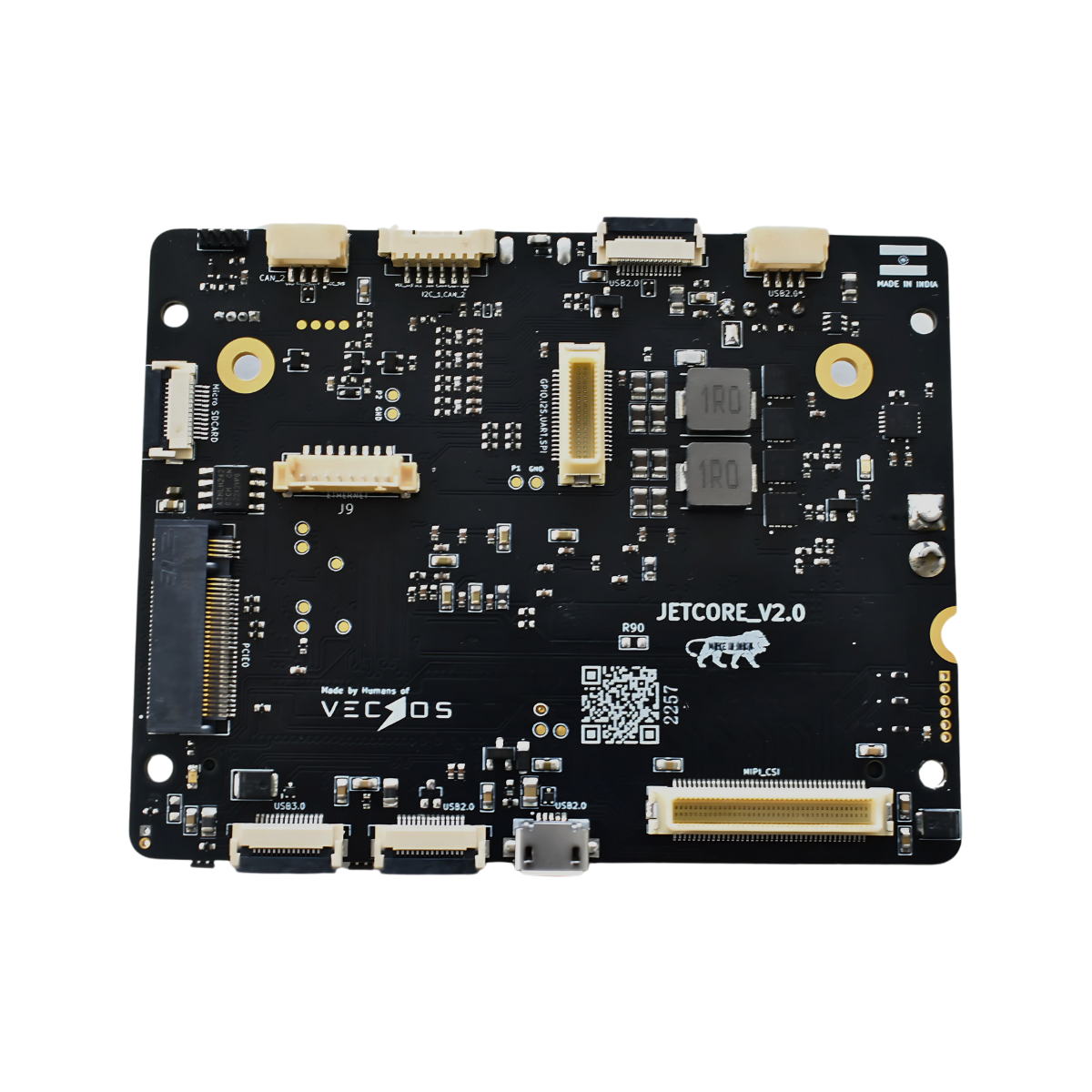

VECROS Jetcore Carrier Board for Nvidia Jetson Modules - Image 2

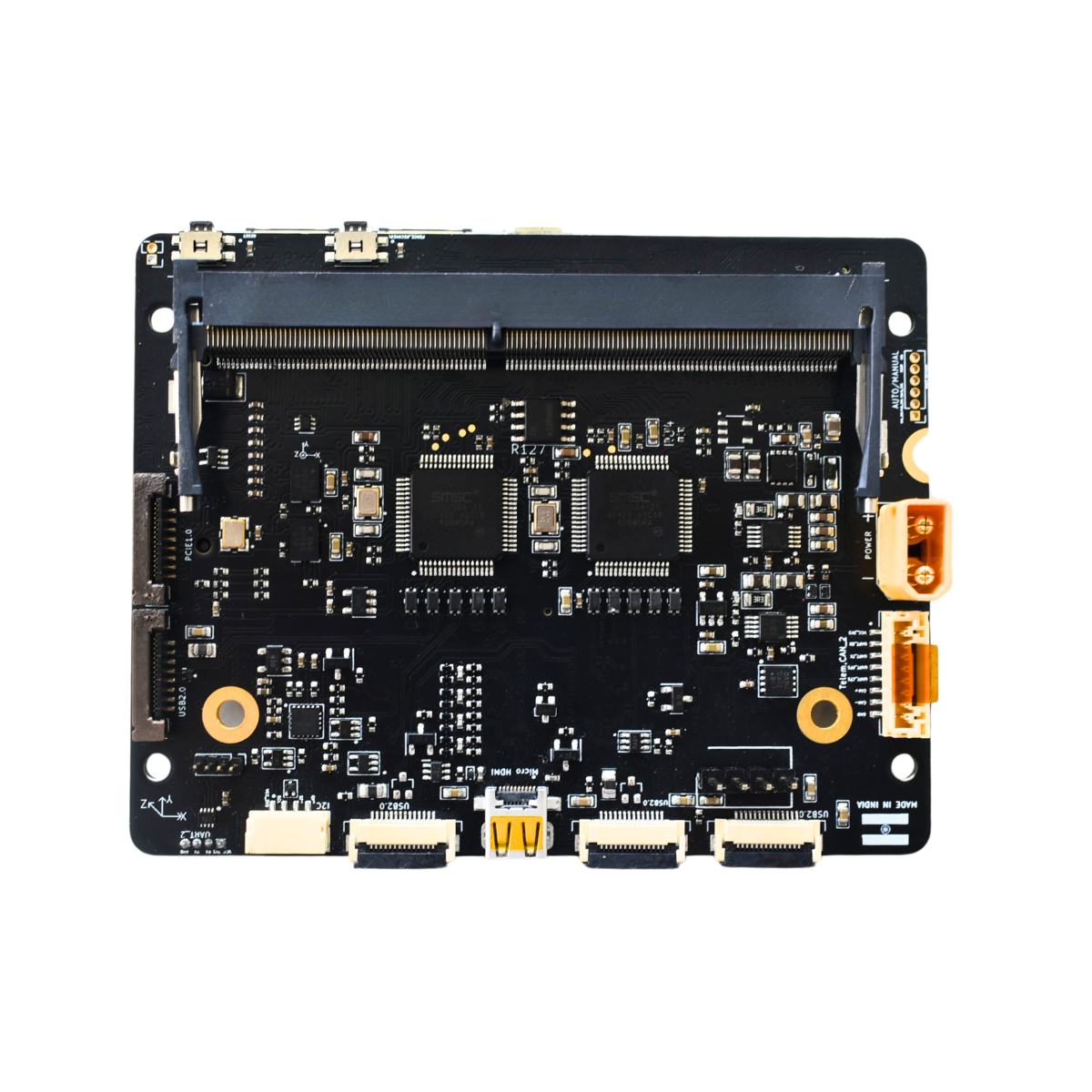

VECROS Jetcore Carrier Board for Nvidia Jetson Modules - Image 3

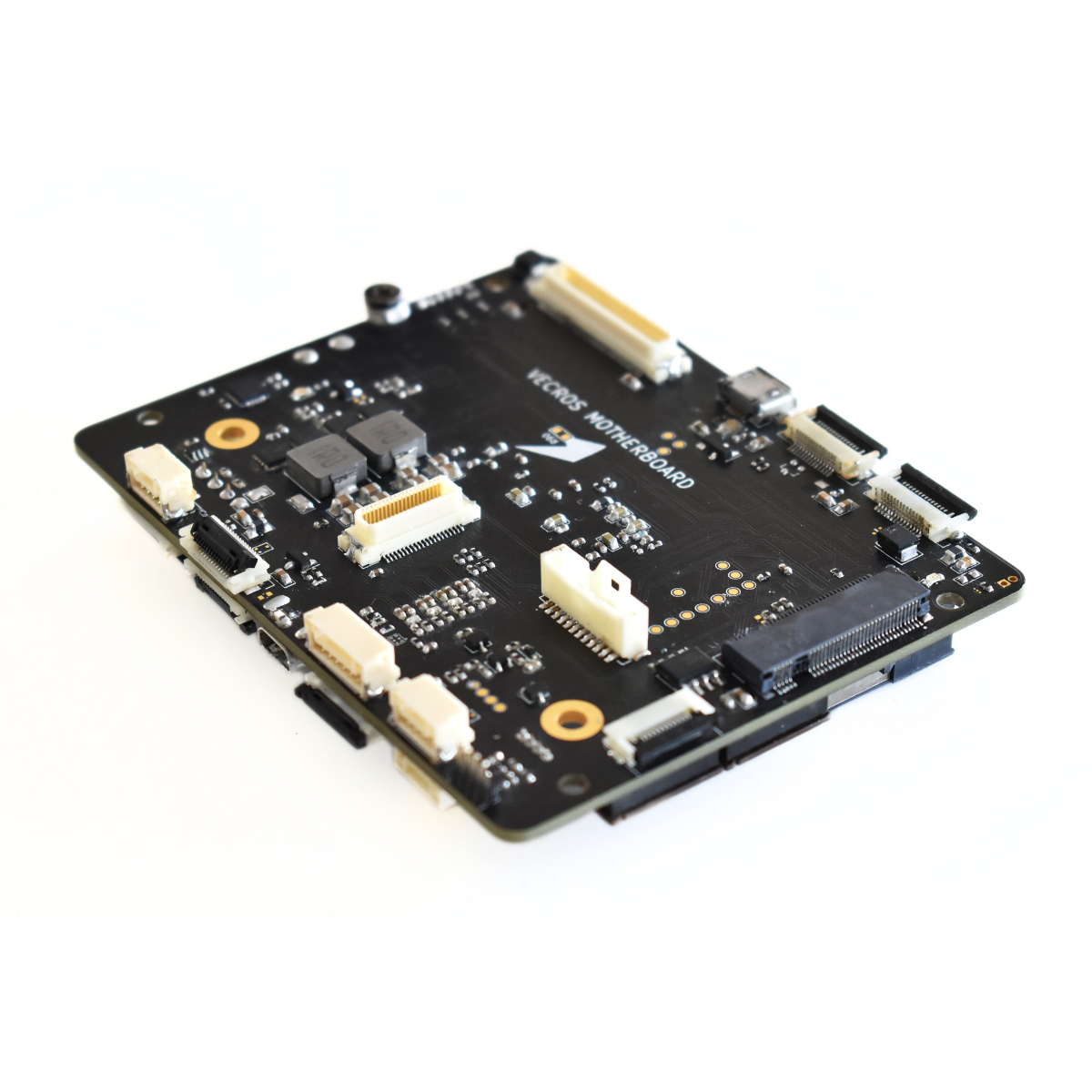

VECROS Jetcore Carrier Board for Nvidia Jetson Modules - Image 4

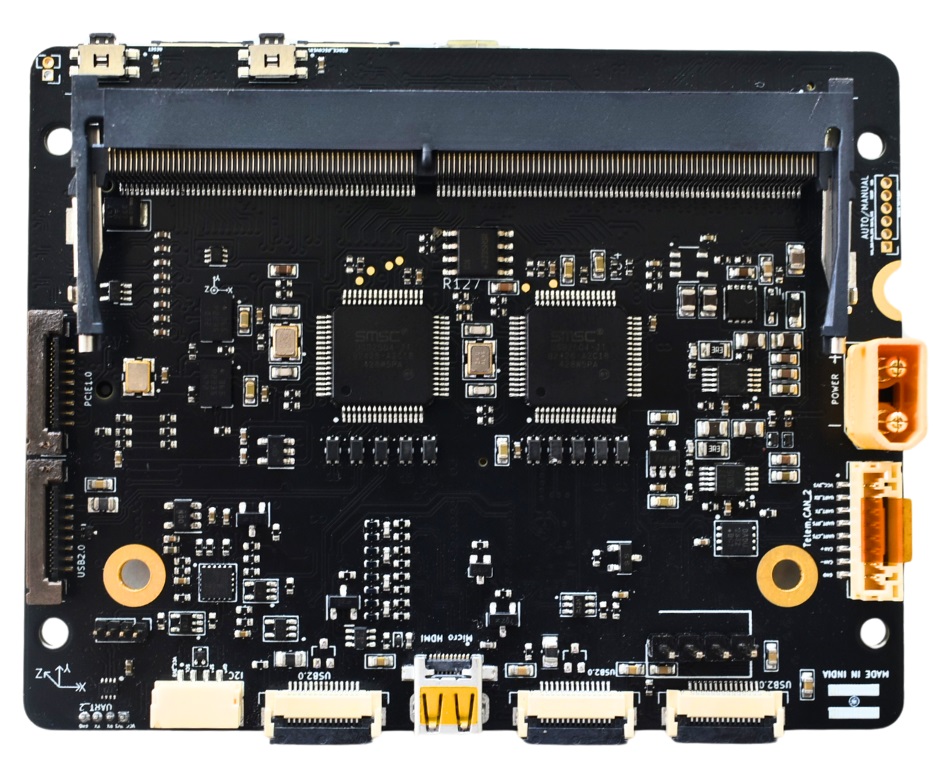

VECROS Jetcore Carrier Board for Nvidia Jetson Modules - Image 5

VECROS Jetcore Carrier Board for Nvidia Jetson Modules

Original price was: $425.99.Current price is: $415.99.

Its rugged, lightweight design ensures seamless integration into drones, autonomous robots, and smart industrial systems.


Ships From: India
Supplier: VECROS TECHNOLOGIES PVT. LTD. SKU: Vecros Jetcore Carrier Board Categories: , , , , Tags: , , , , More From:

VECROS Jetcore Carrier Board for Nvidia Jetson Modules

JetCore is a compact, high-performance carrier board designed to unlock the full potential of NVIDIA Jetson Orin NX and Orin Nano modules, making it ideal for edge AI, robotics, and embedded vision applications. Engineered for reliability and versatility, JetCore features a rich set of industrial-grade interfaces, including Ethernet, UART, CAN, PWM, and CSI camera support, along with robust power management and expansion options. Its rugged, lightweight design ensures seamless integration into drones, autonomous robots, and smart industrial systems. It enables real-time AI inference and sensor fusion at the edge with minimal latency and maximum efficiency.

Technical Specifications

  • Jetson Compatibility: Jetson Xavier NX, Orin NX, Orin Nano, TX2 NX
  • USB Ports: 6x USB 2.0, 1x USB 3.0 (via FPC connector)
  • Networking: 1x Gigabit Ethernet (8-pin Molex)
  • Video Output: 1x Micro HDMI (Full HD, 1920×1080)
  • Camera Interface: 12-lane CSI via daughterboard connector
  • Expansion: M.2 Key M (NVMe SSD), M.2 Key E (Wi-Fi/BT)
  • Additional Interface: 2x SPI, 1x I2C, 1x UART, 1x CAN (JST GH), GPIO, PWM
  • Environmental Sensors: Onboard IMU + Temperature Sensor
  • Security: Onboard Crypto Auth IC
  • Power Supply: 12–18V DC input via XT30 connector
  • Software Compatibility: JetPack 4.x & 5.x LTS, PX4, Ardupilot, QGroundControl
  • Operating Temp: -40°C to +85°C (Industrial Grade)
  • Dimensions: 88mm x 71mm
  • Weight: 40g

Key Features

  • Broad NVIDIA Jetson Support: This product supports the Jetson Xavier NX, Orin NX (8GB/16GB), Orin Nano (4GB/8GB), Nano, and TX2 NX.
  • Rich I/O for Robotics and Vision: Includes USB 3.0 (FPC), 6x USB 2.0, Gigabit Ethernet, 12-lane CSI (via daughterboard), Micro HDMI, CAN, I2C, UART, SPI, GPIO, and PWM.
  • Integrated Environmental Monitoring: Built-in IMU and temperature sensor allow real-time awareness for SLAM and motion-sensitive tasks.
  • Secure by Design: Features an onboard crypto-authentication IC for enhanced security and data integrity.
  • Expansion and Storage: The M.2 Key-M slot supports NVMe SSDs, which are compatible with Wi-Fi/BT modules via M.2 Key-E.
  • Mission-Ready Software Support: Fully compatible with PX4, Ardupilot, and QGroundControl for autonomous system development.

Applications

  • Drones and UAVs
  • Robotics (AMRs, manipulators)
  • Industrial automation
  • AI edge processing
  • Vision-based navigation

What’s in the Box

  • 1x JetCore Carrier Board
  • Power breakout cable
  • Quick Start Guide

Warranty: 12 months from the date of purchase.

Additional information

Weight 0.220462 lbs
Dimensions 4 × 4 × 3 in
