Zero Backlash Harmonic Drive System Servo Actuator
Zero Backlash Harmonic Drive System Servo Actuator - Image 2
honpine hpjm harmonic joint motor package

Zero Backlash Harmonic Drive System Servo Actuator

Original price was: $1,860.00.Current price is: $1,740.00.

The harmonic actuator achieves highly precise motion control through integrated components, including a harmonic drive, a frameless torque motor, a brake, an encoder, and a drive unit, with optimized size and weight. It delivers higher torque, greater precision, a more compact size, and a lighter weight. We also offer customization services to meet customers’ specific requirements.

This link is for ordering the standard harmonic joint module with a 101 reduction ratio, CAN communication, a single encoder, and no brake. If you need a dual-encoder version, EtherCAT communication, a brake-equipped harmonic joint module, or a harmonic joint module with a reduction ratio other than 101, please get in touch with us before placing your order to select the correct size.

Visit the Honpine Store


Ships From: China
Brand: Honpine
0 Followers Follow
SKU: HPJM-RE70-90-PRO-XX Categories: , , Tags: , , , ,
Report an issue with this product or seller

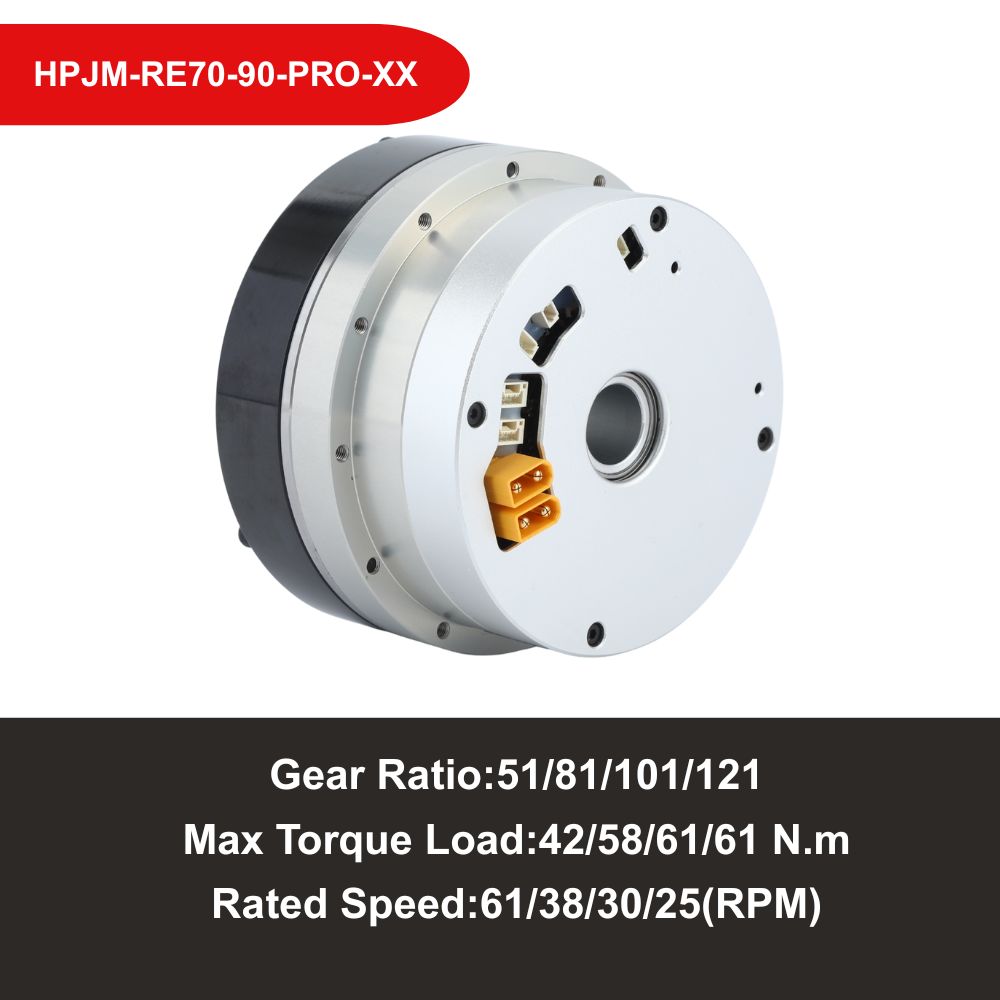

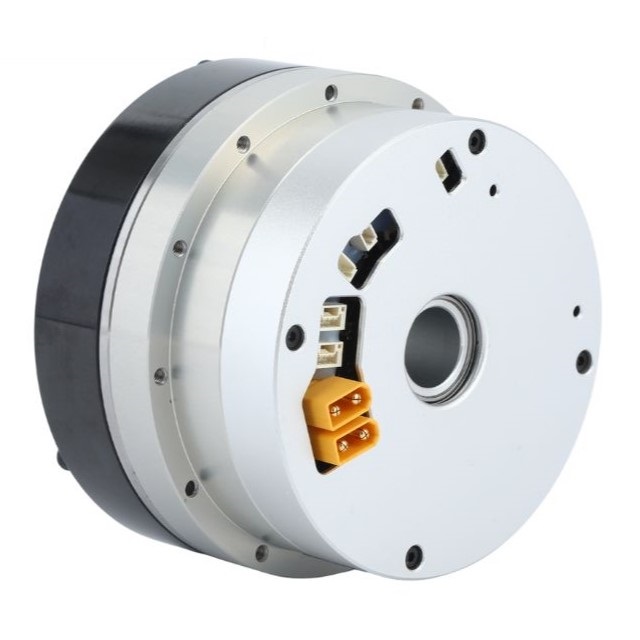

Zero Backlash Harmonic Drive System Servo Actuator  HPJM-RE70-90-PRO-XX

The harmonic actuator achieves highly precise motion control through integrated components, including a harmonic drive, frameless torque motor, brake, encoder, and drive unit, with optimized size and weight. It delivers greater torque, higher precision, a more compact size, and a lighter weight. We also offer customization services to meet customers’ specific requirements. Robot Joint Motors typically support a wide voltage range, from DC24V to DC48V. As a core component in the robotics industry, advances in Robot Joint Motors will continue to drive the development of specialized and humanoid robots toward greater flexibility and broader applications. Beyond robotics, Robot Joint Motors are also applied in semiconductor equipment, photovoltaic equipment, precision medical equipment, 3C equipment, optical equipment, and other fields.

Core Components

  • Power Unit (Frameless Torque Motor): Provides high torque density and a compact structure, suitable for high-dynamic-load scenarios.
  • Harmonic Drive: Achieves speed reduction and torque multiplication, featuring zero backlash and high precision (backlash controlled within 20 arcsec).
  • Dual Encoders (Motor-side + Output-side): Support full closed-loop control with repeat positioning accuracy of ±10 arcsec.
  • Temperature Sensor: Monitors load and environmental status in real time to enhance safety and adaptability.
  • Embedded Drive Unit: Supports protocols like EtherCAT and CANopen, enabling dynamic PID adjustment.

Features

  • Superior precision & zero backlash
  • High Precision and Zero Backlash

Zero-backlash design eliminates the transmission clearance of traditional reducers, achieving repeat positioning accuracy of ±10 arcsec and absolute positioning accuracy of ±30 arcsec, making it suitable for precision motion control scenarios (e.g., surgical robots, collaborative robotic arms).

3D Conjugate Dual-Arc Tooth Profile Technology

Optimizes tooth profile structure, reduces vibration and noise, improves transmission stiffness and service life, and enables smoother, more precise robot movements.

  • Highly Integrated, Compact, and Lightweight Design
  • Compact size and lightweight

The high integration of the harmonic drive and frameless torque motor creates a compact structure, suitable for space-constrained applications (e.g., robot wrists, head joints).

  • Lightweight material application: Uses high-strength aluminum alloy, carbon fiber, and other lightweight materials to reduce weight and improve the robot’s energy efficiency and flexibility.
  • High Transmission Efficiency: Transmission efficiency exceeds 80%, reducing energy loss and supporting efficient power transmission under dynamic load changes.
  • High Safety and Reliability: Torque sensor integration (customizable). Supports collision detection and drag teaching functions, enhancing the safety of human-robot collaboration.
  • Impact resistance and long service life: The harmonic drive can withstand high-load emergency stops and is designed for a precision lifespan exceeding 10,000 hours, making it suitable for harsh industrial environments.
  • Intelligent Integration and Control: Embedded controller with multi-protocol compatibility, supporting communication protocols such as EtherCAT and CANopen, enabling dynamic PID adjustment.
  • Modular design: Standardized interfaces facilitate quick integration and maintenance.

Specifications

Joint Model Number
(Red mark indicates module outer diameter)		 Gear Ratio Rated Torque @2000RPM
(N.m)		 Max Allowable Torque
At Average Load
(N.m)		 Impact  Torque
(N.m)		 Rated Speed
(With 1/2 Rated Torque)
(RPM)		 Peak Speed
(RPM)		 Rated Power
(W)		 Supply Voltage
(V)		 Rated Current
(A)		 Max Continuous
Current
(A)		 Encoder Resclution
(bit)		 Torque Constant
(N.m/A)		 Gear Backlash
(arcsec)		 Communication  Bus Hollow Shaft
(mm)
PRO Series HPJM-RE30-40-PRO-XX 51/101 1.8/2.8 2.3/3.3 3.3/4.8 90/45 118/59 36 24-48 1 2 216 ( 65,536 ) 0.024 40/40 CAN/EtherCAT 6
HPJM-RE40-52-PRO-XX 51/101 4/6.5 5.5/8.9 8.3/11 80/40 118/59 90 24-48 2 3 216 ( 65,536 ) 0.05 40/30 CAN/EtherCAT 12
HPJM-RE50-60-PRO-XX 51/81/101 6.6/9.6/9.6 8.6/13.5/13.5 23/29/34 75/46/37 97/61/49 150 24-48 3.6 5 216 ( 65,536 ) 0.089 20/20/10 CAN/EtherCAT 12
HPJM-RE50-70-PRO-XX 51/81/101 6.6/9.6/9.6 8.6/13.5/13.5 23/29/34 75/46/37 97/61/49 150 24-48 3.6 5 216 ( 65,536 ) 0.089 20/20/10 CAN/EtherCAT 12
HPJM-RE60-70-PRO-XX 51/81/101/121 19.8/27.5/30/30 32/33/49/49 42/53/66/66 68/43/34/24 82/51/41/32 300 24-48 5 6.7 216 ( 65,536 ) 0.096 20/20/10/10 CAN/EtherCAT 18
HPJM-RE60-80-PRO-XX 51/81/101/121 19.8/27.8/30/30 32/33/49/49 42/53/66/66 68/43/34/24 82/51/41/32 300 24-48 5 6.7 216 ( 65,536 ) 0.096 20/20/10/10 CAN/EtherCAT 18
HPJM-RE70-80-PRO-XX 51/81/101/121 32/42/50/50 42/58/61/61 63/91/102/108 61/38/30/25 77/48/40/30 500 24-48 6.1 8.4 216 ( 65,536 ) 0.118 20/20/10/10 CAN/EtherCAT 18
HPJM-RE70-90-PRO-XX 51/81/101/121 32/42/50/50 42/58/61/61 63/91/102/108 61/38/30/25 77/48/40/30 500 24-48 6.1 8.4 216 ( 65,536 ) 0.118 20/20/10/10 CAN/EtherCAT 18
HPJM-RE80-97-PRO-XX 51/81/101/121/161 48/78/84/84/84 68.8/107/133/133/133 121/169/194/207/217 54/35/27/23/17 65/43/36/30/22 750 24-48 9 10.4 216 ( 65,536 ) 0.143 20/20/10/10/10 CAN/EtherCAT 27
HPJM-RE80-110-PRO-XX 51/81/101/121/161 48/78/84/84/84 68.8/107/133/133/133 121/169/194/207/217 54/35/27/23/17 65/43/36/30/22 750 24-48 9 10.4 216 ( 65,536 ) 0.143 20/20/10/10/10 CAN/EtherCAT 27
HPJM-RE100-120-PRO-XX 51/81/101/121/161 94/146/169/169/168 120/185/267/267/267 267/376/411/436/459 44/29/22/18/12 55/37/29/24/18 1000 24-48 15.8 16.9 216 ( 65,536 ) 0.175 20/20/10/10/10 CAN/EtherCAT 32
HPJM-RE100-142-PRO-XX 51/81/101/121/161 94/146/169/169/168 120/185/267/267/267 267/376/411/436/459 44/29/22/18/12 55/37/29/24/18 1000 24-48 15.8 16.9 216 ( 65,536 ) 0.175 20/20/10/10/10 CAN/EtherCAT 32
HPJM-RE110-145-PRO-XX 51/121/161 169/363/363 255/586/586 532/802/841 22/12/7 34/14/10 1500 24-48 14.1 30.2 216 ( 65,536 ) 0.293 20/20/10 CAN/EtherCAT 40
HPJM-RE110-170-PRO-XX 51/121/161 169/363/363 255/586/586 532/802/841 22/12/7 34/14/10 1500 24-48 14.1 30.2 216 ( 65,536 ) 0.293 20/20/10 CAN/EtherCAT 40
Specifications are for reference only. Actual dimensions subject to engineering drawings.
PRO Series hollow-shaft models support customization:
Brakes (optional)
EtherCAT/CanOPEN protocols
Low-temperature operation (-40°C)





Additional information

Weight 0.46 lbs
Dimensions 4.92 × 4.92 × 7.09 in
