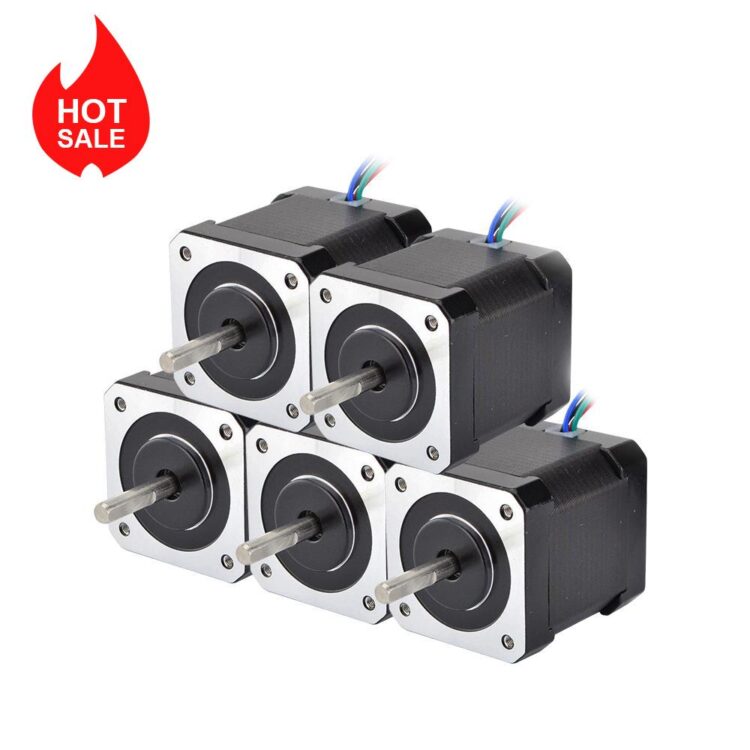

5pcs Nema 17 Bipolar 59Ncm 84oz.in 2A 42x48mm 4 Wires with 1m Cable and Connector

Original price was: $70.43.Current price is: $66.80.

It’s ideal for 3D printers and CNC and robotics applications.


Ships From: China

Supplier: StepperOnline SKU: 5-17HS19-2004S1 Categories: , , Tags: , ,

5pcs Nema 17 Bipolar 59Ncm (84oz.in) 2A 42x48mm 4 Wires with 1m Cable and Connector

This is an updated Nema 17 stepper motor with a holding torque of 59Ncm(83.6oz. in). Based on the old version, we have lengthened the motor cable to 1 meter and added a 4-pin 0.1″ pitch (2.54mm) Harwin female connector at the end of the cable. It’s a good idea for 3D printers, CNC, and robotics applications.

Specifications

  • Manufacturer Part Number: 17HS19-2004S1
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 59Ncm(84oz.in)
  • Rated Current/phase: 2.0A
  • Voltage: 2.8V
  • Phase Resistance: 1.4ohms
  • Inductance: 3.0mH ± 20%(1KHz)
  • Physical Specification
  • Frame Size: 42 x 42mm
  • Body Length: 47mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 390g
