Adeept Robot HAT for Raspberry Pi, Expansion Board for Raspberry Pi 5/4B/3B/3B+

Original price was: $37.99.Current price is: $29.99.

Adeept Robot HAT for Raspberry Pi is designed for DIY projects and educational needs. The Adeept Robot HAT V3.1 is a motor and sensor driver HAT that supports Raspberry Pi 5, Pi 4, and Pi 3 models.


Ships From: China

Supplier: Adeept SKU: ADM133-V3.1 Categories: , , , Tags: , , ,

Adeept Robot HAT for Raspberry Pi, Expansion Board for Raspberry Pi 5/4B/3B/3B+

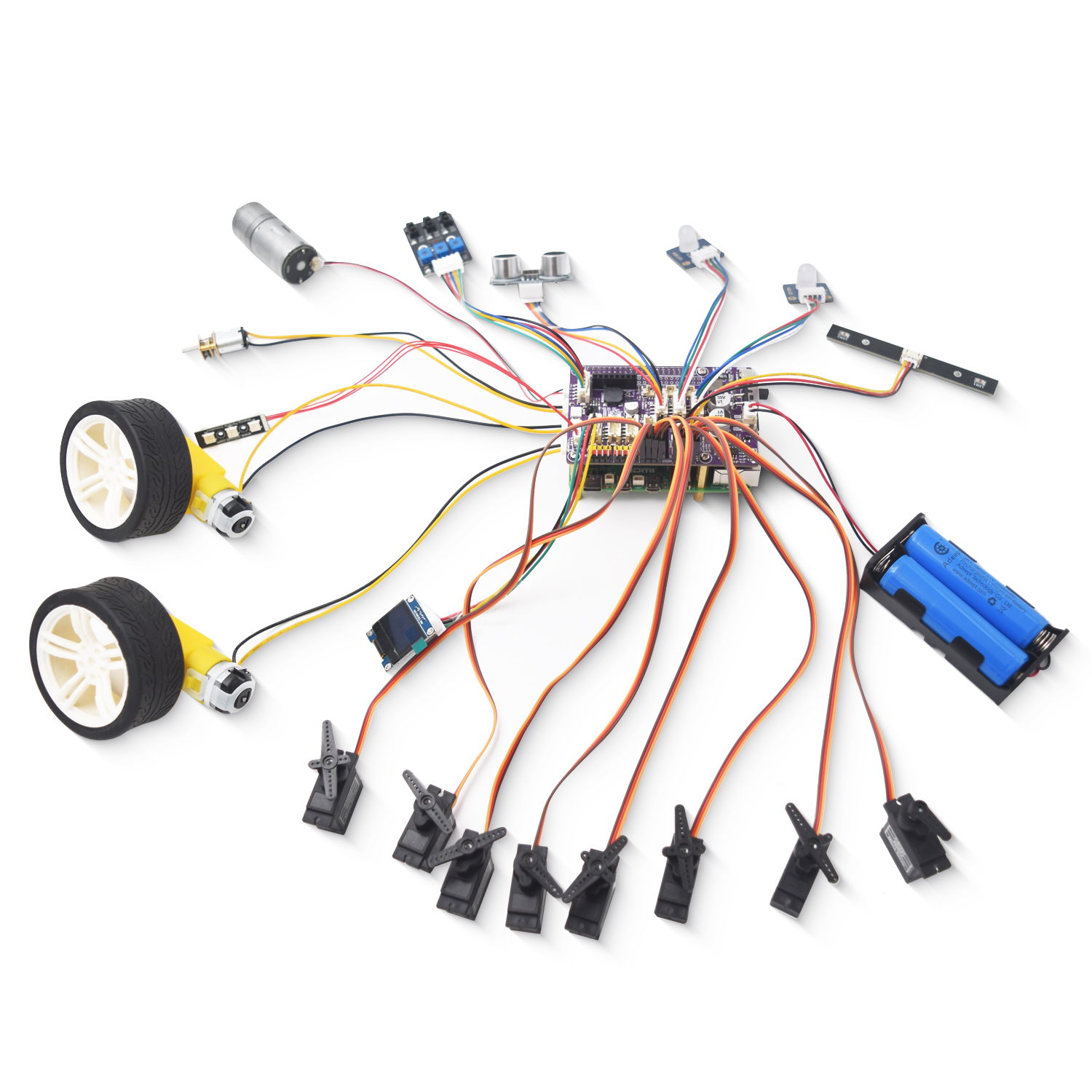

The Adeept Robot HAT V3.1 is a motor and sensor driver HAT that supports Raspberry Pi 5, Pi 4, and Pi 3 models. The board features a bunch of headers that give access to sensor and motor controllers, including 16 servo motor ports, a 3-CH line tracking sensor, an ultrasonic sensor, IR receivers, WS2812 RGB LEDs, and more. Additionally, the board features an integrated 8.4V battery charger with a USB-C port for charging. All these features make it easy to build DIY robotics and smart car projects with this HAT.

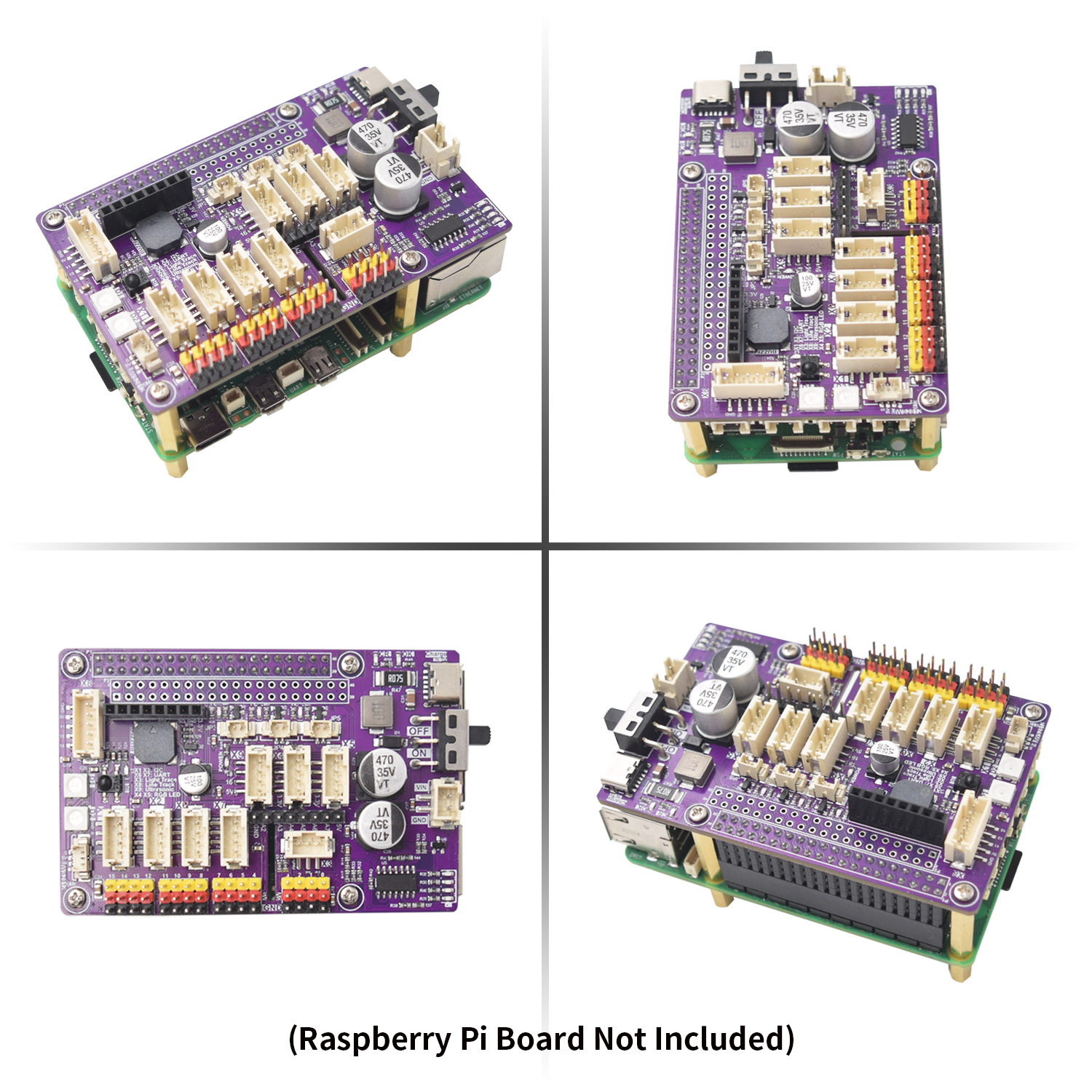

Adeept Robot HAT V3.1 is a robot driver board that must be used with a Raspberry Pi. It is compatible with Raspberry Pi 5/4B/3B/3B+. With it, you can easily DIY your Raspberry Pi robot, smart car, etc.

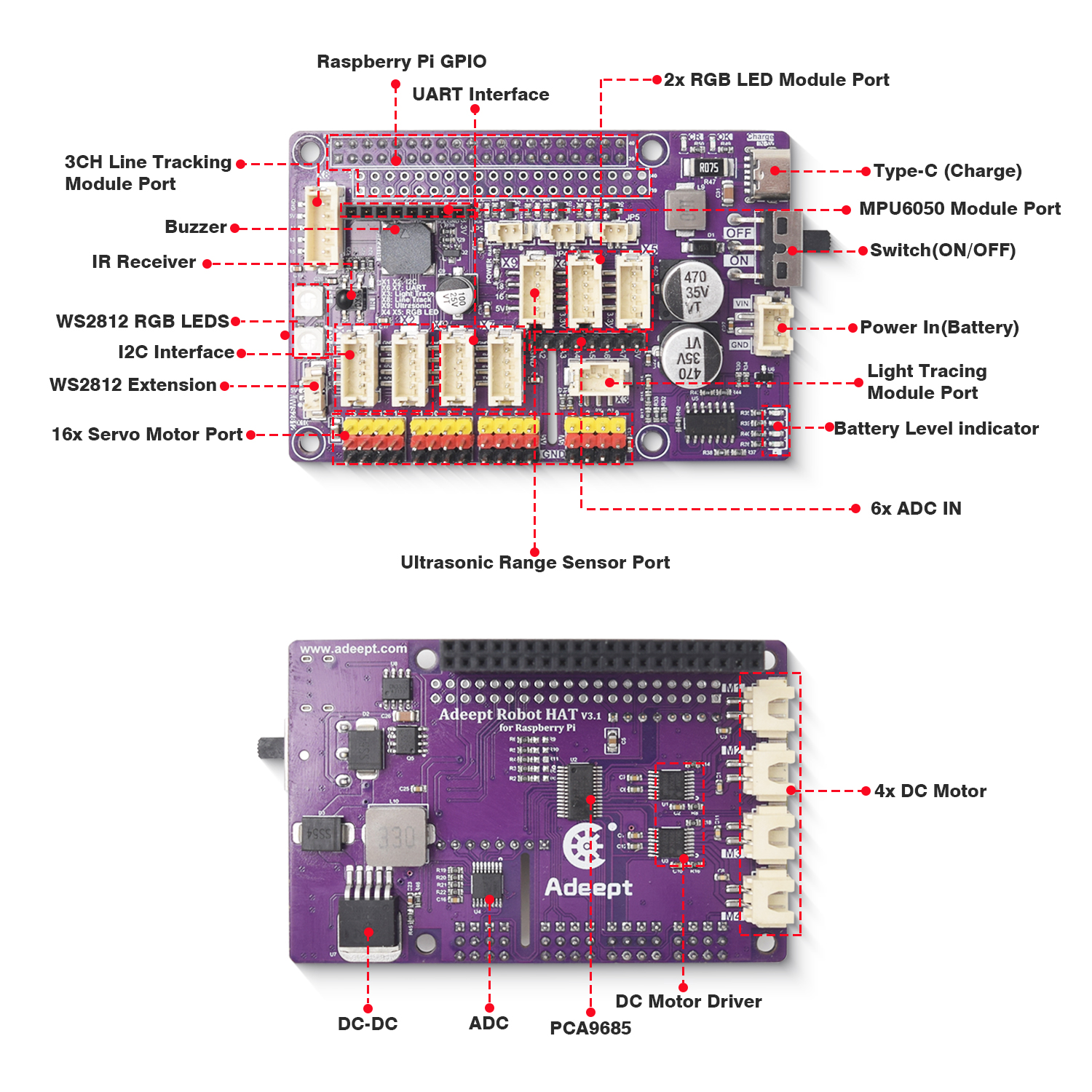

Adeept Robot HAT V3.1 Specifications:

  • HAT Name – Adeept Robot HAT V3.1
  • Interfaces and Ports
    • RGB LED
      • 2x RGB LED ports
      • 2x WS2812 RGB LEDs onboard
      • 1x WS2812 extension header
    • Sensor Interface
      • 3-CH Line following sensor port
      • Ultrasonic range sensor port
      • MPU6050 6-axis (gyro + accelerometer) port
      • Light tracing sensor port
      • IR receiver
    • Motor Drivers
      • 4x High power DC motor driver
      • 16x Servo motor driver with PCA9685
    • Communication
      • 1x UART port for communication and debug
      • 1x I2C interface port
    • USB- 1x USB-C port for charging only
  • Misc
    • 1x Onboard battery level indicator
    • 1x Buzzer
    • 6x ADC
    • 1x Integrated DC-DC converter
  • Power – 1x 8.4V battery power input port with charger
  • Dimensions – Not Mentioned (Raspberry Pi HAT compatible)

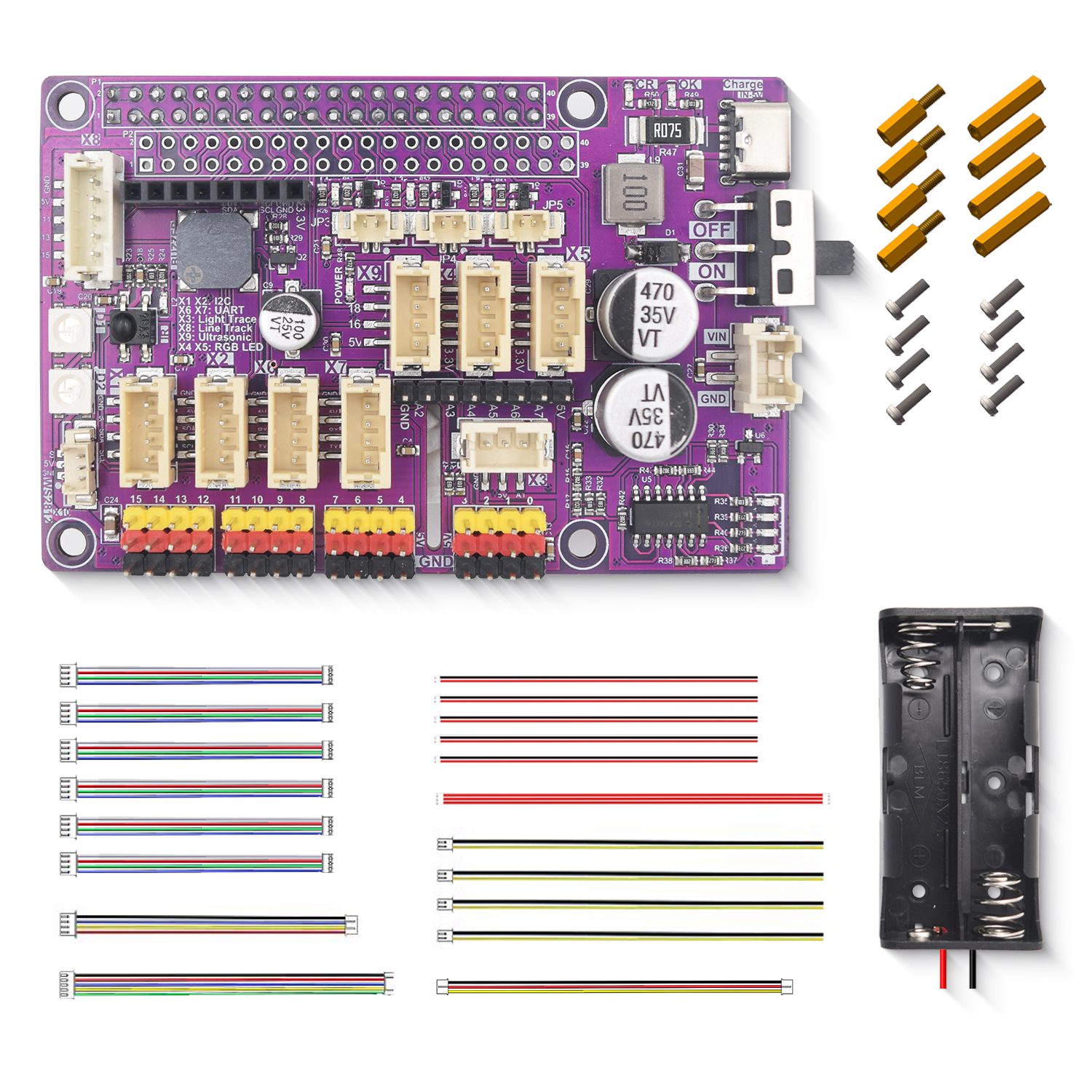

Package List:
1x Adeept Robot HAT V3.1(Purple)
1x Battery Holder
1x Screws, Nuts, Copper Standoff Set
1x Wires Set
