Sale!

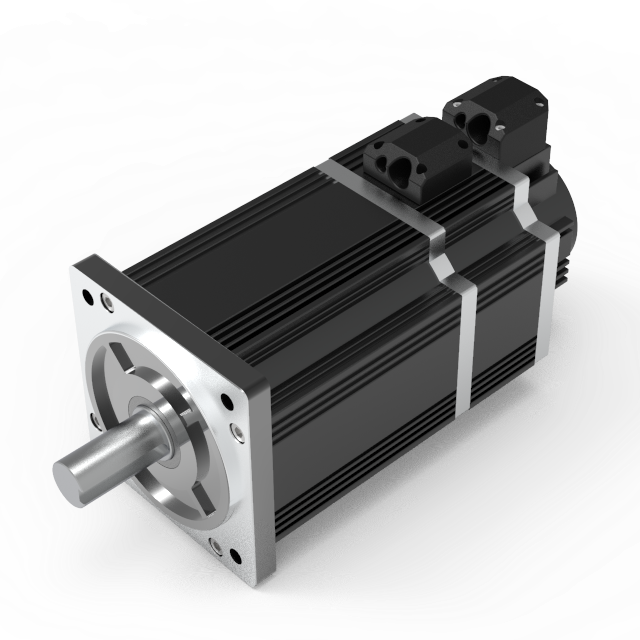

BLDC Servo Motor with Encoder and Brake for AGV, RGV and Robots – 80mm Flange 48VDC 750W 3000RPM 2.39N.m

Original price was: $140.00.Current price is: $130.00.

Rated Voltage
48VDC
Rated Power
750W
3000Rated speed
3000RPM
Rated Torque
2.39Nm
Rated Current
19.9AMPS
Number of pole Pairs
10Pairs
Environment Temperature
-25℃~50℃
Protection level
IP54
Insulation Level
H
Feedback Parts
2500PPR Incremental encoder
Weight
2.8kg


Ships From: China

Supplier: Keya DC Motors SKU: KY80ACS0407-30 Categories: , , , , Tags: , More From:

BLDC Servo Motor with Encoder and Brake for AGV, RGV and Robots – 80mm Flange 48VDC 750W 3000RPM 2.39N.m

A servo motor is a rotational or translational motor to which a servo amplifier supplies power and serves to apply torque or force to a mechanical system, such as an actuator or brake. Servo motors enable precise control over angular position, acceleration, and velocity. This type of motor is associated with a closed-loop control system. A closed-loop control system considers the current output and alters it to the desired condition. The control action in these systems is based on the motor’s output. It uses a positive feedback system to control the shaft’s motion and final position.

A lower temperature rise is conducive to the user’s overall heat dissipation design. *Higher torque overload capacity; more conducive to the application of various mobile robots. *High efficiency, significantly extending battery life. *Low speed and high torque effectively reduce the wear on the speed reduction mechanism and prolong the service life of the reduction mechanism. *Smaller vibration and lower noise make users more comfortable. *The insulation class of the motor is H, which effectively prolongs the service life of the motor and ensures excellent overload capacity.

Parameters
KY80ACS0407-30
Rated Voltage
48VDC
Rated Power
750W
3000Rated speed
3000RPM
Rated Torque
2.39Nm
Rated Current
19.9AMPS
Number of pole Pairs
10Pairs
Environment Temperature
-25℃~50℃
Protection level
IP54
Insulation Level
H
Feedback Parts
2500PPR Incremental encoder
Weight
2.8kg
The motor can have a brake(Let me know if you need)
Rated Voltage
24VDC
Rated Power
11.5W
Braking Torque
50N.m
Rated Current
1.5A(at 20℃)
Braking Condition
Brake when the power is off

Related Products






Model
Rated power/w
Rated volt/V
Rated speed/rpm
Rated Current/A
Rated Torque/N.m
KY80AS020-15
200W
24V/48V
1500rpm
9.4A/4.7A
1.27N.M
KY80AS0204-15
400W
24V/48V
1500rpm
21.3A/10.6A
2.55N.m
KY80AS0204-30
400W
24V/48V
3000rpm
18.8A/9.4A
1.27N.m
KY110AS0405-15
500W
24V/48V
1500rpm
28A/14A
3.1N.m
KY110AS0408-15
800W
24V/48V
1500rpm
44A/22A
5.0N.m
KY110AS0410-15
1000W
24V/48V
1500rpm
52A/28A
6.3N.m
KY110AS0412-25
1200W
48V
2500rpm
33A
4.5N.m
KY110AS0415-15
1500W
48V
1500rpm
37.5A
9.5N.m
KY110AS0415-30
1500w
48V
3000rpm
37.5A
4.7N.m
KY110AS0420-25
2000w
48V
2500rpm
 55A
7.6N.M
KY130AS0430-15
3000W
48V
1500rpm
73A
19.1N.m

Recommended Driver Controller


  • KYDBL4850-1E
  • KYDBL4850-2E
  • Voltage: 10-55V
  • Continue output current:30A
  • Maximum peak output current: 50A
  • KYDAS4601A
  • KYDAS4602A
  • Voltage: 48V
  • Continuous output current:30A
  • Maximum peak output current: 60A

Wiring Definition

Motor
Encoder
MA/U
MB/V
MC/W
5V
A
B
Z
Hall A/U
Hall B/V
Hall C/W
Red
Gray
Green
Yellow
Brown
Blue
Orange
Yellow
Green
Blue
0V
A-
B-
Z-
Hall A/U-
Hall B/V-
Hall C/W-
Black
White/
Gray
White/
Green
White/
Yellow
White/
Brown
White/
Blue
White/
Orange
Shielded Wire
Black (thick)
Brake
Two black cables, regardless of whether they are positive or negative.

Products Application Cases Display

This series servo motor is our company’s latest research and development item, has good customer feedback, is widely used in all kinds of intelligent robots, for example: Robotics, Automated Guided Vehicles (AGV), Aerial work platform vehicles, Unmanned Aerial Vehicles (UAV) / Drones, Remote Control Cars / Boats, and Medical Devices.
