Bluetooth 5.0 Mesh Module Long Range 100M with High Performance for Wireless Mesh Networking

$21.99

  • Standard: 5.0 BLE
  • Working Frequency: ISM frequency band 2.402~2.480GHz
  • Antenna: Onboard ceramic antenna or external antenna
  • Effective Distance: 100M in the open air
  • Protocol: Mesh, GAP, GATT
  • Maximum connection number via GATT: 1
  • Communication Port: Standard UART, maximum data transmission is 240B per time.
  • Power consumption: 15mA
  • Maximum Server number that the Client can store: 512
  • Size: 31.8*14.5mm

Bluetooth 5.0 Mesh Module Long Range 100M with High Performance for Wireless Mesh Networking

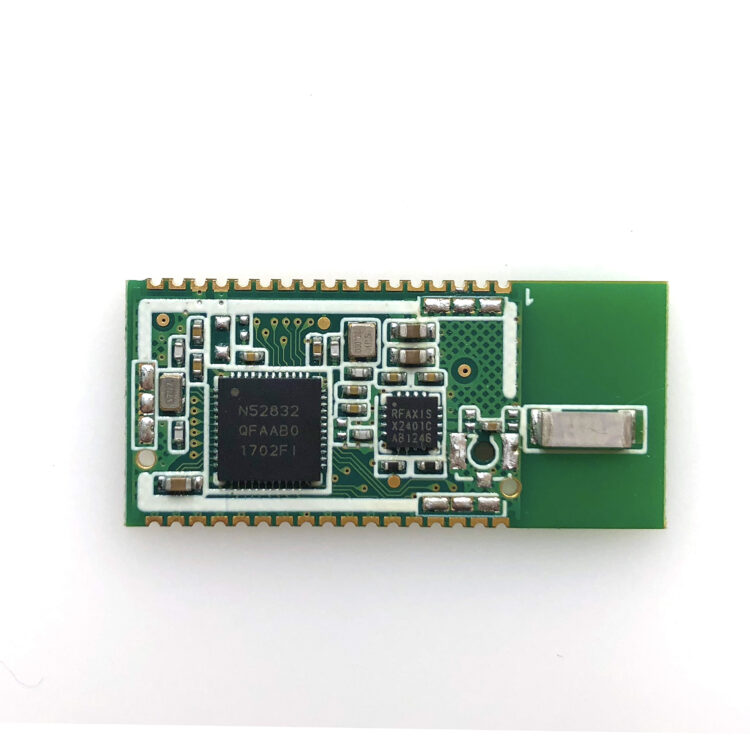

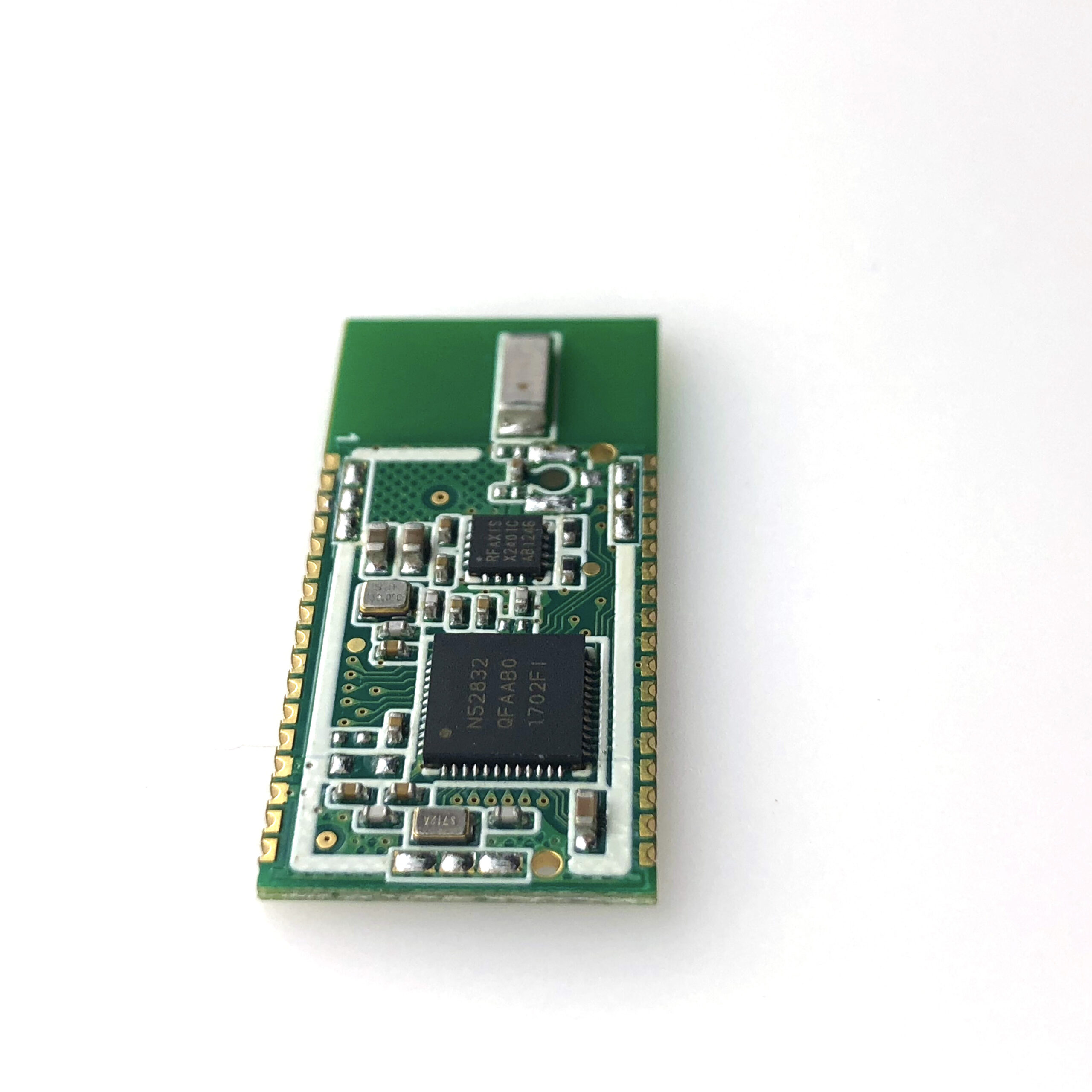

This Bluetooth mesh module, BLE0405C1P, uses a Nordic 52832 BLE chipset. It supported Bluetooth 5.0 protocol. The overall performance is optimized and smart. It is ideal for innovative home applications. The module has two roles. Both roles contain a GATT Server and can be connected by other GATT Client devices (for example, phone)

  • Server: Waiting for other Client devices to find and add to the Mesh network.
  • Client: Initiate scan and add Server device to Mesh network
  • Users can set module parameters via UART or use the GATT controller device.

Applications

  • Bluetooth remote control lock
  • Hospital monitory equipment
  • Smart wearable devices
  • Smart home
  • Bluetooth electronic weight
  • Bluetooth printer
  • Bluetooth mouse, keyboard, joystick, and other consumer electronic devices
  • Sports fitness equipment
  • Bluetooth anti-loss device
  • Bluetooth self-timer
  • Bluetooth remote control device
  • Bluetooth tag, beacon
  • Bluetooth bracelet, watch
  • Bluetooth blood pressure meter, blood glucose meter
  • Weight: About 2g

What’s Included

  • Module
  • USB disk (including User manual and testing APP).

Product Warranty: One year
