Long Range Bluetooth RS232 Serial Adapter 100M Wireless Data Transmission for Electronic Scale

Original price was: $81.99.Current price is: $79.99.

  • Applications: These are used in smartphones, barcode readers, PLC, SCADA, etc.
  • Maximum connection number: 7 agent devices.

This product has two DB9 ports: BTS4504C1H (male) and BTS3804C1H (female). Please note on the checkout page which option you want us to ship.


Made In: China

Supplier: Oemblue SKU: Bluetooth RS232 Serial Adapter Categories: , , Tags: , , , ,

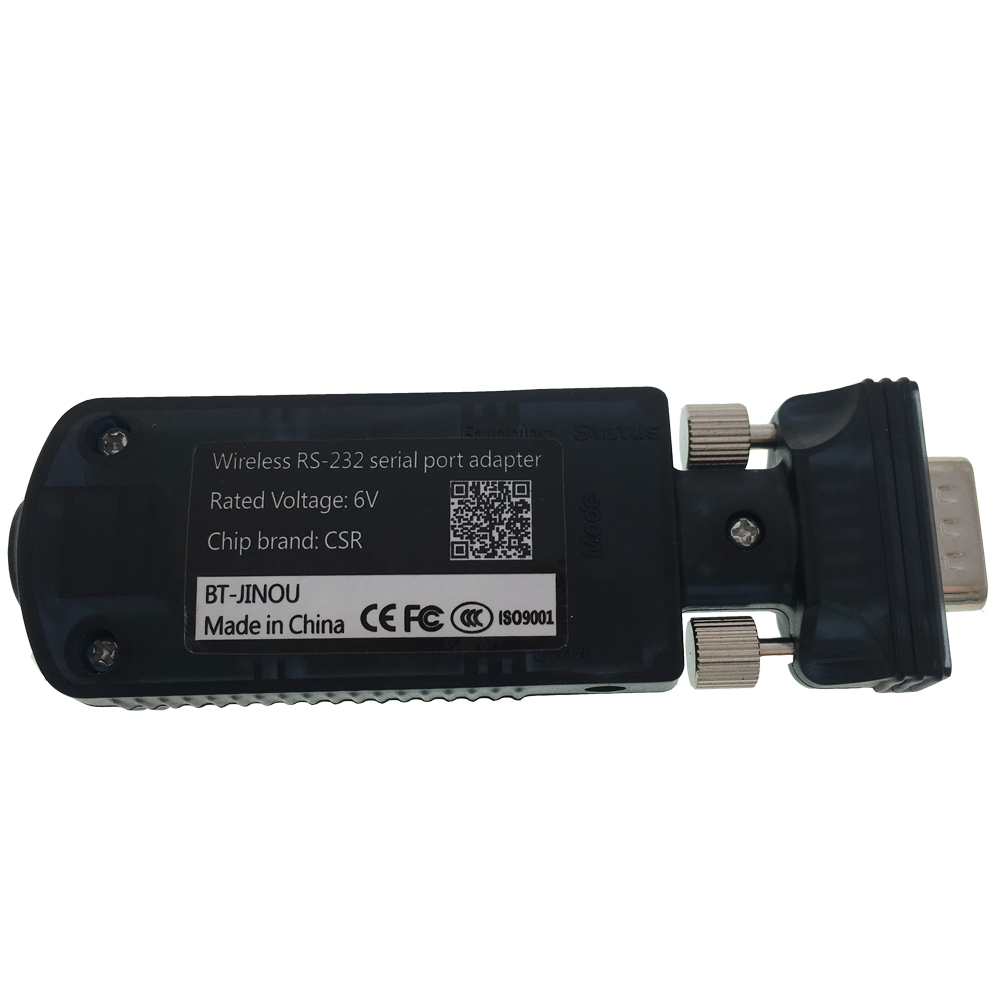

Long Range Bluetooth RS232 Serial Adapter 100M Wireless Data Transmission for Electronic Scale

Bluetooth RS232 adapter can be applied to all home appliances, equipment (such as medical treatment equipment), and other electronic information products. As a cable replacement program, it can connect the single-chip processor or processor directly via PnP mode to transparently achieve wireless data transmission among equipment. Bluetooth RS232 adapter can also be used independently, excluding using by match.

Technical Specifications

  • Interface: RS232
  • Operating Frequency: ISM Frequency 2.400~2.483GHz
  • Spectrum extensions: FHSS
  • Protocol: LM, LC, L2cap , SDP , RFCOMM
  • Support services: Bluetooth Serial Port Profile (SPP)
  • Baud rate: 1.2K~1382.4Kbps
  • Connect port: Male/Female
  • Working Temperature: -20℃ ~ +70℃
  • LED indicator: Power indicating, connection status, operating mode
  • Distance:10m(Class 2),internal antenna; 100m(Class 1 ),external antenna.
  •  Size: 99(L)×34(W)×17(H) mm, without antenna

Warranty: One year

What’s Included:

  • Bluetooth serial adapter
  • Power adapter
