CA111 Wide Temperature Laser Distance Measuring Module
CA111 Wide Temperature Laser Distance Measuring Module - Image 2
CA111 Wide Temperature Laser Distance Measuring Module - Image 3
CA111 Wide Temperature Laser Distance Measuring Module - Image 4
CA111 Wide Temperature Laser Distance Measuring Module - Image 5

CA111 Wide Temperature Laser Distance Measuring Module

Original price was: $249.00.Current price is: $199.00.

Measuring Range: 0.05m~40m
It measures distance and can work within a wide temperature range, from -20C ~ 70C


Ships From: Taiwan
Supplier: Precaster SKU: CA111 Module Categories: , Tags: , , More From:

CA111 Wide Operating Temperature Module

CA111 is a compact, reliable laser distance module that operates reliably under harsh conditions. The phase-shifting reflectorless technology gives good accuracy and response time in distance measuring. It measures distance and can work within a wide temperature range, from -20C ~ 70C

Features

  • Special Class 2 Laser can measure from -20 to 70 degrees C.
  • Highly Customizable module fit for most duties.
  • Adjustable High Speed measuring up to 8Hz.
  • Digital output with I2C signal.
  • Non-Contact Measuring Low Consumption Module.

Applications

  • Robot Eyes Distance Measuring
  • Positioning and monitoring of objects
  • Security Applications Movement Detections
  • Level and elevator Measuring

Specifications

  • Single Measuring Range:0.05m~40m
  • Continuous Measuring Range:0.05m~40m
  • Measuring Frequency: Single Measuring Mode: 1Hz / Continuous Measuring Mode: 8Hz
  • Accuracy:±2mm
  • Power Source:3V
  • Power Consumption:0.3W
  • Warm-Up Time:<5 seconds
  • Laser Output Power:0.6mW~0.95mW
  • Operation Temperature:-20°C~70°C
  • Storage Temperature:-30°C~70°C

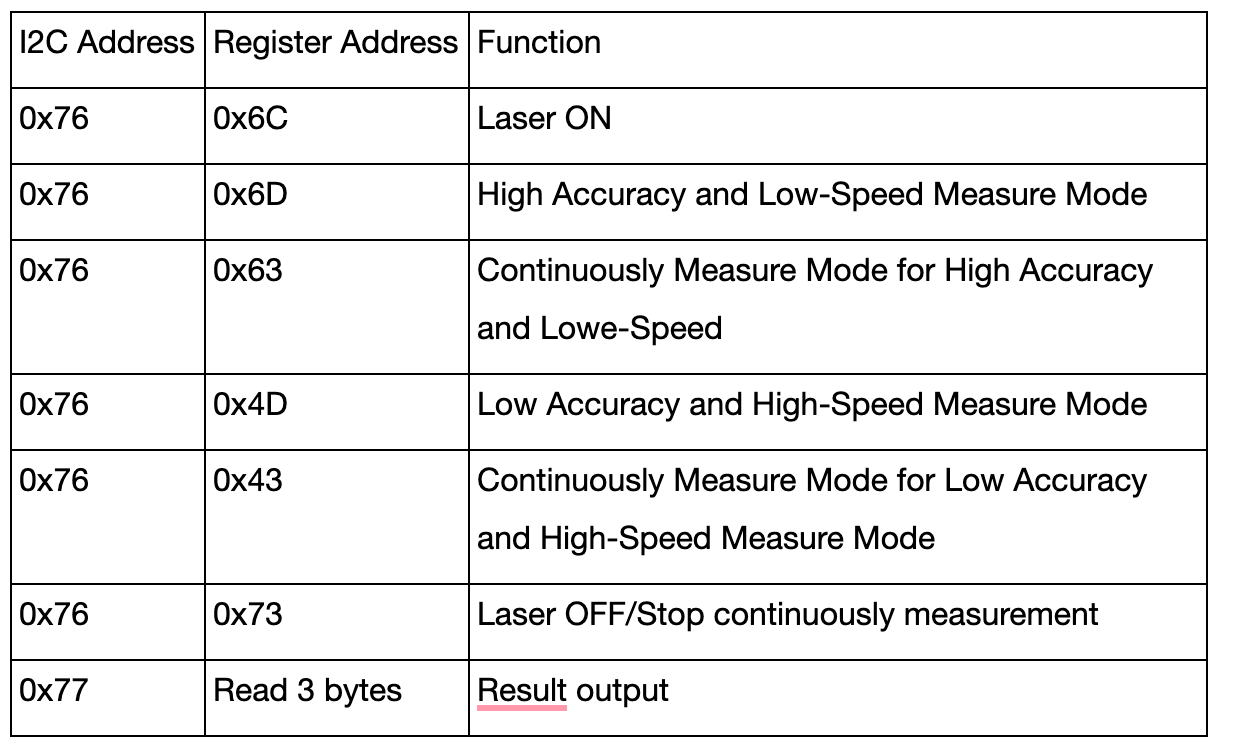

  • Output Interface: I2C

Additional information

Dimensions 3.54 × 2.28 × 1.06 in
Specifications

Measuring Range: 40 meters
