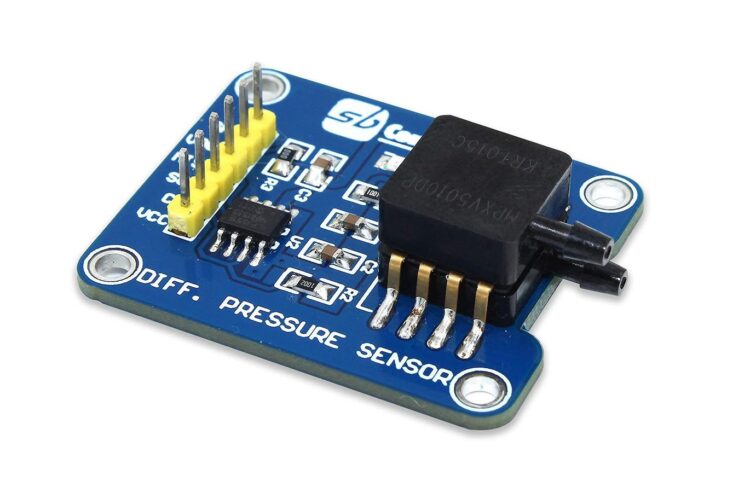

Differential Pressure Breakout Board for RPi

$89.60

Differential Pressure Breakout MPXV5010DP Sensor SPI Interface Air & Liquid Silicon Pressure Breakout for Raspberry Pi and Arduino. It is an Integrated Silicon Pressure Sensor On-Chip That Is Signal-Conditioned, Temperature-Compensated, and Calibrated. The Differential Pressure Breakout consists of two axial ports to accommodate industrial-grade tubing. In the temperature range between 0º and 85ºC, the sensor’s maximum error rate is 5.0%.


Ships From: United Kingdom (UK)

Supplier: SB Components SKU: SKU20638 Categories: , , Tags: , , , ,

Features:

  • MPXV5010DP has an analog output
  • Temperature Compensated over -40 to +125C
  • The signal passes through the onboard 22-bit ADC before being outputted through the SPI interface
  • Durable Epoxy Unibody and Thermoplastic (PPS) Surface Mount Package.

Specifications:

  • Operating Voltage: 5V
  • Operating Pressure – 1.45 psi
  • Port Type – Dual Radial Barbed
  • Port Size – 4.93 mm
  • Interface- SPI / Analog Interface
  • Measurement range- 0 to 10 kPa

Kit Content: 1 x Diff. Pressure Breakout
