EG410 IoT Gateway, Industrial Raspberry Pi CM4 with DI DO Ethernet RS485 RS232

Price range: $470.00 through $609.00

EG410-Datasheet-v1.0

Elastel EG410 is an Industrial Raspberry Pi typically used as an industrial IoT gateway for IIoT applications.

  • Powered by RPi CM4, variant RAM + eMMC editions available
  • Rich industrial interfaces and networking for flexible connectivity
  • Industrial-grade design for Reliability, CE, and FCC certified
  • Open Raspbian OS easy development, prebuilt ElastPro for OT-to-IT


Ships From: China

Brand: Xiamen Elastel SKU: EG410 Industrial Raspberry Pi Gateway Categories: , Tags: , , , , ,

EG410 IoT Gateway, Industrial Raspberry Pi CM4 with DI DO Ethernet RS485 RS232

Elastel EG410 is a high-performance industrial computer powered by Raspberry Pi CM4, designed as an IoT Gateway for IIoT applications. It offers rich industrial connectivity including 1x RS485, 1x RS232, 1x GbE, 2×DI, 2×DO, … and more. Also integrated 1x miniPCIe slots supporting 4G LTE/3G/2G/NB-IoT or LoRaWAN network. Industrial-grade design with a rugged, fanless, and compact enclosure ensures reliable operation over a wide temperature range of -25°C to +70°C, EMI/surge protection, and is backed by CE, FCC, … certifications.

industrial raspberry pi EG410

Benefit from the open Raspbian OS and its rich ecosystem, enabling flexible, easy application development for rapid PoCs and large-scale deployment. What’s more, the preloaded ElastPro software makes EG410 ready for seamless OT-to-IT integration.

Specifications

CPU Raspberry Pi CM4, Quad-core A72 (ARM v8) @ 1.5 GHz
RAM 1GB/2GB/4GB/8GB options LPDDR4
FLASH 8GB/16GB/32GB options eMMC

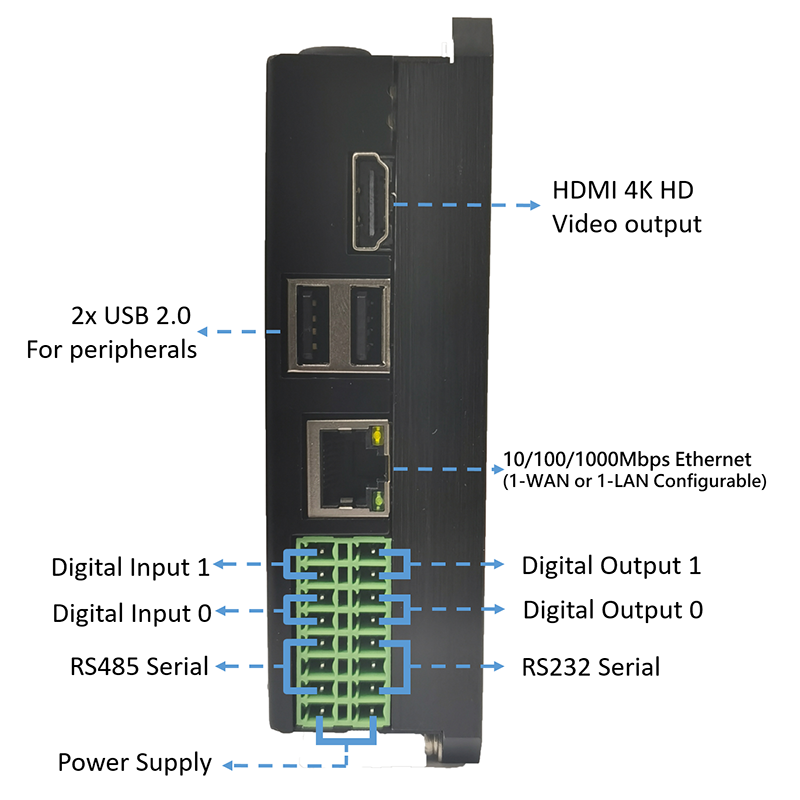

Ethernet Port 1x Gigabit Ethernet (1-WAN or 1-LAN Configurable)
Wi-Fi Dual Band 2.4GHz & 5GHz + Bluetooth 5.0
Cellular/LoRaWAN 1x mPCIe slot for 4G LTE/3G/2G/NB-IoT/CAT-M1 cellular or LoRaWAN module
Antenna Connector 2x SMA Female connectors reserved for Cellular / Wi-Fi / LoRa / GPS antennas
Serial Port (Isolated) 1x RS-232, 1x RS-485
I/O 2-channel digital input DI
2-channel digital/pulse output DO
USB Port 2x USB 2.0
HDMI 1x HDMI 2.0 (Up to 4kp60 video & audio output)
Console Port 1x USB-C for debug Console
SIM Solt 1x Micro SIM (12mm*15mm)
Power Supply 9~36V DC, recommended 24V/1A
Additional Drive 1 x M.2 socket for 2242 NVME SSD

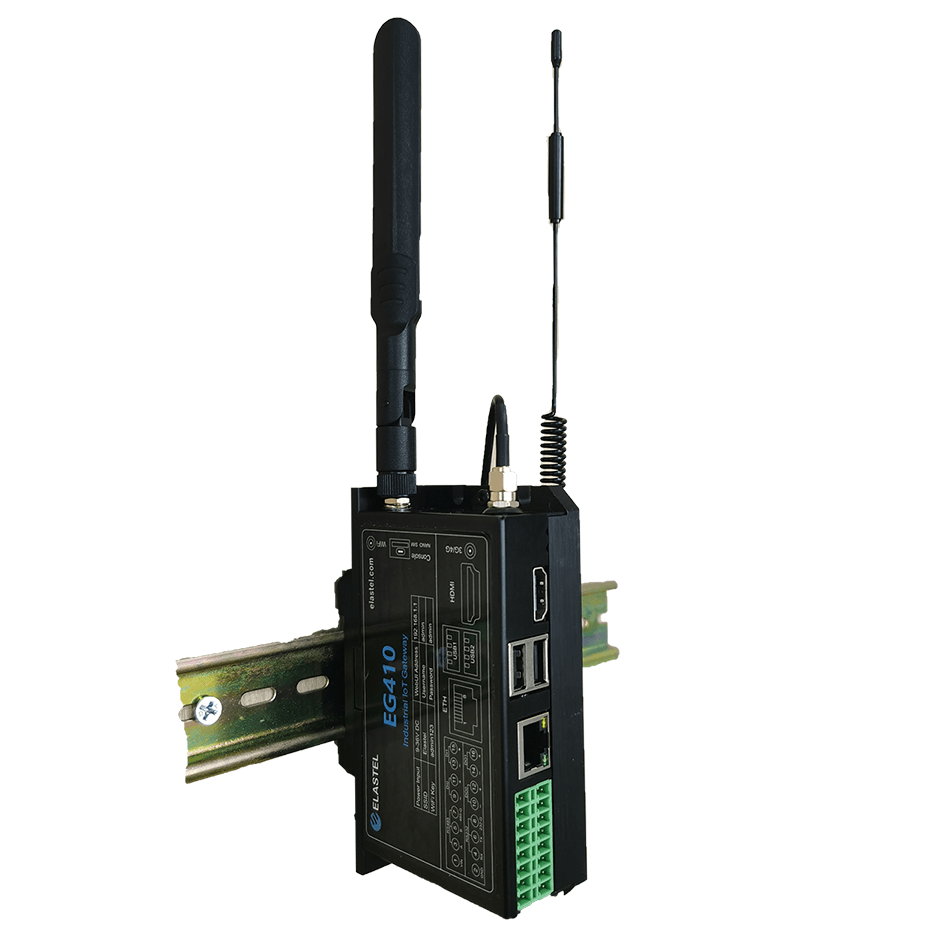

Enclosure Full Aluminum, IP30, DIN-rail
Dimension (LxWxH) 124mm x 76mm x 35mm
Weight 315g (0.69 lb)
Operating Temperature -25 ~ 70°C (industrial grade)
Watchdog Standalone Hardware Watchdog
Pre-installed OS Raspbian
OT-to-IT Data Collect and Convert Modbus RTU/ASCII/TCP Master/Slave, BACnet MSTP/IP,
IEC104, DNP3, OPC UA, EtherNet/IP, PLC protocols,
MQTT, Sparkplug B…
Secondary Development Docker, Node-Red, Codesys, Ignition,
Python, C, C++, C#, Go, Java, JavaScript.

Applications

With the Raspberry Pi CM4 running up to 1.5GHz and a flexible Linux Operating System, EG410 could be used for any of your applications and PoCs.

Edge computing Gateway: Data is collected from slave devices, analyzed, and stored. And with flexible configuration, it is perfect as a protocol and interface converter Gateway.

Industrial modem and cellular Router: With a built-in cellular module, EG410 can be configured as an industrial modem and router operating in 4G/LTE, 3G, and NB-IoT mobile networks. Easily remote access by building a VPN or a defined public IP.

Programmable Logic Controller (PLC): With Serial ports and DI & DO ports available, and with Software-defined PLC support, EG410 can easily operate as a typical PLC.

Micro Server Computer: The compact, high-reliability design with an HDMI port enables the EG410 to operate as a micro server. Raspberry Pi compatibility and Linux OS enable computer operation.

Additional information

Weight 1.15 lbs
Dimensions 4.88 × 2.99 × 1.38 in
Version

Region: EMEA/APAC, Region: North America

Specifications

2GB RAM + 8GB eMMC + WiFi, 4GB RAM + 32GB eMMC + WiFi

Options

+ 4G LTE Module, + LoRaWAN Module, + None
