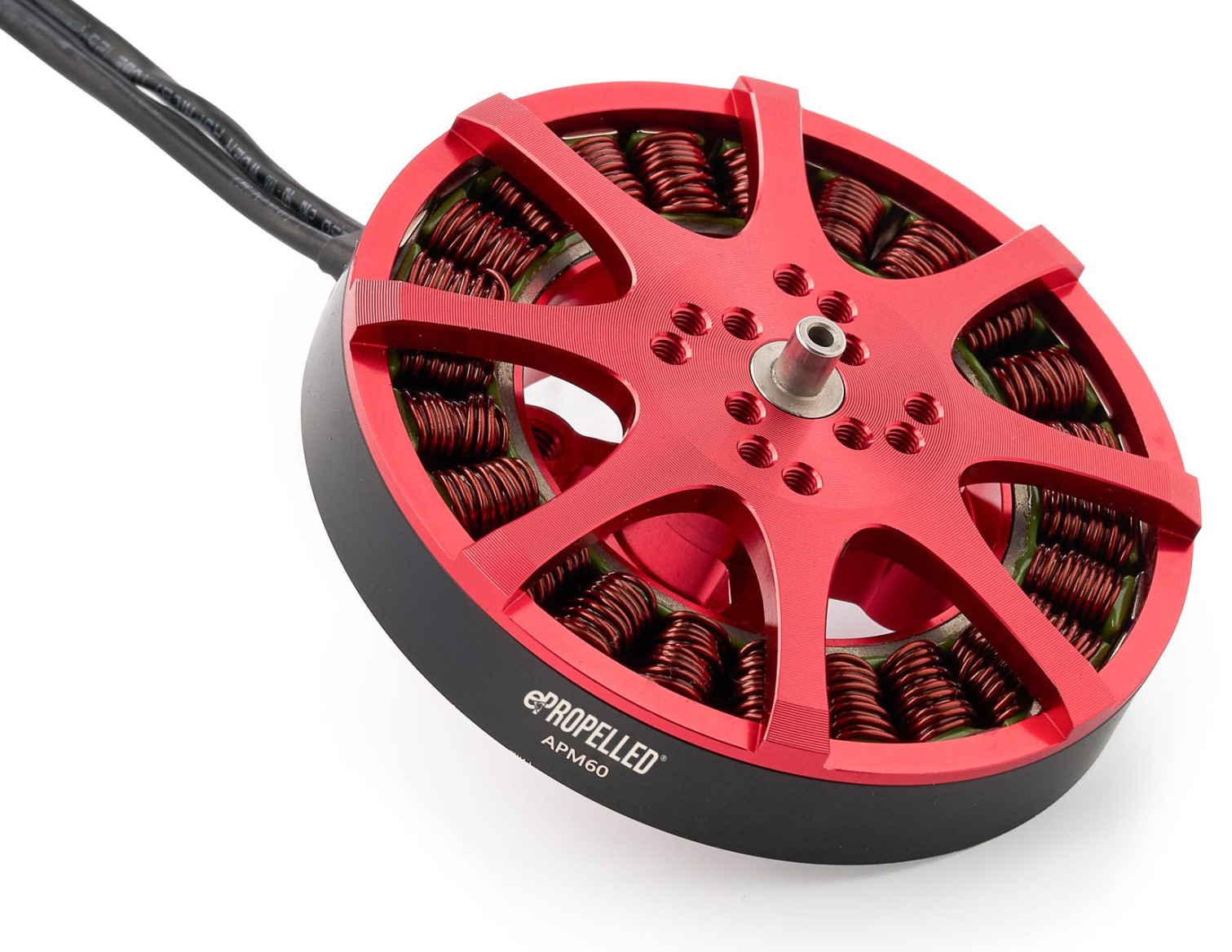

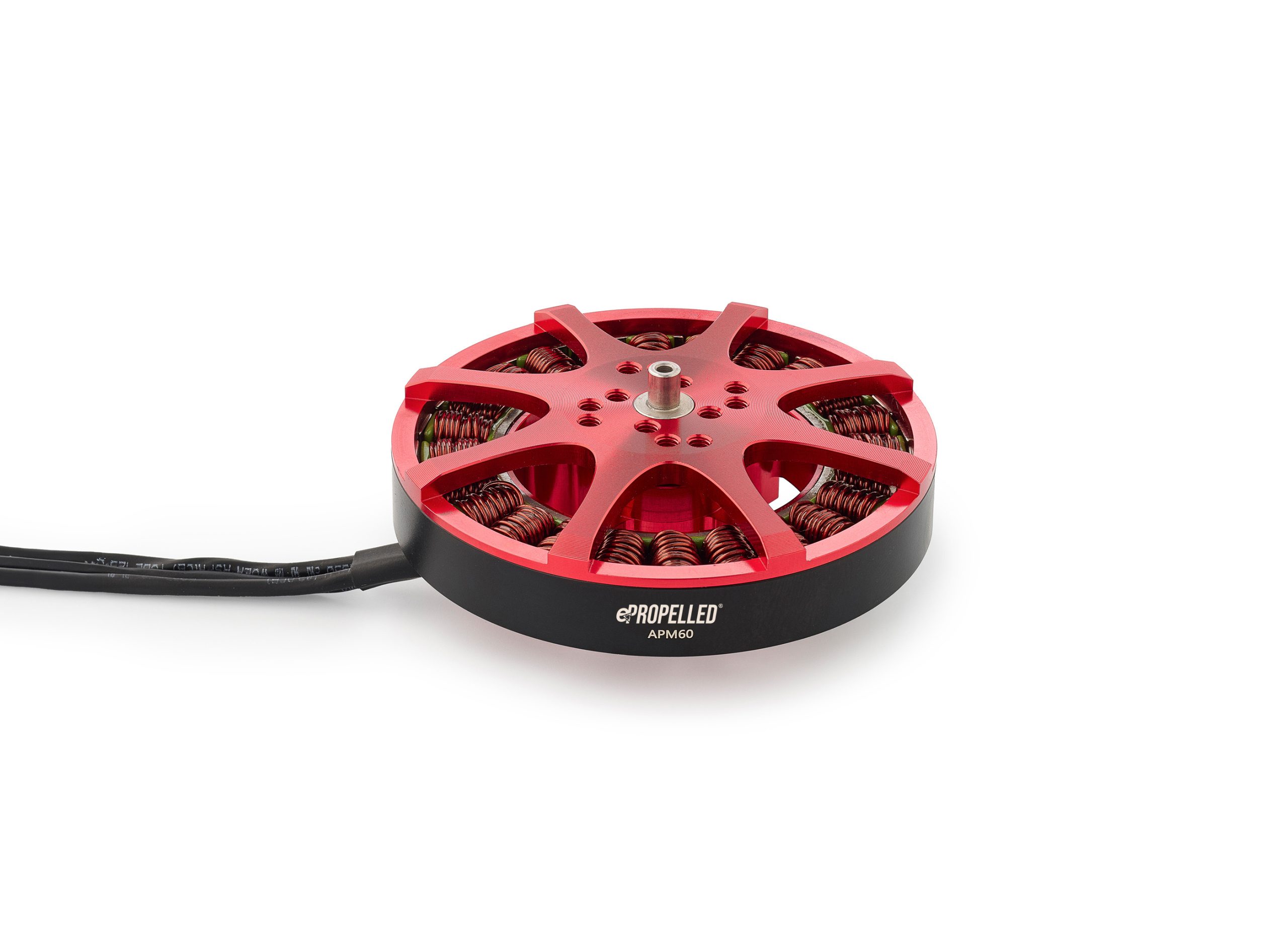

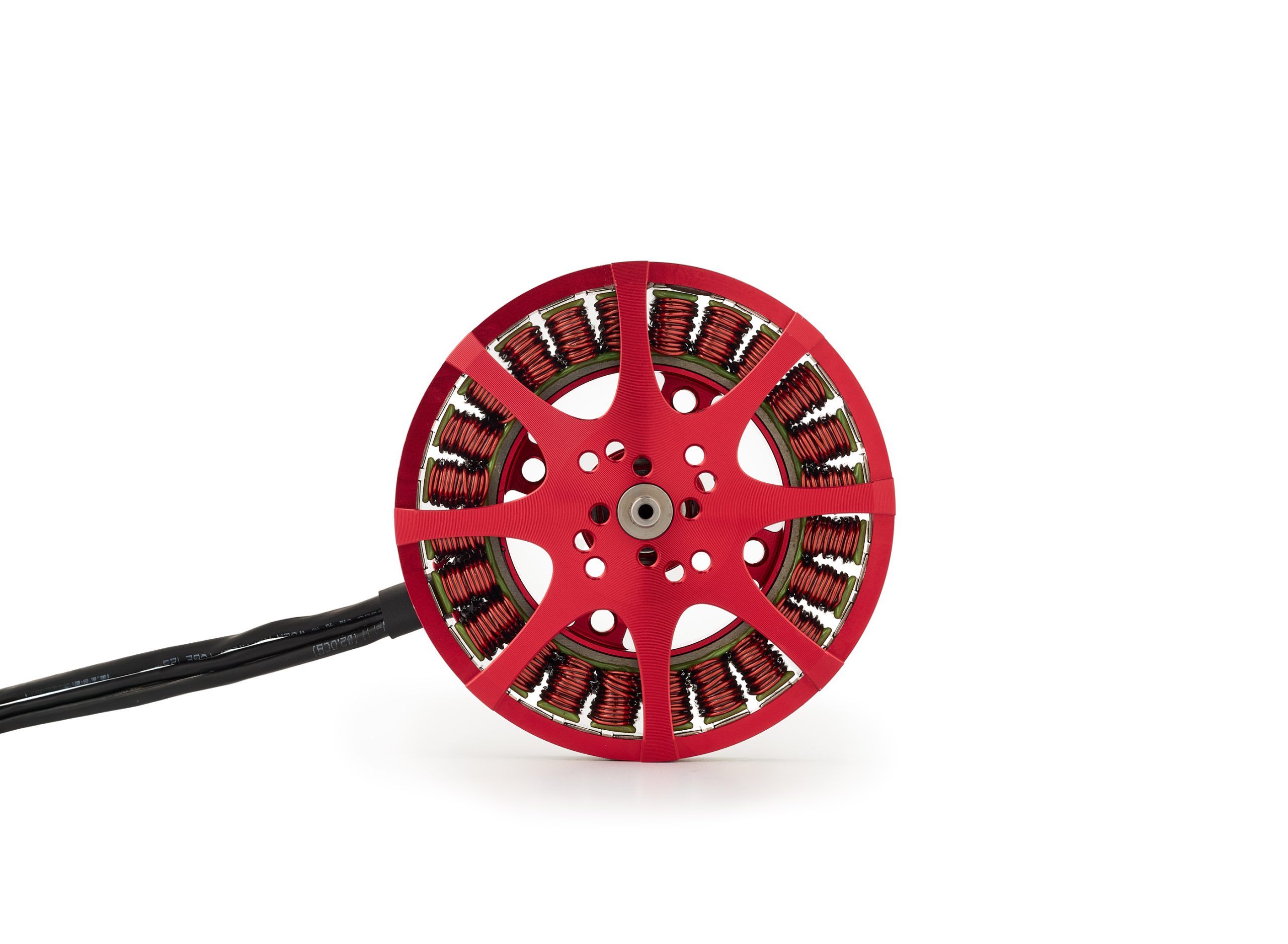

ePropelled Sparrow Series APM 6007-KV320 Compact High-Performance Brushless Electric Motor
ePropelled Sparrow Series APM 6007-KV320 Compact High-Performance Brushless Electric Motor - Image 2
ePropelled Sparrow Series APM 6007-KV320 Compact High-Performance Brushless Electric Motor - Image 3
ePropelled Sparrow Series APM 6007-KV320 Compact High-Performance Brushless Electric Motor - Image 4
ePropelled Sparrow Series APM 6007-KV320 Compact High-Performance Brushless Electric Motor - Image 5
ePropelled Sparrow Series APM 6007-KV320 Compact High-Performance Brushless Electric Motor - Image 6
ePropelled Sparrow Series APM 6007-KV320 Compact High-Performance Brushless Electric Motor - Image 7
ePropelled Sparrow Series APM 6007-KV320 Compact High-Performance Brushless Electric Motor - Image 8

ePropelled Sparrow Series APM 6007-KV320 Compact High-Performance Brushless Electric Motor

$279.00

KEY FEATURES

  • Superior quality insulation provides long life and high reliability of windings
  • Ultra-light, efficient, and long flight time
  • Built for industrial strength
  • Fully tested

MOTOR PARAMETERS

  • IP Rating: IP25
  • Diameter: 67.2 mm
  • Length: 26 mm
  • Maximum Thrust: 4.2kg
  • Motor Weight: 159 g
  • Maximum Power (180s): 998 W
  • Rated Voltage: 4S – 6S (LiPo)


Ships From: United States (US)
Supplier: ePropelled SKU: APM 6007-KV320 Categories: , , , Tags: , , , , More From:

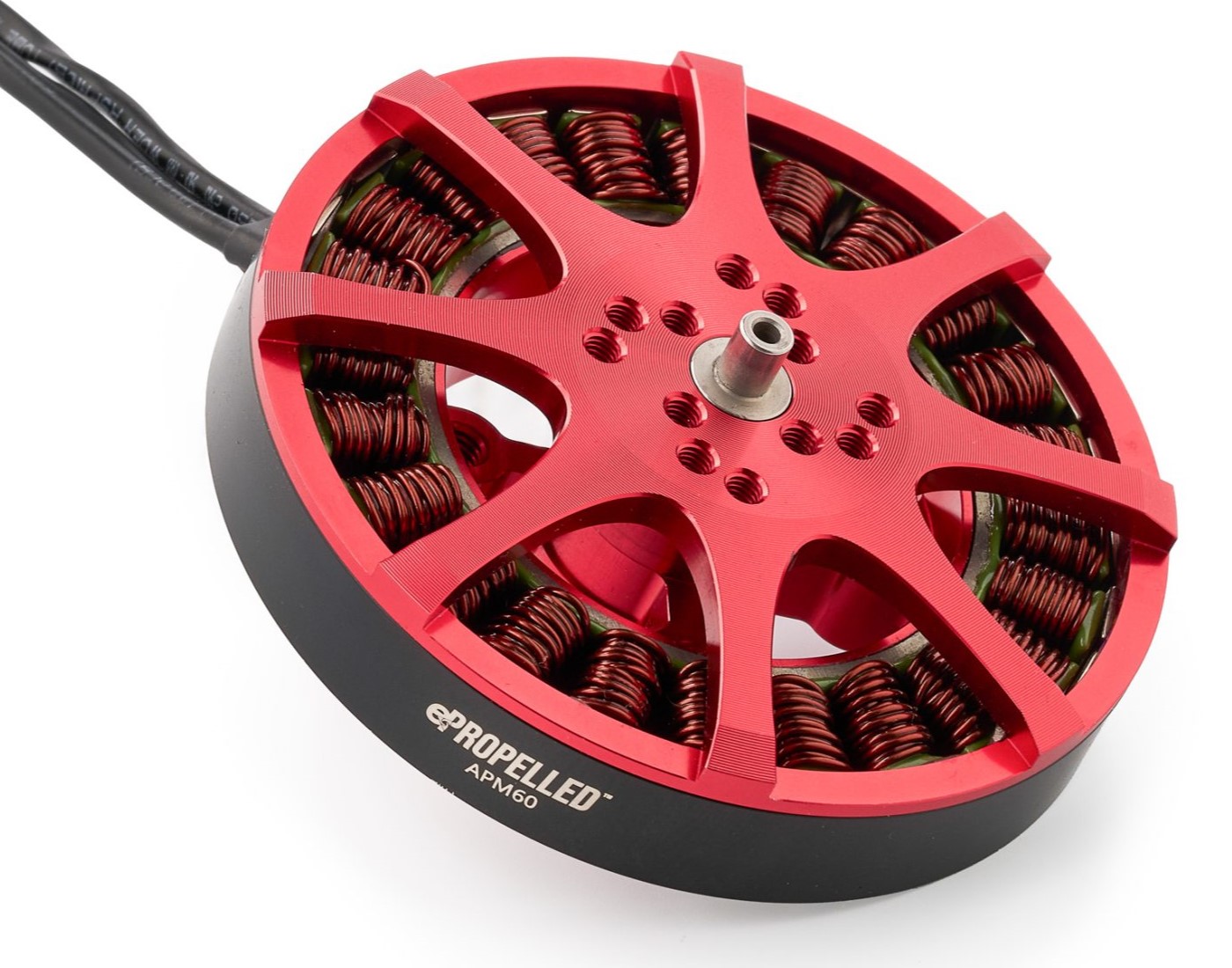

ePropelled Sparrow Series APM 6007-KV320 Compact High-Performance Brushless Electric Motor

The ePropelled APM 6007-Kv320 Sparrow Series motor is a high-performance, brushless electric motor designed for demanding applications requiring both power and compactness. 998W Drone Motor Replacement, Air Propulsion Motors for Drones, 4-6s LiPo, Fits 18-19″ Propellers.

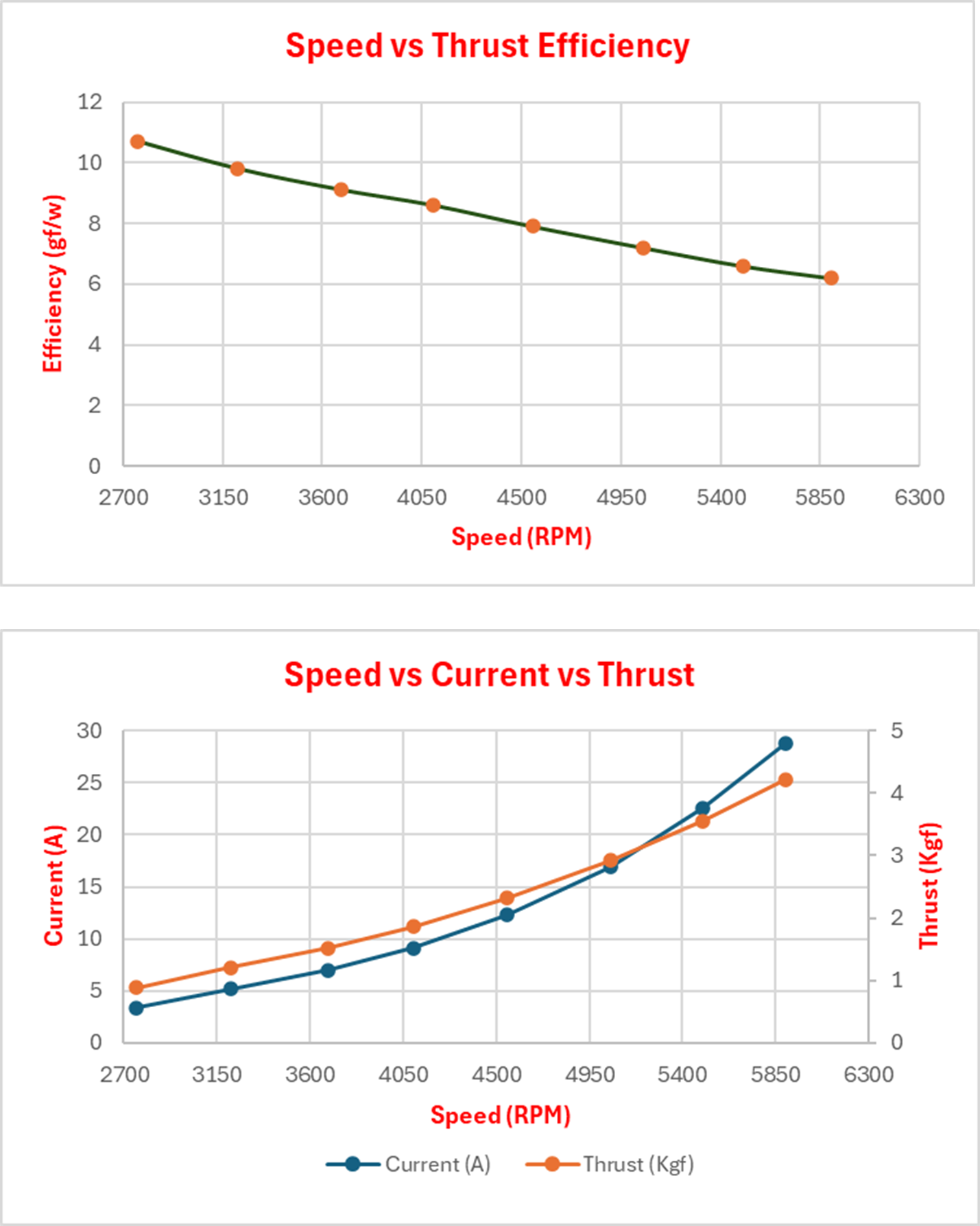

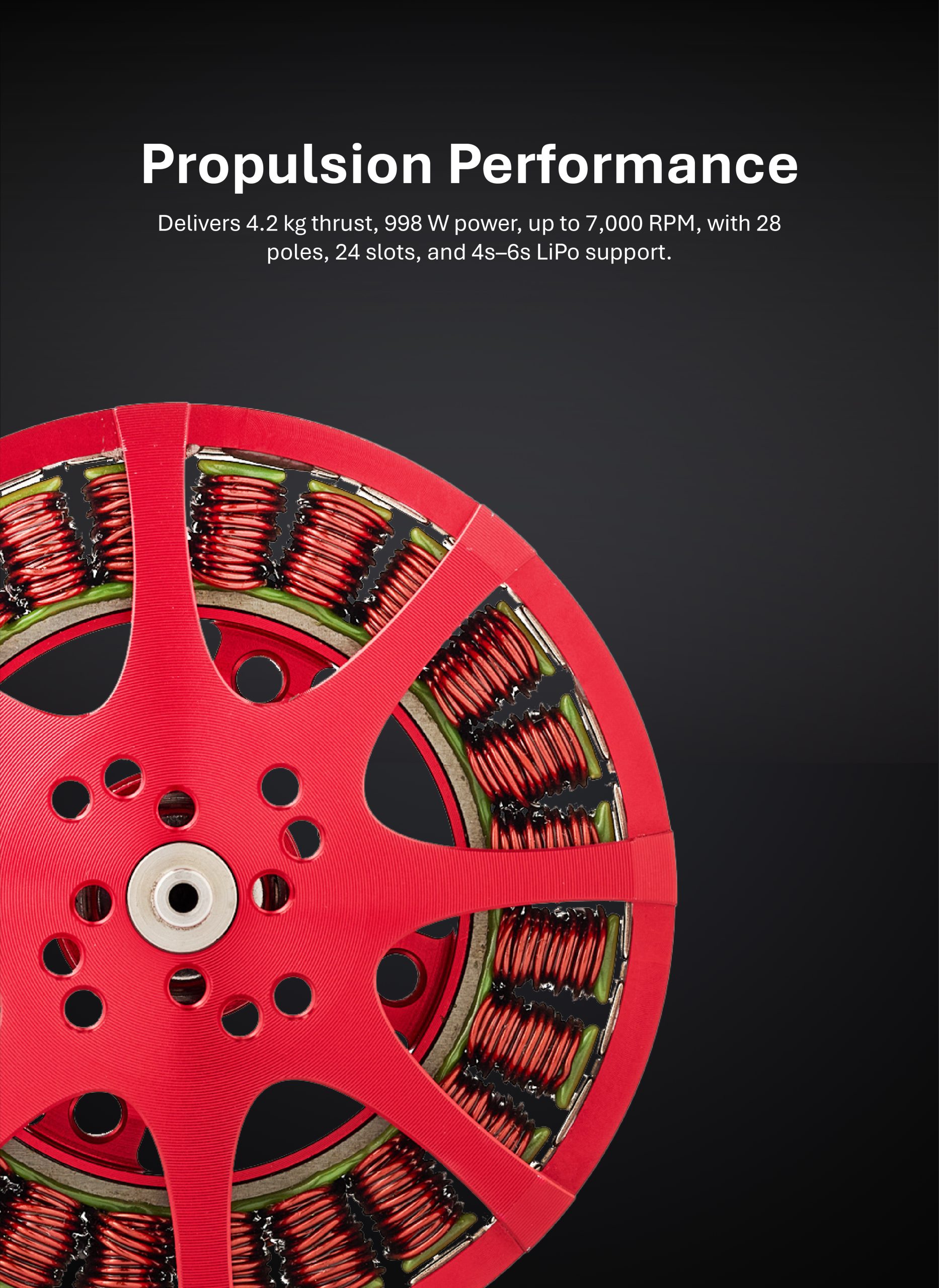

PROPULSION PERFORMANCE
Featuring 28 magnetic poles and 24 stator slots, this motor offers a maximum thrust of 4.2kg, 998W of power, and a nominal operating speed of 0 to 6,500 RPM, with a maximum speed of 7,000 RPM. It also features a dynamically balanced rotor and a rated voltage of 4s-6s (LiPo).

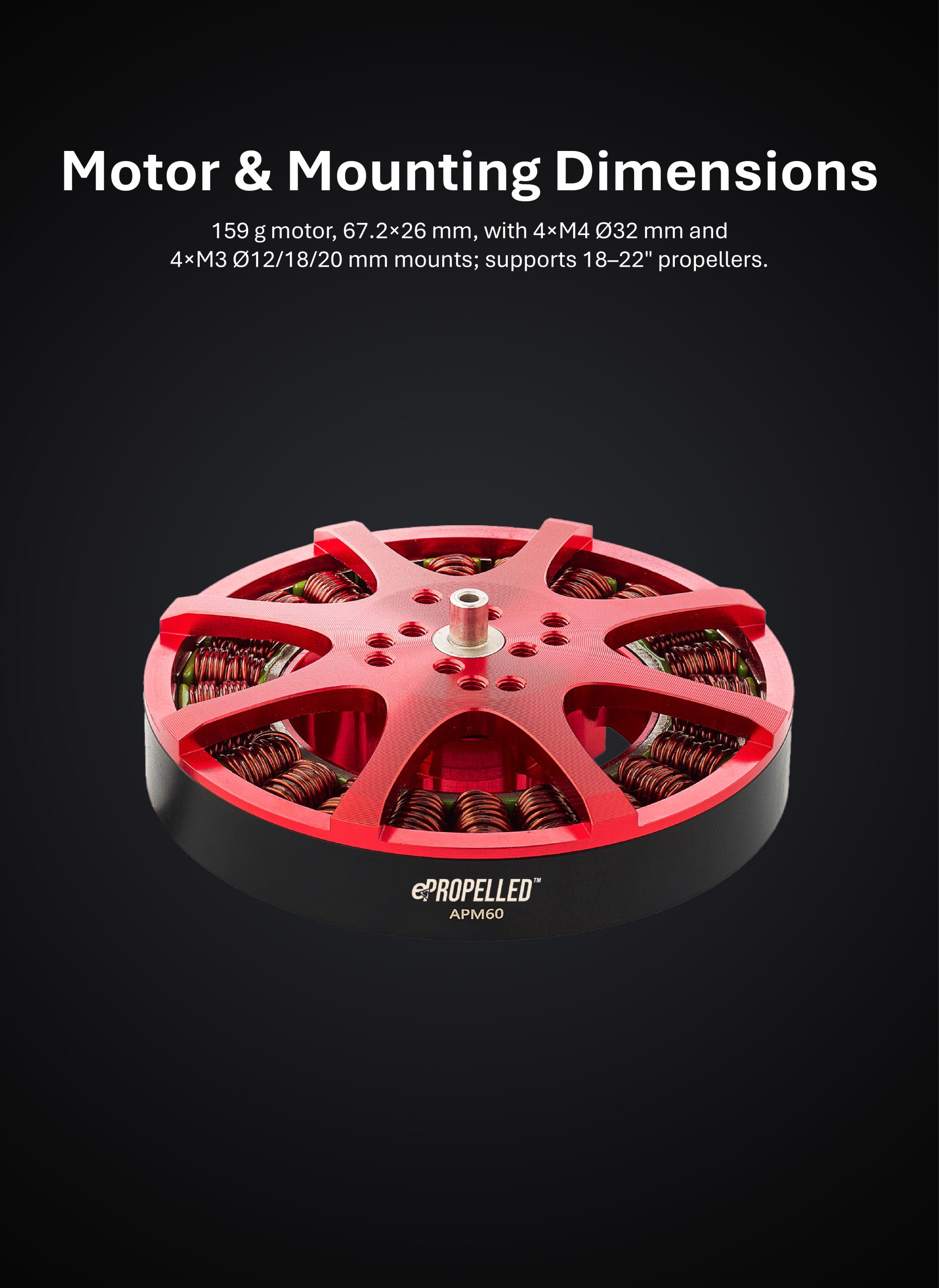

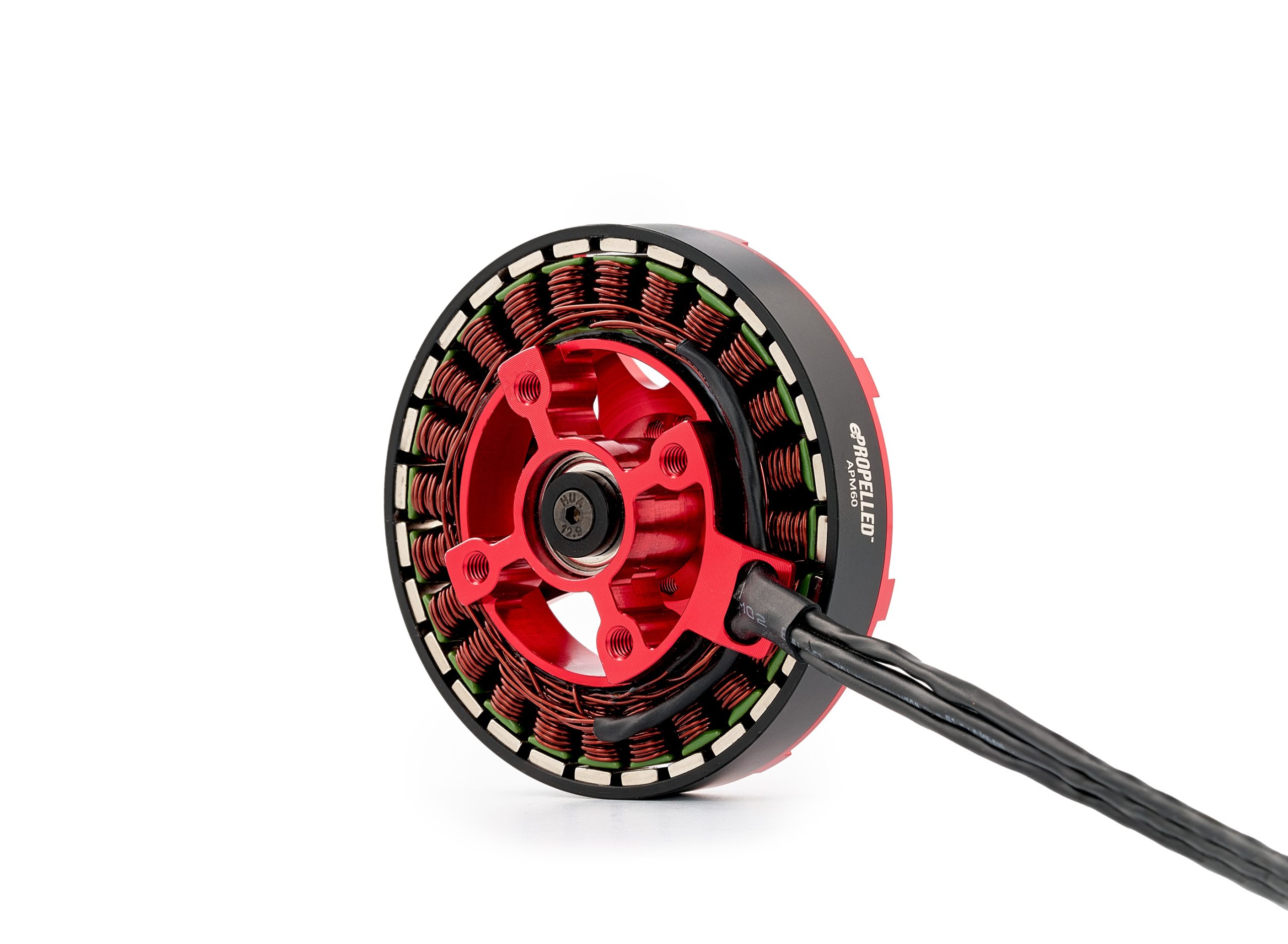

MOTOR AND MOUNTING DIMENSIONS
The motor only weighs 159g with a diameter of 67.2mm and length of 26mm, and has 4x M4 Ø32mm PCD motor and 4x M3 Ø12mm, M3 Ø18mm, and M3 Ø20mm PCD propeller adaptor mounting holes; recommended propeller size of 18-22″.

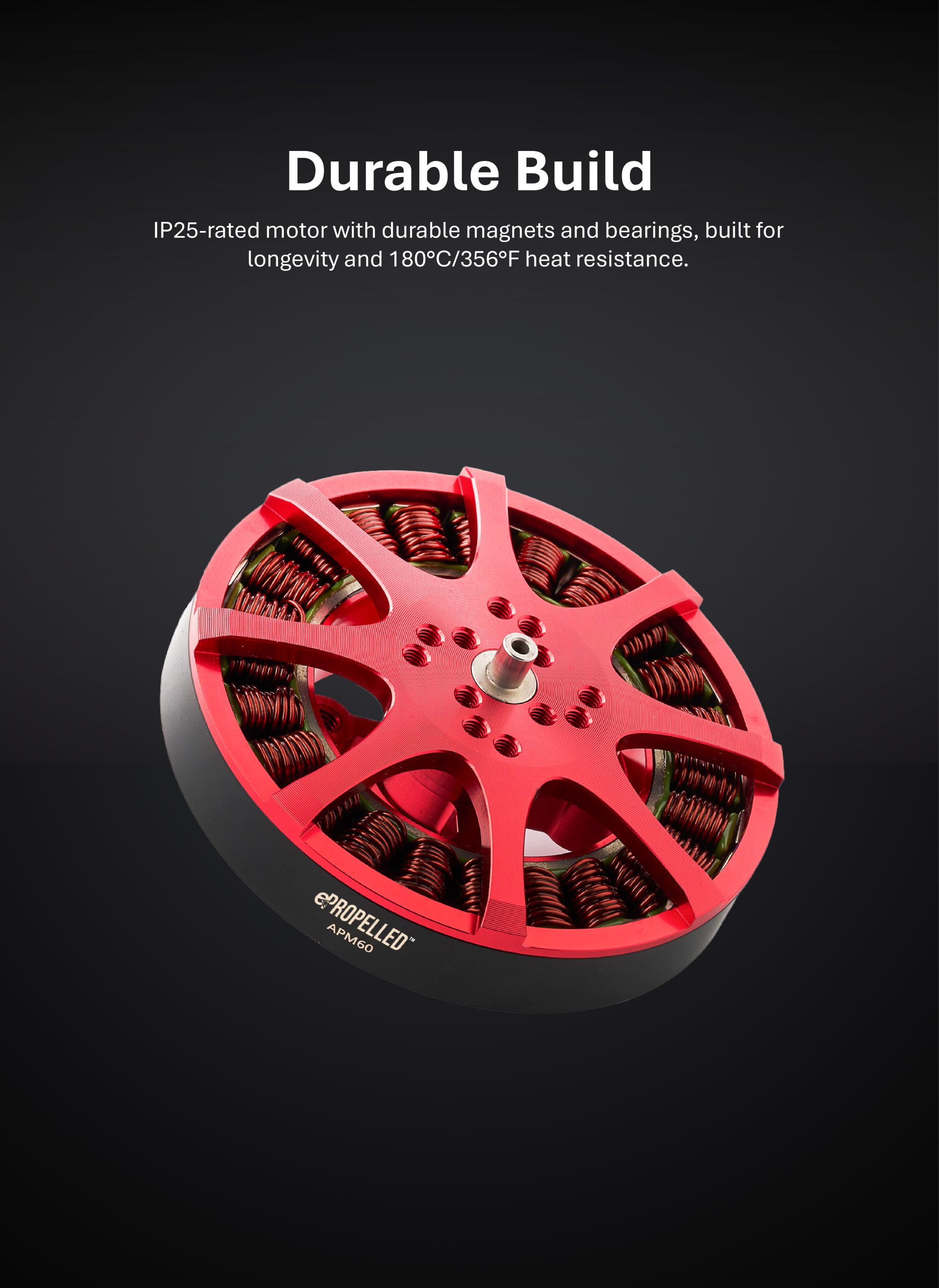

DURABLE BUILD
A reliable, IP25-rated component built with high-performing materials, including permanent magnets and bearings, for a longer life span and to endure harsh thermal environments, with a winding operating temperature limit of 180°C/356°F.

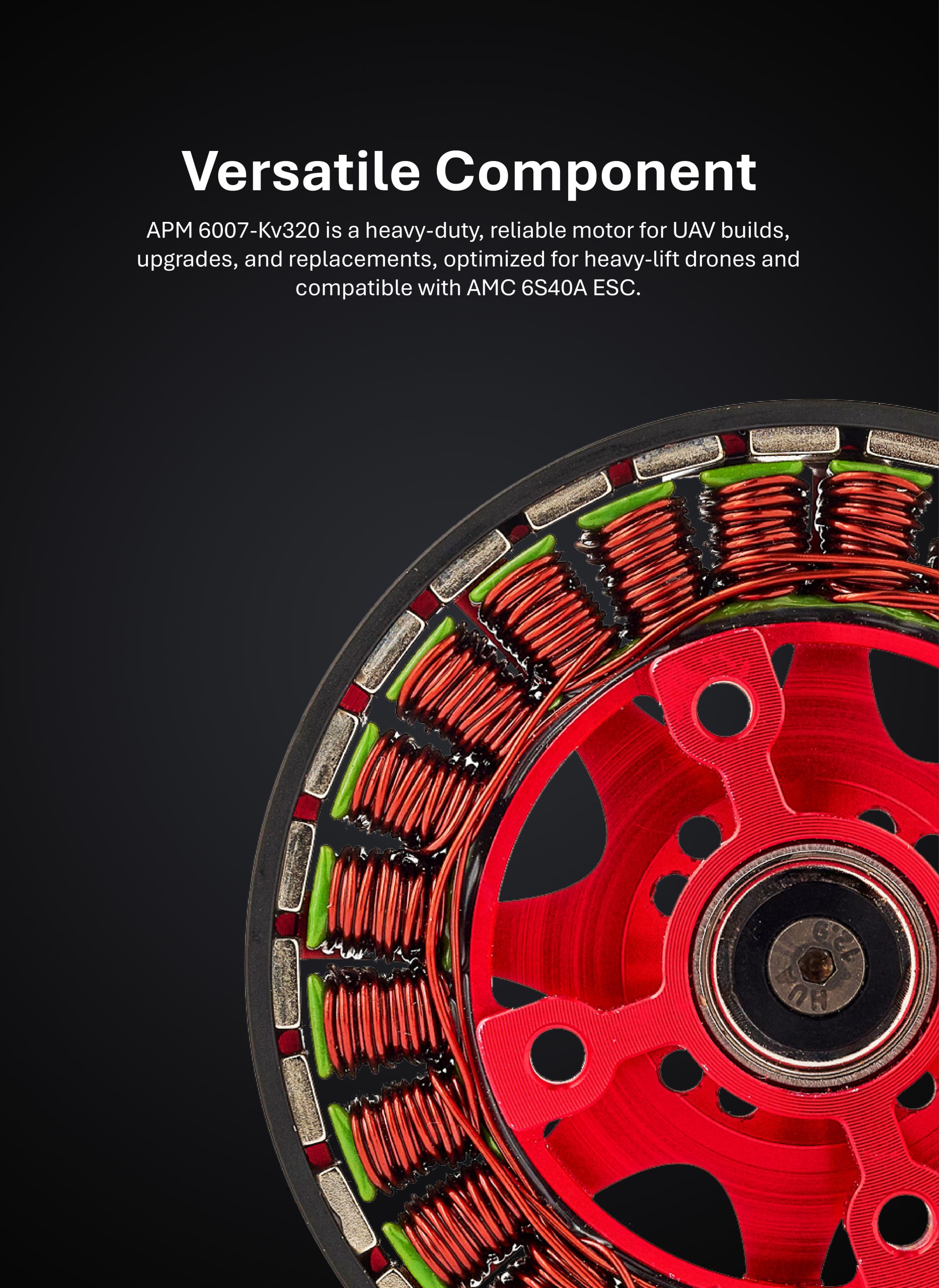

VERSATILE COMPONENT
For new UAV designs, propulsion upgrades, or motor replacements, the heavy-duty APM 6007-Kv320 boasts a record of durability, reliability, and easily optimized performance across mainstream heavy-lift drone applications; it is compatible with the AMC 6S40A ESC.
