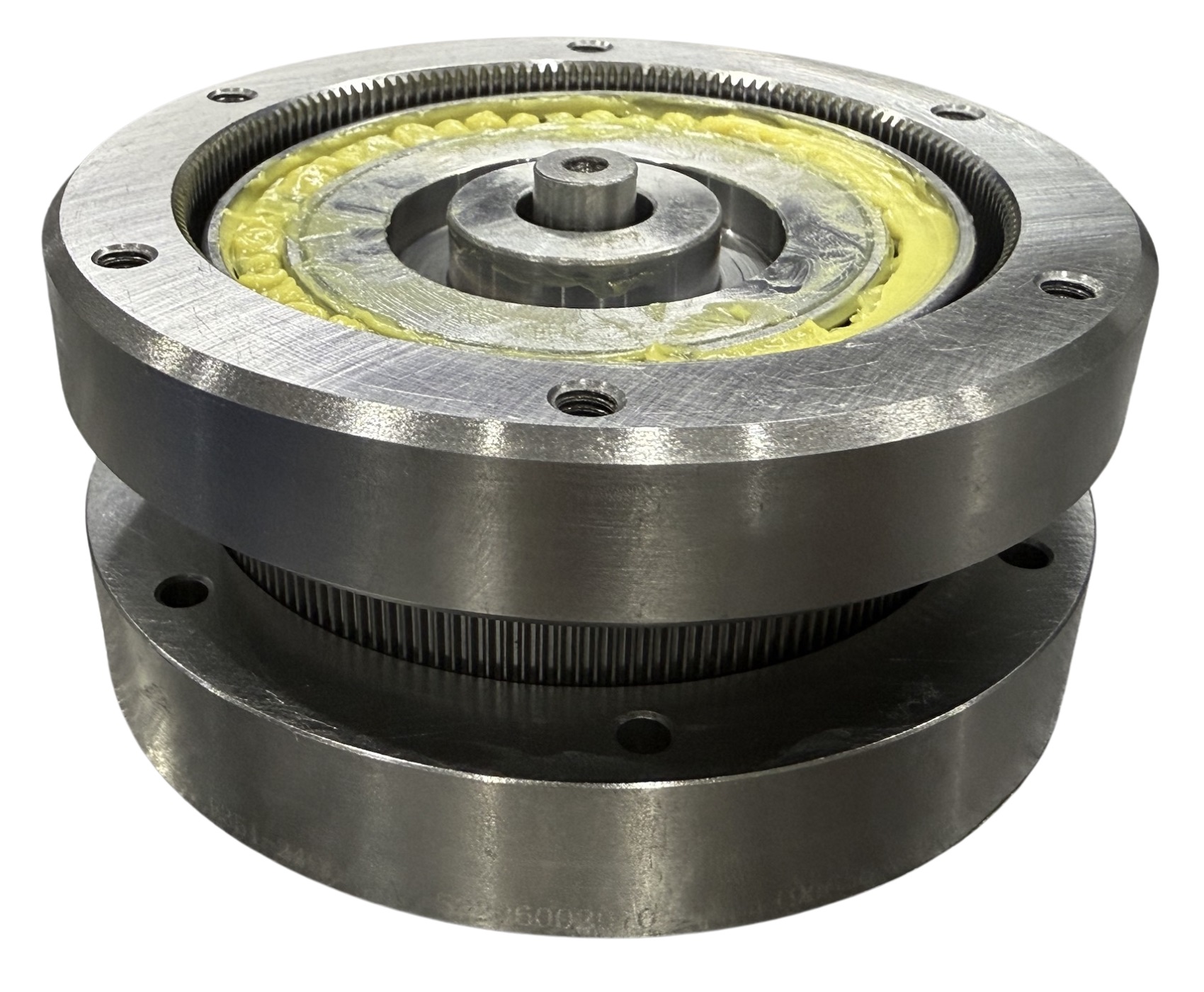

FDS-14 Double Circular Spline Harmonic Drive Gear for Automation Industry

FDS-14 Double Circular Spline Harmonic Drive Gear for Automation Industry

$2,356.00

The FDS series features combined harmonic drive gearbox component types. Compact and precise, it enables real-time phase and timing adjustment using Harmonic Drive principles. The combined type adds seals and bearings for easier assembly and higher torque.


Ships From: China
Supplier: Honpine SKU: FDS-14 Categories: , , Tags: , , , , , More From:

FDS-14 Double Circular Spline Harmonic Drive Gear for the Automation Industry

The differential gear FDS series is divided into the combined type and the component type. The combined type aims to integrate the differential mechanism into a single unit for easy assembly into equipment, and its housing allows direct mounting of transmission gears, pulleys, and other components. The component type features a flat and thin design, allowing customers to create their own encapsulation housing and optimize device space according to their structural requirements.

Utilizing Harmonic Drive’s unique operating principle, this ultra-compact differential device is capable of performing phase and timing fine-tuning during operation.

The combined type of the FDS series shares the same four core components as the pancake component type, except it includes additional front and rear sealing flanges and support bearings. The FDS series operates on the same working principle as the cup-type FSG series. The shape of the pancake flexspline is identical to the cross-section of the cup flexspline’s base, and the wave generator bearings are arranged in two rows, with the tooth width of the circular spline and flexspline increased to handle higher torque capacity. Additionally, the pancake type incorporates an extra circular spline with the same number of teeth as the flexspline for connection to the output shaft.

Features

  • This harmonic drive features a low-profile, flat, and slim design with compact dimensions.
  • Delivers high torque output capability
  • Provides excellent rotational and positioning accuracy
  • Coaxial input/output shaft alignment
  • The high reduction ratio between the adjustment shaft and the output shaft enables precise micro-adjustments while requiring minimal adjustment torque.
  • Commonly used for phase adjustment of rollers in color printing machinery
