Flange-Integrated RV Cycloidal Reducer Gearbox for Industrial Robotics
RV Gearbox

Flange-Integrated RV Cycloidal Reducer Gearbox for Industrial Robotics

Original price was: $1,650.00.Current price is: $1,280.00.

The unit comes factory-sealed with flanges and pre-filled with specialized RV lubricating grease, allowing direct installation with servo motors upon unboxing.


Ships From: China
Brand: Honpine SKU: HRD-10C-XX Categories: , Tags: , , , , , ,

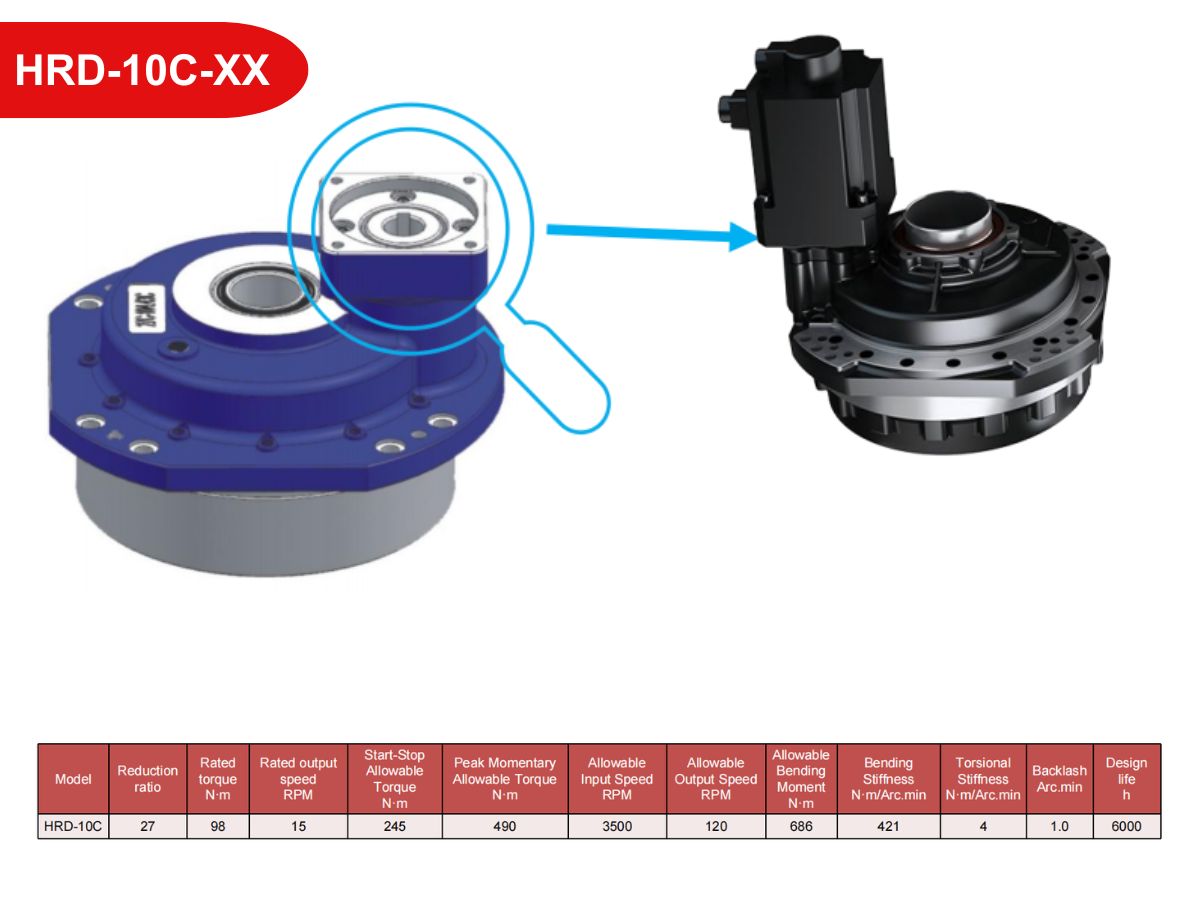

Flange-Integrated RV Cycloidal Reducer Gearbox for Industrial Robotics

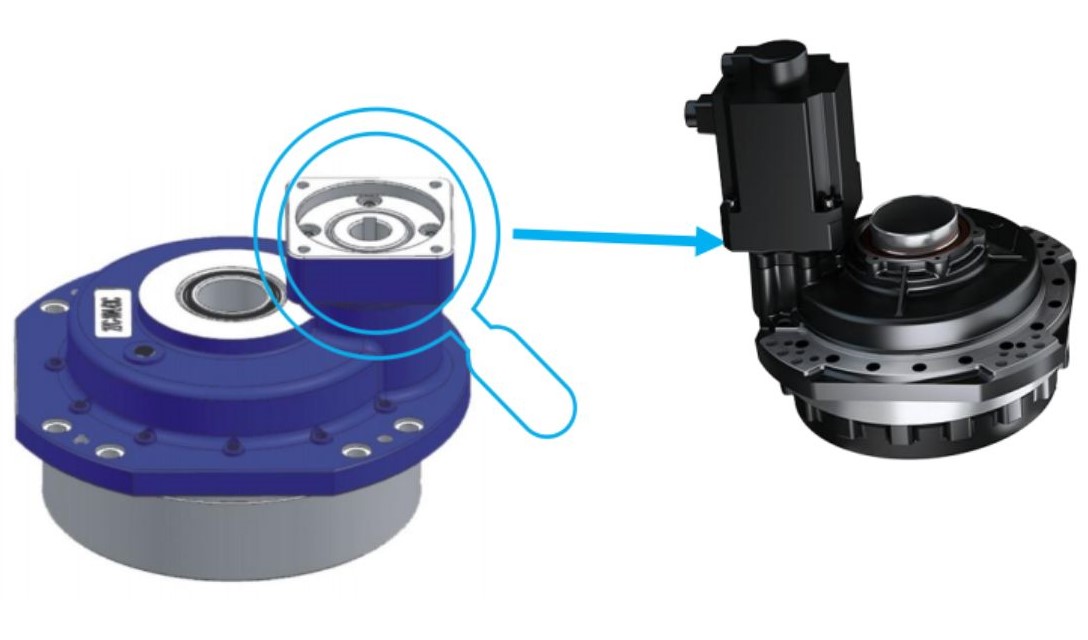

The Flange-Integrated RV Reducer C Series is a precision reduction device specifically designed for mechanical applications. It features a two-stage closed-differential gear system comprising cycloid pinwheels and planetary gears, with a hollow output shaft. The unit comes factory-sealed with flanges and pre-filled with specialized RV lubricating grease, allowing direct installation with servo motors upon unboxing.

Specifications

  • Reduction Radio:27
  • Rated Torque (N.m):98
  • Rated Output Speed(RPM):15
  • Start Stop Allowable Torque(N.m):245
  • Peak Momentary Allowable Torque(N.m):490
  • Allowable Input Speed (RPM):3500
  • Allowable Output Speed (RPM):120
  • Allowable Bending Moment(N.m):686
  • Bending Stiffness (N · m/Arc.min):421
  • Torsional Stiffness(N.m/Arc.min):4
  • Backlash (Arc.min):1.0
  • Design life(h):6000

In industrial robotics applications:

  • For robotic arms with end-effector loads ≤20kg, RV reducers are primarily used in base-to-high-load joints (typically Joints 1-4)
  • For robotic arms with end-effector loads >20kg, all six joints typically employ RV reducers
  • RV reducers serve as the core transmission component, ensuring robotic arm positioning accuracy.

Features

High load capacity and precision:

  • a. Torque range: 50-7000 N·m, suitable for heavy-duty robotic arms (welding, material handling, etc.)
  • b. Stable backlash precision (<1 arcmin) with minimal repeat positioning error

Extended service life and reliability:

  • a. Multi-tooth meshing (≥30 teeth) ensures even wear distribution (service life: 6,000-10,000 hours)
  • b. Superior fatigue resistance compared to harmonic drives, ideal for 24/7 continuous operation

High-efficiency transmission adaptability:

  • a. Transmission efficiency: 85%-95% with minimal energy loss
  • b. Wide reduction ratio range (31-203), adjustable through planetary gear tooth configuration

Outstanding dynamic performance:

  • a. Low-vibration design ensures smooth robotic arm operation without end-effector jitter
  • b. Rapid acceleration response enables high-speed trajectory tracking
