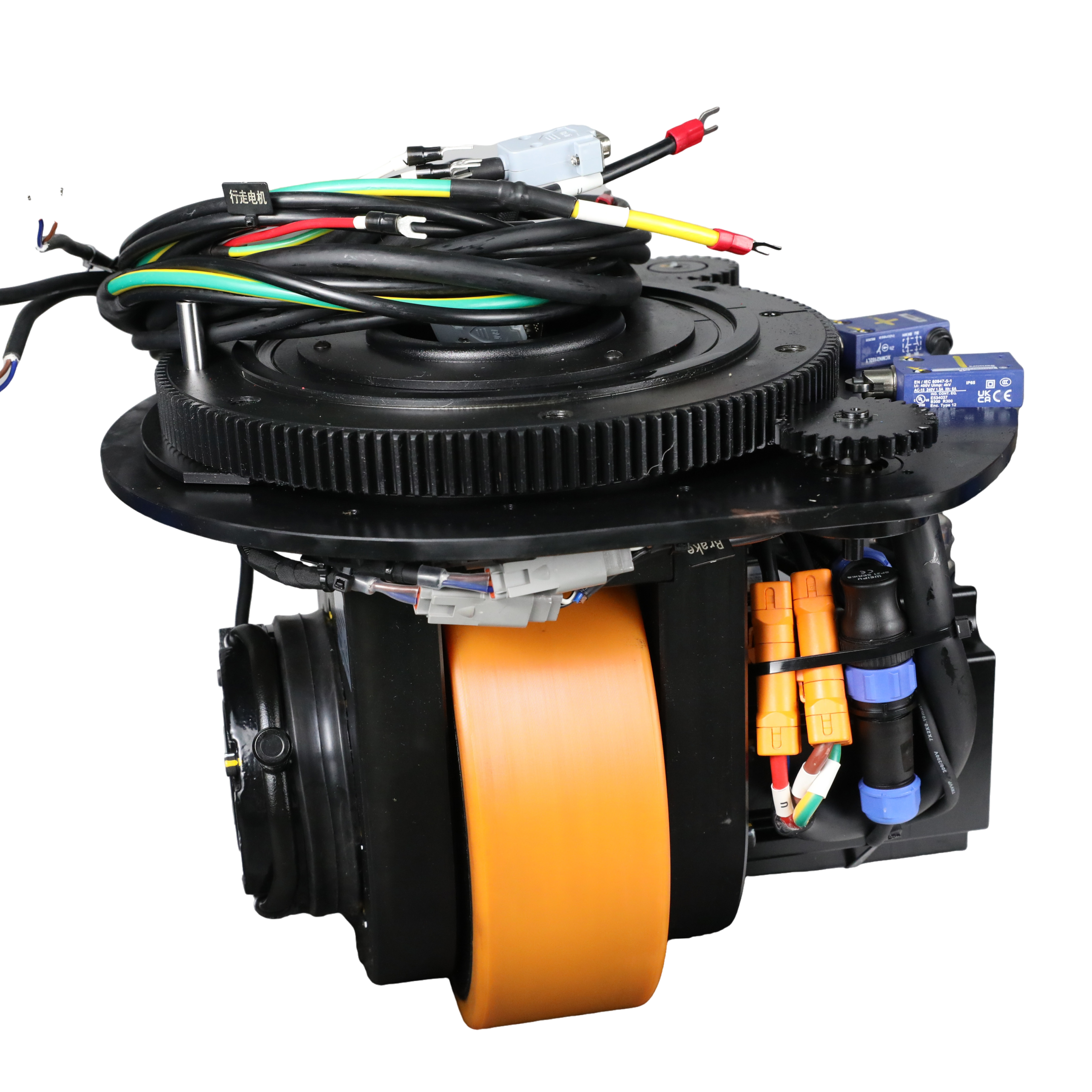

Heavy Duty Horizontal Steering Wheel with Servo Drive and Motor for AGV Robots

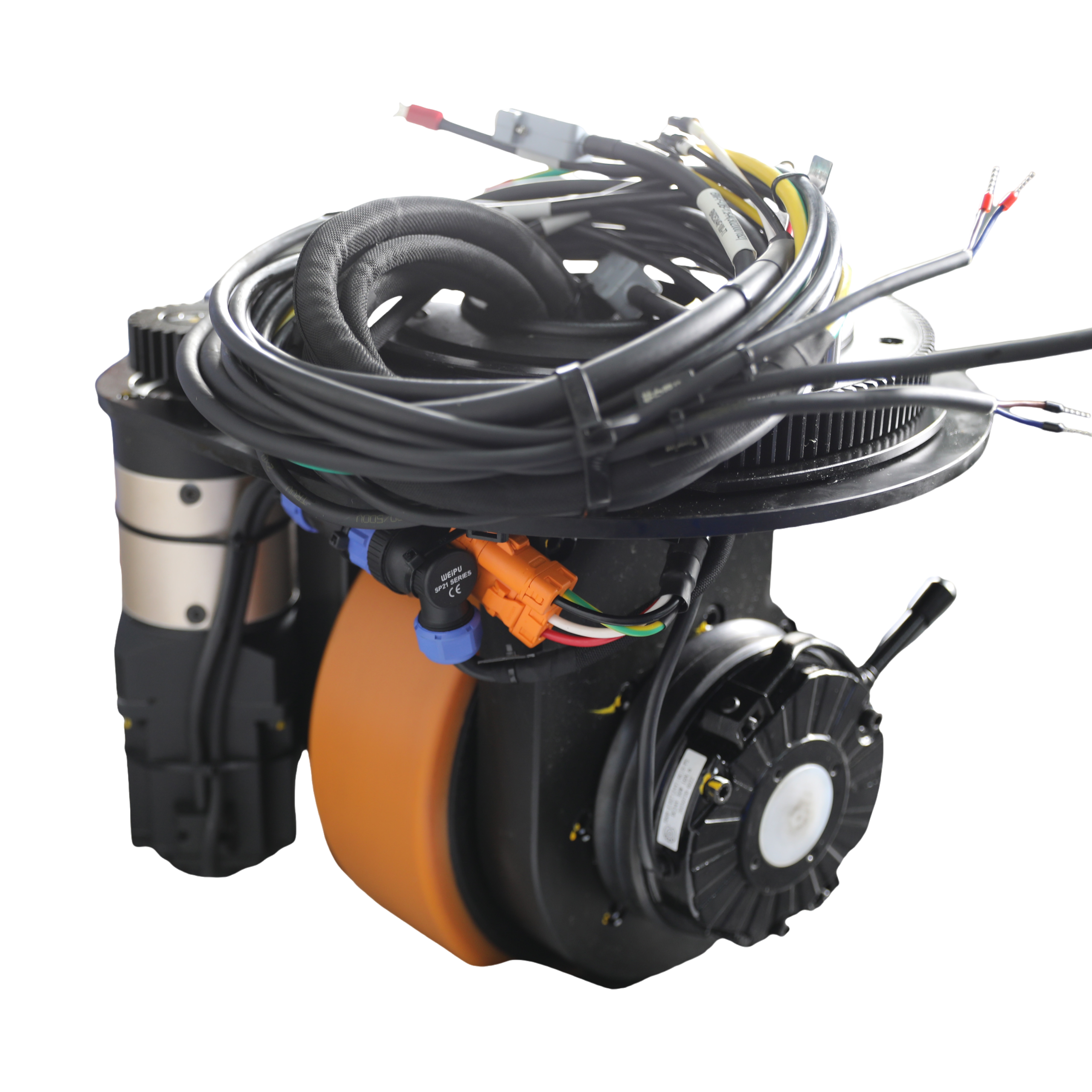

Heavy Duty Horizontal Steering Wheel with Servo Drive and Motor for AGV Robots - Image 2

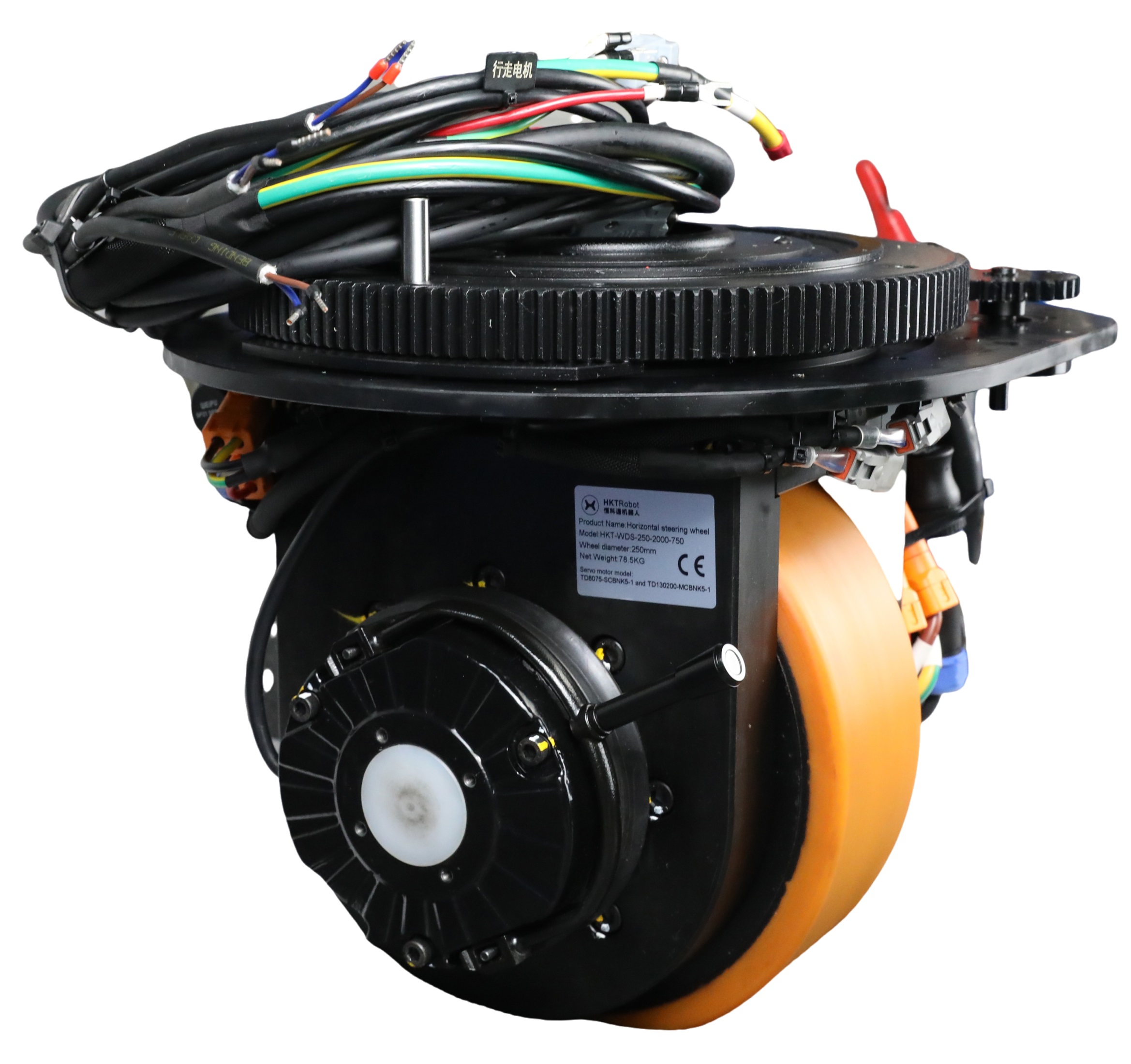

Heavy Duty Horizontal Steering Wheel with Servo Drive and Motor for AGV Robots - Image 3

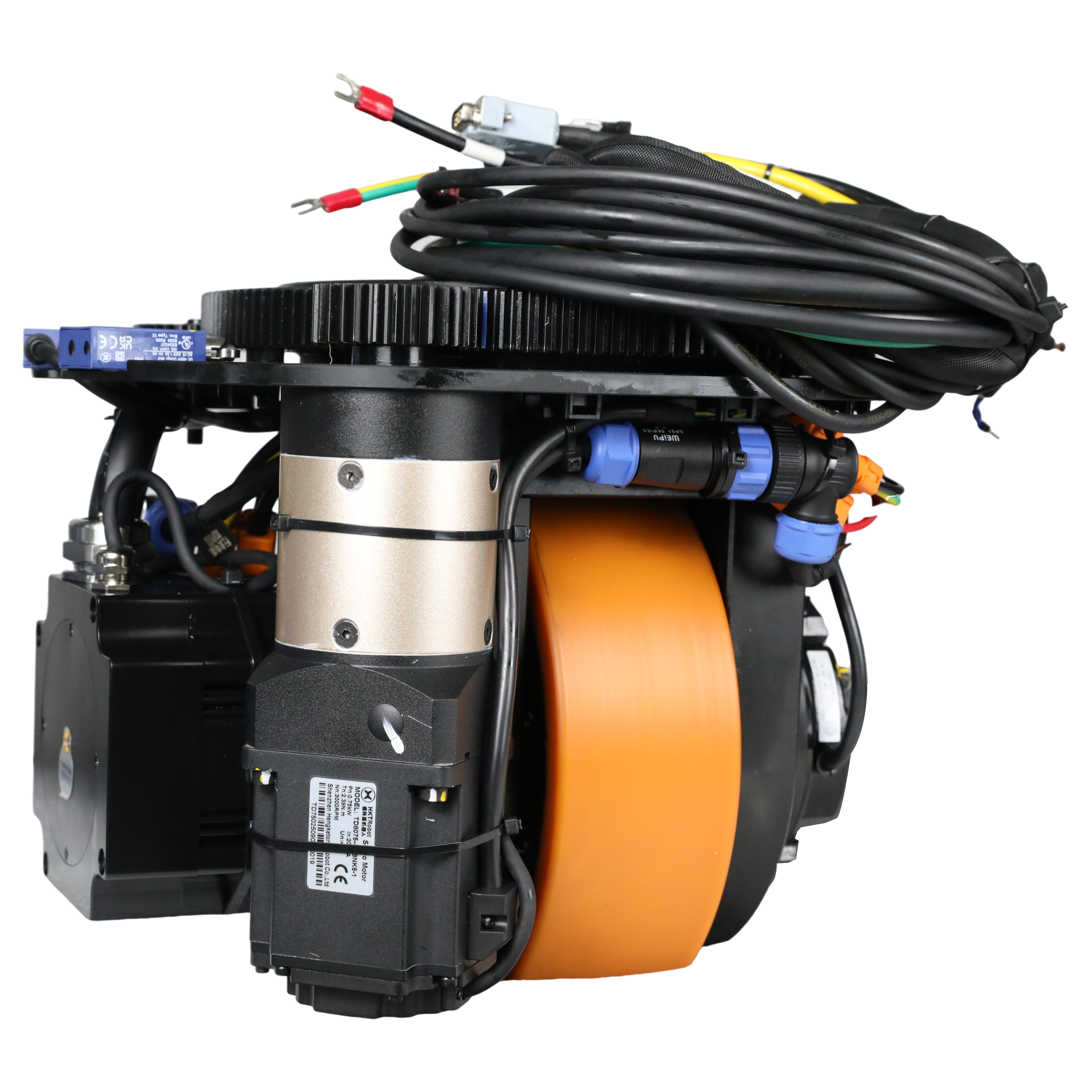

Heavy Duty Horizontal Steering Wheel with Servo Drive and Motor for AGV Robots - Image 4

Heavy Duty Horizontal Steering Wheel with Servo Drive and Motor for AGV Robots

Original price was: $2,800.00.Current price is: $2,310.00.

  • Voltage: 48V
  • Rated Load: 1500kg
  • Rated Torque: 160 N·m
  • Drive Wheel Diameter: 250mm
  • Rated Power:1500W
  • Gear Radio:32:1


Ships From: China
Brand: AGV Motor SKU: HKT-WDS-250-1570-400 Categories: , Tags: , , , , ,

Heavy Duty Horizontal Steering Wheel with Servo Drive and Motor for AGV Robots

HKT’s robust locomotion system features a 1570W motor with 5N·m torque, supporting up to 1500kg with a 250mm drive wheel, enabling speeds of up to 73.6m/min and a 225mm turning radius. The 400W steering motor ensures precise control with a turning speed of 112.5°/second and features safety mechanisms, including ±126° electronic and ±135° mechanical limit angles. Ideal for AGVs in heavy industrial environments, it offers high stability, durability, and efficiency for demanding applications.

Locomotion System

Strong Power Output: Equipped with a 1570W motor, rated torque of 5Nm, voltage of 48V DC, motor rated current of 42.4A, speed of 3000r/min, and a speed ratio of 32 (optional ratios of 36 and 40), providing AGV robots with strong and stable power for extreme industrial needs.

  • Drive Wheel Diameter: The 250mm diameter allows a maximum speed of 73.6m/min (with other speed ratios of 65.4m/min and 58.9m/min) and supports a load capacity of up to 1,500 kg.
  • Turning Radius: A 225mm turning radius provides superior maneuverability in narrow spaces.
  • Overall Weight: At 65kg, it enhances the structural stability of the AGV robot system.
  • Compared with other models, this 1570W system offers higher stability and durability at high loads and speeds, making it particularly suitable for heavy industrial environments and long-term operations.

Steering System Performance

  • Motor: The steering system utilizes a 400W motor with a rated torque of 1.27 Nm, a 48V DC voltage, a rated motor speed of 3000 rpm, and a speed ratio of 160, ensuring accurate and responsive steering control.
  • Turning Speed: The maximum turning speed is 112.5°/second, enhancing work efficiency and flexibility.
  • Safety Features: Equipped with ±126° electronic limit angle and ±135° mechanical limit angle to ensure safety and prevent equipment damage from oversteering.
  • Braking Capability: The 8Nm braking torque provides reliable emergency braking, ensuring stability and safety during emergency stops.

Application Scenarios

This heavy-duty horizontal steering wheel system is designed for automated guided vehicle (AGV) robots, combining high-power servo drive and motor technology. It provides excellent support for high-load and high-efficiency applications. It is particularly suitable for industrial environments that require high load capacity and precise control.

Additional information

Weight 85 lbs
Dimensions 42 × 42 × 56 in
