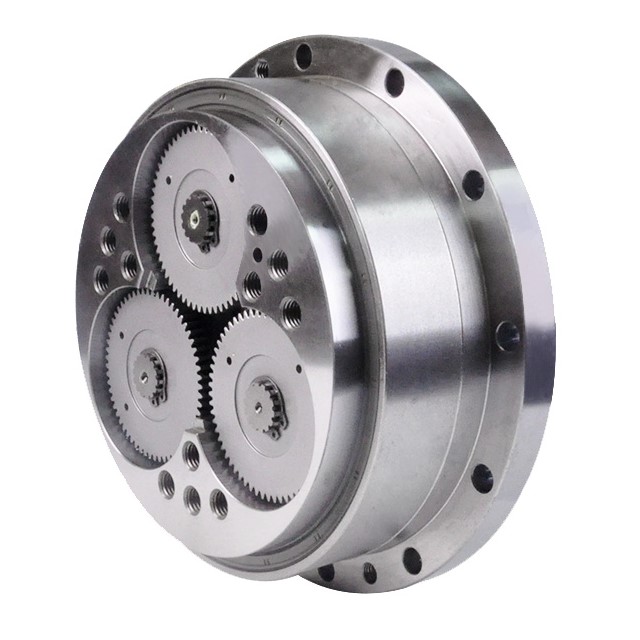

High Rigidity Planetary Gear RV Reducer Gearbox for Heavy Duty Robotic Arms

High Rigidity Planetary Gear RV Reducer Gearbox for Heavy Duty Robotic Arms

$3,154.00

RV reducers serve as the core transmission component, ensuring robotic arm positioning accuracy.


Ships From: China
Brand: Honpine SKU: High Rigidity Planetary Gear RV Reducer Categories: , Tags: , , , , ,

High Rigidity Planetary Gear RV Reducer Gearbox for Heavy Duty Robotic Arms

The Standard RV Reducer E Series is a precision reduction device featuring a two-stage closed differential gear system composed of a cycloid pinwheel and planetary gears, with a solid output shaft. It is widely used in industrial robotics applications. For robotic arms with end loads ≤20 kg, RV reducers are primarily employed in base-to-high-load joints (typically Joints 1-4). For robotic arms with end loads >20 kg, all six joints commonly utilize RV reducers. RV reducers serve as the core transmission component, ensuring robotic arm positioning accuracy.

  • Solid Output Shaft: Enables direct load coupling and provides enhanced sealing convenience.
  • Two-Stage Reduction Design: First Stage: Involute planetary gear transmission for initial speed reduction.
  • Second Stage: Cycloid pinwheel transmission for further speed reduction and torque stabilization.
  • High Rigidity & Impact Resistance: Rigid disc support at the output ensures uniform load distribution, minimizing deformation.
  • Multi-crankshafts combined with high-precision bearings effectively disperse stress impacts.
  • Compact Enclosed Structure: The transmission mechanism is integrated within the planetary carrier support bearings, significantly reducing axial dimensions.

Advantages

  • High Load Capacity & Precision
  • Torque range: 50–7000 N·m, suitable for heavy-duty robotic arms (e.g., welding, material handling robots).
  • Backlash precision: <1 arcmin, with minimal repeat positioning error.
  • Long Lifespan & High Reliability: Multi-tooth meshing (≥30 teeth) ensures even wear distribution, extending service life to 6,000–10,000 hours.
  • Superior fatigue resistance compared to harmonic drives, making it ideal for 24/7 continuous operation.
  • High Efficiency & Adaptability: Transmission efficiency: 85%–95%, minimizing energy loss.
  • Wide reduction ratio range (31–203), adjustable via planetary gear teeth configuration.
  • Exceptional Dynamic Performance: Low-vibration design guarantees smooth robotic arm operation, eliminating end-effector jitter.
  • Rapid acceleration response, enabling high-speed trajectory tracking.

Additional information

Weight 10.56 lbs
Dimensions 11.86 × 11.86 × 8.65 in
