Higher Torque Coaxial Input Output Shafts Harmonic Drive Gearbox
harmonic drive wave generator

Higher Torque Coaxial Input Output Shafts Harmonic Drive Gearbox

$622.00

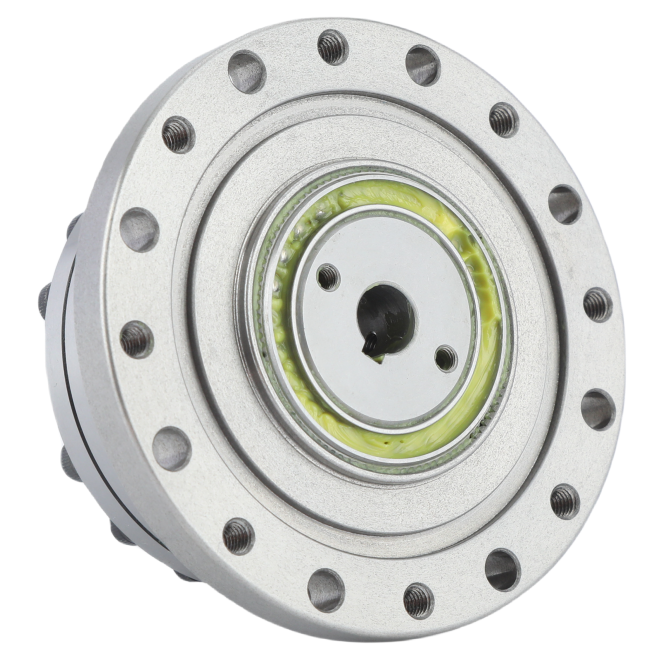

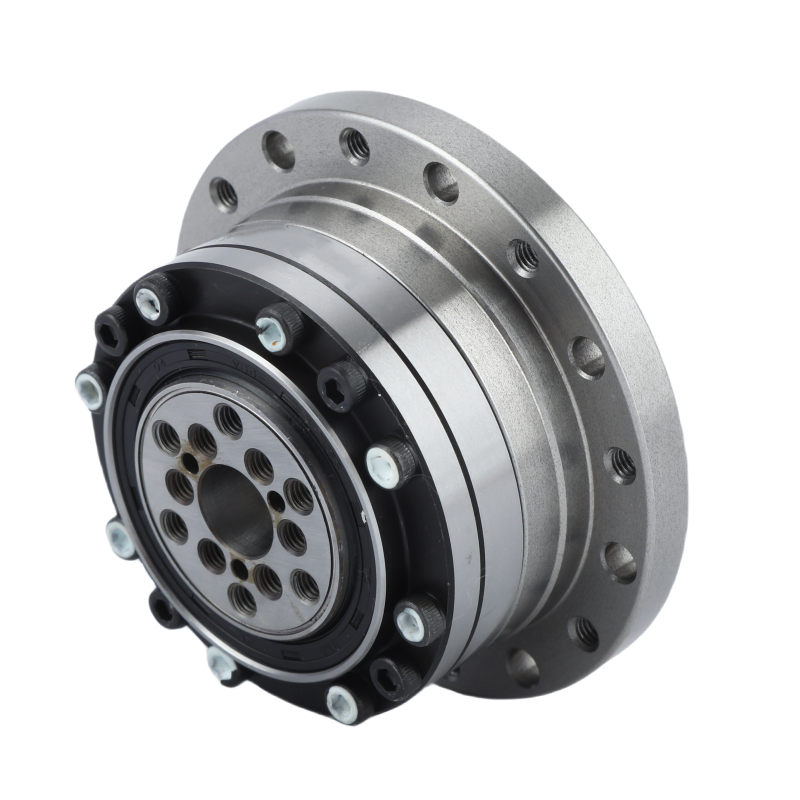

The FSG-I Series Strain Wave Gear features an integrated cam-type wave generator for easy installation and compact, high-torque performance. With a customizable camshaft bore and keyed input connection, it ensures precise, coaxial motion transmission. This product is ideal for robot joints and sealed rotary platforms requiring high accuracy and reliability.


Ships From: China
Supplier: Honpine SKU: Higher Torque Coaxial Categories: , , , Tags: , , , , , , More From:

Higher Torque Coaxial Input Output Shafts Harmonic Drive Gearbox

The FSG-I series Strain wave gear employs an integrated cam-type wave generator. The camshaft bore dimensions can be customized to match customer-specific motor models. The input shaft directly interfaces with the wave generator’s inner bore via a keyed connection. This system is typically configured with the circular spline fixed at the base and the flexspline functioning as the output end.

Features

  • The integrated cam design allows easier installation and offers multiple mounting configurations
  • Higher torque output with optimized compact dimensions
  • Precise rotation and positioning control for accurate motion
  • Coaxial alignment between the input and output shafts
  • Commonly used in robot arm joints or sealed rotary platforms requiring environmental protection
Starting torque of the FSG series                                                           Unit:cNm
Reduction ratio 11 14 17 20 25 32 40
50 — 4.5 6.7 8.6 17 34 61
80 — 3.1 4.4 5.4 10 21 39
100 — 2.8 3.7 4.7 8.8 20 34
120 — — 3.4 4.2 8 17 31
160 — — — 3.6 6.9 15 26
    Model Design value   Instant permissible value
FSG-14 Mb di 20Nm Mb max 40Nm
Ftdi 180N Ft max320N
Fa di 180N Fa max 320N
FSG-17 Mb di30Nm Mb max 60Nm
Ftdi230N Ftmax400N
Fa di 230N Fa max 400N
FSG-20 Mb di42Nm Mb max 80Nm
Ftdi 270N Ftmax 480N
Fa di 270N Famax 480N
FSG-25 Mb di 80Nm Mb max 160Nm
Ft di440N Ft max 770N
Fa di 440N Fa max770N
FSG-32 Mb di 220Nm Mb max 440Nm
Ftdi 900N Ft max 1600N
Fa di900N Fa max 1600N
FSG-40 Mb di 320Nm Mb max 650Nm
Ftdi 1000N Ft max 1750N
Fa di1000N Fa max 1750N

Additional information

Weight 0.2 lbs
Dimensions 3.92 × 3.92 × 5.09 in
