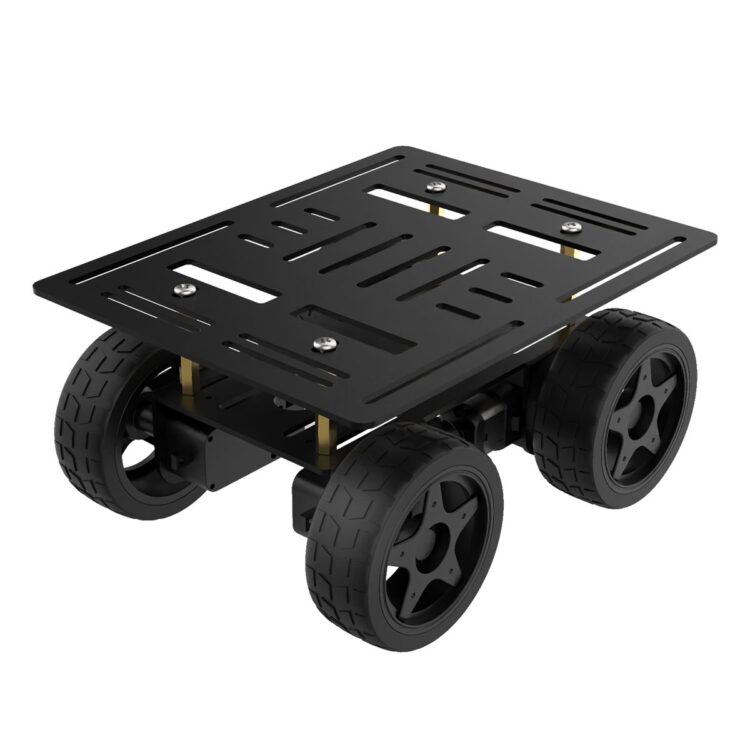

Hiwonder 4WD Chassis Car Kit with Aluminum Alloy Frame, TT Motor Smart Robot Car Kit

$28.99

  • Simple structure for quick installation
  • The reduction ratio of the motor is 1:120
  • The maximum load is 1500g
  • Pay attention to the fact that the car chassis is not assembled.

Hiwonder 4WD Chassis Car Kit with Aluminum Alloy Frame, TT Motor Smart Robot Car Kit

The kit includes a 4WD chassis, extension bracket, rubber tires, and TT motors. It has many holes for loading various sensor modules and motors to create your smart car. The chassis car motor’s reduction ratio is 1:120, and the output voltage is 36V. Compared with ordinary cars, its torque is more robust, and its carrying capacity is greater!

Features

  • The structure is simple for quick installation.
  • An intelligent robot car with a 4 TT DC gear motor is very suitable for DIY
  • Four motors + anti-skid tires provide a more powerful driving force
  • The reduction ratio of the motor is 1:120
  • The robot chassis kit is made of sturdy aluminum alloy material
  • Compared with the ordinary car, it has stronger power, greater torque, and load capacity
  • Note: the car chassis is not assembled

Packing List

  • 1* 4WD Car Chassis
  • 1* Extension bracket
  • 4* Wheel
  • 4* TT motor
  • 4* M4*32 copper pillar
  • 8* M4*8 round head machine screw
  • 8* M3*25 round head machine screw
  • 8* M3 nut
  • 4* M2.3*16 tapping screw

Motor Details

  • Reduction ratio: 1:120
  • Rated voltage: 6V
  • No-load current: 0.17A
  • No-load speed: 85RPM±10%
  • Rated current: 0.37A
  • Rated speed: 64RPM±10%
  • Rated torque: 1.02KG*cm
  • Stall current: 0.77A
  • Stall torque: 2.4KG*cm
  • Starting voltage: 1V
