Hiwonder LX-225 Serial Bus Servo 25KG High Torque – Data Feedback

$21.99

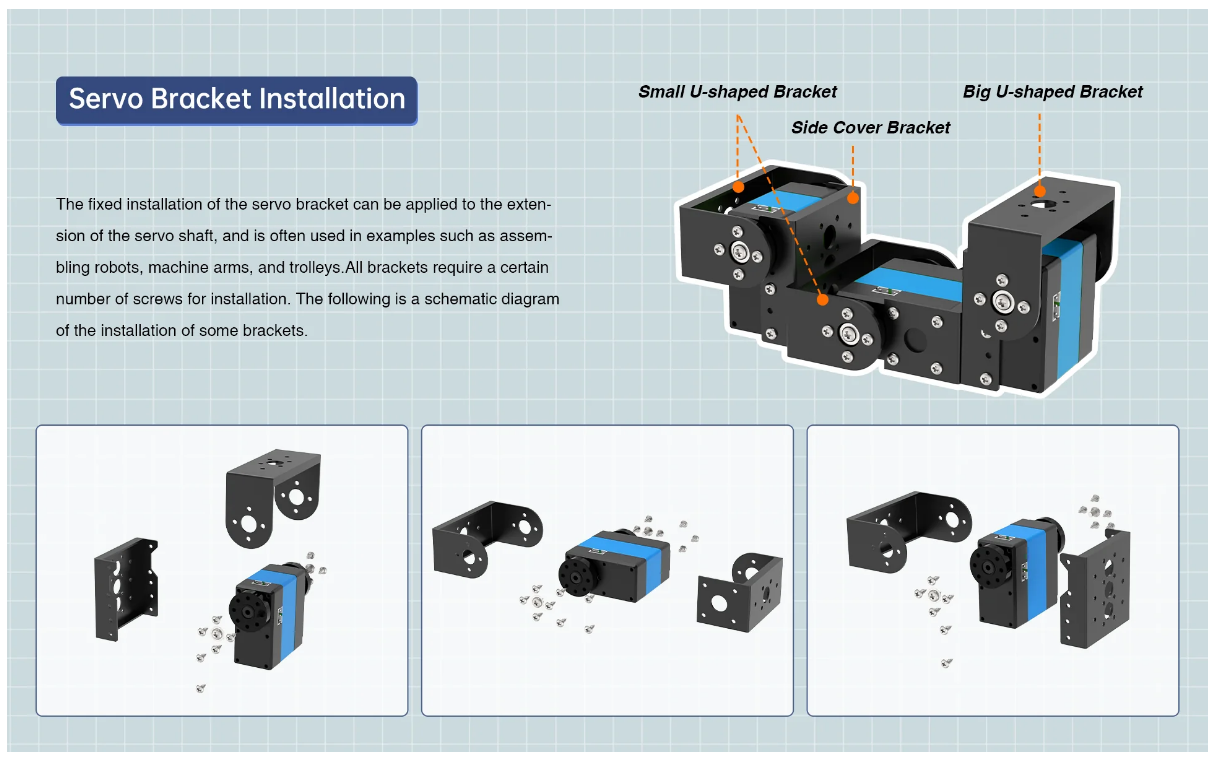

  • Compatible with Hiwonder Double-shaft Servo Brackets
  • Support temperature, voltage, and position feedback
  • Two working modes of servo mode and deceleration mode
  • The ID number for recognition


Made In: China

Supplier: Hiwonder SKU: Hiwonder LX-225 Serial Bus Servo Categories: , , Tags: , , , ,

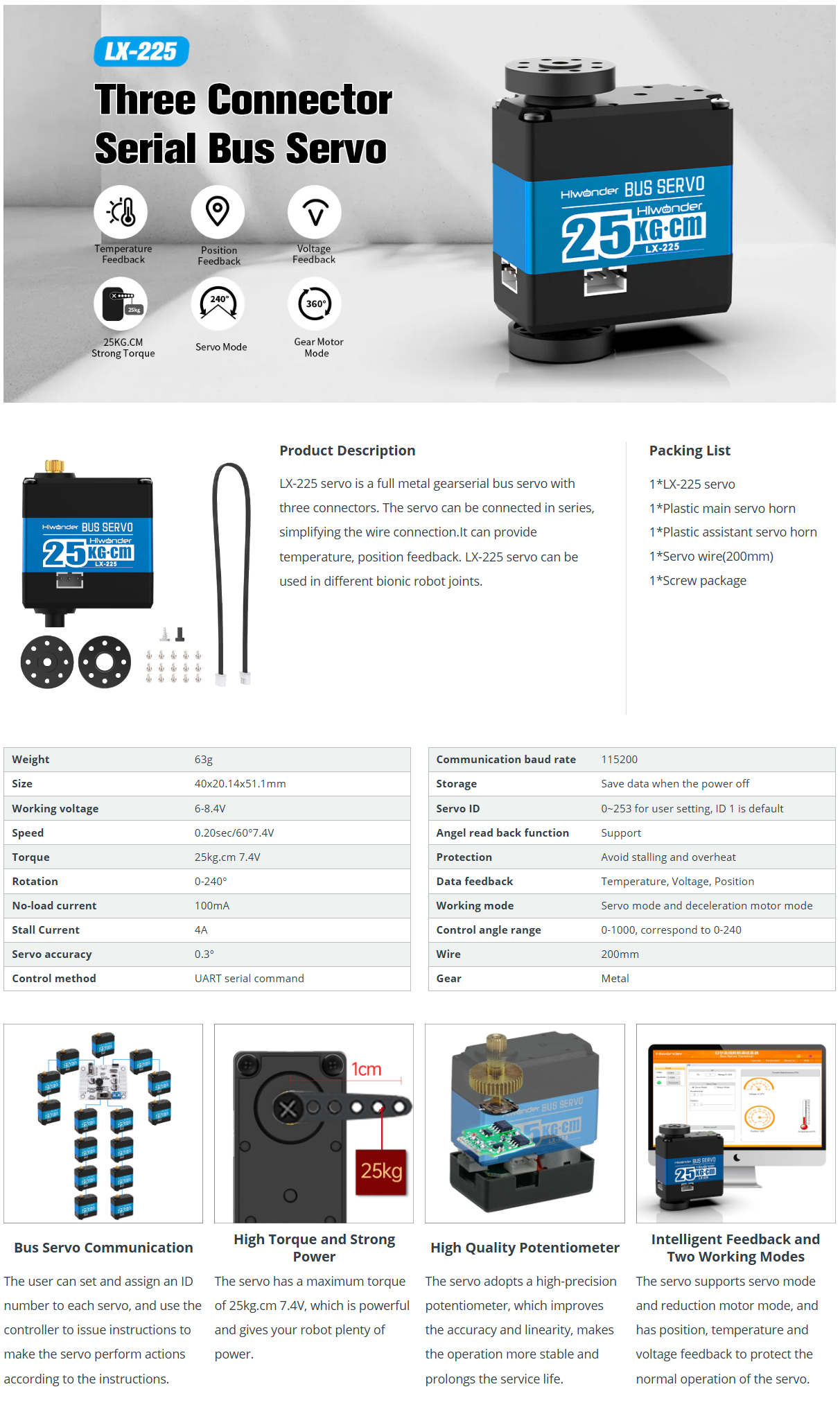

Hiwonder LX-225 servo/motor is a serial bus servo with three connectors. The servo can be connected in series, simplifying the wire connection. LX-225 servo can be used in different bionic robot joints.

Features

  • Ports on the top left and right are easy to wiring
  • Provide bus servo communication protocol, 51, Arduino, and STM32 source code
  • Each servo has an ID number for recognition. The default number is 1, which is modifiable
  • High-precision potentiometer for angle feedback
  • Stable performance to longer service life

Clean Wiring

There are two ports for you to connect, which gives the project clean wiring and a beautiful outlook.

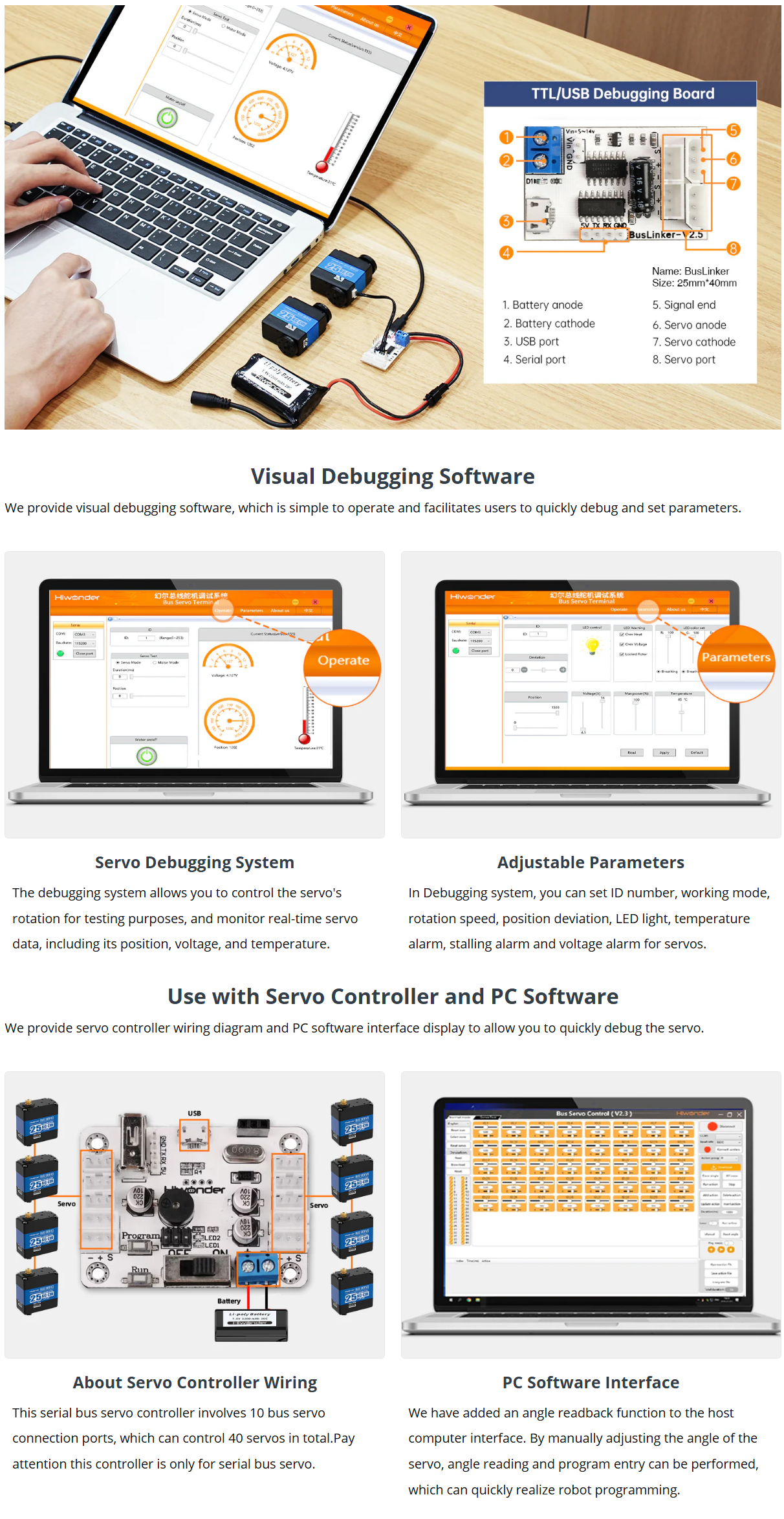

Servo Debugging System

In the Debugging system, you can set the ID number, working mode, rotation speed, position deviation, LED light, temperature alarm, and voltage alarm for servos.

Application

Three Connectors Intelligent Bus Servo are used in ArmPi FPV for stable and better performance! Compatible with Hiwonder double-shaft servo brackets.
