Hiwonder LX-824 Intelligent Three-Connectors Serial Bus Servo with Powerful Feedback Functions

$20.99

  • Serial bus servo connector to connect the servo one by one
  • High-precision potentiometer to feedback on the angle position
  • Equipped with position/temperature/voltage feedback
  • Support two working modes: Servo mode and Gear motor mode

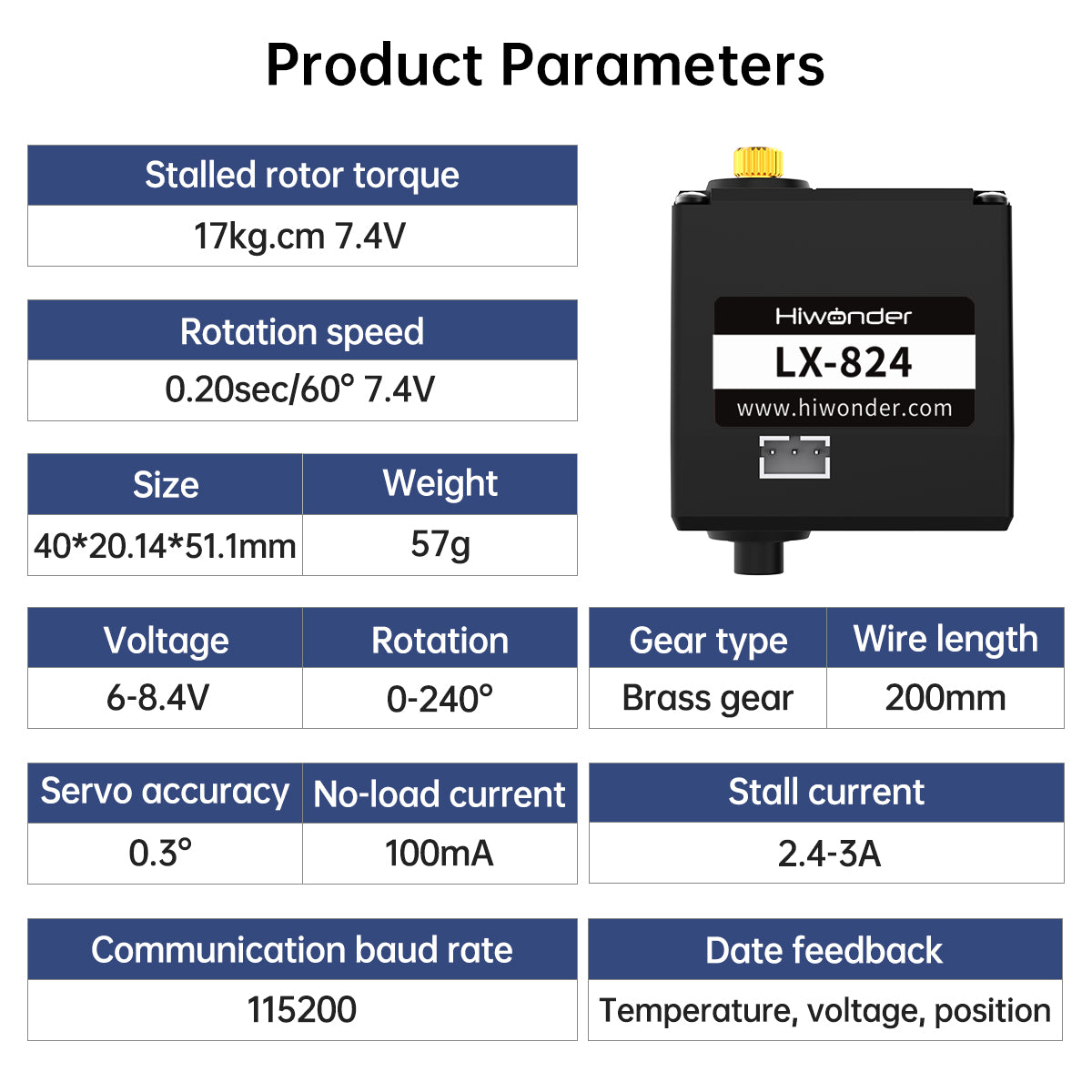

  • 17 kg large torque.Dual ball bearing

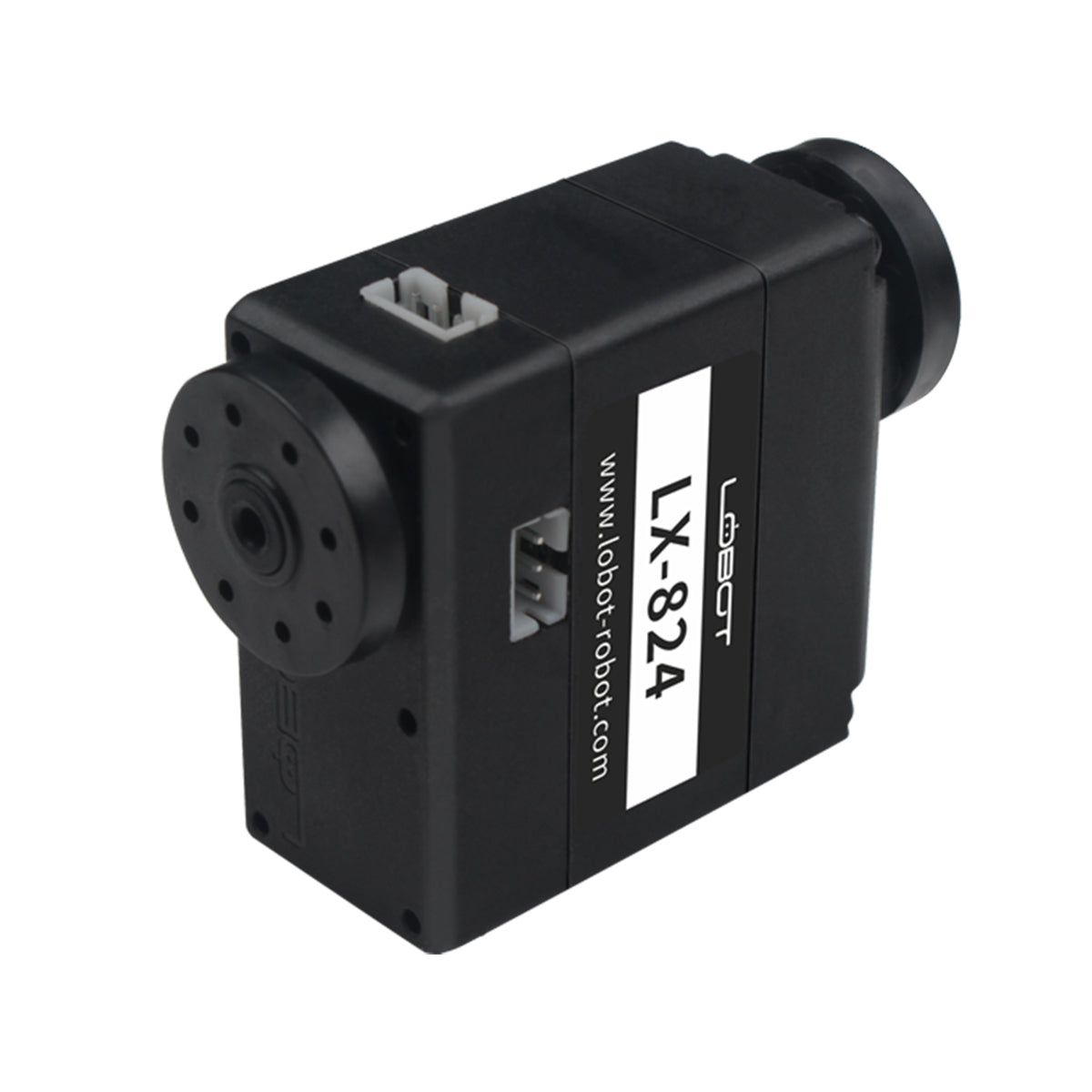

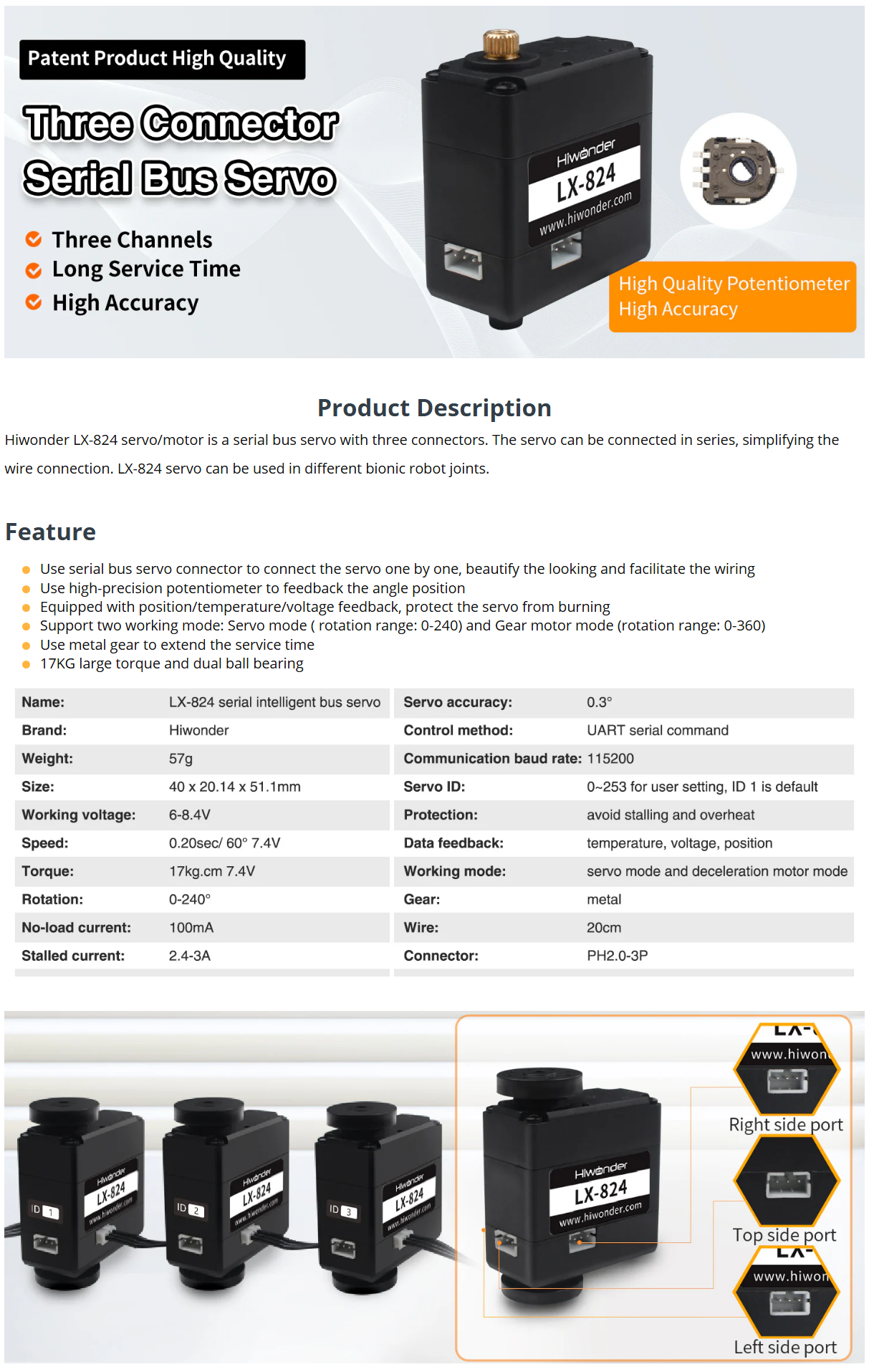

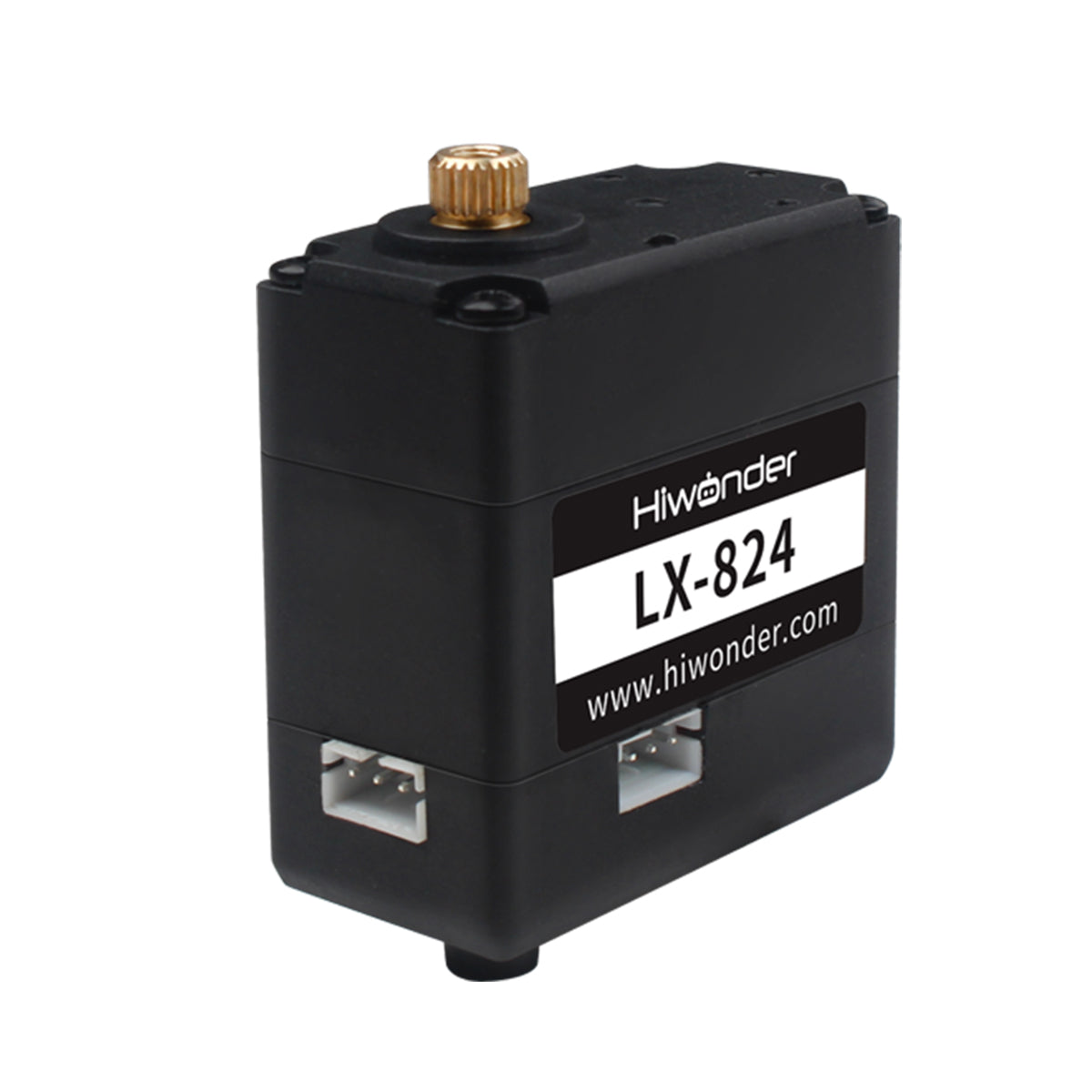

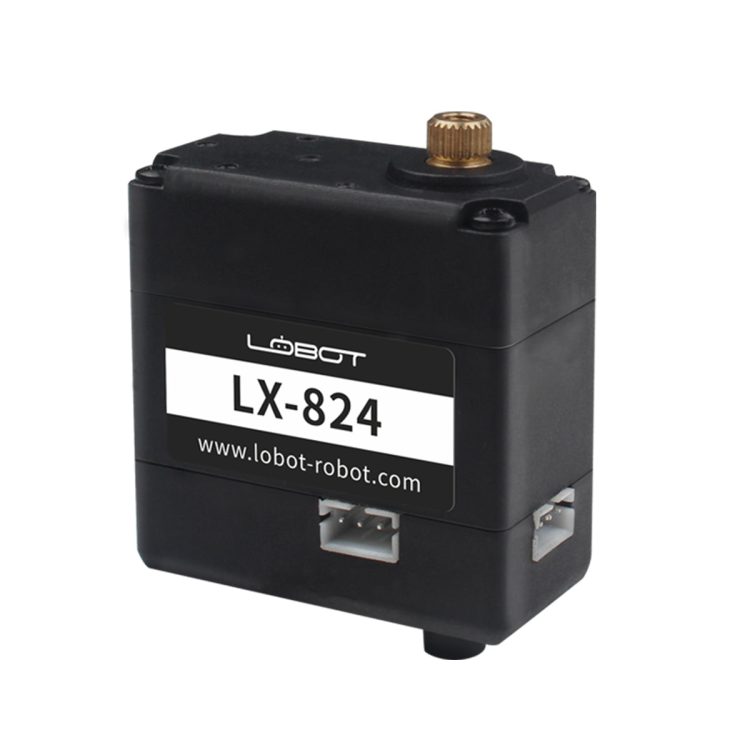

Hiwonder LX-824 servo/motor is a serial bus servo with three connectors. The servo can be connected in series, simplifying the wire connection. LX-824 servo can be used in different bionic robot joints.

Features

  • Use serial bus servo connector to connect the servo one by one, beautify the looking and facilitate the wiring
  • Use a high-precision potentiometer to give feedback on the angle position
  • Equipped with position/temperature/voltage feedback, protect the servo from burning
  • Support two working modes: Servo mode ( rotation range: 0-240) and Gear motor mode (rotation range: 0-360)
  • Use metal gear to extend the service time
  • 17KG large torque and dual ball bearing

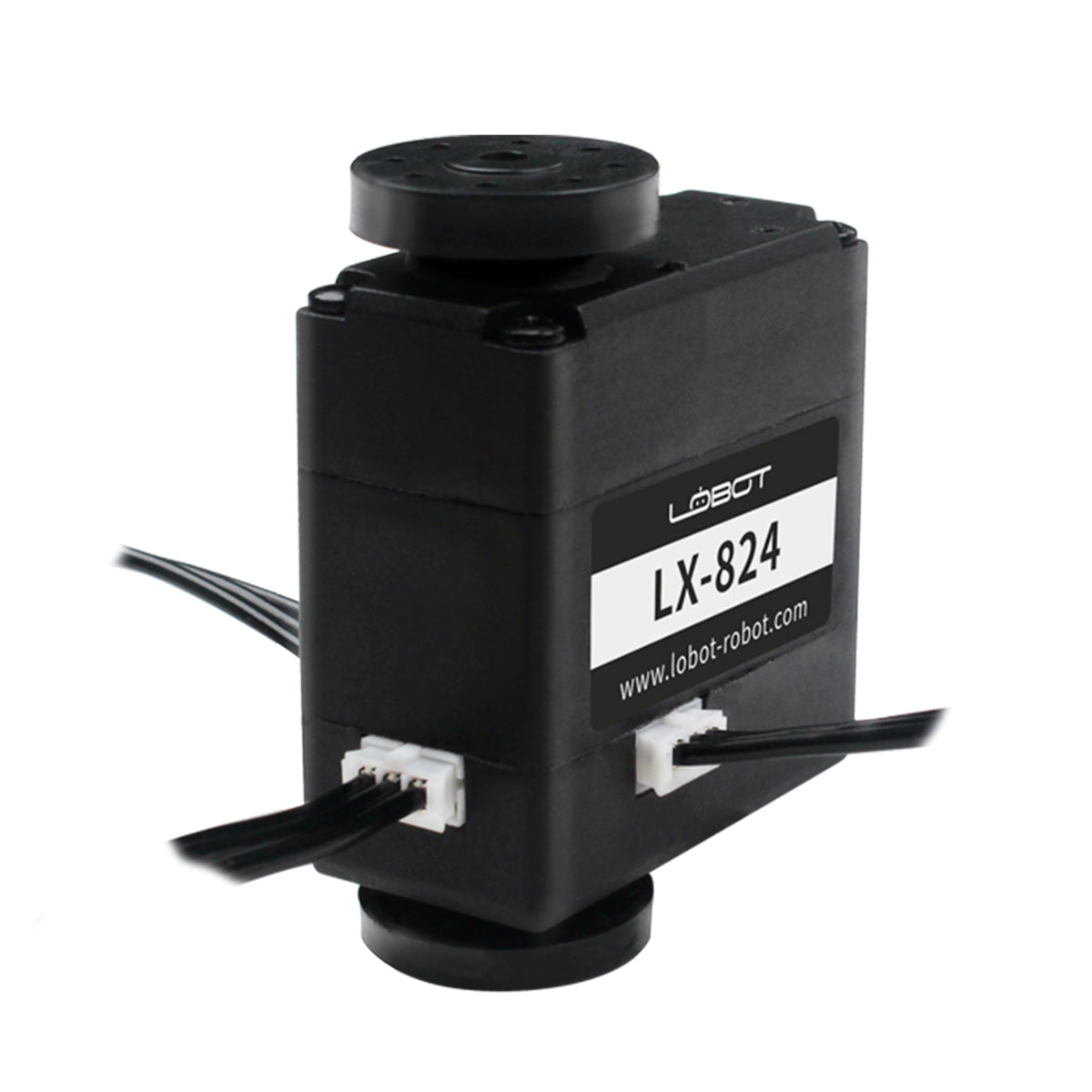

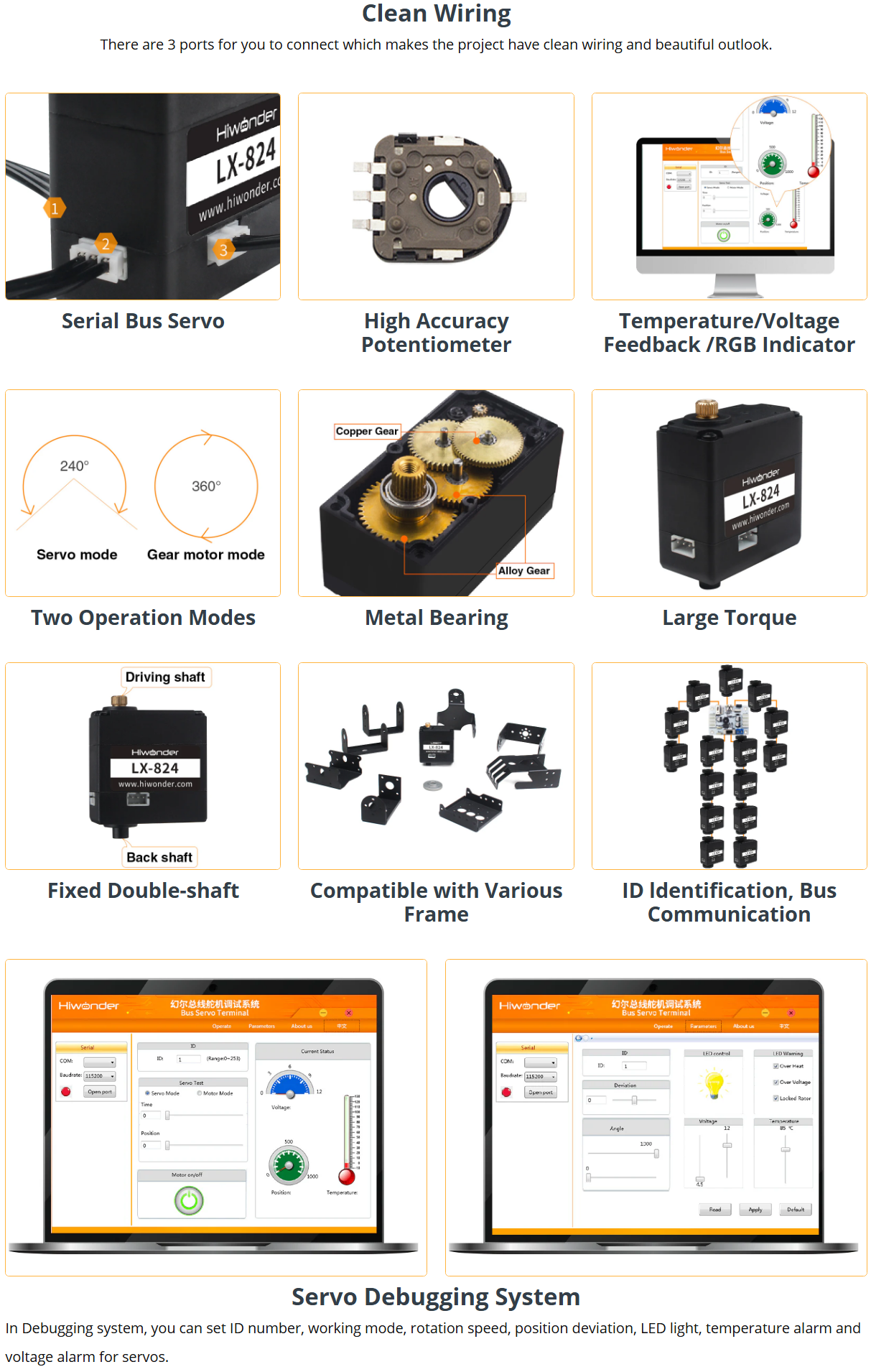

Clean Wiring

There are two ports for you to connect, which gives the project clean wiring and a beautiful outlook.

Servo Debugging System

In Debugging system, you can set the ID number, working mode, rotation speed, position deviation, LED light, temperature alarm, and voltage alarm for servos.

Application

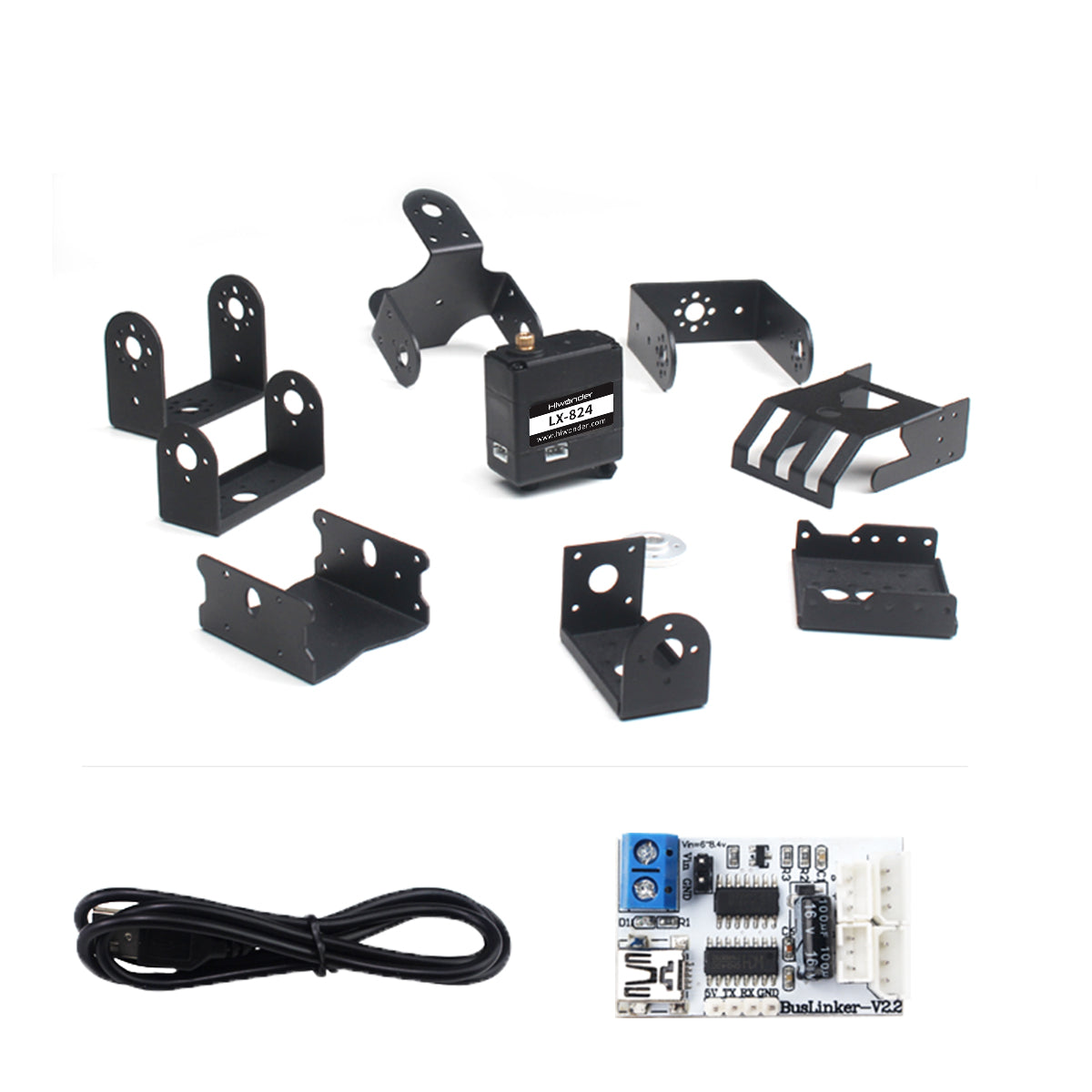

LX-824 servo combined with different types of frames can support your outstanding robot creativity!

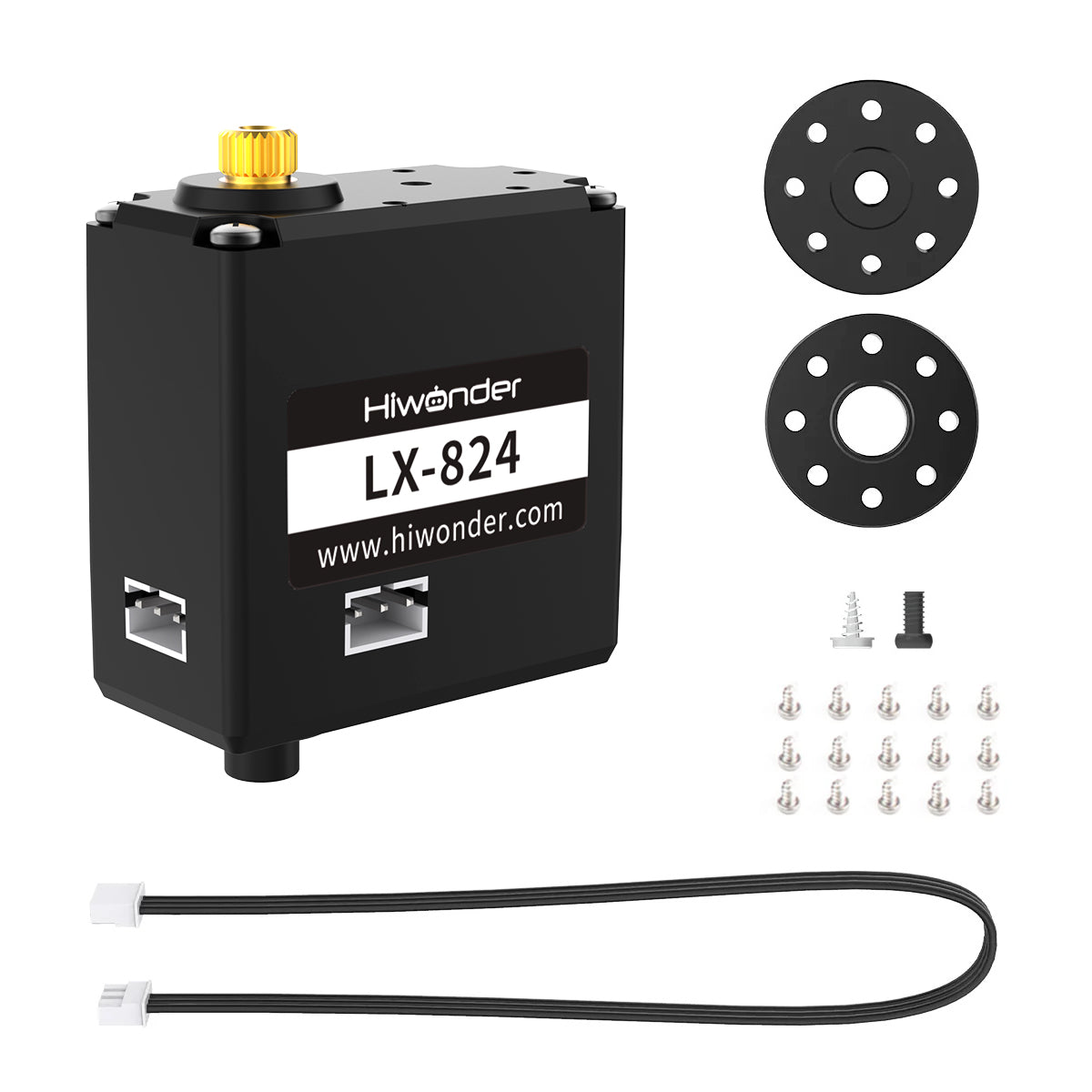

Packing List

  • 1* LX-824 serial bus servo
  • 1* Main servo horn
  • 1* Assistant servo horn
  • 1* Servo wire
  • 2* Main assistant screw
  • 15* Self-tapping screw
