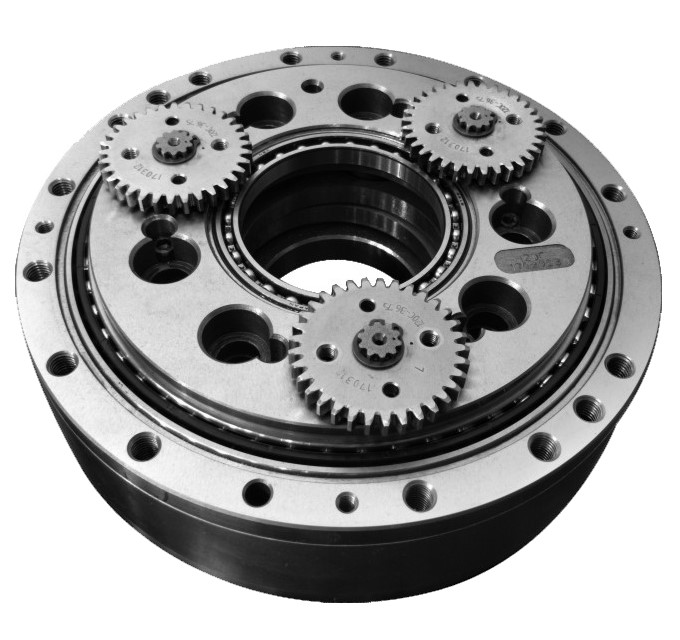

Hollow Shaft RV Reducer for Automation Industry Robots

Hollow Shaft RV Reducer for Automation Industry Robots

$3,154.00

This RV reducer features a hollow design that allows it to wrap the robot servo motor wiring harness, sensor cables, and pneumatic pipelines around the outside of the robot arm, thereby achieving built-in wiring.


Ships From: China
Supplier: Honpine SKU: Hollow Shaft RV Reducer Category: Tags: , , , , , More From:

Hollow Shaft RV Reducer for Automation Industry Robots

The Standard RV Reducer C Series is a precision mechanical reduction device designed with a two-stage closed differential gear system, combining a cycloid pinwheel and planetary gear structure. It features a hollow output shaft and is widely used in industrial robotics. For robotic arms with end loads ≤20 kg, RV reducers are primarily used in base-to-high-load joints (typically Joints 1-4). For robotic arms with end loads >20 kg, all six joints typically use RV reducers.RV reducers are critical transmission components ensuring robotic arm positioning accuracy.

Features

  • Hollow Output Shaft: Allows routing of cables and pipes through the center.
  • Two-Stage Reduction Design: First Stage: Involute planetary gear transmission for initial speed reduction.
  • Second Stage: Cycloid pinwheel transmission for further speed reduction and torque stabilization.
  • High Rigidity & Impact Resistance: Rigid disc support at the output ensures even load distribution, minimizing deformation.
  • Multi-crankshafts paired with high-precision bearings disperse stress impacts.
  • Compact Enclosed Structure: The transmission mechanism is integrated into the planetary carrier support bearings, significantly reducing axial size.

Additional information

Weight 10.56 lbs
Dimensions 11.86 × 11.86 × 8.65 in
