mini harmonic gearbox

HONPINE High Torque Compact Design Micro Harmonic Drive Reducer for Robotics CSF-11

Original price was: $752.00.Current price is: $642.00.

Select the most suitable model based on your mechanical design requirements.


Ships From: China
Supplier: Honpine SKU: CSF-11 Categories: , , Tags: , , , , , More From:

HONPINE High Torque Compact Design Micro Harmonic Drive Reducer for Robotics CSF-11

The CSF-mini series miniature harmonic drive is developed for applications with specialized volume and weight requirements, utilizing a cup-style flexspline. This series exclusively offers pre-assembled modular products for immediate use. The main bearing employs compact four-point contact ball bearings to support external loads directly. The CSF-mini series includes two types: the motor-mount type (2XH) and the shaft-input type (1U) that supports input forms such as belts, gears, and couplings. Select the most suitable model based on your mechanical design requirements.

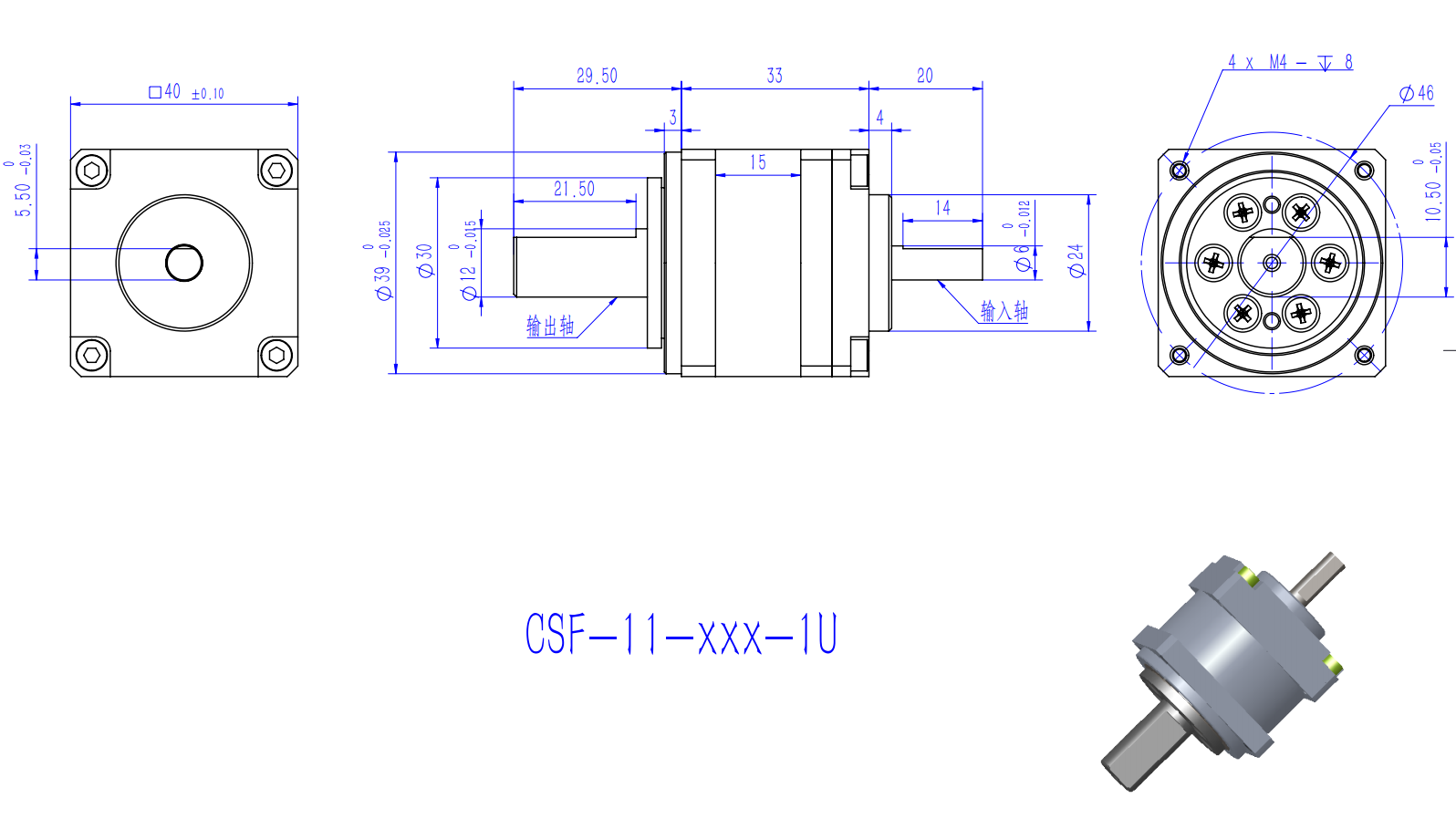

harmonic drive reducer

Features

  • Compact size and lightweight design
  • Compact and streamlined structure
  • Excellent rotational accuracy and positioning precision
  • Coaxial input and output configuration

Additional information

Weight 0.32 lbs
Dimensions 2.56 × 2.56 × 1.26 in
