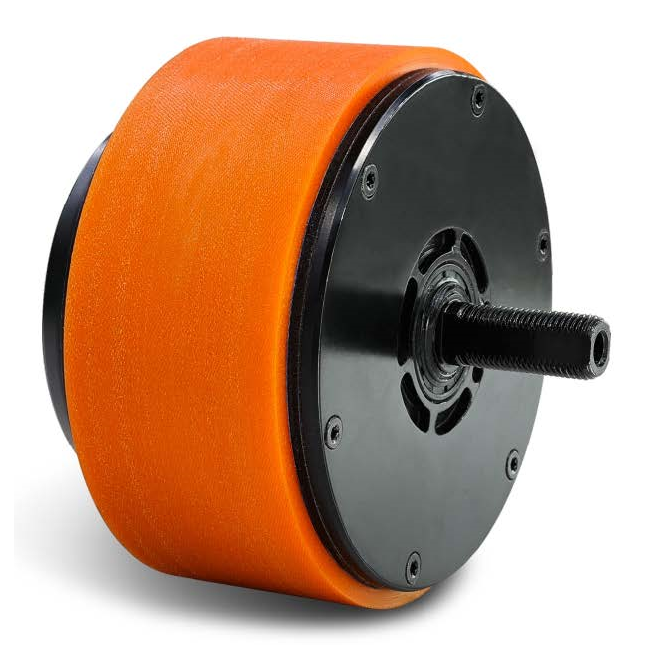

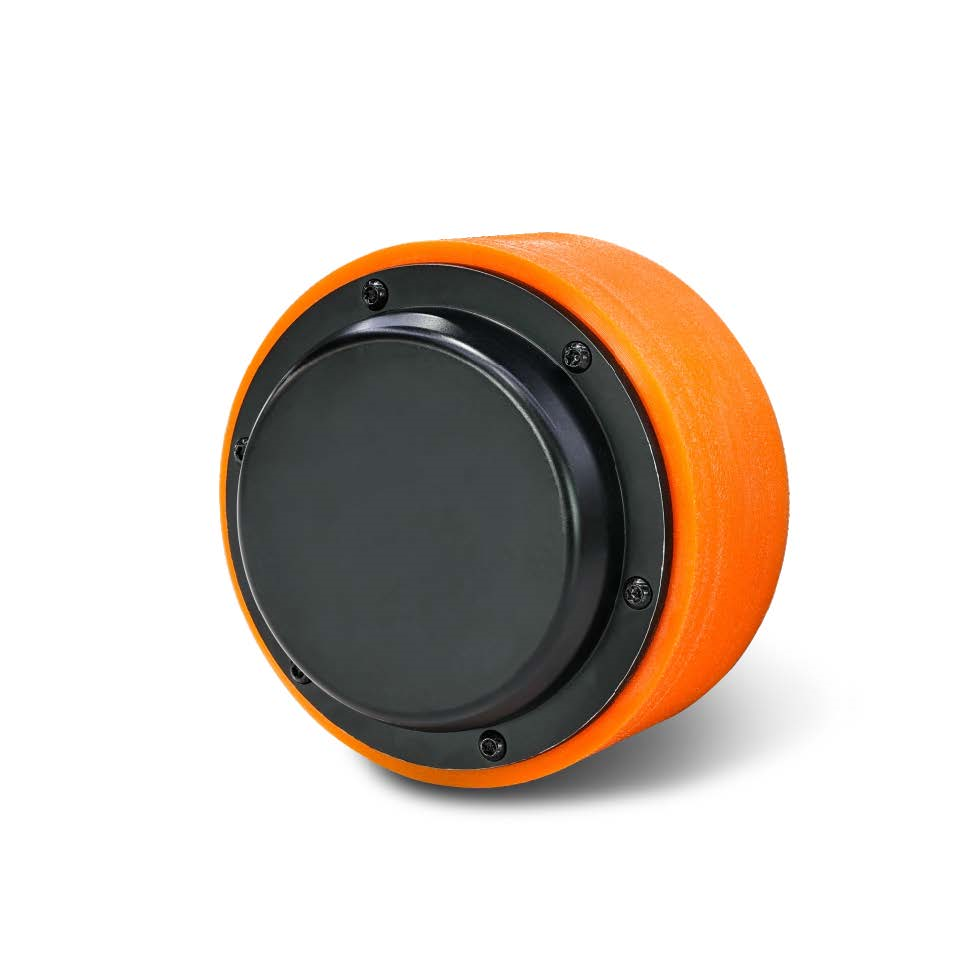

Integrated AGV Servo Wheel Hub Motor for Service Robots
The Integrated Servo Wheel Hub Motor is designed for service robots, warehouse logistics AGVs, and compact medical systems. Featuring a fully integrated drive and hub architecture, it significantly simplifies installation and system design. With an IP67 protection rating, the motor delivers reliable performance even in harsh or demanding environments. It provides high torque output and excellent overload capability, ensuring strong, consistent power for heavy-duty tasks, slopes, and continuous operation. Its smooth, low-speed performance and precise control make it an ideal propulsion solution for robots used in cleaning, disinfection, inspection, delivery, and guidance applications.
Features
- Integrated drive and wheel hub design for easy installation
- High protection rating, IP67
- High torque with excellent overload capability
- Smooth operation at low speed
Specifications
| Model |
iSML055-08503-MADC |
| Tire Diameter(mm) |
140 |
| Output Shaft diameter(mm) |
12mm after cutting the edges on both sides, hole diameterφ7.5mm |
| Rated Voltage(VDC) |
48 |
| Rated Current(Arms) |
5.5 |
| Max Speed(rpm) |
320 |
| Rated Torque(N.m) |
8.5 |
| Peak Torque(N.m) |
25.5 |
| Insulation Resistance(MQ) |
≥200 |
| RS-485 Debug port |
Max supports a 115.2 kHz baud rate |
| CAN BUS |
Max supports a 1Mbps baud rate and can use the CANopen protocol to communicate with the controller |
| Overvoltage Alarm Voltage(V) |
DC68V±2V |
| Undervoltage Alarm Voltage(V) |
DC18V±2V |
| Noise |
<65dB |
| Cooling Method |
Natural cooling |
| Operation Temperature |
0～40℃ |
| Storage Temperature |
-20～60℃ |
| Humidity(no condensation) |
Below 90%RH(no condensation) |
| Protection Level |
IP65 |
| Altitude |
Less than 2000m, power derating 1.5%/100m between 1000m and 2000m |
| Atmosphere Pressure |
86kpa～106kpa |
