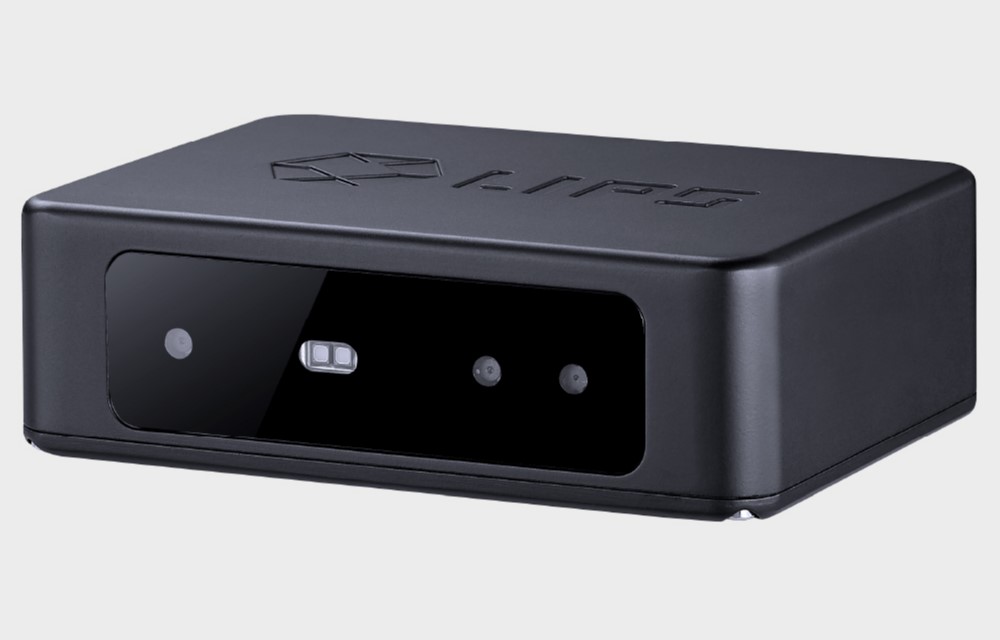

LIPSedge AE400 3D Stereo Camera, PoE, IP67, Factory Automation, AMR
rugged design, best for harsh environment

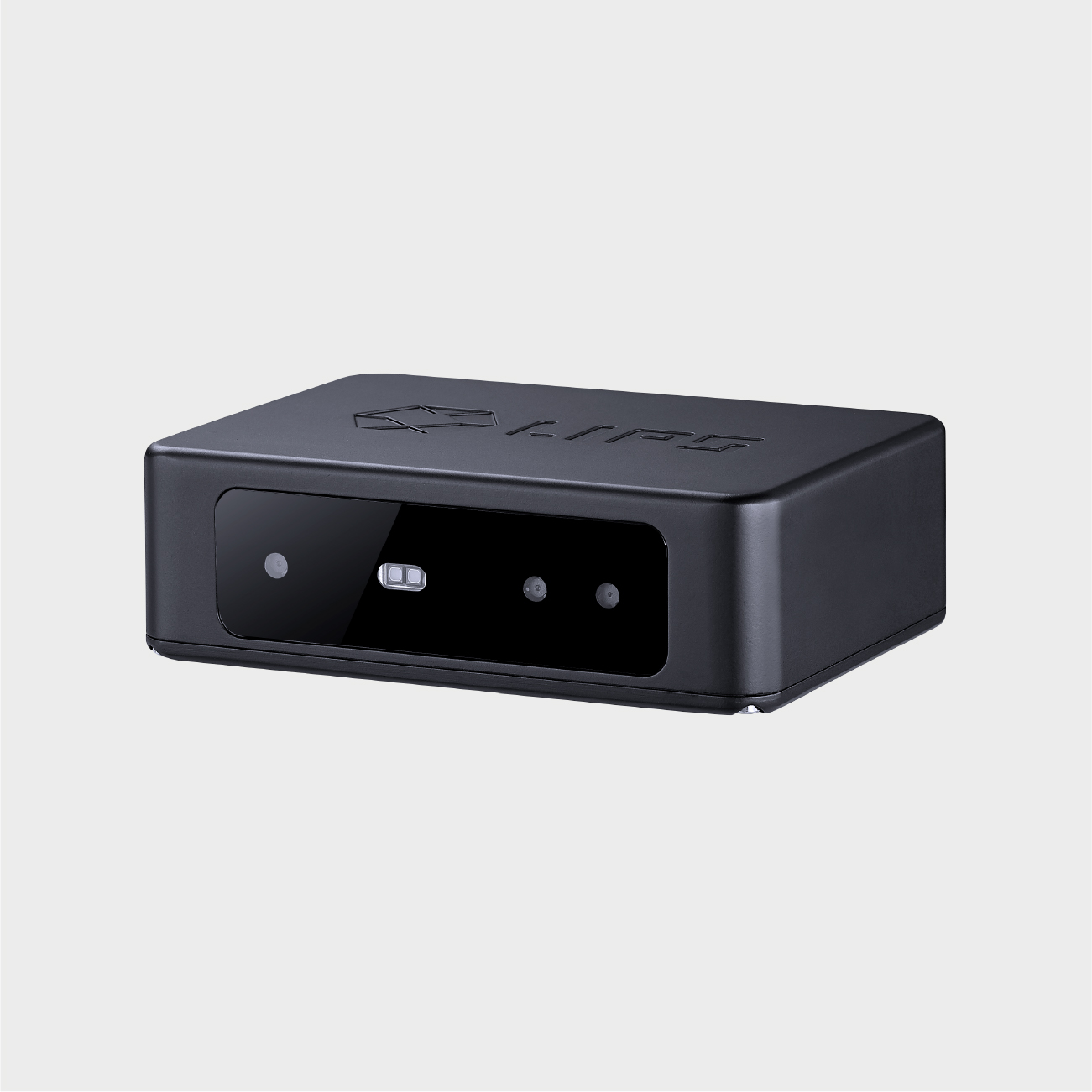

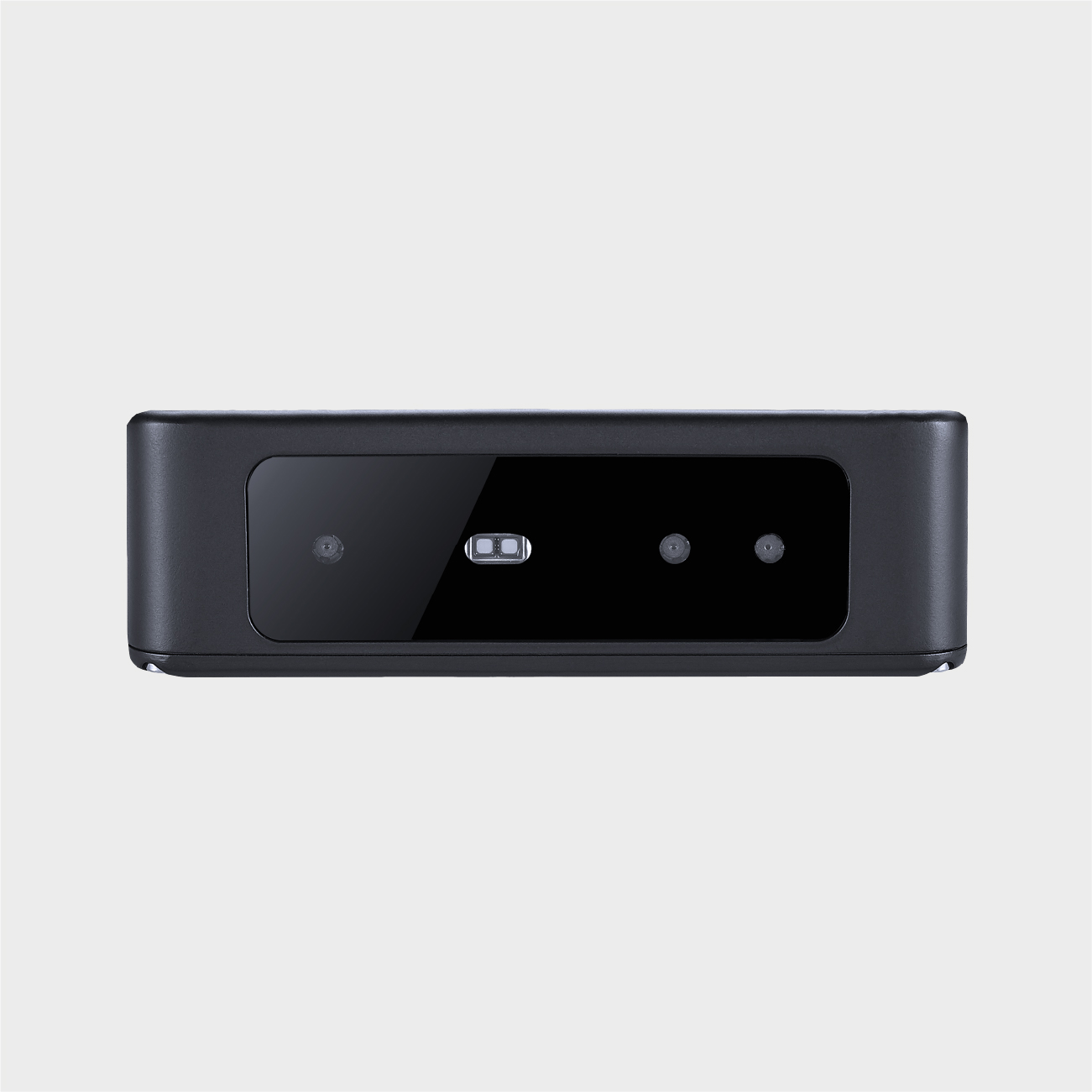

LIPSedge AE400 3D Stereo Camera, PoE, IP67, Factory Automation, AMR - Image 3
LIPSedge AE400 3D Stereo Camera, PoE, IP67, Factory Automation, AMR - Image 4

LIPSedge AE400 3D Stereo Camera, PoE, IP67, Factory Automation, AMR

Original price was: $1,089.00.Current price is: $1,029.00.

LIPSedge AE 400 supports a variety of industrial 3D frameworks, including ROS, NVIDIA Isaac, OpenNI, OpenCV, and HALCON.


Ships From: Taiwan
Brand: LIPS Corporation SKU: LIPSedge AE400 Categories: , , Tags: , , , ,

Stereo 3D Camera, PoE, IP67, Ideal for Factory Automotion, AMR – LIPSedge AE400

LIPSedge AE400 Ruggedized 3D Cameras is a high-performance 3D camera line designed for industrial applications, including Vision Guided Robotic (VGR), Factory & Logistic Automation, Workplace Monitoring & Safety, 3D Measurement & Inspection, and more. LIPSedge AE400 features GigE/PoE, an IP67 rating, and a built-in IMU & heatsink. It is the RGB-D camera with the highest depth quality and lowest cost per degree on the market today. Best of all, LIPSedge AE 400 supports a variety of industrial 3D frameworks, including ROS, NVIDIA Isaac, OpenNI, OpenCV, and HALCON.

Highlights

  • Ruggedized enclosure with IP67 classification designed for a stringent industrial environment
  • Support GigE with PoE, which allows both faster data and higher power over distance in a single cable compared to USB.
  • Compatibility with RealSense™ SDK ensures seamless migration of existing applications.
  • Built-in 6-axis IMU for broader application support
  • Support of LIPS’ strong middleware portfolio

Specifications

Depth Technology Active Stereo
Depth FoV (H x V x D) 65° x 40° x 72°
Ideal Working Distance 4 m
Depth Min. Working Distance ~0.45 m
Depth Frame Rate 1280×720@30fps, 640×480@60fps
Depth Shutter Type Rolling Shutter
Depth Z Accuracy ≤2% (up to 2 meters and 80% of FoV)
*The Accuracy will vary with distance.
RGB Resolution 1920×1080@15fps, 1280×720@30fps, 640×480@60fps
RGB FoV (H x V x D) 65° x 40° x 72°
Illumination Type Infrared
Illumination Wavelength 850nm
Inertial Measurement Unit Sensor 6-axis (3D Accelerator & Gyroscope)
Dimension (mm) 135 x 86 x 42 mm
Ambient Temperature 0 ~ 40˚C
Storage Temperature -20 ~ 60˚C
Built-In Industrial Heatsink
Power PoE (IEEE 802.3 at/at)

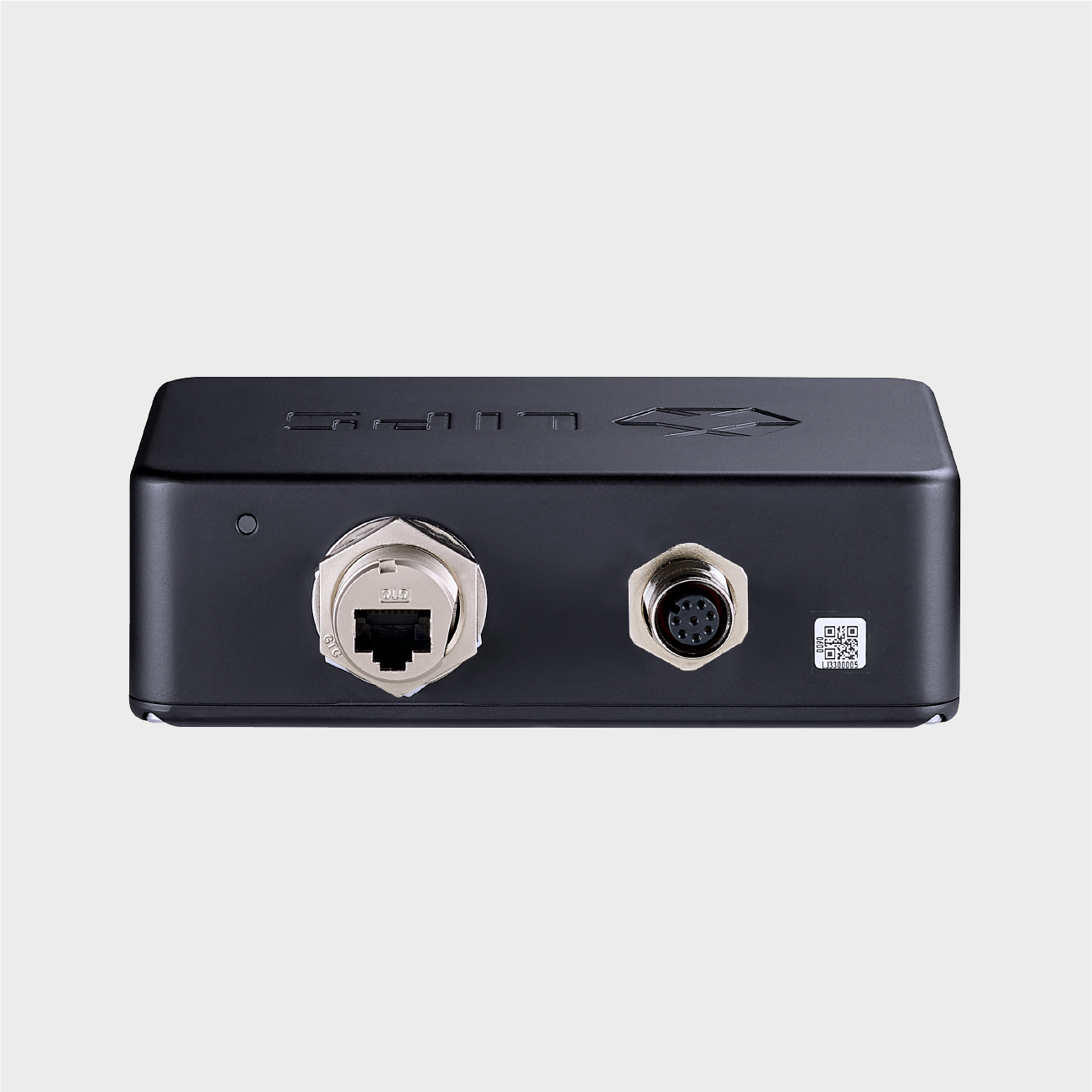

RJ-45 Connector with M12 Lock
Power Wire (12V, 1A)
Mounting Mechanism 1/4” camera screw compatible & 4 x M5 thread 70x70mm mounting points

(optional VESA 75x75mm adapter)
SDK Multiple Frameworks supported: OpenNI, NVIDIA Isaac, ROS
OS Windows 10
Ubuntu 16.04 / 18.04 / 20.04 / 22.04 LTS
Environment Indoor / Outdoor

Developer Friendly

  • Free SDK (OpenNI/ OpenCV Compatible) Download & Support from LIPS
  • For product customization requests, please contact LIPS.

Package Includes:

  • AE400*1
  • M12 Cable*1
  • RJ45 Cable*1

Additional information

Weight 2.53 lbs
Dimensions 9.84 × 7.87 × 5.91 in
Color

Black
Size

(WxDxH), mm:135×86×42
