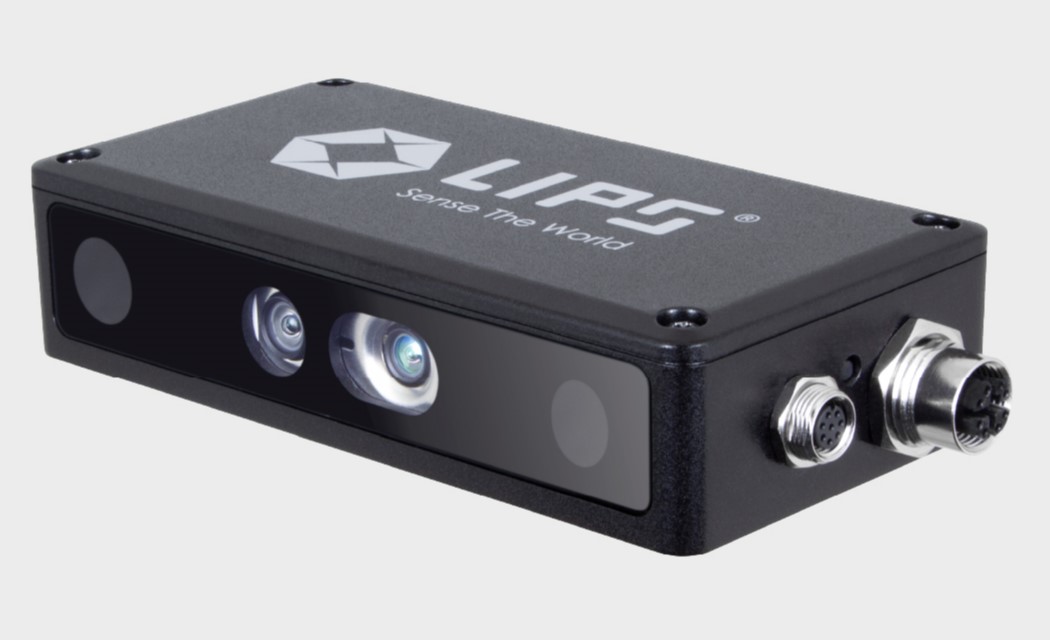

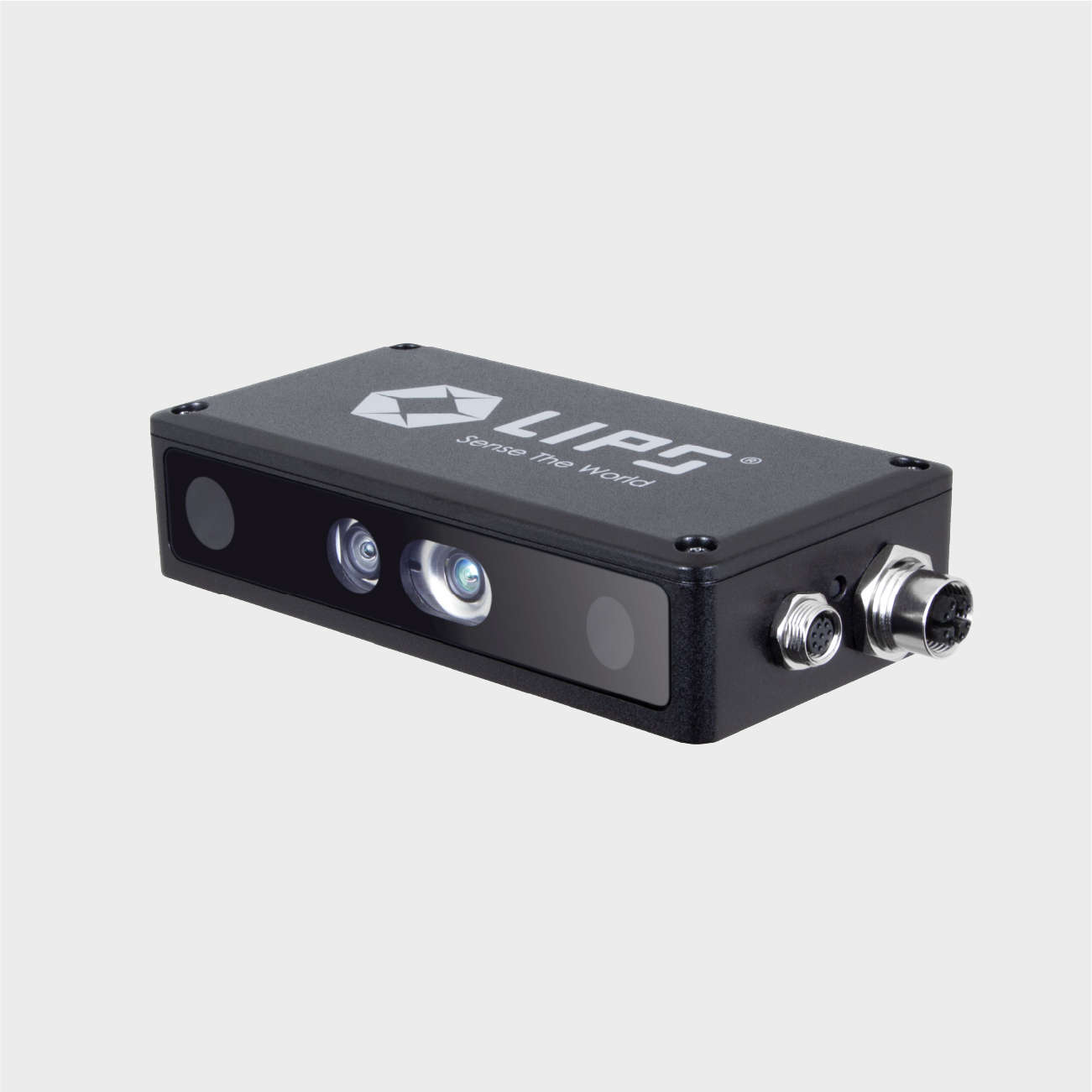

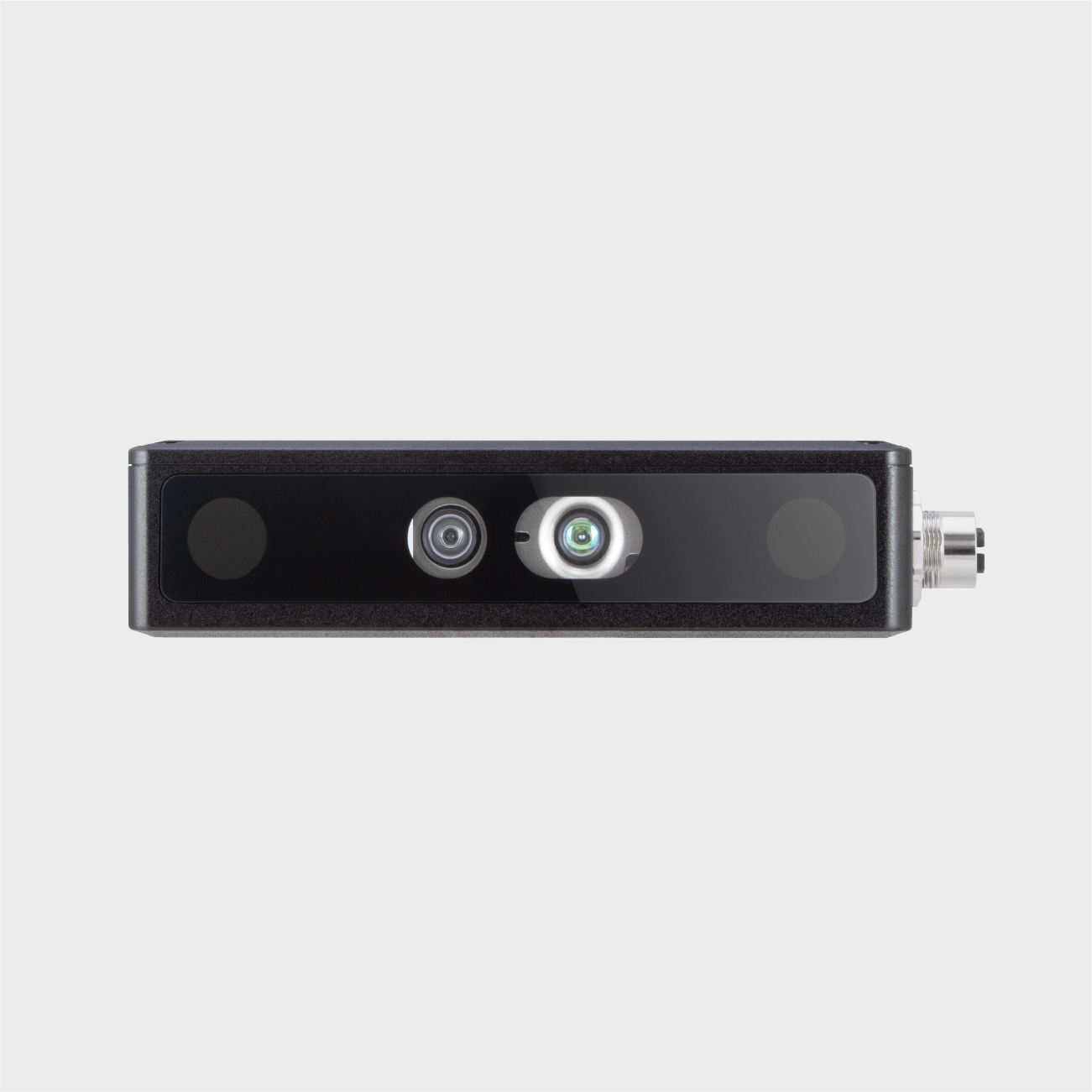

LIPSedge AE470 3D Depth Camera, Edge AI, High-Precision, ROS, Automation and Robotics

LIPSedge AE470 3D Depth Camera, Edge AI, High-Precision, ROS, Automation and Robotics

Original price was: $1,399.00.Current price is: $1,319.00.

Product Highlights

Shutter – LIPSedge™ AE470 uses Global shutter technology, in which an image sensor’s pixels start and stop exposing simultaneously for every image capture
Compact & Industrial Ready – LIPSedge™ AE470 features compact form factor (135 x 100 x 42mm), ruggedized casing (IP67 compliant)
10+ Meters Long Range – LIPSedge™ AE470 is best suited for detections that require long distances and enhanced range 3D depth mapping
An IMU inside – The LIPSedge™ AE470 comes with a built-in 6-axis Inertial Measurement Unit (IMU)
Supports GigE with PoE that allows data transmission and power supply (802.3at) up to 100 meters
Provide a persistent network connection to remain in the same network session even after occasional disconnection (up to 15 seconds) from the network to ensure data reliability
Built-in heatsink to withstand higher working temperatures in a factory environment
Features edge computing with an AI SOC for additional Neural Network applications to run at 5.0 TOPS
Supports industrial 3D frameworks such as ROS, NVIDIA Isaac, OpenNI, OpenCV, and HALCON
Compatible with LIPS ® comprehensive middleware portfolio

Ships From: Taiwan
Brand: LIPS Corporation SKU: LIPSedge AE470 Categories: AI Cameras, Webcam Tags: 3dcam, 3dcamera, DEPTHCAMERA, industrial, machinevision

3D Depth Camera, Edge AI, High-Precision, ROS, Rugged, Automation and Robotics – LIPSedge AE470

From the LIPSedge AE series, the LIPSedge™ AE470. This device features a compact form factor, GigE/PoE support, edge-AI SOC, and is IP67 dust & water-proof, weighing less than 300 grams. LIPSedge AE470 is an excellent 3D camera choice for robotic hand-eye and factory automation, as well as for many other applications that require long-range capture and detection.

Specifications

Depth Technology	Active Stereo
Depth Baseline	95mm
Ideal Working Distance	0.6 ~ 6 m
Depth Min. Working Distance	0.52m
Depth Frame Rate	1280×720@30fps
Depth Shutter Type	Global Shutter
Depth FoV (H x V x D)	87° x 58° x 95°
Depth Z Accuracy	≤2% (up to 4 meters and 80% of FoV) *The Accuracy will vary with distance.
RGB Resolution	1280×800@30fps
RGB FoV (H x V x D)	87° x 58° x 95°
RGB Shutter Type	Global Shutter
Illumination Type	Infared
Illumination Wavelength	850nm
Illumination Pattern Type	Static
Illuminating Component	Vertical-cavity surface-emitting laser (VCSEL)
A.I. Processor ARM Cortex	Quad Core ARM Corex-A73, paired with Dual Core Cortex A-53 CPU, ARM Mali-G52 GPU
Dimension (mm)	130 x 32 x 66 mm
Weight(g)	≤ 300 g
Ambient Temperature	0 ~ 40˚C
Storage Temperature	-40 ~ 70˚C
Built-In	Industrial Heatsink
Output Interface	M12 to Gigabit Ethernet cable for power and data
Power	PoE (IEEE 802.3 at/at) M12-to-RJ45 Cable (included) Power Wire (12V, 1A) with M8 standard connector
Working Environment	Indoor / Outdoor
SDK	Multiple Frameworks supported: OpenNI, NVIDIA Isaac, ROS
OS	Windows 10 Ubuntu 18.04 / 20.04 / 22.04 LTS
Environment	Indoor / Outdoor

Developer Friendly

Free SDK (OpenNI/ OpenCV Compatible) Download & Support from LIPS
For product customization requests, please contact LIPS.

Package Includes:

AE470*1

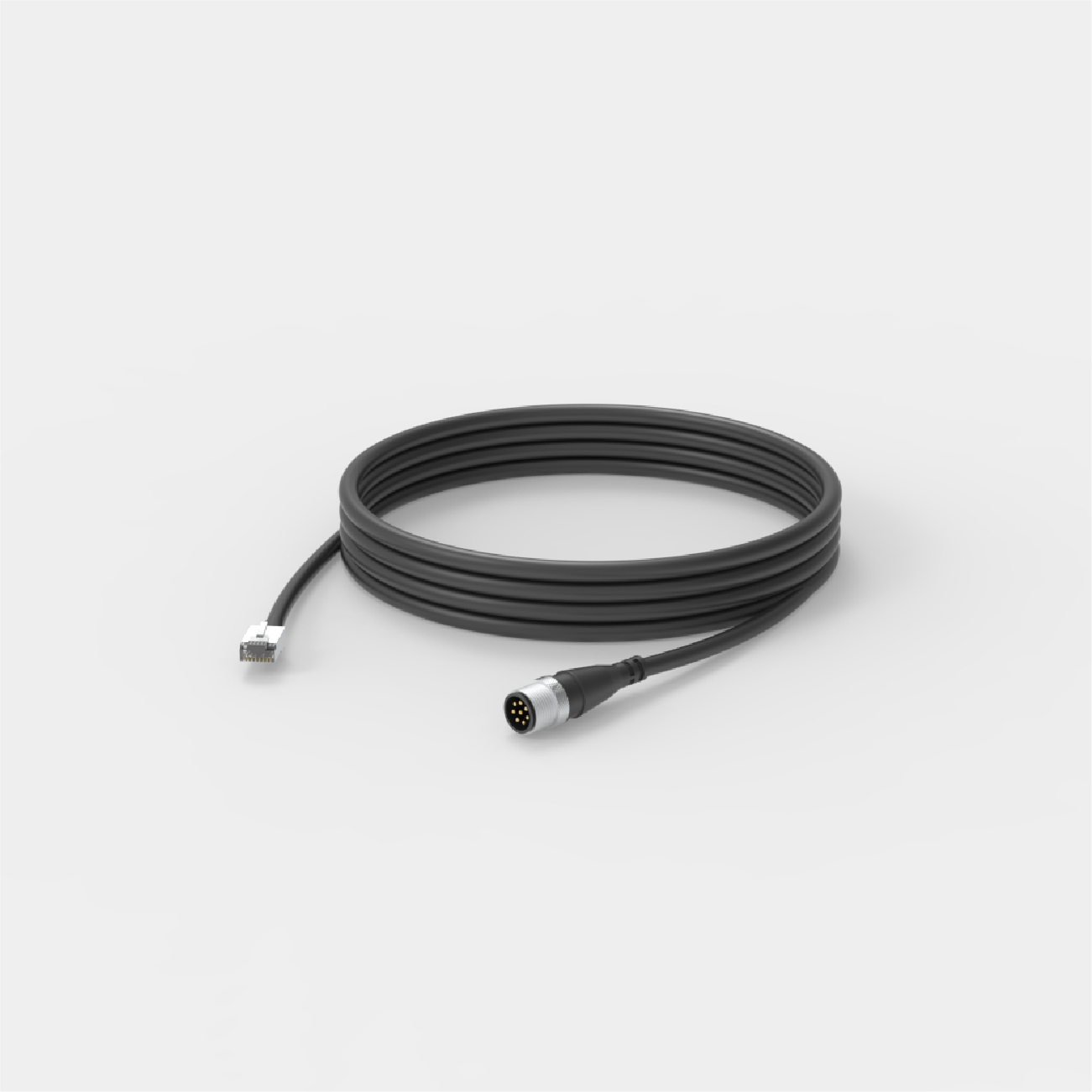

M12 to RJ45 Cable*1

Additional information

Weight	1.18 lbs
Dimensions	7.48 × 3.54 × 2.76 in
Color	Black
Size	(WxDxH), mm: 130 x 32 x 66
