Sale!

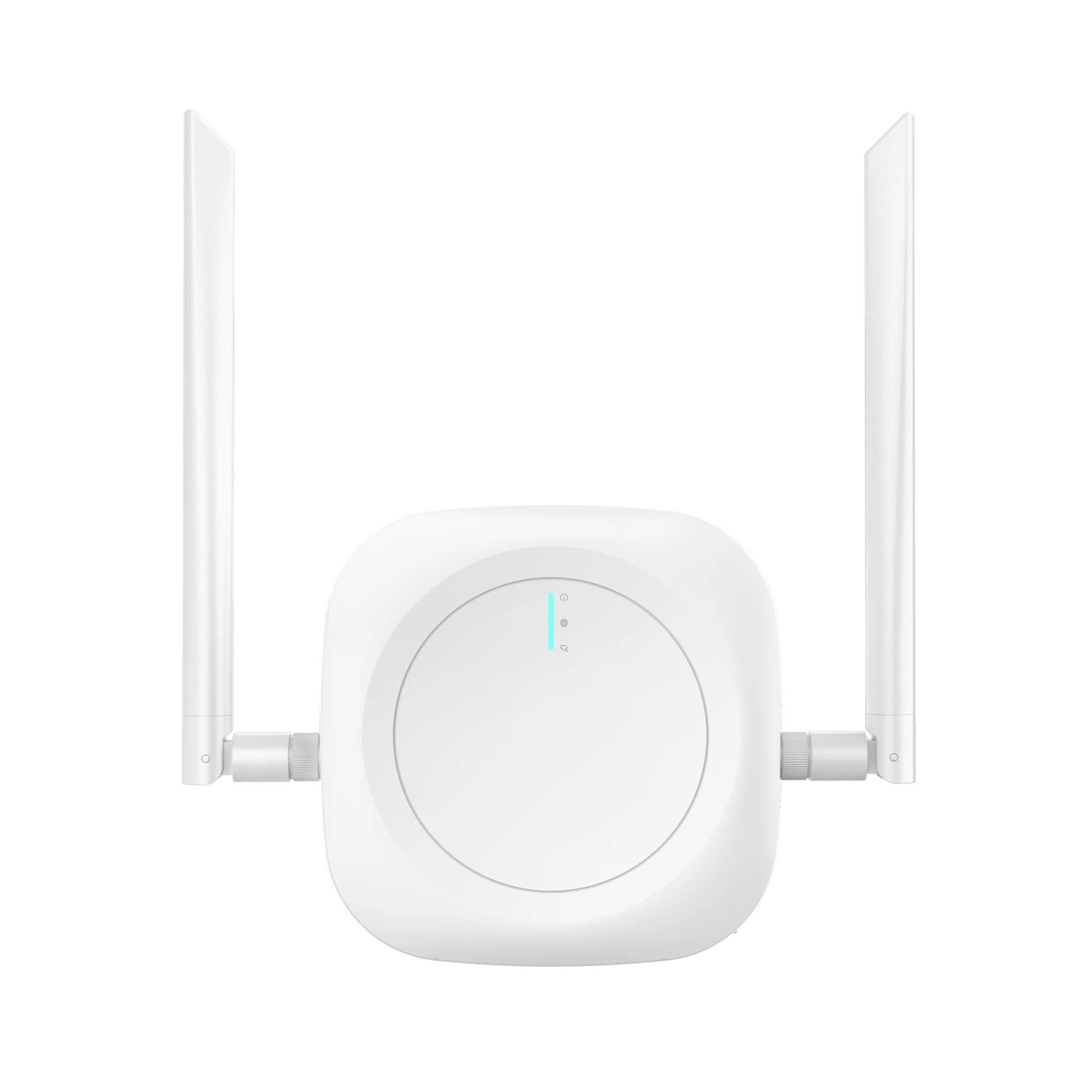

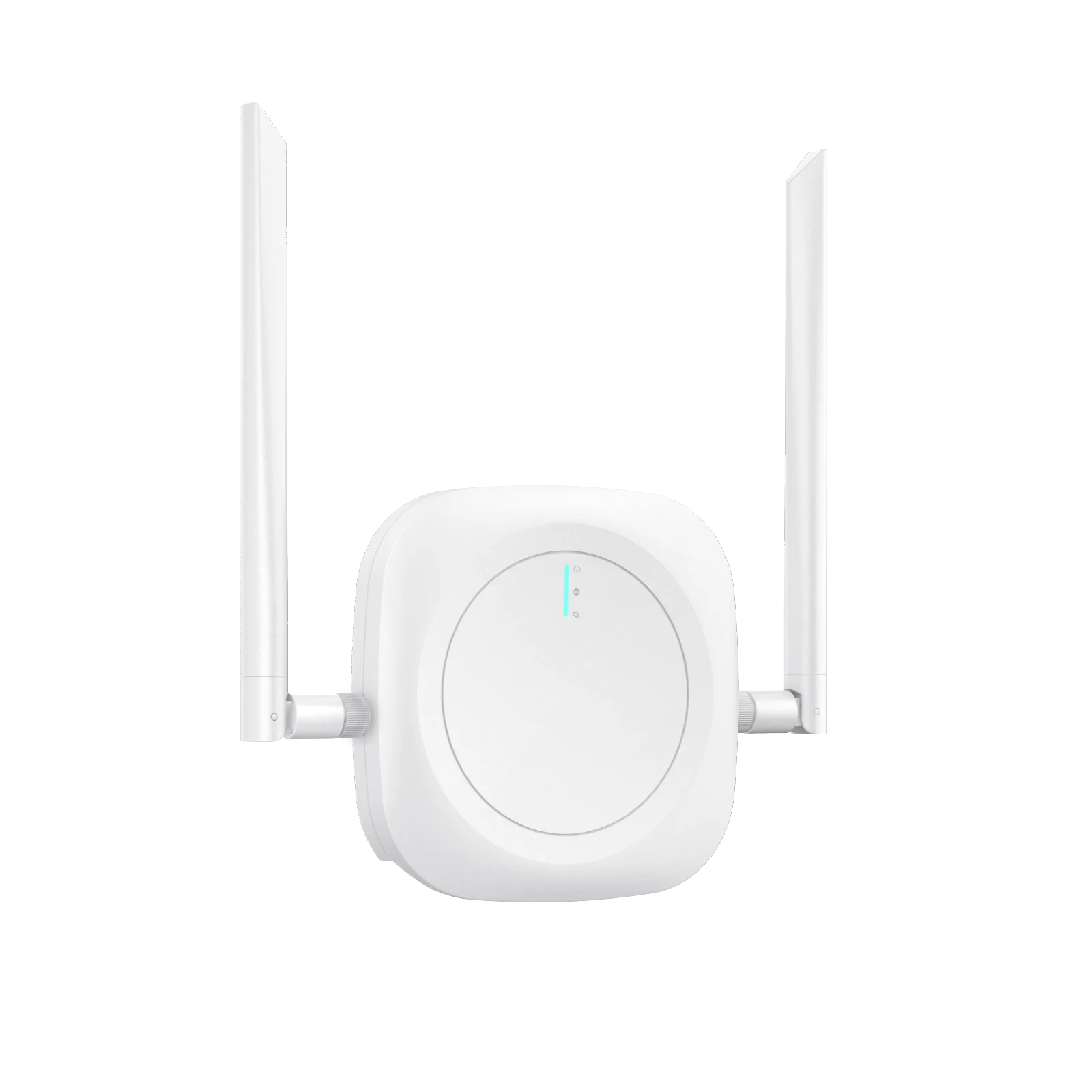

LoRaWAN 8 Channels Gateway for IoT SolutionsGateways

Original price was: $330.00.Current price is: $286.00.

MOKO 8 channels gateway MKGW2-LW is based on LoRaWAN protocol, which is embedded with Semtech’s high-performance multi-channel transceiver SX1301/SX1257 and MTK platform. It is for indoor use and is easy to install. MKGW2-LW includes two modes: AP and STA, as routers and offers 2.4Ghz WiFi and wired Ethernet for connecting internet. It can be connected to LoRaWAN terminals in various application nodes, collects valuable information, and sends the data to a cloud server.

  • Based on LoRaWAN®-Based Protocol
  • Support WiFi AP hotspot access gateway
  • WEB interface for related configuration and status view
  • Support one-key reset
  • Support download log
  • Support upgrade firmware by OTA or USB
  • Easy for install


Made In: China

Supplier: MOKOSmart SKU: MKGW2-LW Categories: , , , , Tags: , , , More From:

LoRaWAN 8 Channels Gateway for IoT Solutions

MOKO 8 channels gateway MKGW2-LW is based on LoRaWAN protocol, which is embedded with Semtech’s high-performance multi-channel transceiver SX1301/SX1257 and MTK platform. It is for indoor use and is easy to install. MKGW2-LW includes two modes: AP and STA, as the router offers 2.4Ghz Wi-Fi and wired Ethernet for connecting to the internet. It can connect LoRaWAN terminals in various application nodes, collect valuable information, and send the data to a cloud server.

Quick Details

  • Model Number: MKGW2-LW
  • Place of Origin: Guangdong China
  • Brand Name: MOKO
  • Chipset: Semtech SX1301/1257
  • Supplier Type: Original Manufacturer
  • Application: Smart city, Smart factory, Smart farming, etc., Smart home, Smart factory, smart building
  • Product name: MKGW2-LW
  • Lora Protocol: LoRaWAN V1.0.2 for Class A and Class C
  • Lora Frequency: EU868/US915/AU915/AS923/IN865
  • LoRa chip: Semtech SX1301/1255
  • Interface Wireless: LoRaWAN, Wi-Fi 2.4 GHz
  • Lora Communication Distance: Up to 3km in urban
  • WiFi standard: IEEE 802.11b/g/n
  • Dimension: 120mm x 120mm x 22.5mm (without antenna)
  • Power Supply: DC: 12V/1A, POE: 48V/1A, USB: 5V/2A

Product Features

  • Support LoRaWAN Protocol: Class A and Class C
  • Can integrate with both private and public (TTN) Network Servers
  • Support Wi-Fi 2.4GHz, compatible with WLAN 802.11b/g/n
  • 100Mbase-T Ethernet with POE
  • AP and STA mode as a router
  • Configurable via WIFI
  • WEB interface for related configuration and status view
  • Support one-key reset
  • Support download log
  • Support upgrade firmware by OTA or USB
  • 1xLoRaWAN Antenna, 1xWIFI Antenna
  • Indoor operation temperature
  • Easy for install

Application

  • Smart home, Smart hotel, Smart Building, and Smart city
  • Wireless sensor network
  • Wireless remote meter reading
  • Indoor smart parking solution
  • Environment Monitor

Product Datasheet and Manual

If applicable, the Product Documentation such as Datasheet, Brochure, Reference Materials, CAD Design, STP Files, Manuals, and Tutorials will be available for download upon purchase from the My Account as needed. On the checkout page, please create an account to download product-related files upon purchase. You won’t be able to download otherwise.
