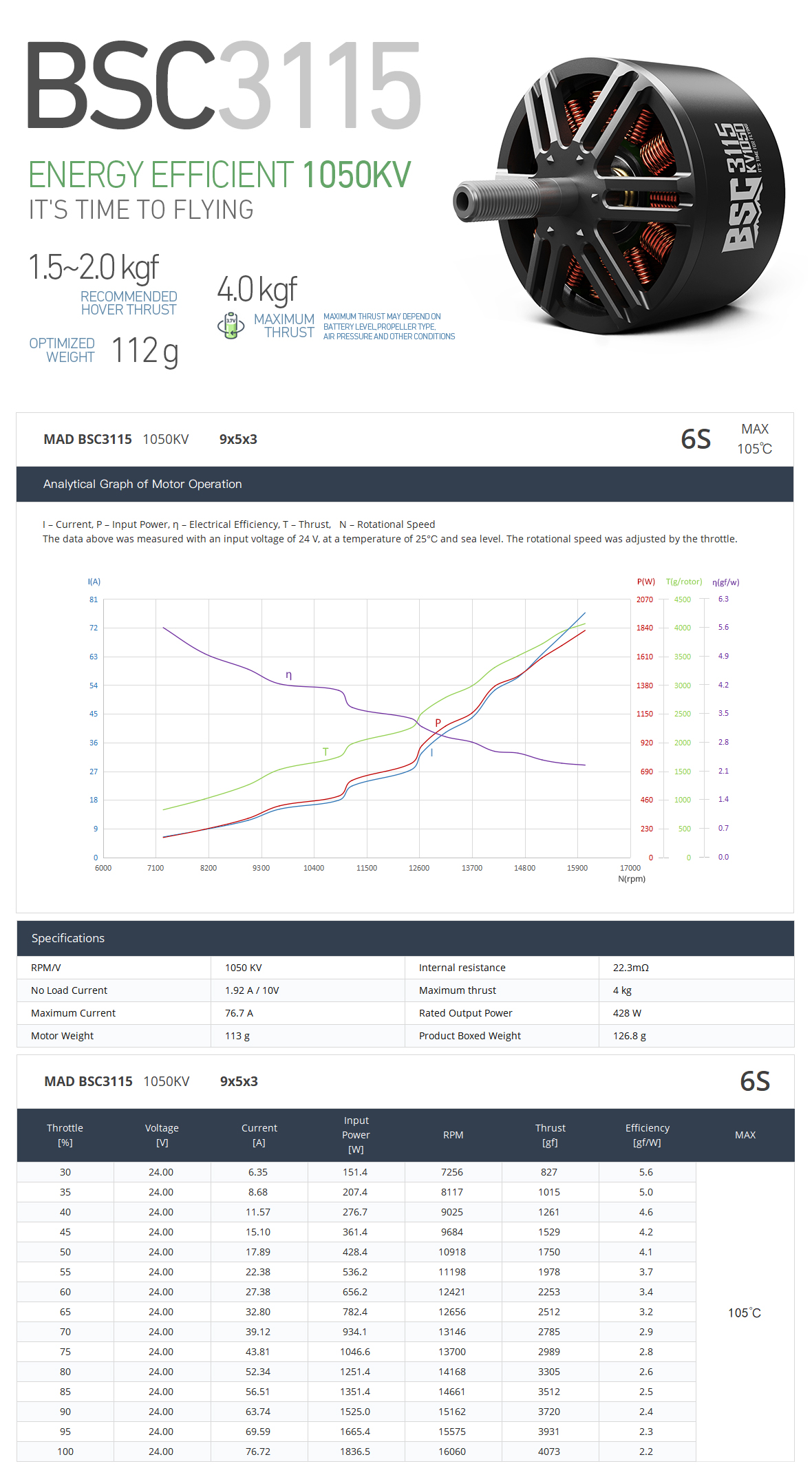

MAD BSC3115 Brushless 1050KV Motor for 10-11 inch Long Range FPV and 9-10 inch X8 Cinelifter Drones
Specifications | |||||||||
Motor Model | MAD BSC3115 V1.0 | Number of pole pairs | 7 | ||||||
Stator | Anticorrosive | Varnished wire Degree | 180°C | ||||||
Motor Size | D:37.1 × 48.9 mm | Magnet Degree | 150°C | ||||||
Degree of Protection | Rain protection | Cable Length | 250 mm 18# Awg(Black) silicone | ||||||
Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg | ||||||
Propeller Mounting Holes | M5 Nut | Motor Balance | ≤10 mg | ||||||
Shaft Diameter | IN: 5 mm | Motor Mounting Holes | D:19 M3×4 | ||||||
Bearing | 685 *2 | Disruptive test | 500 V |
