Muse Miniaturized Multi-Sensor Logger IMU – FULL CONFIGURATION – Sensor Fusion Embedded Library

MUSE combines inertial and environmental sensors with onboard flash storage, wireless connectivity, automated on/off functions, and regulated rechargeable power, providing a versatile system for data acquisition in a multipurpose fashion. It’s a fully certified, safe, production- and professional research platform for wearable and connected industrial use cases. MUSE has been used in various wearable and IoT devices created by global enterprises, innovative startups, and world-leading researchers. It can measure acceleration, angular rates, 3D rotation, magnetic fields, temperature, humidity, proximity, ambient light, pressure, and signal intensity. The platform can run 221e proprietary algorithms and embedded AI software libraries to boost intelligent precision sensing to the next level.

• Sensors: Accelerometer, Gyroscope, Compass / Temperature, Humidity / Ambient Pressure Barometer / Proximity, Ambient light / and Digital MEMS Microphone
• Processing: ARM Cortex-M4F Processor / ARM Cortex-M0+ Processor / 1 MB Flash Memory / 256 KB SRAM
• Connectivity: Bluetooth Low Energy 5.0 / USB Type-C
• Power: Rechargeable 120mAh Battery / USB Type-C Charging
• Operation: Smart Push Button / LED Indicators / Buzzer / Expansion Connector

Keep Drift and Estimation Error at Bay: No more large drifts when your device sits on a desk, nor when it’s on the move! Muse has been optimized with the MPE™ Motion Processing Engine to provide consistent accuracy while maintaining low power consumption. The 6-axis / 9-axis software uses a proprietary Kalman filter to ensure negligible drift when processing IMU readings in static and dynamic conditions. Now you can empower your product with the latest signal processing technology and the lowest estimation error, making it on par with the optical ground truth.

A Versatile Sensor Node: With onboard flash storage, BLE, embedded processors, and a range of IoT smart sensors, you can leverage Muse to implement a variety of data acquisition and processing tasks. Muse can transform your product into an innovative smart device or serve as a standalone IMU unit with the optional casing.

Use Cases: Muse has been used in various wearable and IoT devices created by global enterprises, innovative startups, and world-leading researchers. It can measure acceleration, angular rates, 3D rotation, magnetic fields, temperature, humidity, proximity, ambient light, ambient pressure, voice, and acoustic signals. Customers with various requirements appreciate the versatility of Muse as a high-accuracy IMU. Some of them need a small form factor and low power consumption, using them as an inertial sensor or a wireless data logger. Others use it as an ambient sensor, such as an air temperature sensor, an ambient temperature sensor, or a humidity sensor, often in combination with IMU / AHRS features. Thanks to its onboard Bluetooth Low Energy, it can also be used as a beacon sensor. Equipped with advanced 6/9 DOF and 6/9-axis adaptability, the Muse excels in precision and flexibility, enhancing its appeal for various applications and diverse users.

How is Muse Better than a Low-cost IMU?: Don’t you hate spending days and nights debugging unstable connections with out-of-sync multi-sensor data? And what about when you run into hardware issues with no one to support you? While the initial cost of such hardware could be tempting, its total cost of ownership (TCO) is often less attractive. Not to mention the risk of ending up with a poor-quality product. Our customers choose Muse for its tried-and-tested build quality, which allows them to develop high-quality products with peace of mind. They also appreciate our trusted support, which provides all the help they need during all project phases.

• Advanced Material Quality: The Muse housing uses the state-of-the-art HP Multi Jet Fusion 5600 system. This advanced 3D printing technology produces exceptionally compact and uniform layers, resulting in a final product with superior density and material homogeneity. The outcome is enhanced mechanical resistance and a noticeably improved surface finish.
• Improved Uniformity: This high level of uniformity is essential for applications that demand aesthetic excellence and functional precision.

12-Month Warranty: The Product has a 12-month warranty from the date of purchase. The warranty covers manufacturing defects and faults in materials under regular use. If a defect arises during the warranty period, we will repair or replace the product free of charge. Please note that the warranty covers Damage caused by improper use or handling, Wear and tear due to everyday use, or Unauthorized modifications or repairs.

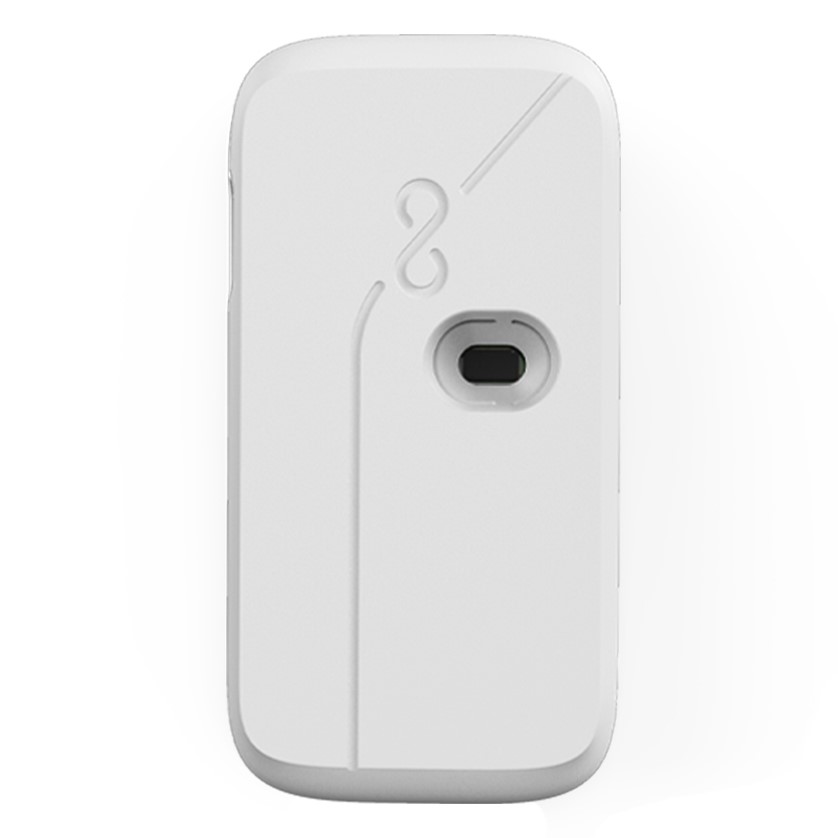

What’s Included: Muse with housing
