Pan Tilt Mechanism – PT MECH-Basic

$399.00

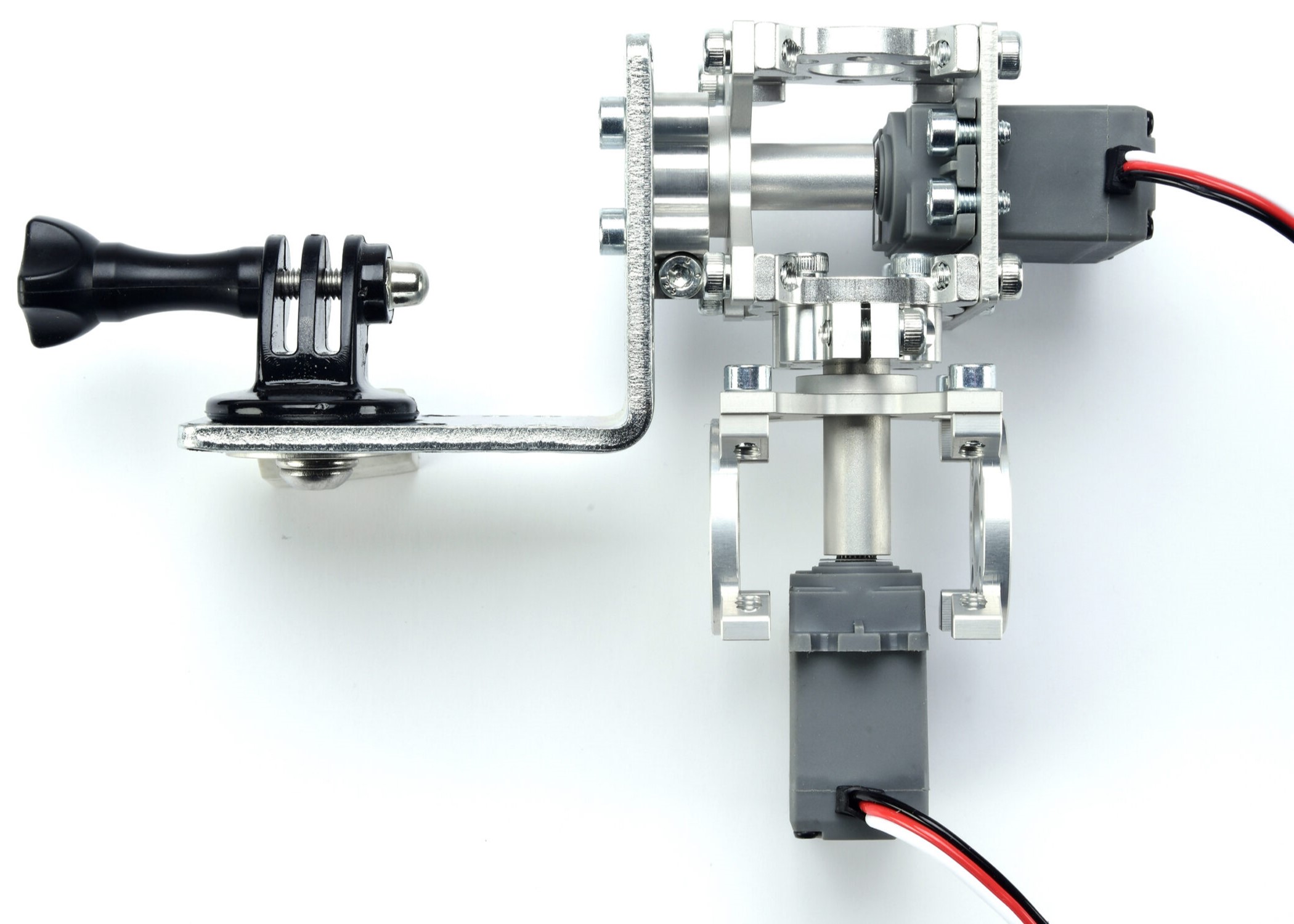

Basic Pan Tilt Mechanism – Grey Servos with Silver CNC Parts.


Ships From: United States (US)
Supplier: Inspector Bots SKU: PT MECH-Basic Categories: , , Tags: , , , , More From:

Pan Tilt Mechanism – PT MECH-Basic

Basic Pan Tilt Mechanism—Grey Servos with Silver CNC Parts. A pan-and-tilt mechanism allows you to move a camera, sensor, or other equipment horizontally (pan) and vertically (tilt). These mechanisms are commonly used in robotics, surveillance systems, photography, and other applications. They are direct-drive pan-and-tilt systems that use HI-Tek servos for precise control. To control these PT MECHs, you would need an RC Radio or a PWM signal.

We offer three different models for pan and tilt mechanisms:

  • Basic model: Payload capacity of 0.5 lbs.
  • Waterproof model: Payload capacity of 1.0 lbs.
  • Heavy Duty model: Payload Capacity 3.5 lbs.

Remember to choose a mechanism that suits your specific requirements regarding payload capacity, control method, and compatibility with your equipment.

Note: Cameras and robots are not included with the Pan-Tilt mechanisms.

Features:

  • ¼-20 Mount
  • Aircraft-Grade Aluminum
  • CNC Milled
  • Compatible with Most RC Radios
  • Dimensions: 6.5” W x 4.75”H x 2.75”D
  • (165.10mm x 120.65mm x 69.85mm)
  • High-Speed Servo
  • Easy / Intuitive to use
  • Go Pro Mount Included
  • High Precision Components
  • Holds up to .5lb Payload
  • L Bracket Camera Mount
  • Lightweight: 1 lb (.45Kg)
  • Low Cost
  • Multiple Camera Mounting Positions
  • Ready to Install
  • Rotates up to 90˚ Degrees
  • Rugged Aluminum Construction
  • Stainless-Steel Fasteners
  • Works with Different Cameras

Additional information

Weight 2 lbs
Dimensions 8 × 10 × 4 in
