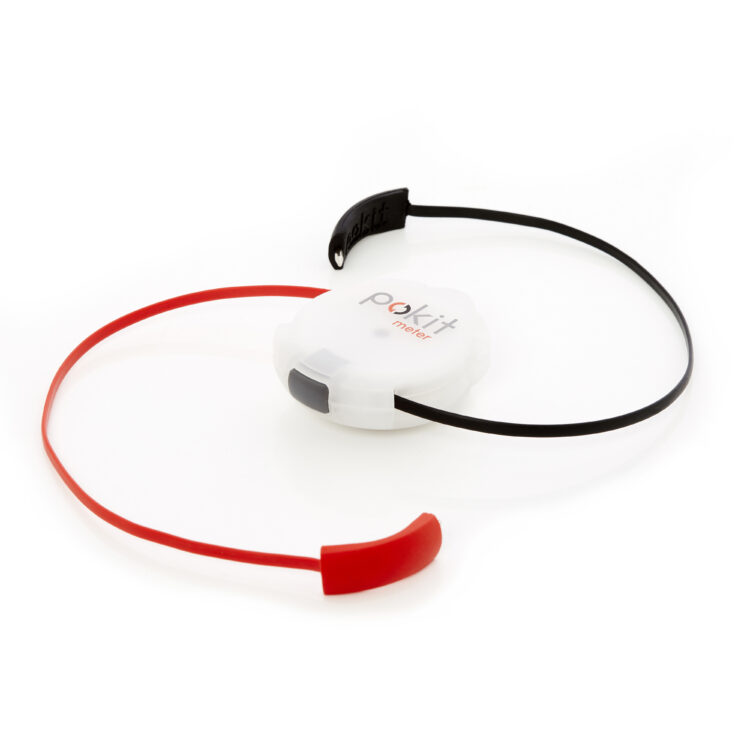

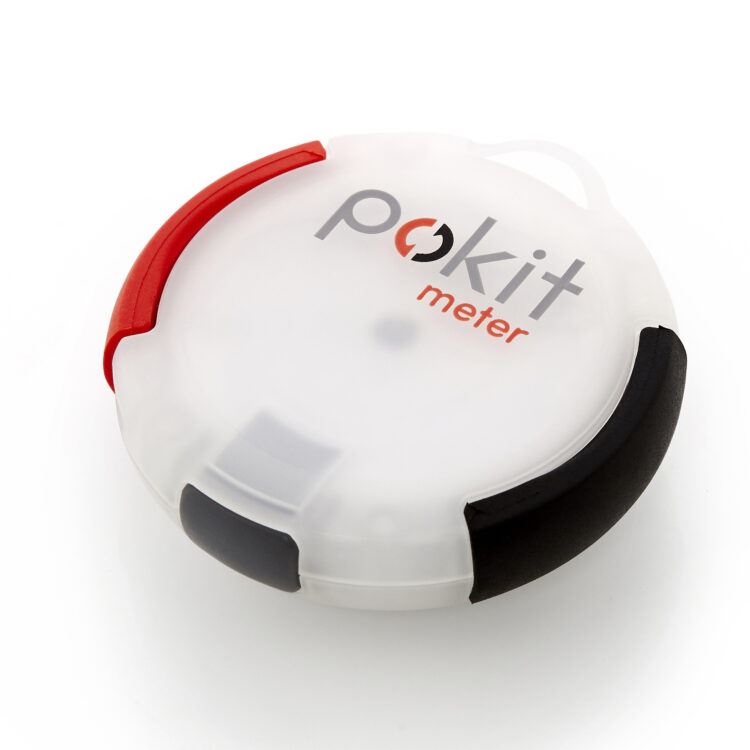

Pokit Meter – All-in-One Multimeter, Oscilloscope and Logger – White

$98.00

  • Wireless multimeter: measures AC/DC voltage, AC/DC, resistance, continuity, diode polarity, and ambient temperature.
  • Oscilloscope: captures detailed voltage and current waveforms and provides FFT analysis.
  • Logger: up to 6 months of standalone data-logging
  • Retractable Leads. The app is available for iOS and Android. Pinch and drag to zoom and analyze signals and cursors and add traces to signals. Export your waveforms to CSV.
  • Includes: 1 x pokitMeter 1 x Zip Lock Pouch 2 x Detachable Wire Clips 1 x Battery 2 x 2A Fuses


Made In: United States (US)

Supplier: Pokit Meter SKU: POK-WHT Categories: , Tags: , , , , , , , , ,

Pokit Meter – All-in-One Multimeter, Oscilloscope and Logger – White

Pokit Meter is an all-in-one multimeter, oscilloscope, and logger. It measures, displays, and logs various parameters, including voltage, current, resistance, and temperature, and provides continuity and a diode checker. It is straightforward and connects wirelessly via Bluetooth to your smartphone and app. Touch to change modes and settings, and pinch and drag to pan and zoom waveforms. Pokit Meter is ideal for low-voltage electronics, automotive applications, home automation, etc.

Technical Specs

  • Voltage: 10mV to 60V DC, 42V AC (RMS), ±1%
  • Current: 1mA to 2A max, ±1%
  • Resistance: 1 to 1M Ohm, ±5%
  • Continuity and Diode Polarity Check
  • Sampling: 1M sample/sec at 12bit
  • Logging Period: up to 6 months

Features

  • Dimensions: 1.96” x 0.709” / 50mm x 18mm
  • Weight: 1.06oz / 30g
  • Operating Temperature: 14˚F to 140˚F / -10˚C to 60˚C
  • Lead Span (max. tip-to-tip): 18.9″ / 480mm
  • Battery Type: CR2032

What’s in the box

  • 1 x Pokit Meter
  • 1 x Zip Lock Pouch
  • 2 x Detachable Wire Clips
  • 1 x CR2032 Battery
  • 2 x 2A Fuses

1-year warranty.
