QUAD-Band 2G Expansion for Raspberry Pi Pico

$78.90

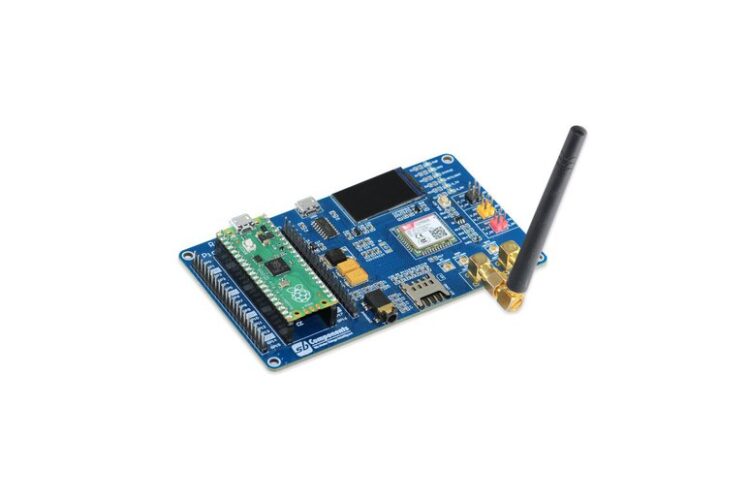

Pico 2G Expansion is a QUAD-Band GSM/GPRS/GNSS Expansion designed dedicatedly for Raspberry Pi Pico.

QUAD-Band 2G Expansion for Raspberry Pi Pico

Raspberry Pi Pico 2G Expansion is a QUAD-Band GSM/GPRS/GNSS Expansion designed exclusively for Raspberry Pi Pico. It features UART, USB 2.0 Interface, 850/900/1800/1900 MHz, and Bluetooth 3.0 based on the SIM868 module for easy and efficient communication. In addition, Pico 2G Expansion works on embedded TCP/UDP Protocols with Multi-constellation GNSS receiver support.

Pico 2G Expansion also includes a 1.14-inch display with a resolution of 240 x 135 pixels, 65K RGB colors, and a sharp and vivid display effect. It is designed primarily for user engagement via SPI connection by incorporating a GPIO header. In addition, the 1.14-inch LCD includes the ST7789 Driver and SPI Interface, decreasing the number of IO pins required.

Features:

  • Onboard 1.14” LCD
  • Low power consumption
  • 850/900/1800/1900 MHz
  • Bluetooth 3.0
  • LED indicators
  • Serial/USB/SIM868 selection jumpers

Specifications:

  • Operating voltage: 5v (via USB)
  • Communication: UART/USB 2.0
  • Module: SIM868
  • Operating voltage: -400 ~ 800 C
  • Dimension: 68 x 120 mm (Approx.)

Kit Content: 1 x Pico 2G Expansion Board

Note: Raspberry Pi Pico is not included!
