RGB Matel Push Button with Cable – Panel Mount 16mm

Name: RGB Matel Push Button with Cable - Panel Mount 16mm
SKU: G68D35F24BBD74
Availability: InStock

$5.45

A compact and durable 16mm RGB metal push button with cable, featuring a waterproof panel-mount design and SPST N.O. momentary operation. This button enables one-key Bluetooth pairing and Party Mode control when used with TSA2500, TSA2600, or AudioB I2S V4 audio amplifier boards. Perfect for DIY Bluetooth speakers and multi-speaker audio systems.

Ships From: China
Brand: TinySine SKU: G68D35F24BBD74 Categories: Audio, DIY Electronic Kits, Music Kits Tags: audio, button, music, RGB LED, TinySine

RGB Matel Push Button with cable – Panel Mount 16mm

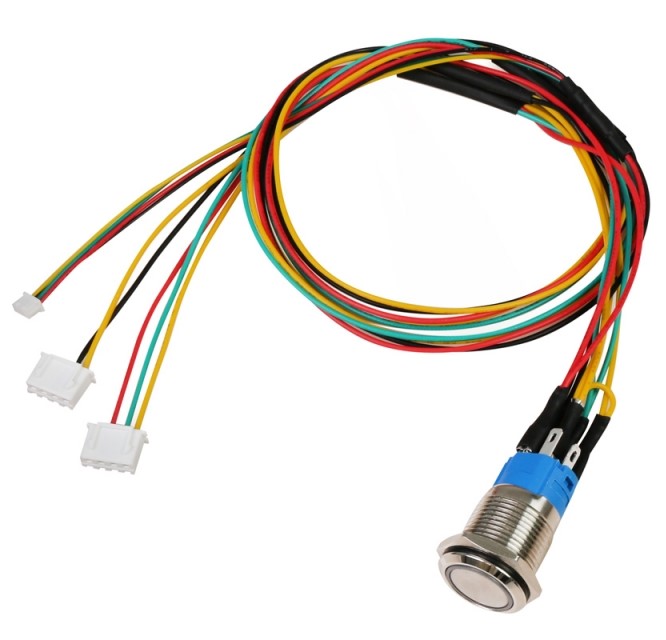

This is a very useful, waterproof, panel-mount momentary switch with an RGB LED. It is an SPST N.O. with a threaded portion 16mm in diameter. The overall length (including leads) of the button is 33mm and has small solder lugs for connection; the cable length is 50cm. This switch can work with our TSA2500, TSA2600, and AudioB I2S V4, allowing one button to control multipoint (party mode) amplifier pairing.

Note: if you want to use this cable with TSA2500 or TSA2600, you need to update the firmware first.

Connect with TSA2500/TSA2600

How to use:

Single-board work:

Power on the amplifier board, accompanied by voice prompts for power-up and current mode.
Double-click the button to enter pairing mode. Voice prompt: ‘pairing’.
Your mobile device can now discover the Bluetooth device. Connect to it. Upon successful connection, the Voice prompt is ‘pairing Successful’.
You may now play music.

Multi-point Connection:

Master(Transmitter):

Power on the amplifier board, accompanied by voice prompts for power-up and current mode.
Double-click the button to enter pairing mode. Voice prompt: ‘pairing’.
Your mobile device can now discover the Bluetooth device. Connect to it. Upon successful connection, the Voice prompt is ‘pairing Successful’.
Click the button to switch to transmitter mode until the LED turns red (if the LED is already red, there is no need to switch). with the voice prompt: ‘Transmitter mode’.
Press and hold the button for 2 seconds to automatically search for a receiver. The voice prompt will say ‘Searching.’

Slave (Receiver):

Power on another amplifier board, accompanied by voice prompts for power-on and current mode.
Click the button to switch to receiver mode until the LED changes to green (if the LED is already green, there is no need to switch). with the voice prompt: ‘Receiver mode.’
Press and hold the button for 2 seconds to automatically search for a transmitter, with the voice prompt: ‘Searching.
Within 30 seconds, the master and slave will pair successfully, with the voice prompt ‘Pairing Successful’.
Now, when music is played on your mobile phone, sound will be output from both the master and slave.
If the receiver wants to quit, click the button on that board to set it to transmitter mode.
If a new board wants to join as a receiver, repeat steps 1-3 on the new board and step 5 on the transmitter board.
