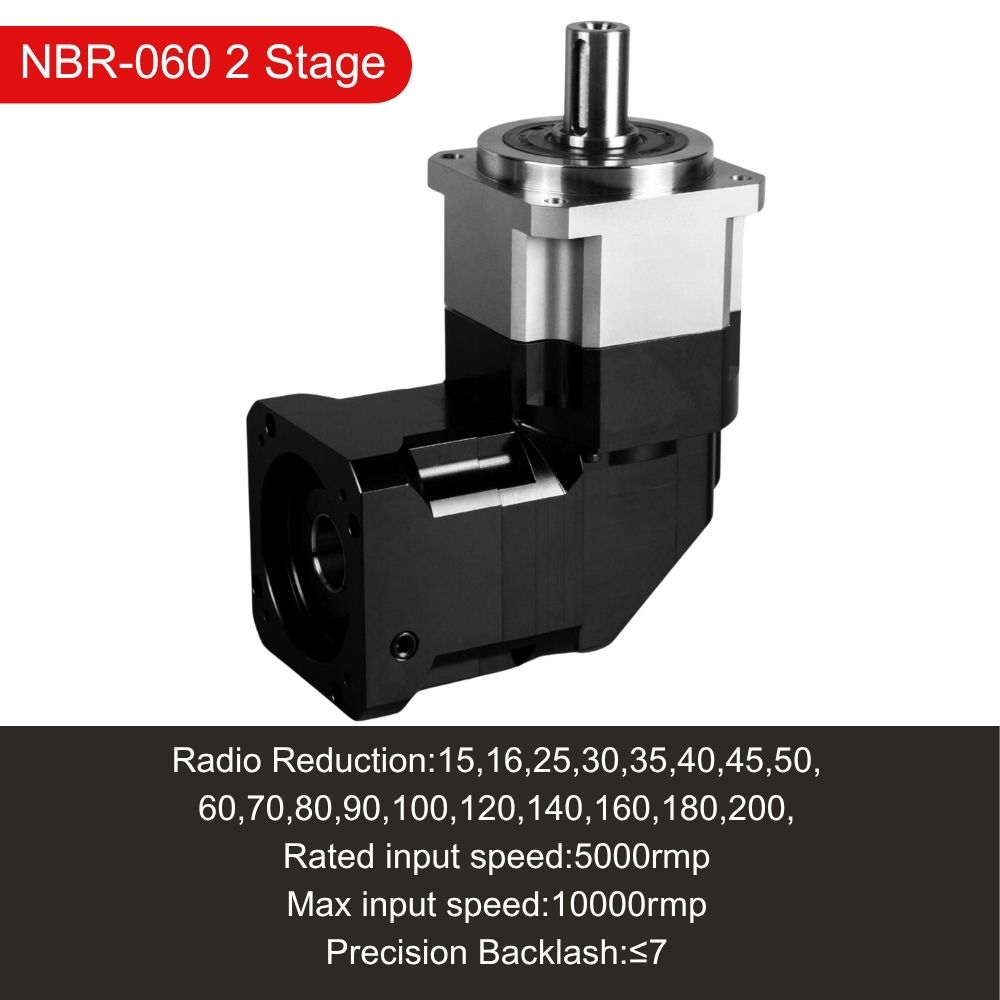

right angel planetary gearbox

Right Angle Two-Stage Planetary Reducer Gearbox for Industrial Machine Tools NBR-060-1

Original price was: $965.00.Current price is: $862.00.

Planetary Reducer Gearbox for Industrial Machines


Ships From: China
Supplier: Honpine SKU: Gearbox for Industrial Machine Tools NBR-060-1 Categories: , Tags: , , , , , More From:

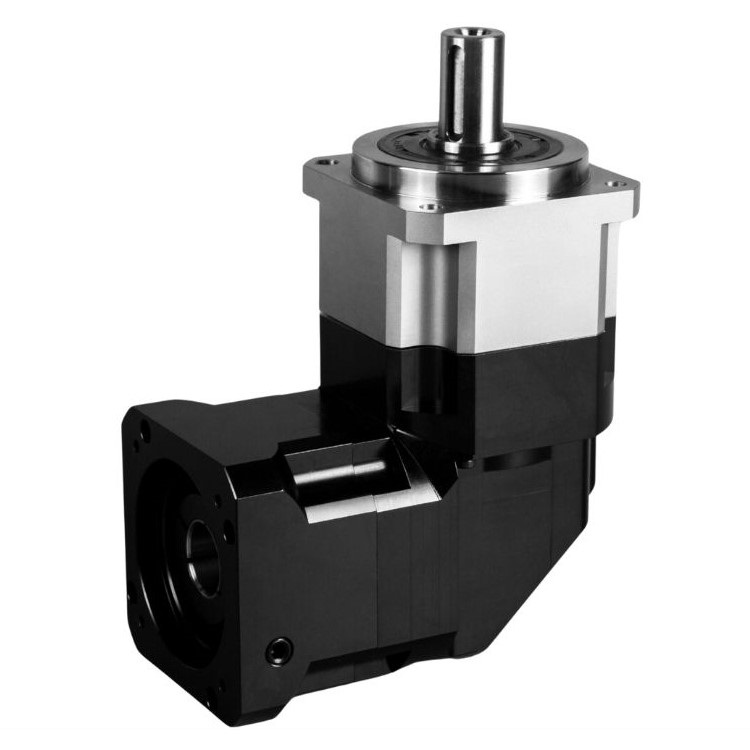

Right Angle Two-Stage Planetary Reducer Gearbox for Industrial Machine Tools NBR-060-1

The right-angle square frame output planetary reducer is a planetary gear transmission device featuring a vertical 90-degree layout between input and output shafts, with both shafts lying on the same plane. Characterized by its square housing and square output flange, this reducer achieves power transmission and speed reduction through multi-stage gear meshing. It offers a compact structure and space-saving advantages, making it particularly suitable for general industrial applications requiring compliance with spatial constraints or vertical input-output orientation.

Features

  • Square Housing and Output Flange: The reducer housing and output flange are square. Screws are fastened from the bottom upward, securing the unit to the mounting structure.
  • 90 Degree Input/Output Orientation: The input and output shafts are oriented at 90 degrees, saving space and reversing the output direction.
  • High-Efficiency Helical and Bevel Gears: All gears feature helical teeth and an integrated bevel gear set, ensuring high transmission efficiency. Multi-stage transmission maintains an efficiency of over 90%.
  • High Precision and Low Backlash: Precision gear-grinding processes and a collet-style locking mechanism minimize backlash to within two arcminutes (1/30 of a degree), meeting the stringent positioning accuracy demands of servo systems.
  • High Load Capacity: A multi-tooth meshing design evenly distributes loads. Combined with carburized and quenched gears and needle roller bearings, the reducer delivers output torque up to several thousand Nm and exceptional impact resistance.
  • Noise Reduction and Stability: A patented noise-reduction structure and a helical-tooth-surface rolling-mesh design significantly reduce operational noise while ensuring smooth, vibration-free operation.
  • Durability and Maintenance-Free Design: Premium seals and lifetime lubrication technology extend gear service life beyond 20,000 hours. The reducer withstands harsh operating conditions, including high temperatures and dusty environments.

Specifications

Specification Segment number Ratio NBR060 NBR090 NBR115 NBR142 NBR180 NBR220
Rated output torque Nm single 3 50 120 190 320 550 1080
4 45 130 270 510 990 1610
5 55 150 310 610 1140 1900
6 50 140 290 570 1040 1800
7 45 130 280 520 1040 1710
8 40 110 240 470 950 1520
9 35 95 210 420 850 1420
10 35 95 210 420 850 1420
12 50 140 290 570 1040 1800
14 45 130 280 520 1040 1710
16 40 110 240 470 950 1520
20 35 95 210 420 850 1420
double 15 50 120 190 320 550 1080
16 — — — — 990 1610
25 55 150 310 610 1140 1900
30 50 120 190 320 550 1080
35 55 150 310 610 1140 1900
40 55 150 310 610 1140 1900
45 55 150 310 610 1140 1900
50 55 150 310 610 1140 1900
60 55 150 310 610 1140 1900
70 55 150 310 610 1140 1900
80 55 150 310 610 1140 1900
90 55 150 310 610 1140 1900
100 55 150 310 610 1140 1900
120 50 140 290 570 1040 1800
140 45 130 280 520 1040 1710
160 40 110 240 470 950 1520
180 35 95 210 420 850 1420
200 35 95 210 420 850 1420
Rotary inertia Kg.cm3 single 3 0.35 2.25 6.84 23.40 68.90 152.09
4 0.35 2.25 6.84 23.40 68.90 152.09
5 0.35 2.25 6.84 23.40 68.90 152.09
6 0.35 2.25 6.84 23.40 68.90 152.09
7 0.35 2.25 6.84 23.40 68.90 152.09
8 0.35 2.25 6.84 23.40 68.90 152.09
9 0.35 2.25 6.84 23.40 68.90 152.09
10 0.35 2.25 6.84 23.40 68.90 145.82
12 0.35 2.25 6.84 23.40 68.90 145.82
14 0.7 1.87 6.25 21.80 65.60 145.82
16 0.7 1.87 6.25 21.80 65.60 145.82
20 0.7 1.87 6.25 21.80 65.60 145.82
double 15.00 0.09 0.35 2.25 6.84 23.40 68.90
16 — — — — 23.40 68.90
25 0.09 0.35 2.25 6.84 23.40 68.90
30 0.09 0.35 2.25 6.84 23.40 68.90
35 0.09 0.35 2.25 6.84 23.40 68.90
40 0.09 0.35 2.25 6.84 23.40 68.90
45 0.09 0.35 2.25 6.84 23.40 68.90
50 0.09 0.35 2.25 6.84 23.40 68.90
60 0.09 0.35 2.25 6.84 23.40 68.90
70 0.09 0.35 2.25 6.84 23.40 68.90
80 0.09 0.35 2.25 6.84 23.40 68.90
90 0.09 0.35 2.25 6.84 23.40 68.90
100 0.09 0.35 2.25 6.84 23.40 68.90
120 0.09 0.31 1.87 6.25 21.80 65.60
140 0.09 0.31 1.87 6.25 21.80 65.60
160 0.09 0.31 1.87 6.25 21.80 65.60
180 0.09 0.31 1.87 6.25 21.80 65.60
200 0.09 0.31 1.87 6.25 21.80 65.60
Parameters Table Segment number Ratio NBR060 NBR090 NBR115 NBR142 NBR180 NBR220
Max acceleration torque Nm 1,2 1.8 times rated output torque
Emergency stop torque Nm 1,2 3 times rated output torque
Rated input speed rmp 1 3~20 5000 4000 4000 3000 3000 2000
2 15~200 5000 4000 4000 3000 3000 2000
Max input speed rmp 1 3~20 10000 8000 8000 6000 6000 4000
2 15~200 10000 8000 8000 6000 6000 4000
Ultraprecise backlash arcmin 1 3~20 — ≤2 ≤2 ≤2 ≤2 ≤2
2 15~200 — ≤4 ≤4 ≤4 ≤4 ≤4
Precise backlash arcmin 1 3~20 ≤4 ≤4 ≤4 ≤4 ≤4 ≤4
2 15~200 ≤7 ≤7 ≤7 ≤7 ≤7 ≤7
Standard backlash arcmin 1 3~20 ≤6 ≤6 ≤6 ≤6 ≤6 ≤5
2 15~200 ≤9 ≤9 ≤9 ≤9 ≤9 ≤7
Orsional rigidity Nm/arcmin 1,2 3~200 8 14 27 52 148 305
Max. radial Force N 1,2 3~200 1730 3250 7000 9600 14500 27800
Max. axial Force N 1,2 3~200 865 1625 3500 4800 7250 13900
Tilting moment Nm 1,2 3~200 77 152 325 530 920 1840
Service Life hr 1,2 3~200 20000hr(continuous operation 10000hr)
Efficiency % 1 3~20 ≥95%
% 2 15~200 ≥92%
Weight kg 1 3~20 2.1 6.4 13.0 24.5 51.0 83.0
kg 2 15~200 2.1 7.8 14.2 27.5 54.0 95.0
Operating Temperature ℃ 1,2 3~200 -10℃-90℃
Lubrication 1,2 3~200 Synthetic grease
Protection Class 1,2 3~200 IP65
Mounting Position 1,2 3~200 Any direction
Noise Level (N1=3000rpm,Non-Loaded) dB(A) 1 3~20 ≤63 ≤65 ≤68 ≤70 ≤72 ≤74
2 15~200 ≤63 ≤65 ≤68 ≤70 ≤72 ≤74
