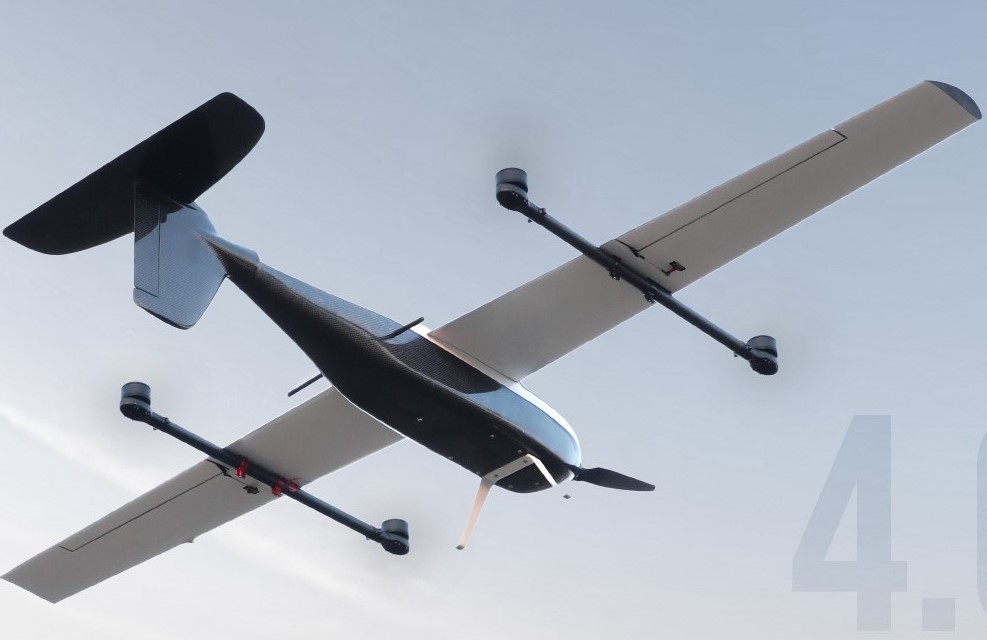

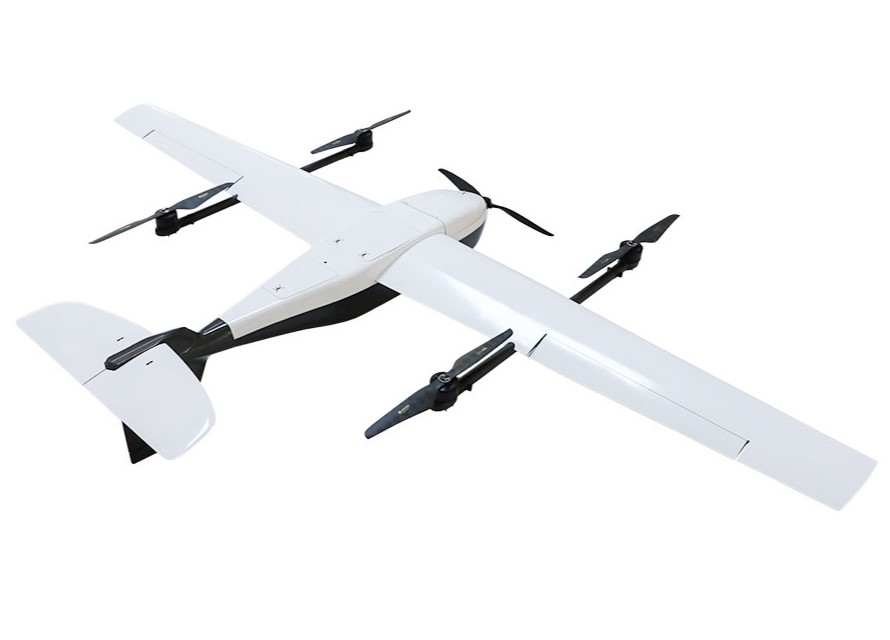

The VA23 is a long-endurance eVTOL fixed-wing UAV with an unloaded flight time of more than 240 minutes and a 1.5kg load over 180 minutes of flight time.
It has a power management module, a locking propeller function, and lightweight and durable carbon fiber material, which allows for longer flight times.
Ultra Long Endurance VTOL for Industrial Applications
- Ultra long-endurance (Max. 240mins)
- Lightweight with carbon fiber material
- The locking propeller design
- Quick assembly and disassembly
TECHNICAL PARAMETERS | |
---|---|
Model | VA23 |
Frame Length | 1250mm |
Frame Weight | 2kg |
Wingspan | 2300mm |
Take off Weight | 12.5kg |
Frame Material | Carbon Fiber |
Flight Time | Max. 240min(Without Payload); Max. 180min(1.5kg payload) |
Payload | 2.5kg |
Max Range | 240km |
Wind Resistance | Level 5 |
Working Temperature | -10-40℃ |
Control Range | 10km-30km |
Cruising Speed | 18-20m/s |
Max Flying Speed | 35m/s |
Max Take-off Altitude | 4500m |
Recommended Battery | 12s 22000mah/12s 27000mah/12s 30000mah |
Note: The flight controller, Radio with receiver, and battery are not included. You need to purchase them separately.
