Sale!

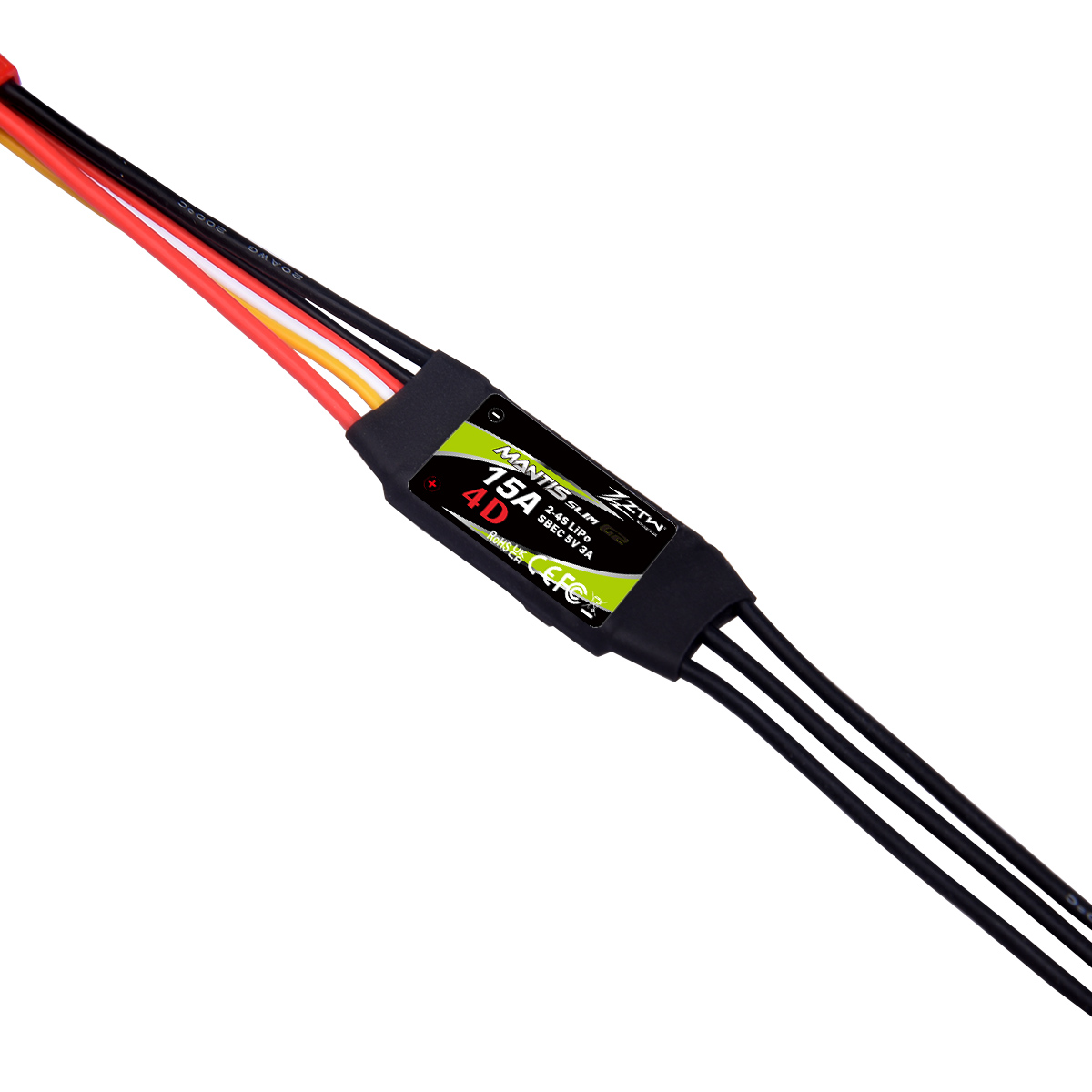

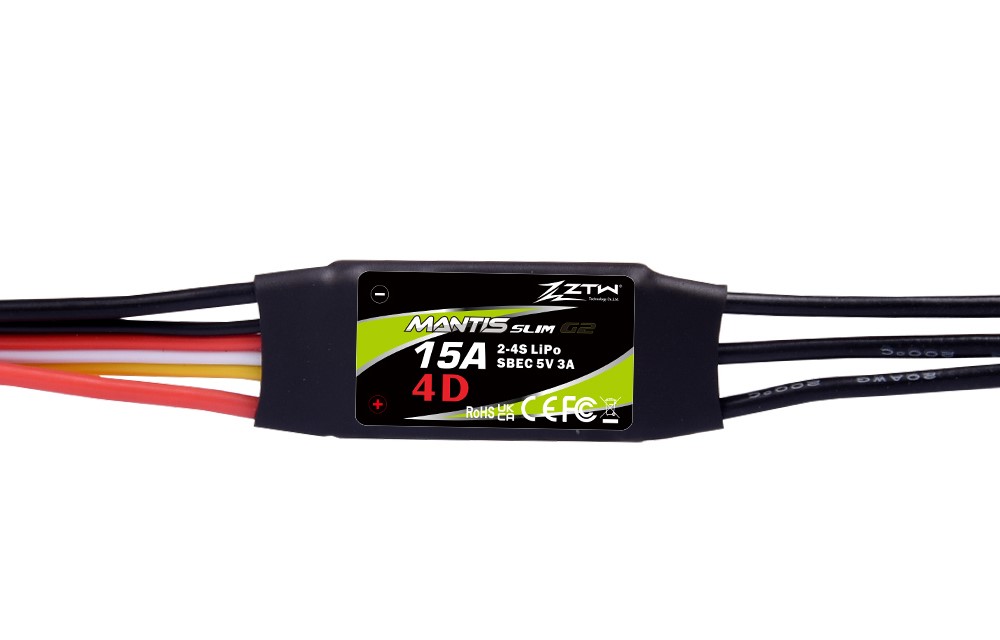

ZTW Mantis Slim G2 15A ESC 2-4S SBEC 5V/3A for RC Airplane Fixed-Wing Indoor F3P 3D 4D Flying
ZTW Mantis Slim G2 15A ESC 2-4S SBEC 5V/3A for RC Airplane Fixed-Wing Indoor F3P 3D 4D Flying - Image 2

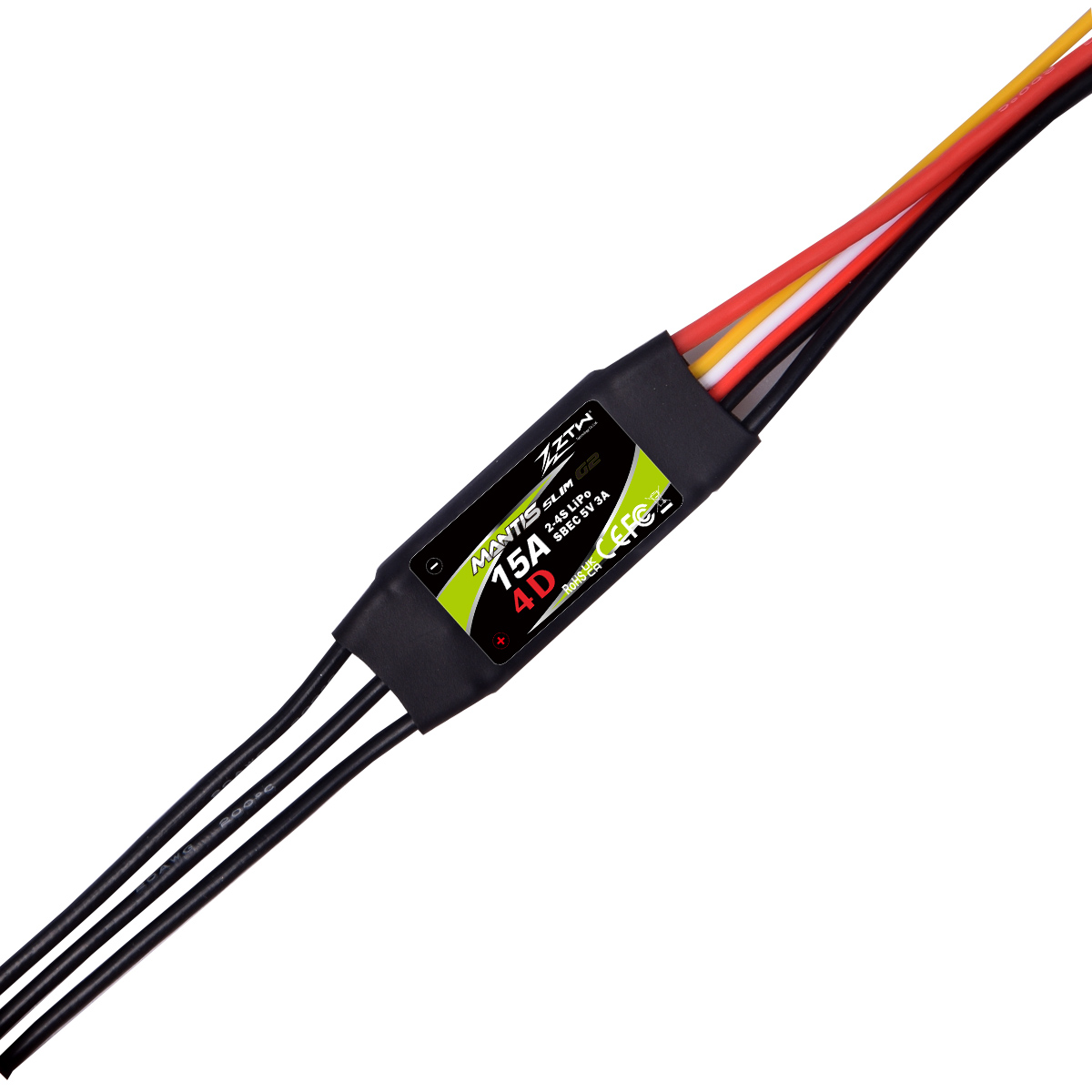

ZTW Mantis Slim G2 15A ESC 2-4S SBEC 5V/3A for RC Airplane Fixed-Wing Indoor F3P 3D 4D Flying - Image 3

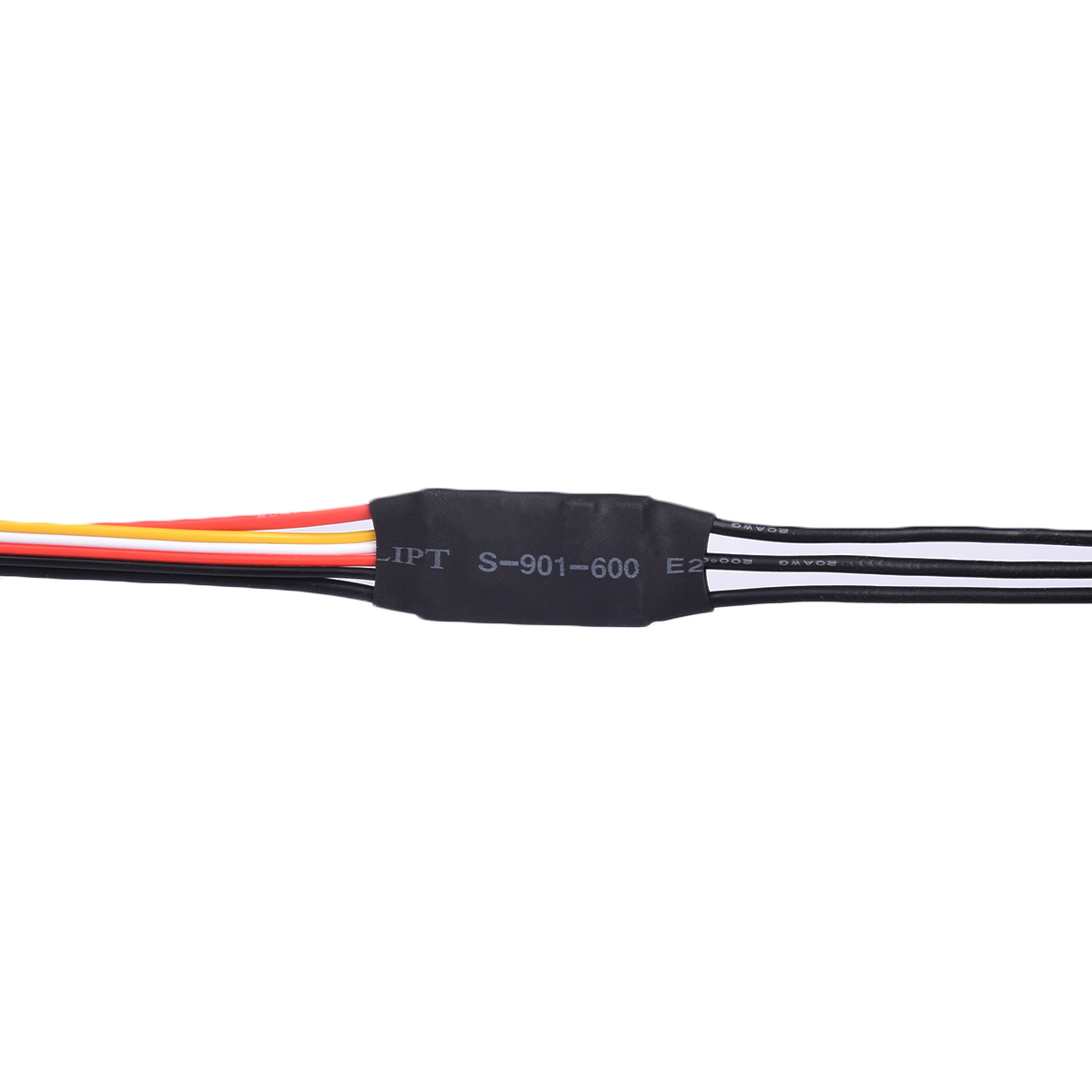

ZTW Mantis Slim G2 15A ESC 2-4S SBEC 5V/3A for RC Airplane Fixed-Wing Indoor F3P 3D 4D Flying - Image 4
ZTW Mantis Slim G2 15A ESC 2-4S SBEC 5V/3A for RC Airplane Fixed-Wing Indoor F3P 3D 4D Flying - Image 5

ZTW Mantis Slim G2 15A ESC 2-4S SBEC 5V/3A for RC Airplane Fixed-Wing Indoor F3P 3D 4D Flying

Original price was: $17.64.Current price is: $14.99.

  • High-Efficiency 15A Output: Delivers a continuous 15A current, providing reliable and efficient power for a wide range of micro to small-sized RC airplanes and drones, ensuring stable performance during flight
  • Integrated 5V/3A Switching BEC: Features a built-in 3A Switching BEC that supplies clean, stable power to your receiver and servos, preventing brown-outs and ensuring glitch-free control of your aircraft’s essential electronics.
  • Ultra-Compact & Lightweight Design: The sleek “Slim” profile and minimal weight enable easy installation in the tightest spaces, helping maintain your model’s optimal balance and flight characteristics without adding unnecessary bulk.
  • Comprehensive Protection Suite: Equipped with multiple safeguards, including Low Voltage Cutoff (LVC) and Over-Heat protection, which actively monitor system performance to prevent damage to your ESC, enhancing overall safety and component longevity.
  • Smooth Operation & Wide Compatibility: Delivers smooth throttle response and supports 2-4S LiPo battery setups. It can be easily programmed using the ZTW LCD programming card (sold separately) to fine-tune settings for optimal performance with various sensorless brushless motors.


Ships From: China
Brand: ZTW Technology SKU: ZTW_Mantis_Slim_G2_15A Categories: , , Tags: , , , ,

ZTW Mantis Slim G2 15A ESC 2-4S SBEC 5V/3A for RC Airplane Fixed-Wing Indoor F3P 3D 4D Flying

Key Features:

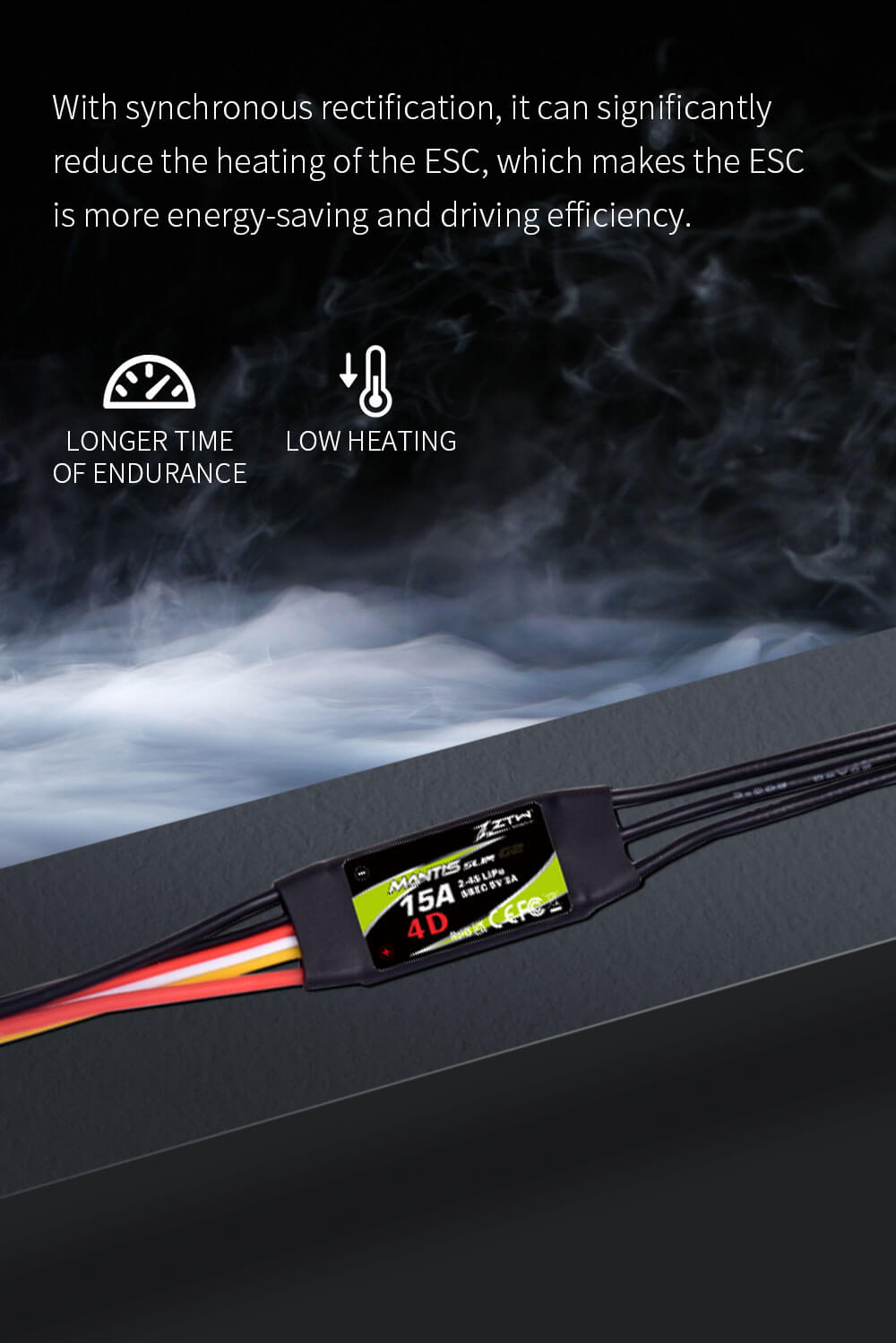

  • Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.
  • Adopting a high-performance 32-bit microprocessor, stronger computing ability, and faster running speed.
  • Super smooth start-up and accurate throttle linearity, higher driving efficiency, and more energy-saving.

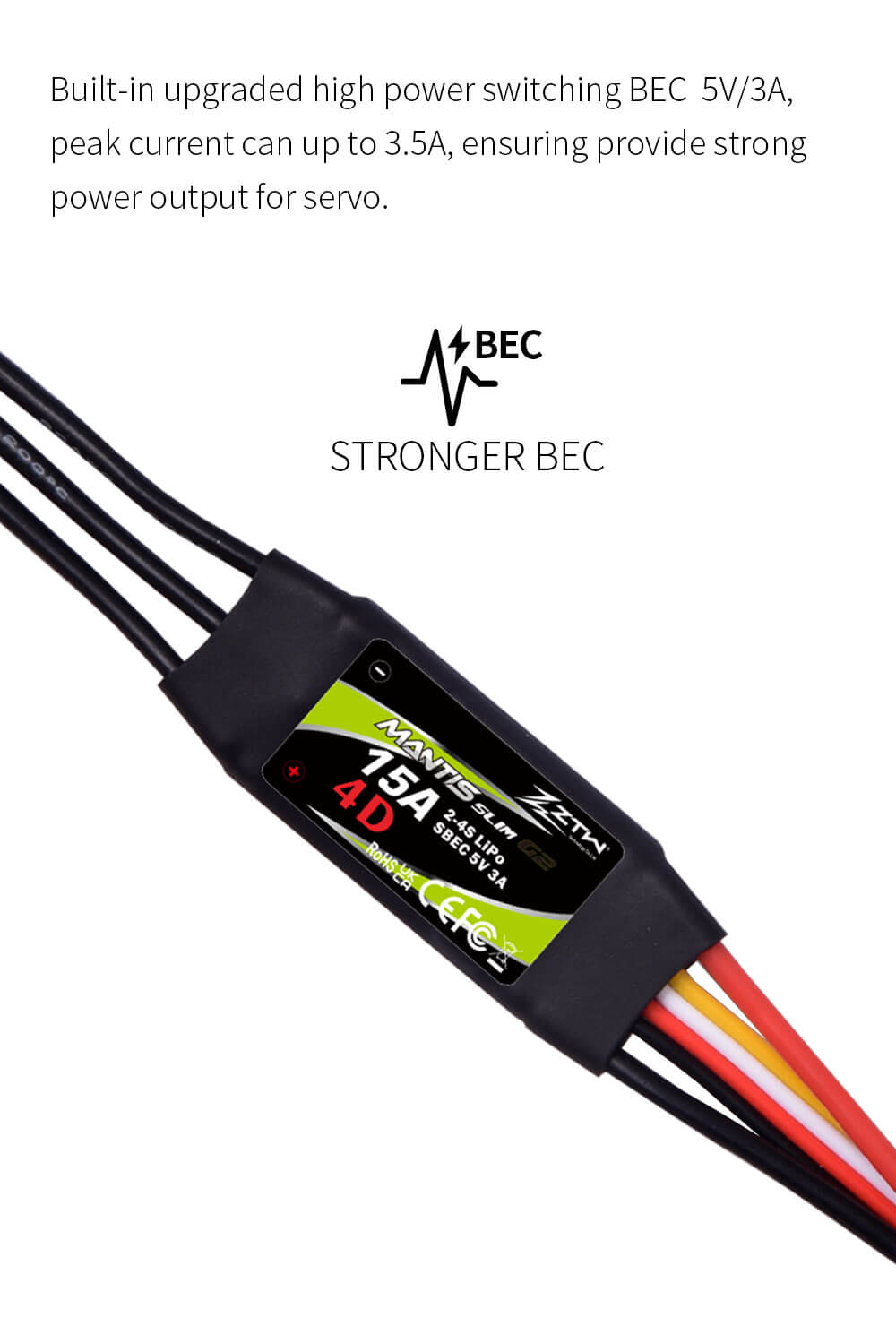

  • Super strong SBEC output, continuous 5V/3A, peak 3.5A current.

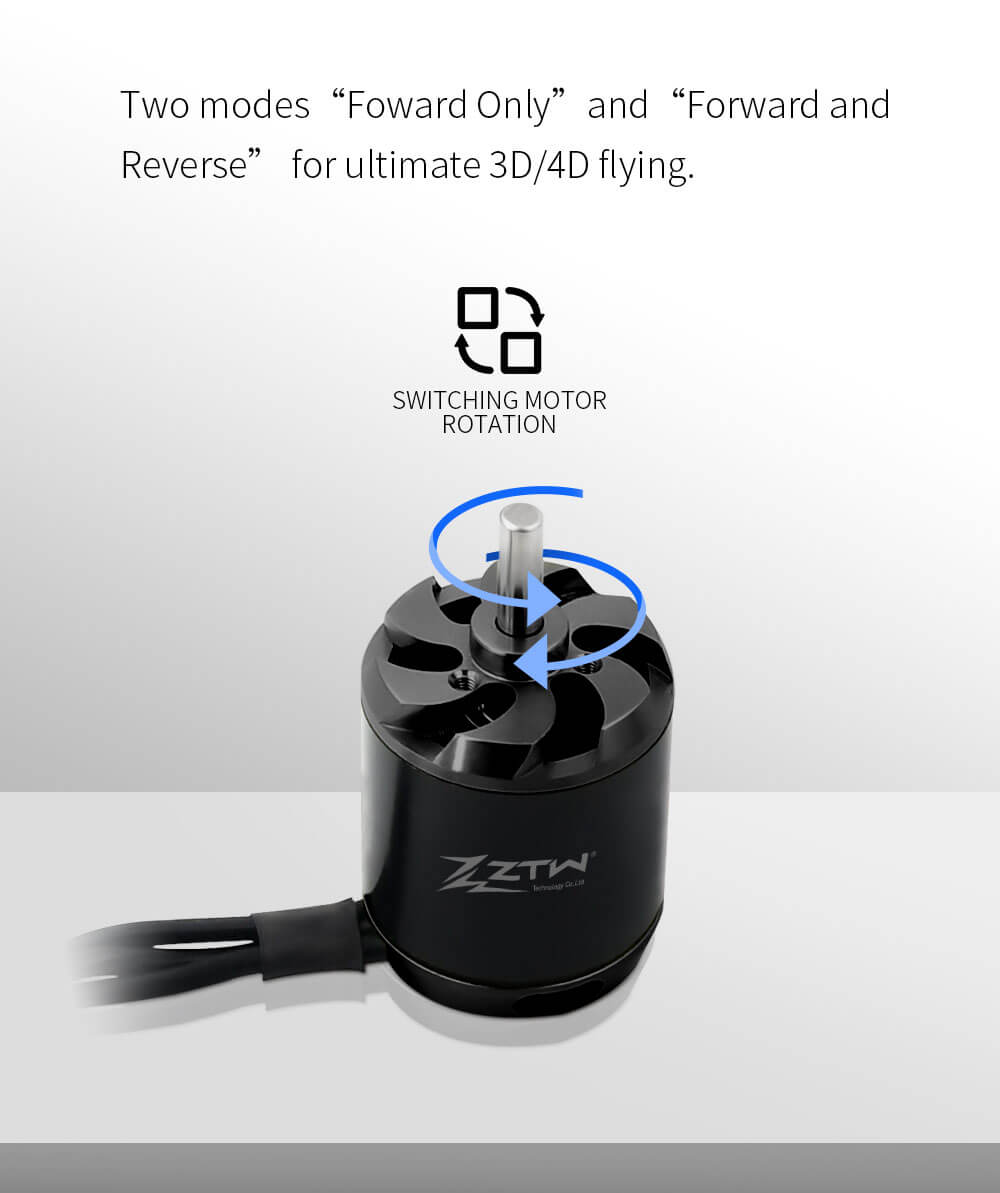

  • Two modes, “Forward Only” and “Forward and Reverse,” for ultimate 3D/4D flying.

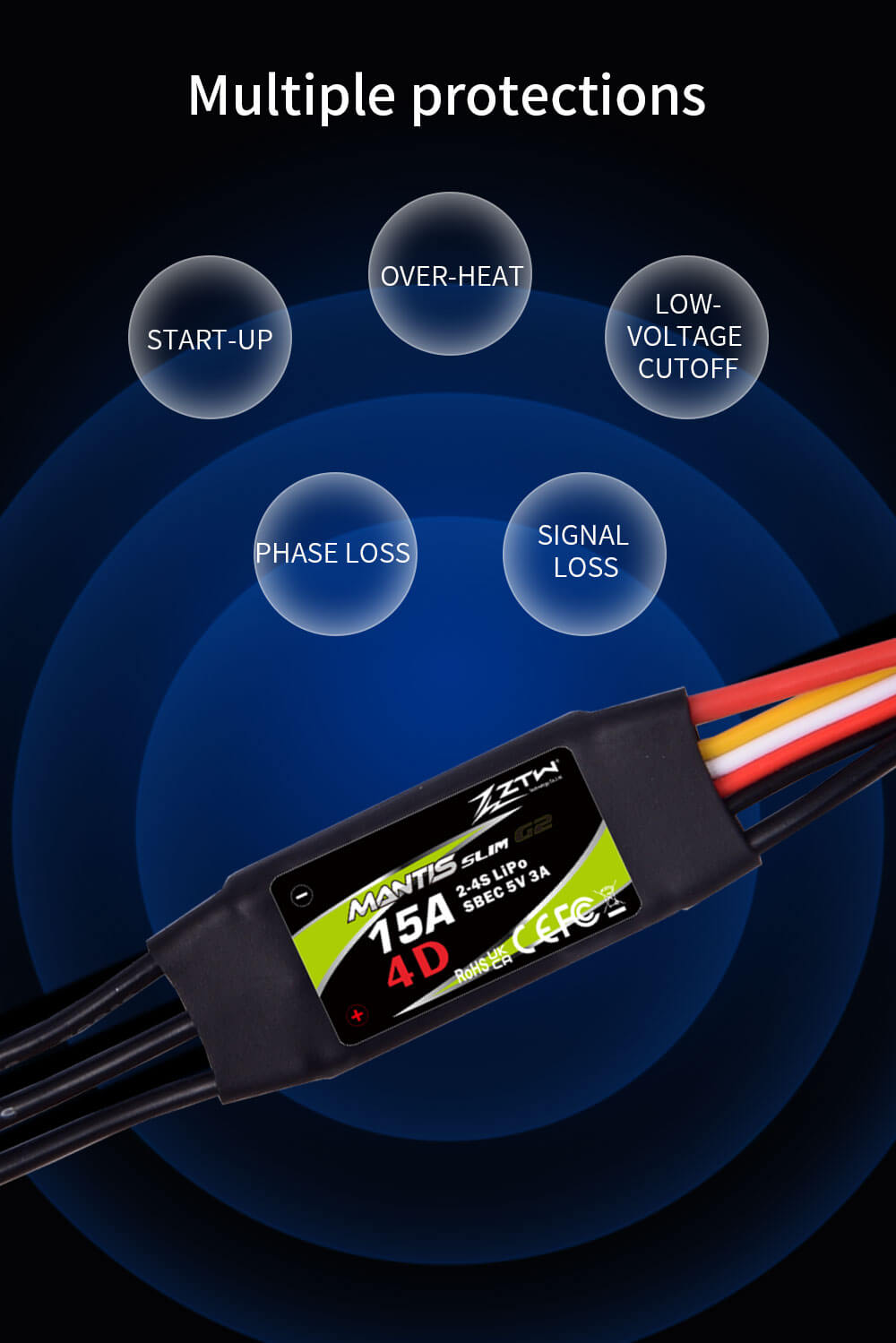

  • Multiple protections: start-up, over-heat, low-voltage cutoff, signal loss, phase loss, etc.
  • Support high RPM motors, and are compatible with most motors in the market.
  • Supports programming via an LCD program card for easier, more convenient operation.

Specifications:

  • Model: ZTW Mantis Slim G2 15A
  • Continuous Current: 15A
  • Peak Current: 30A
  • Input Voltage: 2-4S LiPo / 5-12NC
  • BEC Type: Switching BEC
  • BEC Output: 5V / 3A
  • Weight: 10g
  • Size(L*W*H): 25.5*15*5mm

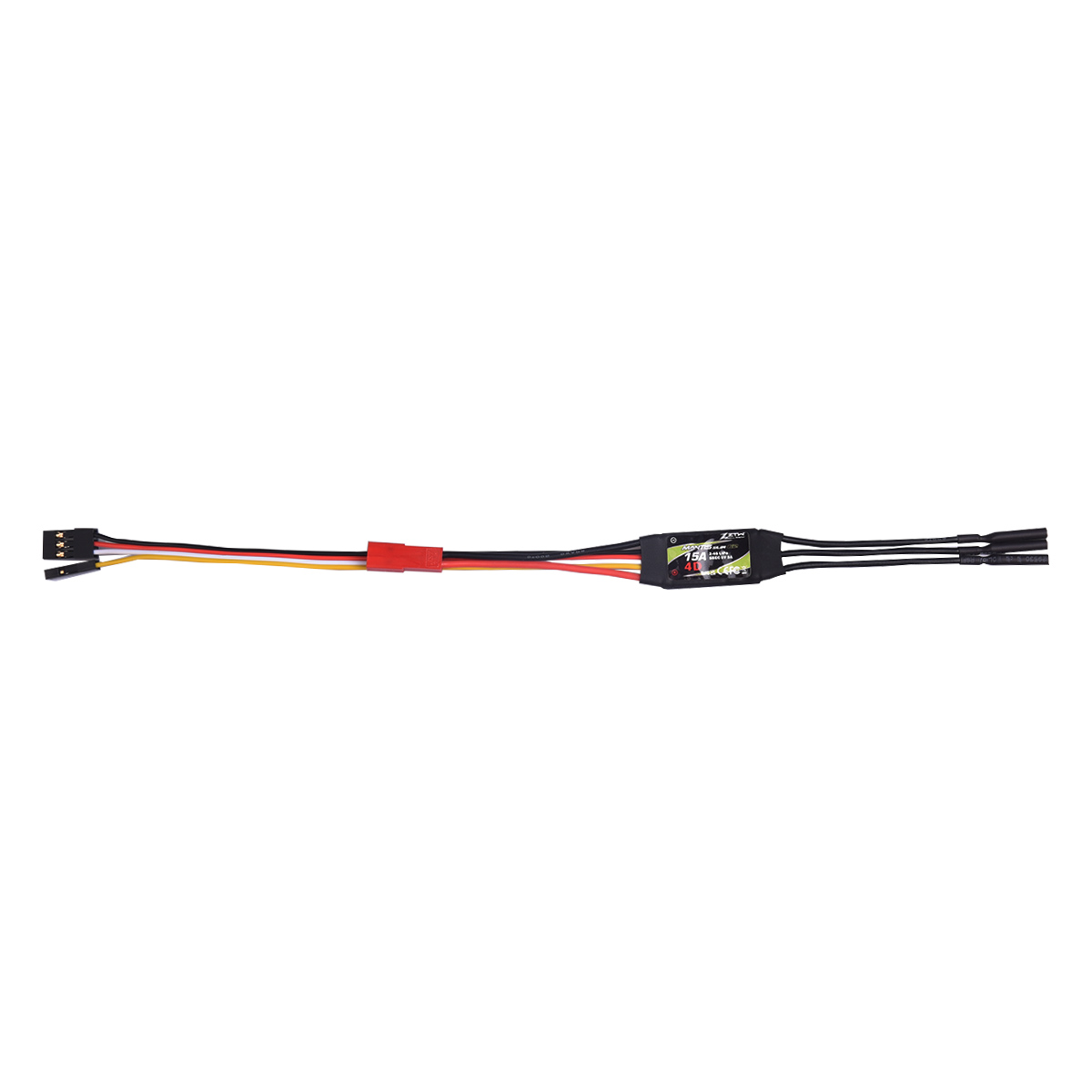

  • Plug: JST Female for battery side/2.0mm Bullet for motor side
  • Programming Way: Transmitter/ZTW LCD Program Card G2
