400KG CMA-25 Mecanum Wheel

$876.00

  • Integrated molding process hub, High intensity, High stiffness
  • Rolling Bearing
  • Payload 400KG
  • Industrial-grade quality


Made In: China

Supplier: Hangfa Robotics SKU: 400KG CMA-25 Categories: , Tags: , ,

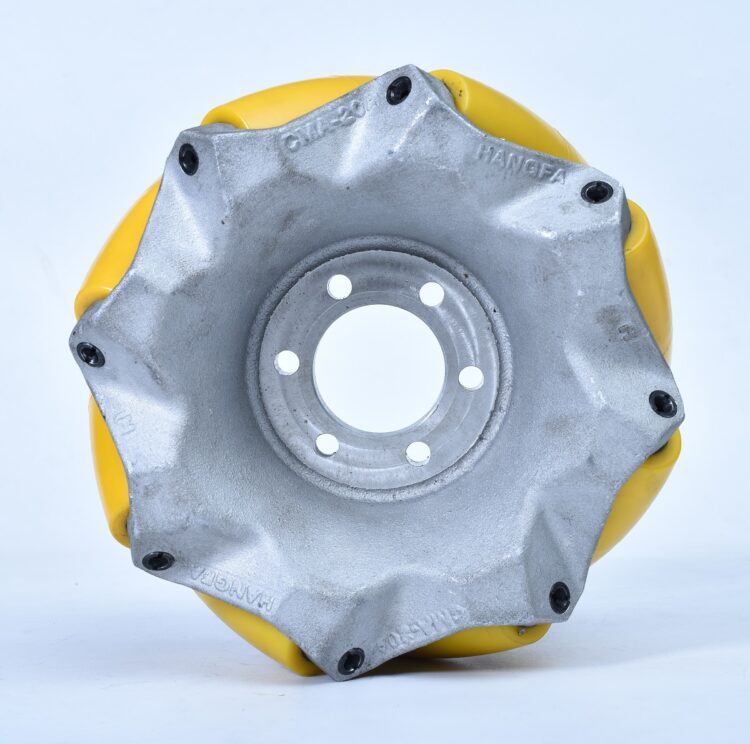

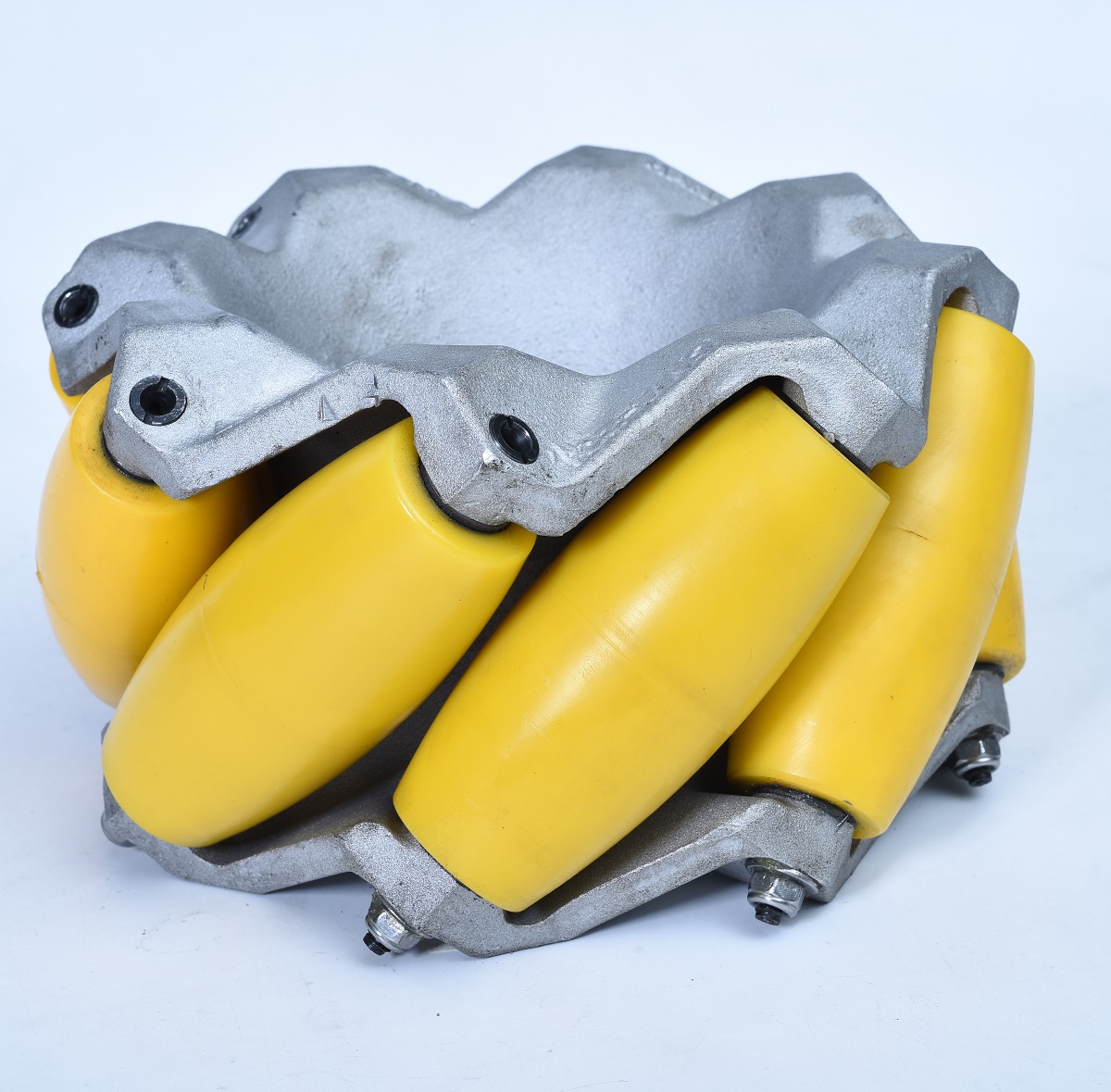

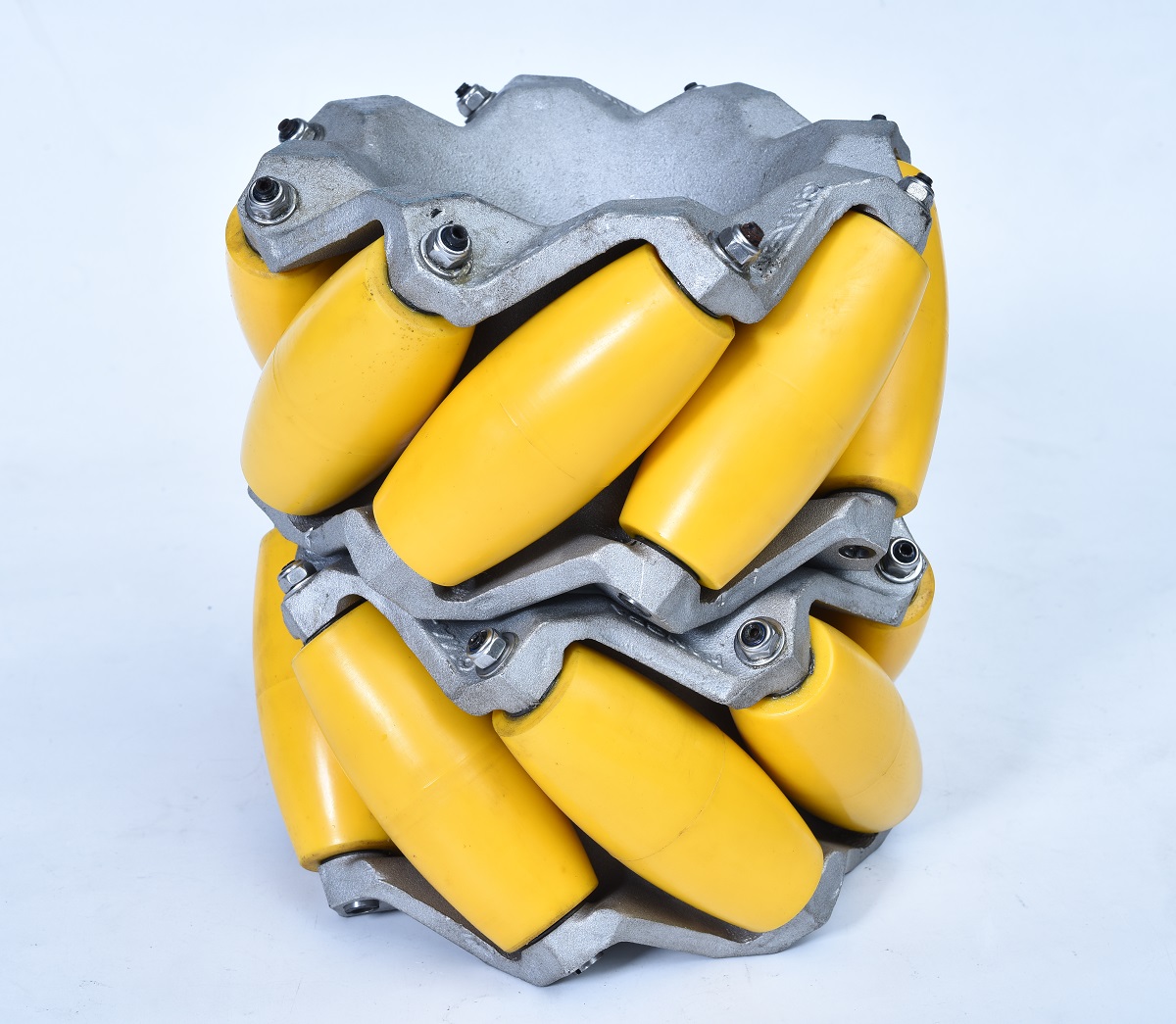

400KG CMA-25 Mecanum Wheel

CMA series Omni wheel provides a 4500KG payload maximum while maintaining high accuracy. This wheel uses an integrated molding process, maximizing the mechanical properties of materials. All the CMA series Omni wheels use rolling bearings polyurethane materials on the driven wheel surface with good performance in stability, quietness, durability, and Omni-direction. They can adapt to various indoor and outdoor occasions.

Features

  • Integrated molding process hub, High intensity, High stiffness
  • Rolling Bearing
  • Payload between 0-4500KGIndustrial-grade quality

Specifications

  • Diameter:254mm
  • Wide:135mm
  • Wheels:8
  • Bearing Type: Heavy Duty Rolling Bearing
  • Wheel Material: Polyurethane
  • Hub Material: Steel
  • Hub Surface Treatment: High-Temperature Painting
  • Mount: FlangeFlange
  • Plate Thinckness:10mm
  • Flange Plate Diameter:100mm
  • Flange Cavity Inner diameter:114mm
  • Typical Middle Hole Size:50mm
  • Weight:12.5Kg
  • Load:400Kg
