6 Active 5 Passive Strong Gripping Force Dexterous Hand

6 Active 5 Passive Strong Gripping Force Dexterous Hand

Original price was: $2,564.00.Current price is: $2,221.00.

Strong Gripping Force Dexterous Hand


Ships From: China
Brand: Honpine SKU: HONPINE 06 Category: Tags: , , ,

6 Active 5 Passive Strong Gripping Force Dexterous Hand

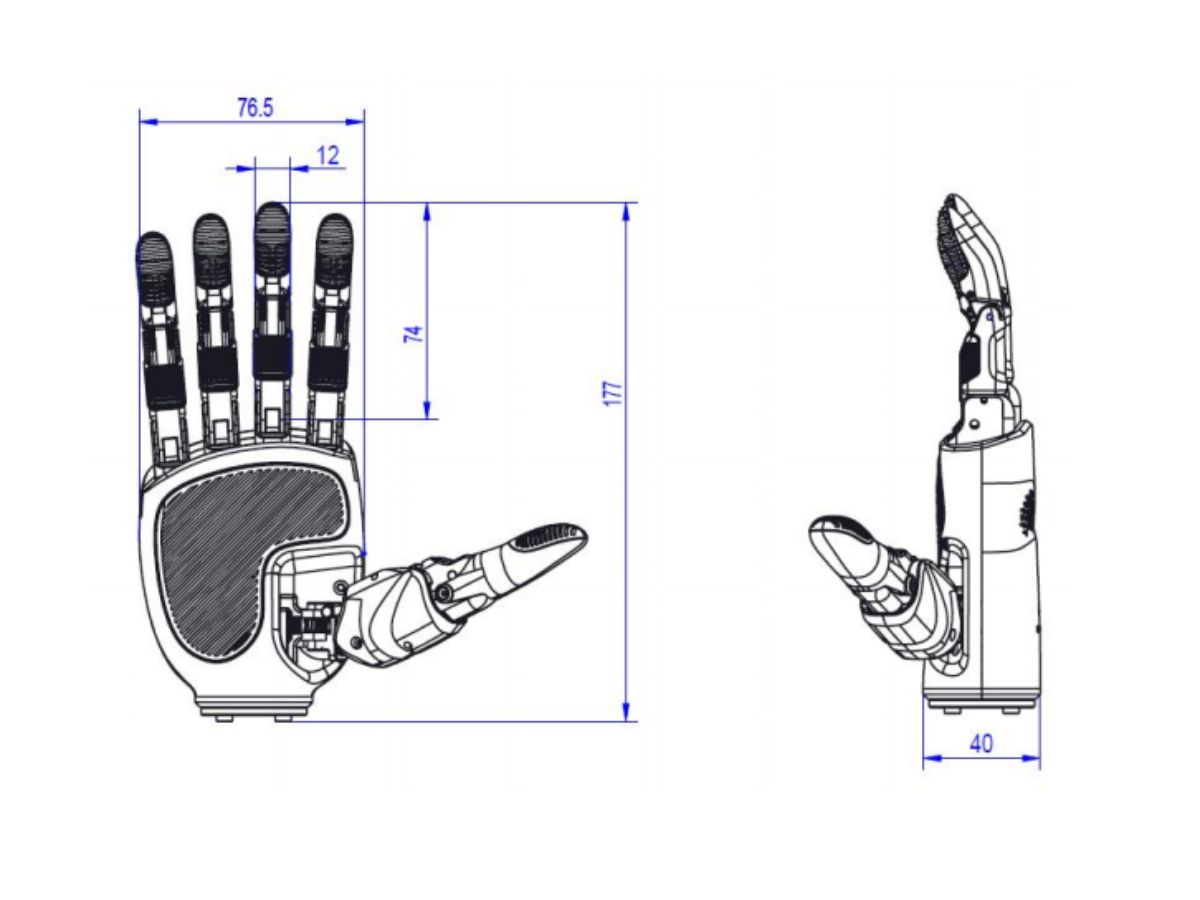

The HONPINE O6 bionic dexterous hand features six active joints and five passive joints. It offers high gripping force, precise force control, compact size, and lightweight design. It is particularly suitable for applications such as logistics handling, industrial assembly, and grasping irregularly shaped objects.

Features

  • Strong Gripping Force: Equipped with self-developed high-torque servo motor modules and a worm gear drive structure, it delivers high rigidity and greater gripping force with high drive efficiency.
  • High-Precision Control: Adopts a high-precision servo rigid linkage transmission system, self-developed high-precision joint modules, and an optimized force-position hybrid control algorithm, enabling ±0.2mm repeat positioning accuracy for reliable, precise movements.
  • Edge-Cloud Integration: Uses innovative materials for ultra-lightweight design (only 370g). The servo motor module integrates drive and control functions, resulting in a compact structure that matches human hand size—supporting flexible operations and easy compatibility with collaborative robotic arms, service robots, and other systems to boost integration flexibility and motion efficiency.

Specifications

Degrees of Freedom 7
Number of Joints 17 (7 active + 10 passive)
Transmission Type Worm gear drive
Control Interface CAN/RS-485
Weight 634.5g
Maximum Load 25kg
Operating Voltage DC24V±10%
Static Current 0.2A
Average No-load Operating Current 0.7A
Maximum Current 2.6A
Repeat Positioning Accuracy <±0.2mm
Opening/Closing Time 1.25s
Maximum Thumb Tip Force 14N
Maximum Four-Finger Tip Force 14N
Maximum Five-Finger Gripping Force 60N

Additional information

Weight 0.8 lbs
Dimensions 40 × 30 × 20 in
