Atom LiDAR Sensor – A Cost-Effective Ranging Module Based on ToF LiDAR Sensor Technology

Original price was: $49.00.Current price is: $30.00.

Atom Lidar is a single-point distance sensor based on Time-of-Flight 3D sensing technology. The small, cost-effective sensor performs well and reliably in various complex environments due to its unique ability to combine high accuracy with insensitivity to ambient light. As a result, atom LiDAR is the ideal choice for multiple applications in both indoor and outdoor activities.


Ships From: Canada
Supplier: VSemi SKU: Atom LiDAR Categories: , , , , , , , Tags: , , , More From:

Atom LiDAR Sensor – A Cost-Effective Ranging Module Based on ToF LiDAR Sensor Technology

Atom LiDAR is a cost-effective ranging module based on TOF technology. It utilizes an 850nm IR LED light source, combined with specialized optics, structure, and electronics. It can meet the needs of medium to short ranges (0.2m ~ 12m). Furthermore, the filtering algorithm can help realize extremely low-distance noise. Atom LiDAR features an 850nm narrow-bandpass filter, effectively blocking 99% of ambient light and ensuring accurate distance measurements for both indoor and outdoor applications.

Atom LiDAR offers multiple communication interfaces, supporting IIC and UART protocols, making integration convenient. Additionally, the module provides a range of measurement modes, including single and continuous automatic measurements, to cater to the diverse needs of various terminal products. In terms of output data, you can choose to use a filter to get smoother range data or not use the filter to get a faster dynamic response. Furthermore, during the non-measurement period, the module enters IDEL status, effectively reducing power consumption and ensuring the life of the light source.

Atom LiDAR has undergone multi-channel calibration and testing before delivery, ensuring consistent performance.

Features

  •  Indoor/outdoor compatible
  •  medium-short range (0.2m~12m)
  •  miniaturizations, easy-to-install
  • multiple measurement types
  • long working life
  • high frame rate, higher than 500Hz
  • IR LED light source, eye safety
  • cost-effective

SKD: https://github.com/vsemi/LIDAR07-100W

Additional information

Weight 0.01 lbs

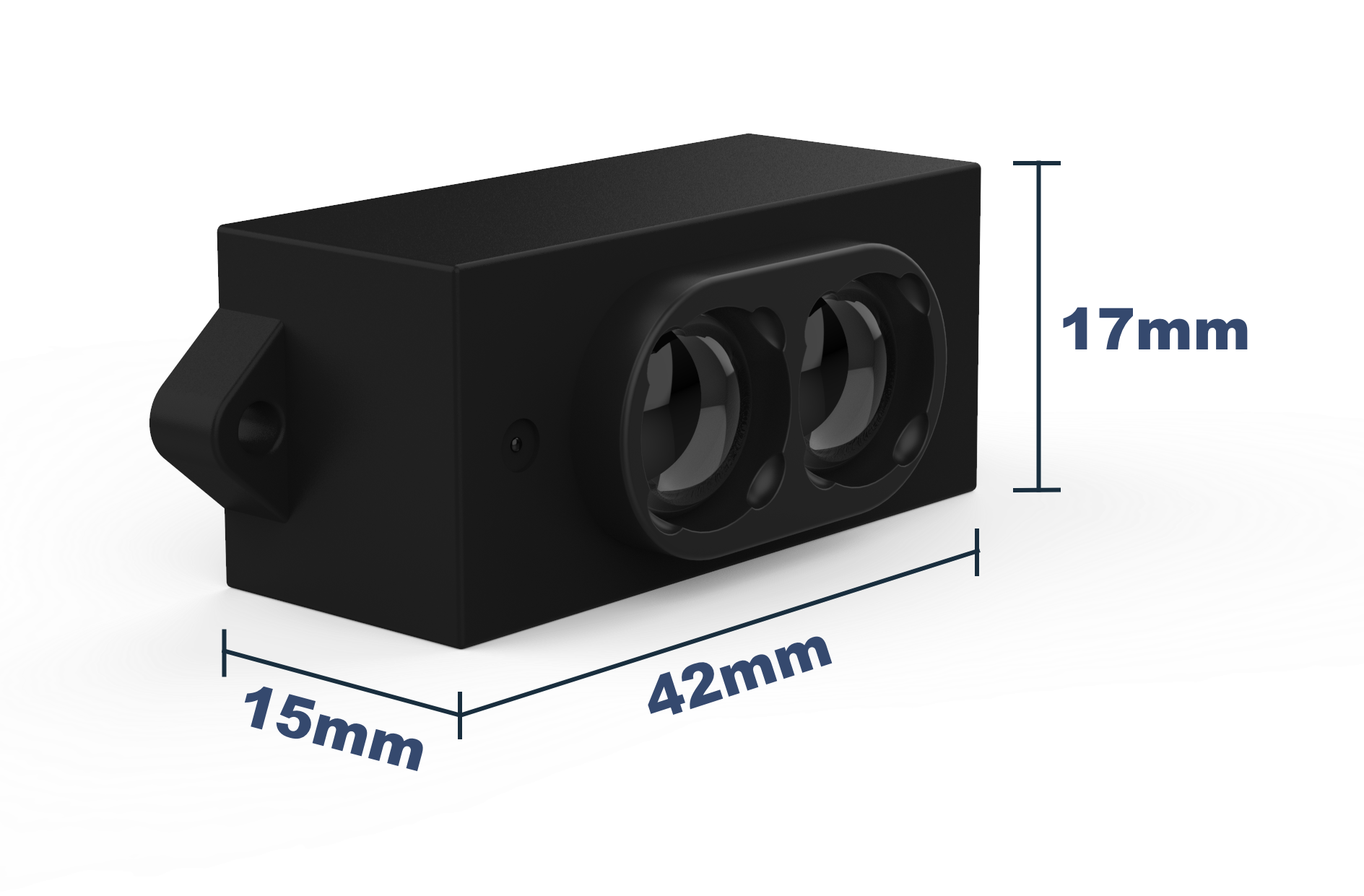

Dimensions 1.65 × 0.59 × 0.67 in
