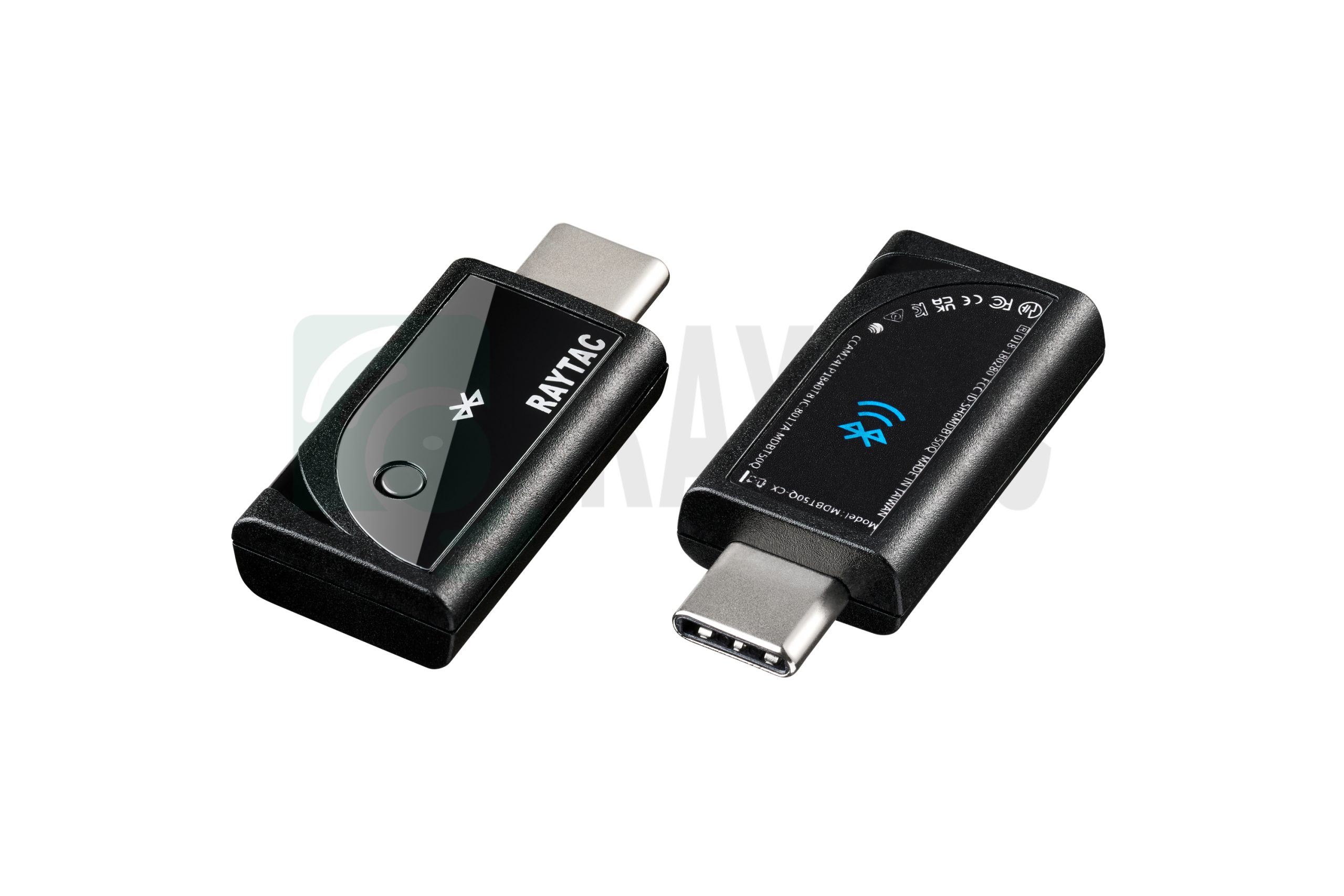

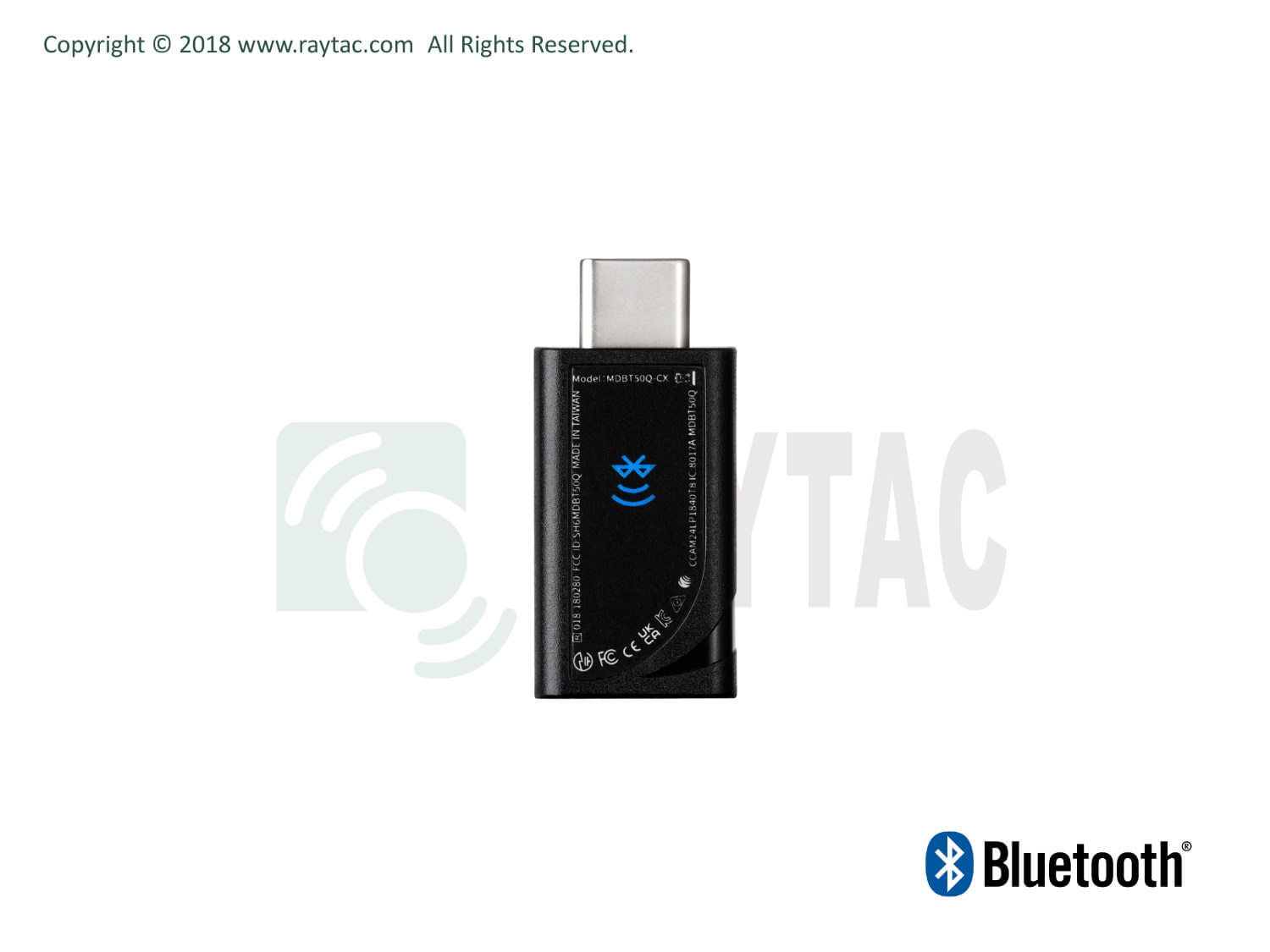

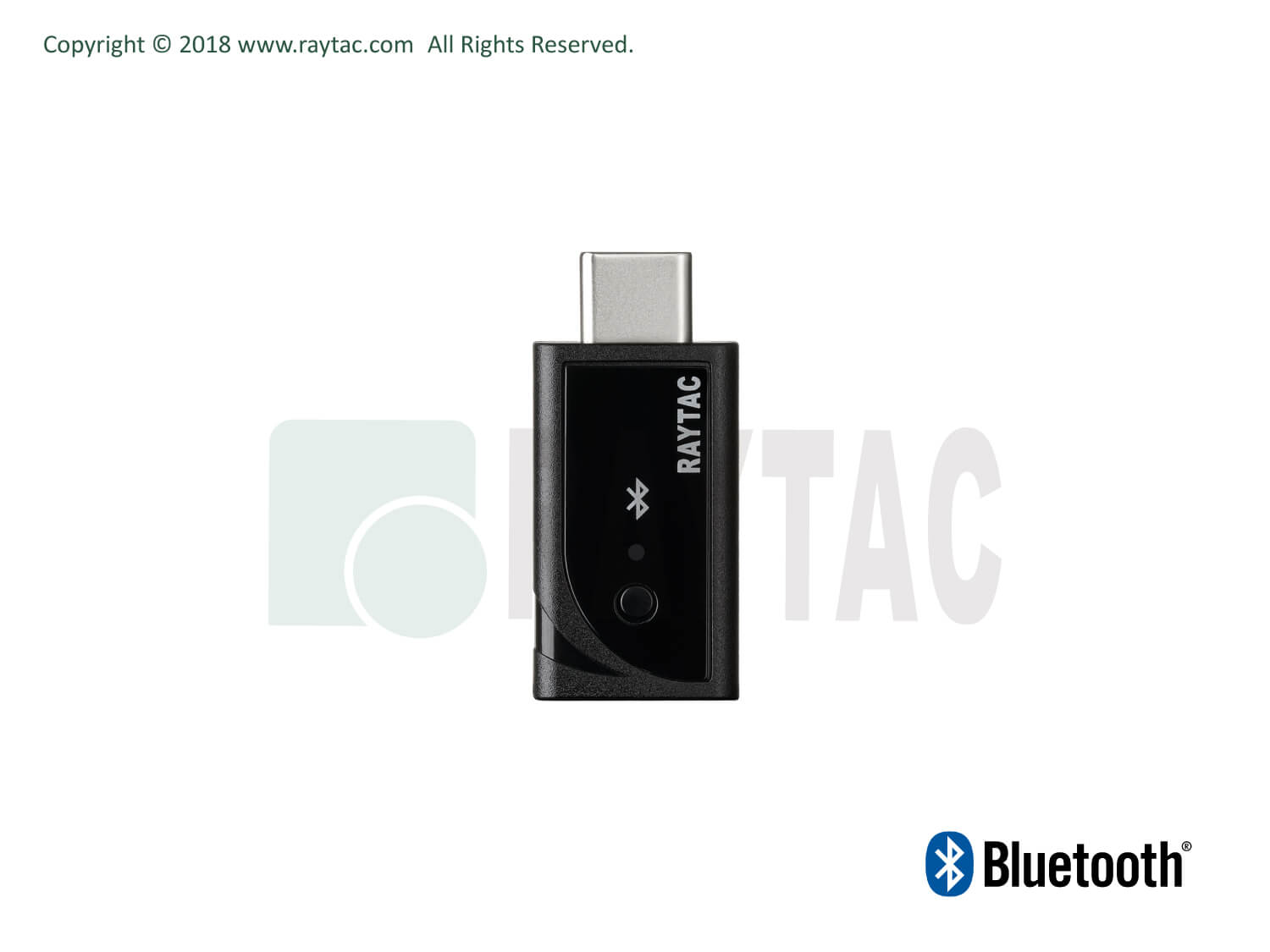

BLE Module Type-C Dongle Based on Nordic nRF52840 SoC MDBT50Q-CX-40

$9.80

Model No: MDBT50Q-CX-40

  • Nordic nRF52840 SoC Solution Dongle
  • A recommended 3rd-party module by Nordic Semiconductor.
  • BT5.4 & BT5.2 & BT5.1 & BT5 Bluetooth Specification Certified.
  • Type C USB Connector
  • Supports Open Bootloader
  • Supports BT5 Long Range Feature
  • Deployed Raytac MDBT50Q-P1MV2 Module
  • Certifications: FCC, IC, CE, UKCA, Telec (MIC), KC, SRRC, NCC, RCM, WPC
  • 32-bit ARM® Cortex™ M4F CPU
  • 1MB Flash Memory / 256kB RAM
  • RoHS & Reach Compliant.
  • Dimension:26.2 x 15.1 x 6.8 mm(excluding Type C USB Connector)
  • Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT+, Zigbee, Thread (802.15.4) ultra-low-power wireless applications.

BLE Module Type-C Dongle Based on Nordic nRF52840 SoC MDBT50Q-CX-40

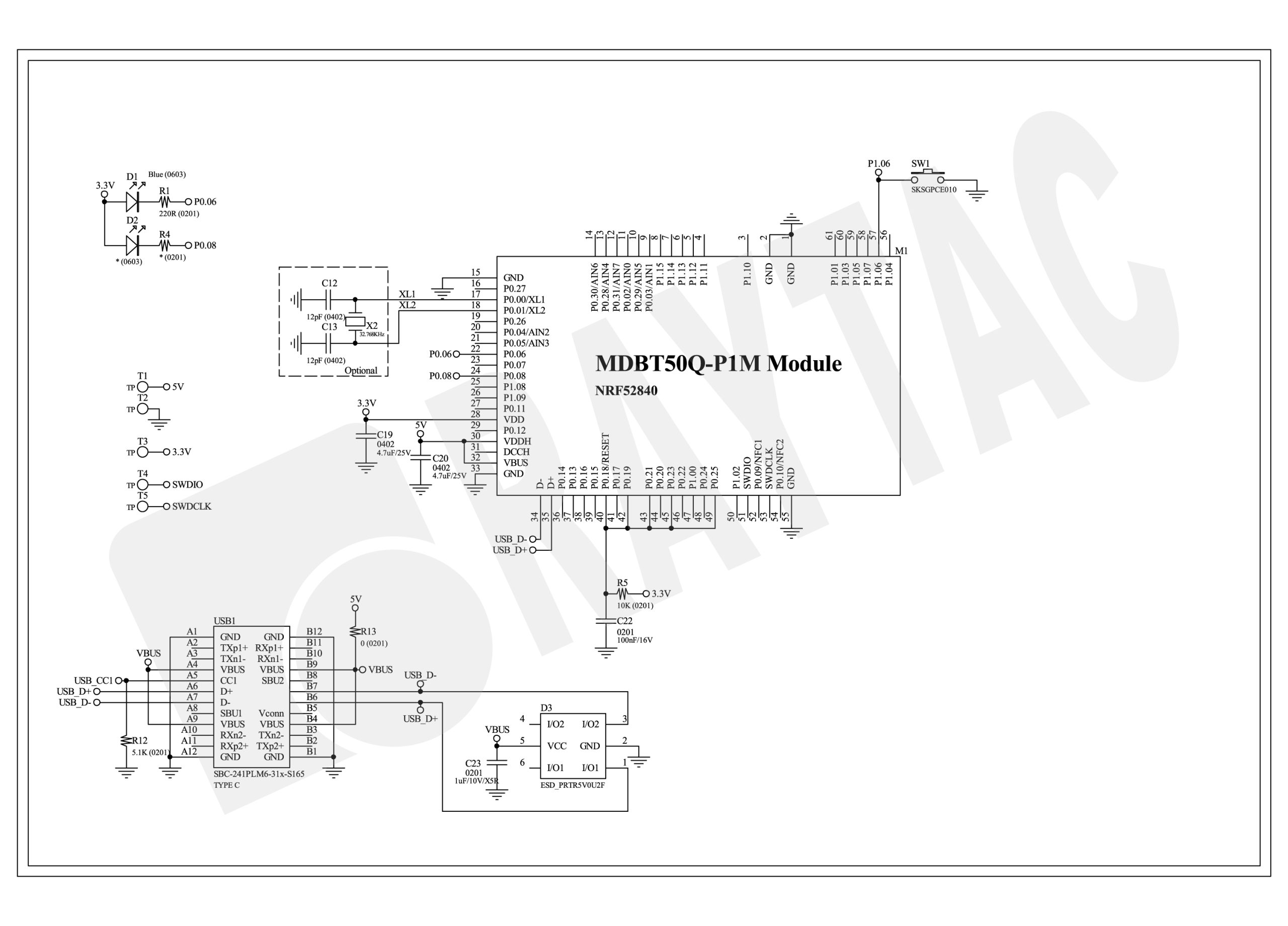

Raytac’s MDBT50Q-CX-40 is a BT5.4, BT5.2, and BT5.1 stack (Bluetooth Low Energy or BLE) dongle designed based on the Nordic nRF52840 SoC solution. This solution incorporates GPIO, PWM, and USB interfaces for connecting peripherals and sensors. MDBT50Q-CX-40 has a Type-C USB connector and supports an open bootloader, allowing OTA plug-in updates without wiring.

Specifications
  • Bluetooth 5, IEEE 802.15.4, 2.4 GHz transceiver
  • -95dBm sensitivity in 1Mbps Bluetooth low energy (BLE) mode
  • -103dBm sensitivity in 125Kbps BLE mode (long range)
  • +8 dBm TX power (down to -20 dBm in 4 dB steps)
  • On-air compatible with nRF52, nRF51, nRF24L and nRF24AP Series
  • Programmable output power from +8dBm to -20dB
  • RSSI (1dB resolution)

Supported Data Rates

  • Bluetooth 5: 2Mbps, 1 Mbps, 500 kbps, 125 kbps
  • IEEE 802.15.4-2006: 250 kbps
  • Proprietary 2.4 GHz: 2 Mbps, 1 Mbps
  • ARM® Cortex™-M4F 32-bit processor with FPU, 64 MHZ
  • Memory: 1MB flash / 256KB RAM
  • HW accelerated security
  • ARM TrustZone Cryptocell 310 security subsystem
  • 128-bit AEC / ECB / CCM / AAR co-processor (on-the-fly packet encryption)
  • Interfaces on device
  • USB 2.0 full speed (12Mbps) controller
  • Programmable Peripheral interconnect (PPI)
  • 1 x Switch and max. 2 x LED
  • EasyDMA automated data transfer between memory and peripherals
  • 4 x 4 channel pulse width modulator (PWM) units with EasyDMA
  • 3 x 24-bit real-time counters (RTC)
  • Flexible power management
  • On-chip DC/DC and LDO regulators with automated low-current modes
  • Automated peripheral power management
  • Fast wake-up using 64MHz internal oscillator
  • 0.4uA at 3V in System OFF mode, no RAM retention
  • 1.5uA at 3V in System ON mode, no RAM retention, are on RTC
  • Nordic SoftDevice is ready and with support for concurrent multi-protocol
  • SPQ: 40/tray; Less than SPQ is workable (Polybag shipment)
