DA14531 Card Beacon IP66 BLE 5.1 NFC Beacon iBeacon Tag FSC-BP105N

$10.99

FSC-BP105N is an innovative waterproof IP66 Bluetooth Low Energy (BLE) 5.1  NFC card Beacon based on the Dialog DA14531 chipset.


Ships From: China

Supplier: Feasycom SKU: FSC-BP105N Categories: , , Tags: , ,

Configurable Waterproof Beacon BLE 5.1 NFC Card FSC-BP105N

FSC-BP105N is an innovative waterproof IP66 Bluetooth Low Energy (BLE) 5.1  NFC card waterproof beacon Device; it adopts Dialog DA14531 chipset and simultaneously supports iBeacon, Eddystone (e.g., URL, UID, TLM), AltBeacon for broadcasting and provides the ability to advertise up to 10 slots of advertising frames. FSC-BP105N has six years of battery life and supports NFC and G-Sensor. With the iOS and Android FeasyBeacon SDK, developers can take advantage of the SDK’s flexibility and focus on their applications.

Main Features

  • Waterproof IP66
  • Card Beacon with design patent
  • Bluetooth 5.1 Compliant
  • Optional Features: NFC; G-Sensor
  • Pre-programmed with Feasycom Smart Beacon Firmware
  • Up to 10 slots of Advertising Frames
  • Portable Smart Beacon with 6 Years Battery Life (by Default Settings)

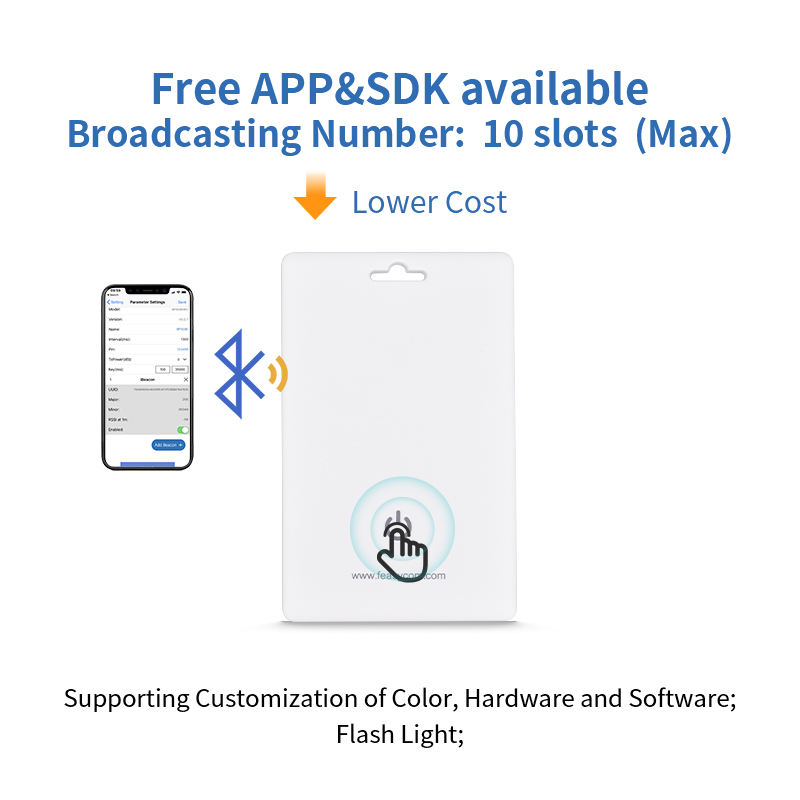

  • Configurable by Free FeasyBeacon Mobile App and SDK
  • Customizable Color, Logo, Hardware, Software

Basic Parameter

Bluetooth Beacon FSC-BP105N
Bluetooth version Bluetooth 5.1
Chipset Dialog DA14531

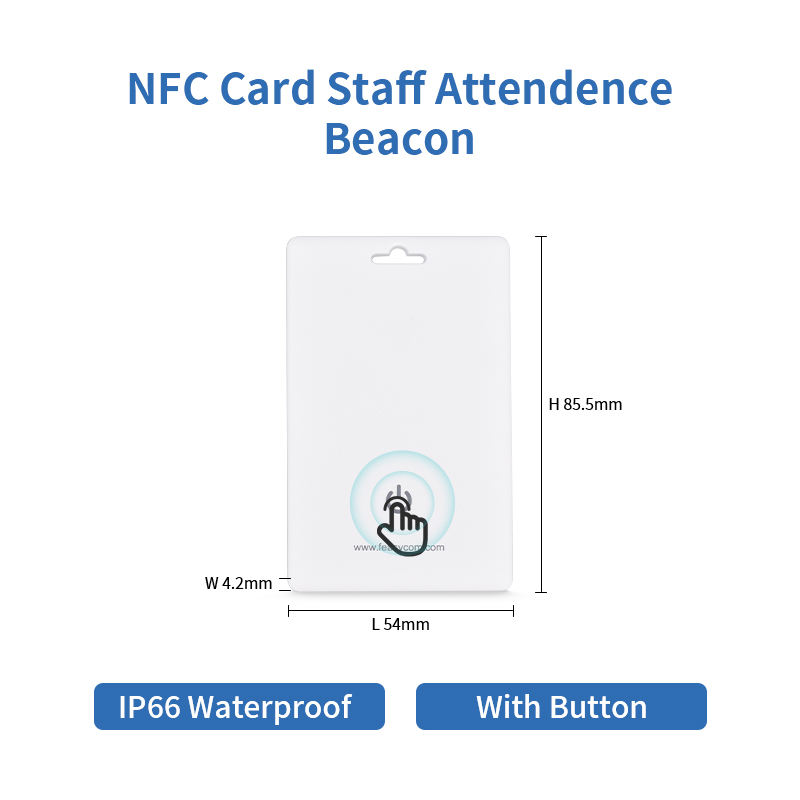

Size 85.5(L)mm x 54(W)mm x 4.2(H) mm
Button Long press the button to power on/off
Color White or customized
TX power -20 dBm to +4 dBm
Battery Life 6 Years (ADV Interval = 1300 ms; TX Power = 0 )

(NFC Standby Mode)

NFC YES
G-Sensor Optional
Operating temperature -20°C to +60°C
Protection IP66
