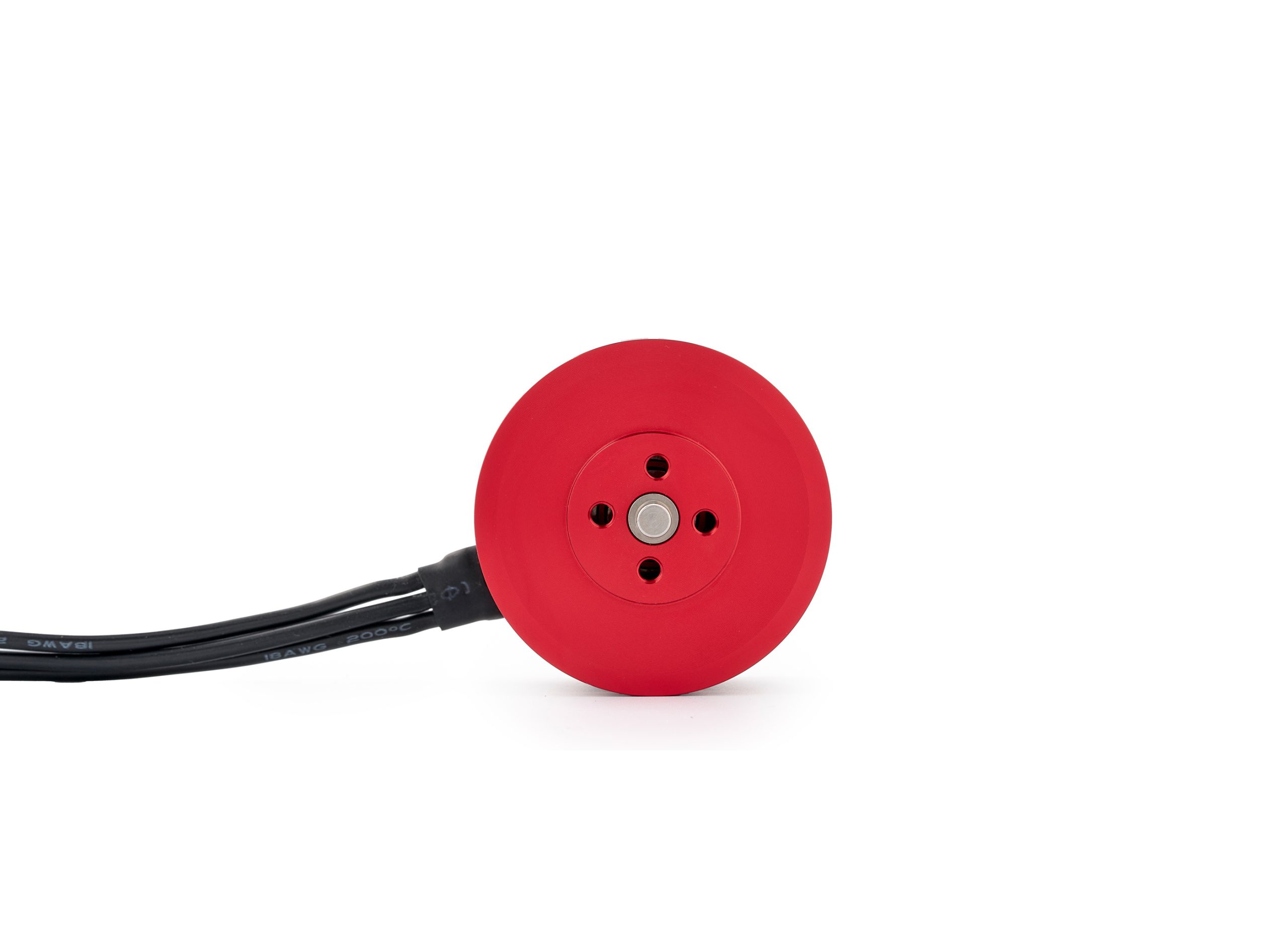

ePropelled Sparrow Series APM 3510-Kv700 High-Performance Brushless Electric Motor

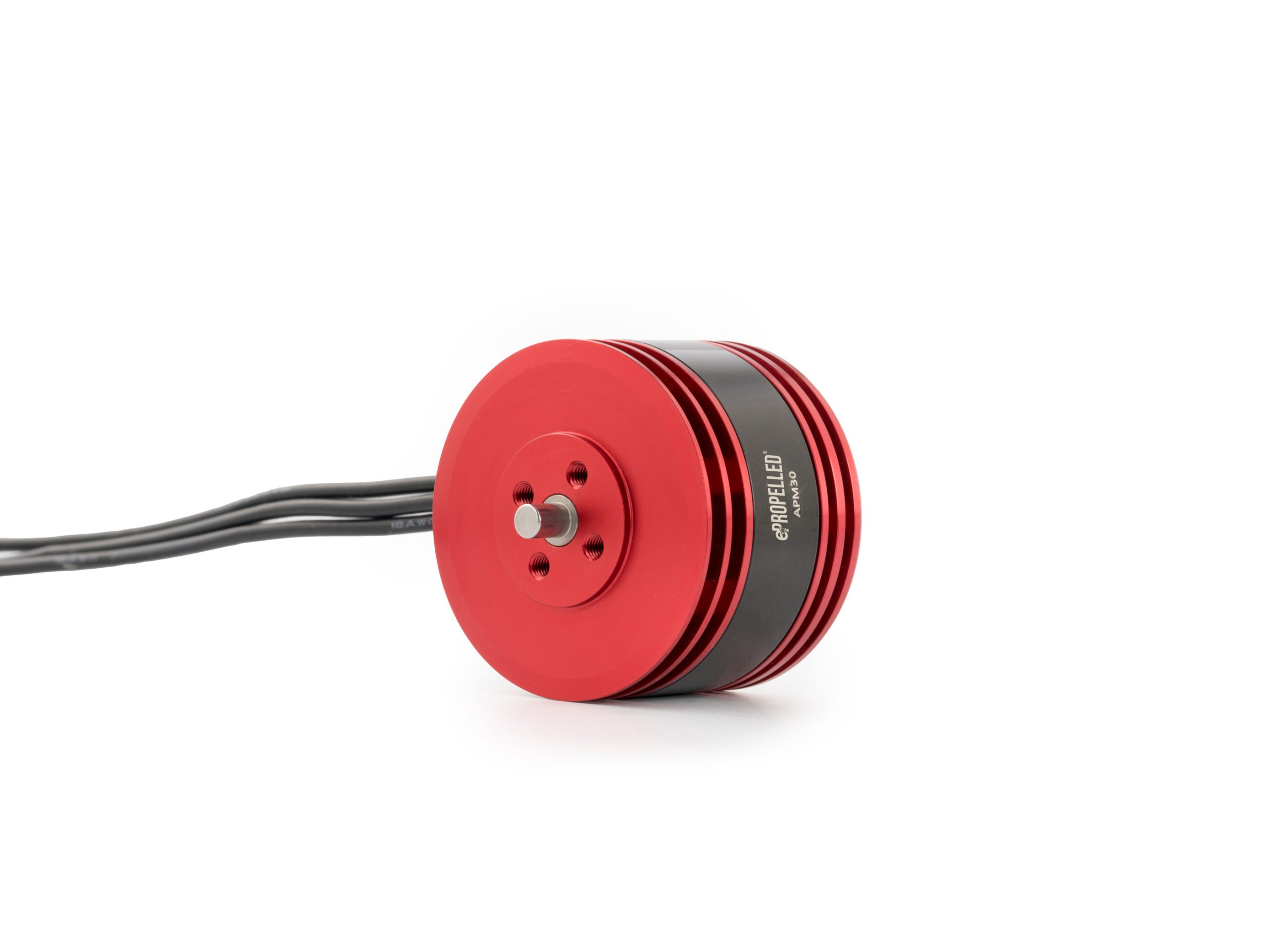

ePropelled Sparrow Series APM 3510-Kv700 High-Performance Brushless Electric Motor - Image 2

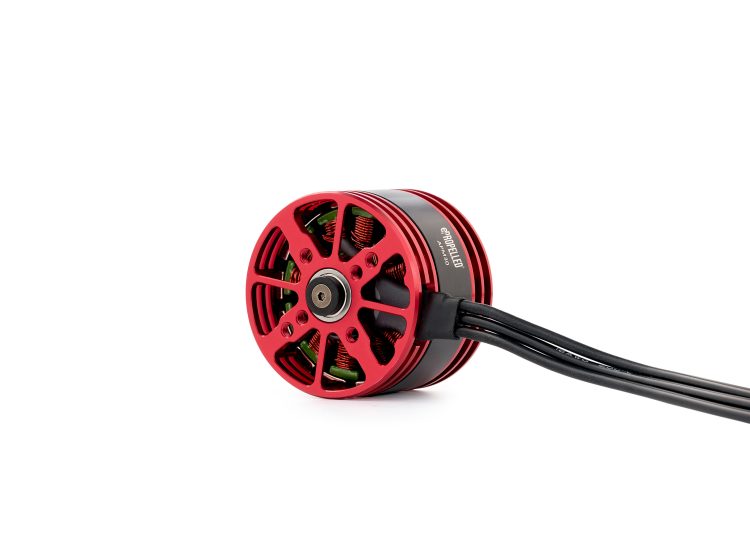

ePropelled Sparrow Series APM 3510-Kv700 High-Performance Brushless Electric Motor - Image 3
ePropelled Sparrow Series APM 3510-Kv700 High-Performance Brushless Electric Motor - Image 4
ePropelled Sparrow Series APM 3510-Kv700 High-Performance Brushless Electric Motor - Image 5

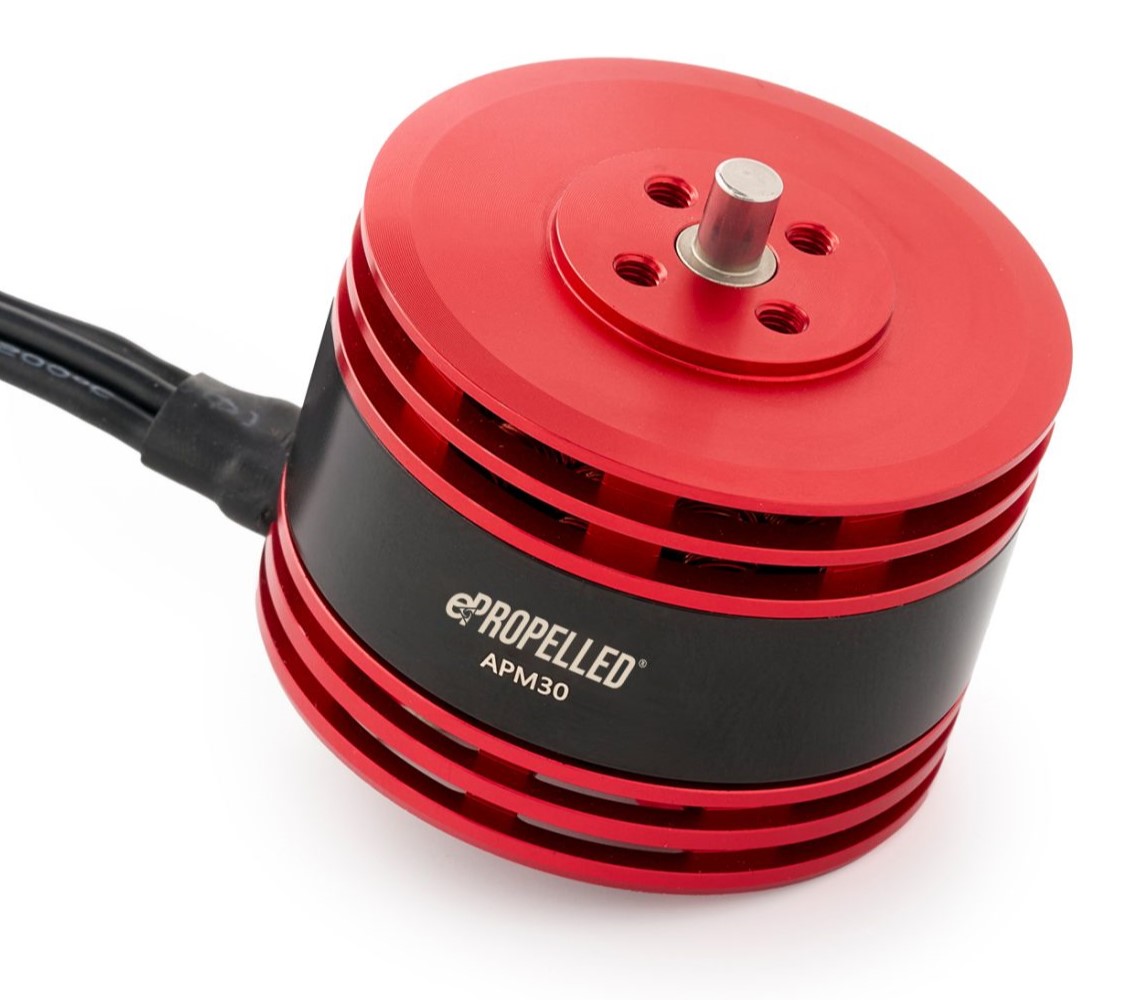

ePropelled Sparrow Series APM 3510-Kv700 High-Performance Brushless Electric Motor - Image 6

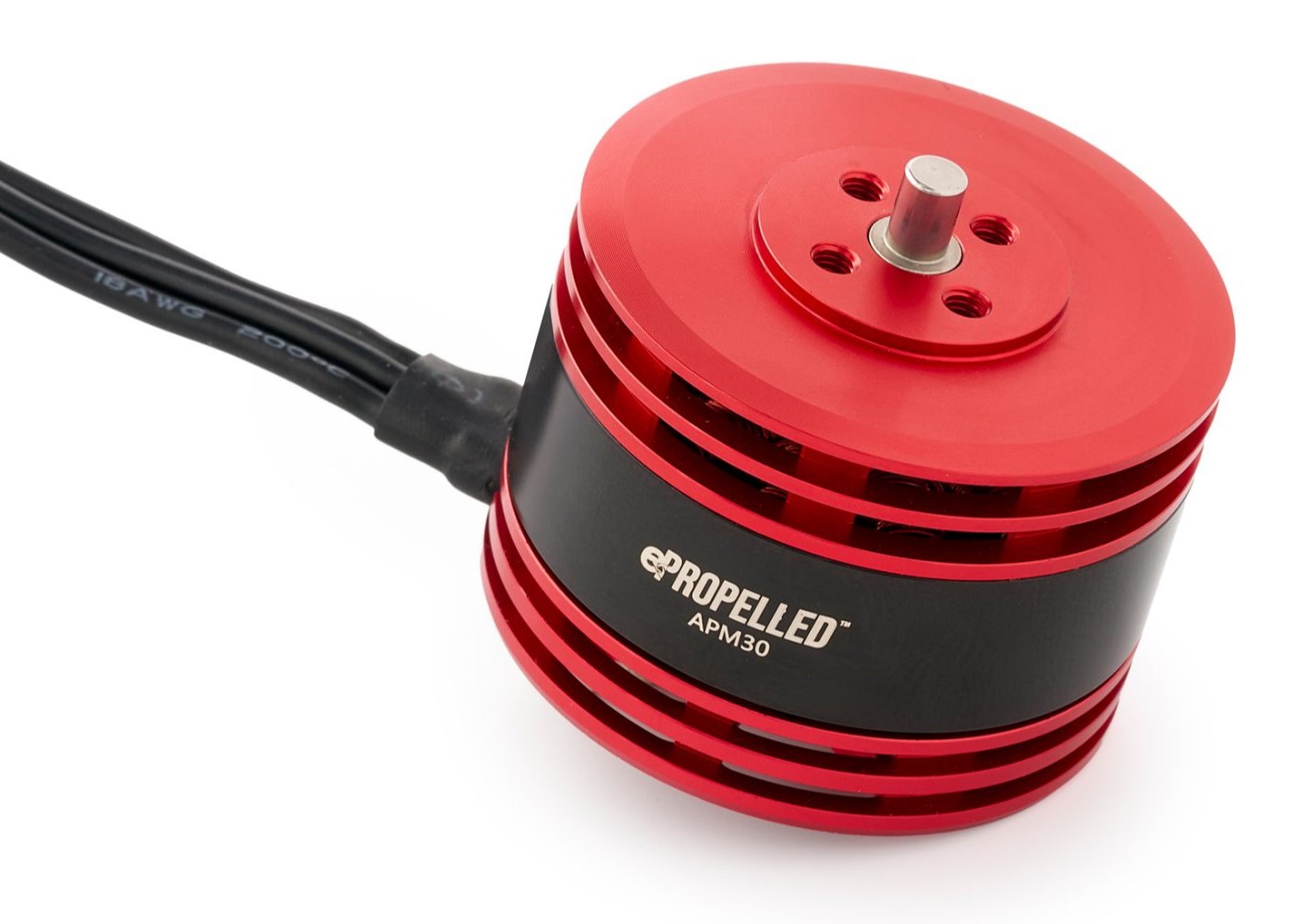

ePropelled Sparrow Series APM 3510-Kv700 High-Performance Brushless Electric Motor - Image 7

ePropelled Sparrow Series APM 3510-Kv700 High-Performance Brushless Electric Motor

$249.00

KEY FEATURES

  • Superior quality insulation provides long life and high reliability of windings
  • Ultra-light, efficient, and long flight time
  • Built for industrial strength
  • Fully tested

MOTOR PARAMETERS

  • IP Rating: IP45
  • Diameter: 41.8 mm
  • Length: 38.8 mm
  • Maximum Thrust: 1.89 kg
  • Motor Weight: 125 g
  • Maximum Power (180s): 380W
  • Rated Voltage: 3S – 4S (LiPo)


Ships From: United States (US)
Supplier: ePropelled SKU: APM 3510-KV700 Categories: , , , Tags: , , , , More From:

ePropelled Sparrow Series APM 3510-KV700 High-Performance Brushless Electric Motor

The ePropelled APM 3510-Kv700 Sparrow Series motor is a high-performance, brushless electric motor designed for demanding applications requiring both power and compactness. 380W Drone Motor Replacement, Air Propulsion Motors for Drones, 3-4s LiPo, Fits 11-14″ Propellers, IP45 Rating.

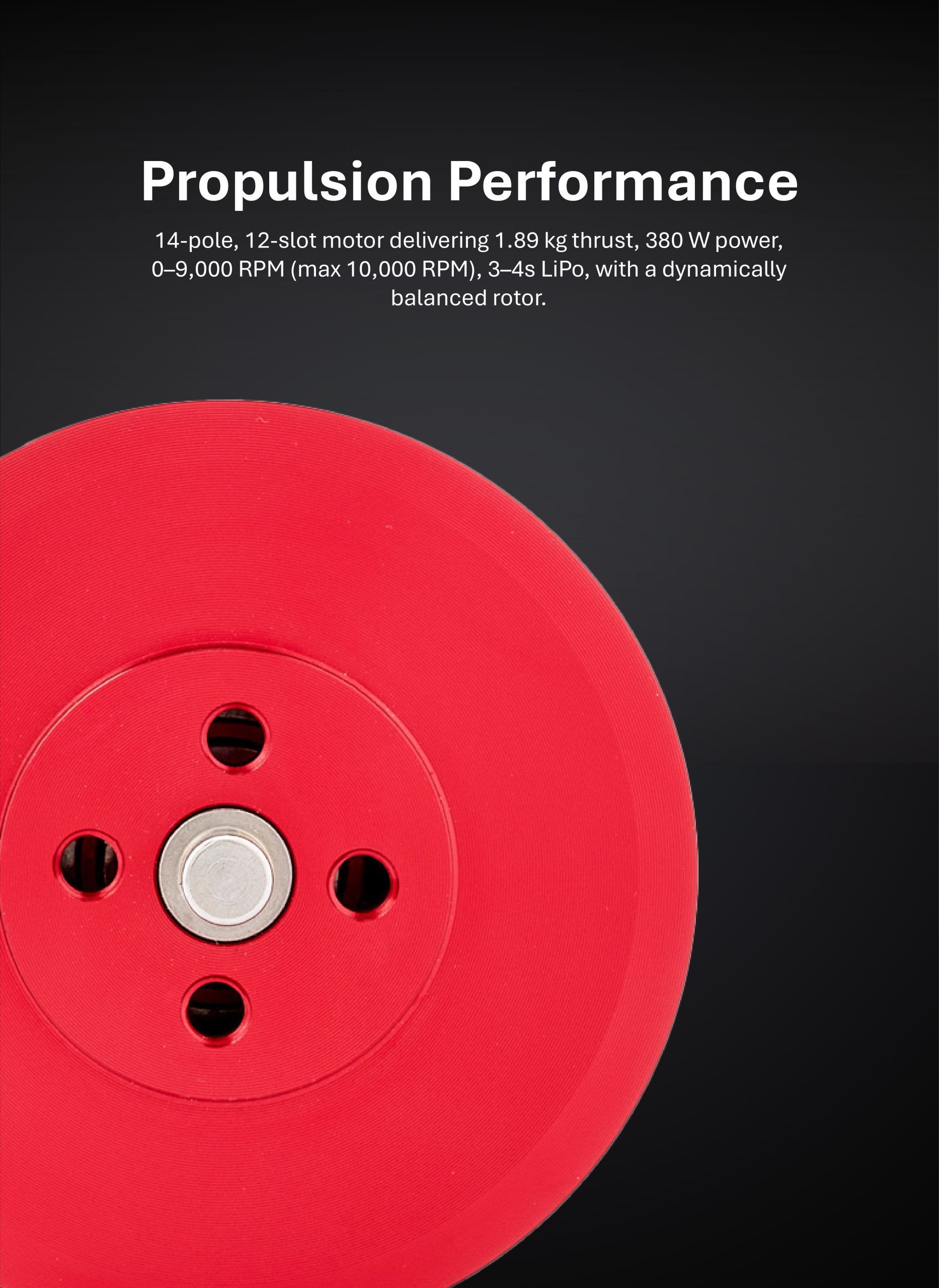

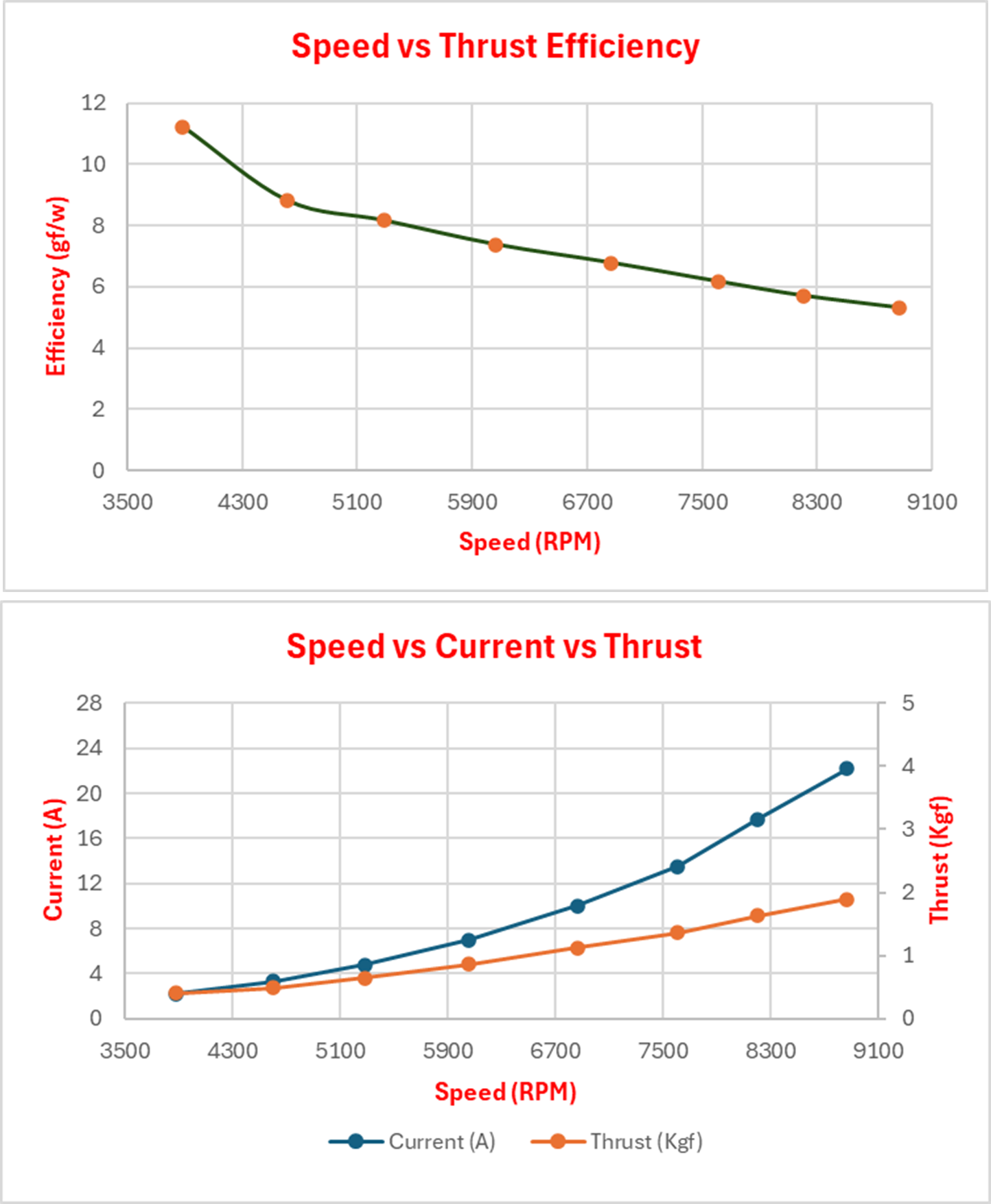

PROPULSION PERFORMANCE
Featuring 14 magnetic poles and 12 stator slots, this motor offers a maximum thrust of 1.89kg, 380W of power, and a nominal operating speed of 0 to 9,000 RPM, with a maximum speed of 10,000 RPM. It also features a dynamically balanced rotor and a rated voltage of 3-4s (LiPo).

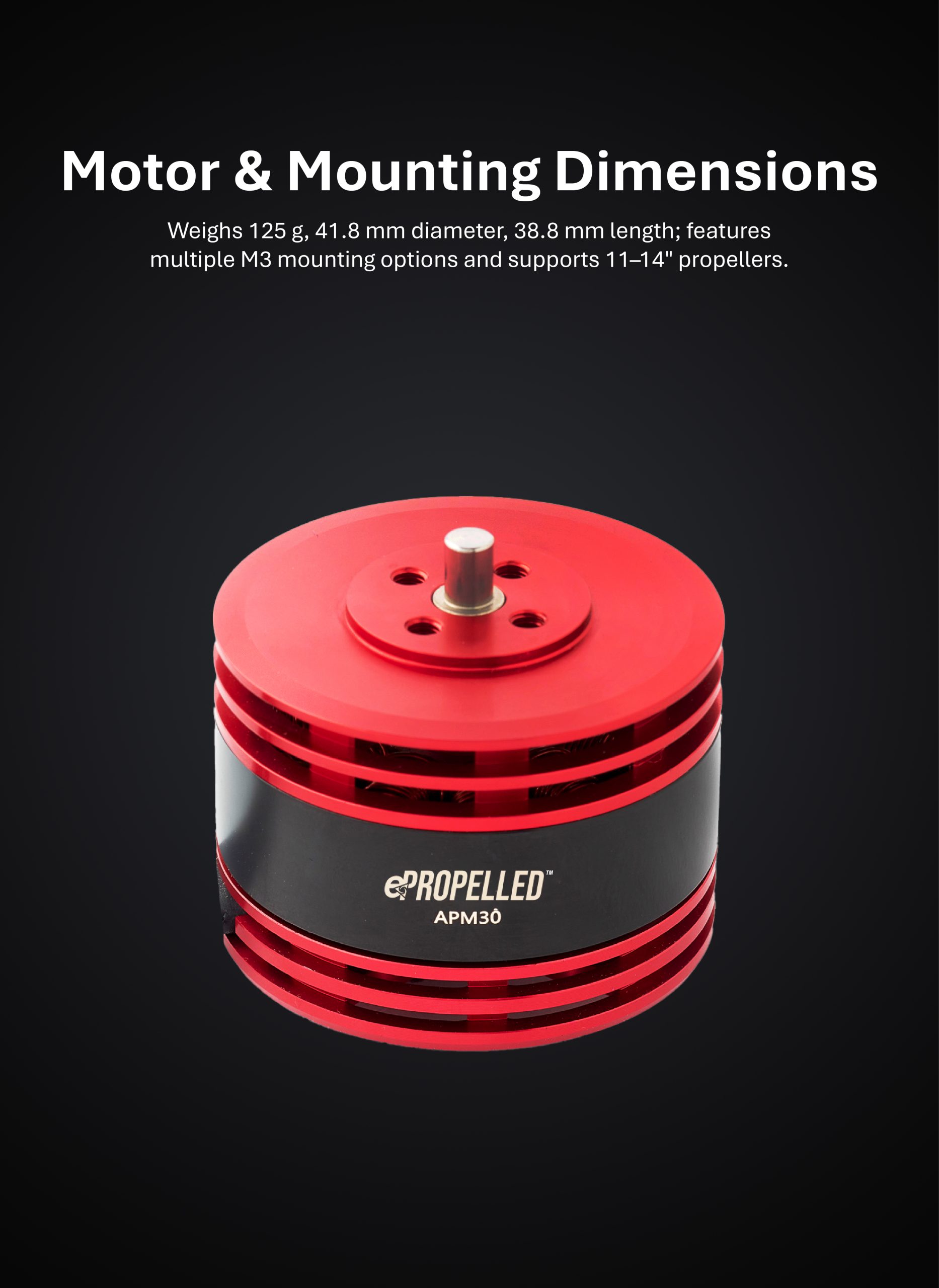

MOTOR AND MOUNTING DIMENSIONS
The lightweight motor weighs 125g with a diameter of 41.8mm and length of 38.8mm, and has 2x M3 Ø25mm, Ø19mm, and Ø16mm PCD motor and 4x M3 Ø12mm PCD propeller adaptor mounting holes; recommended propeller size of 11-14″.

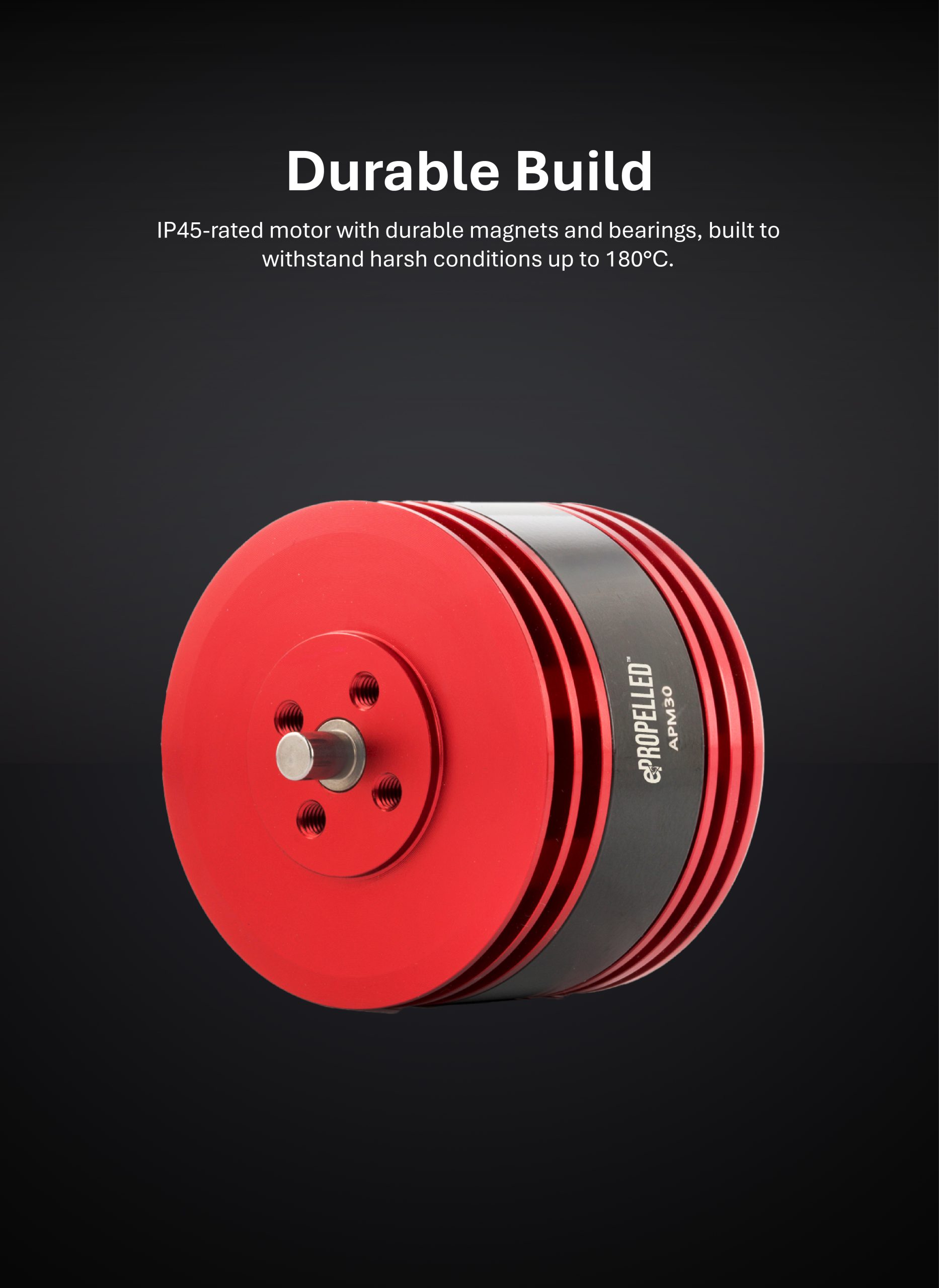

DURABLE BUILD
A reliable, IP45-rated component built with high-performing materials, including permanent magnets and bearings, for a longer life span and to endure harsh thermal environments, with a winding operating temperature limit of 180°C/356°F.

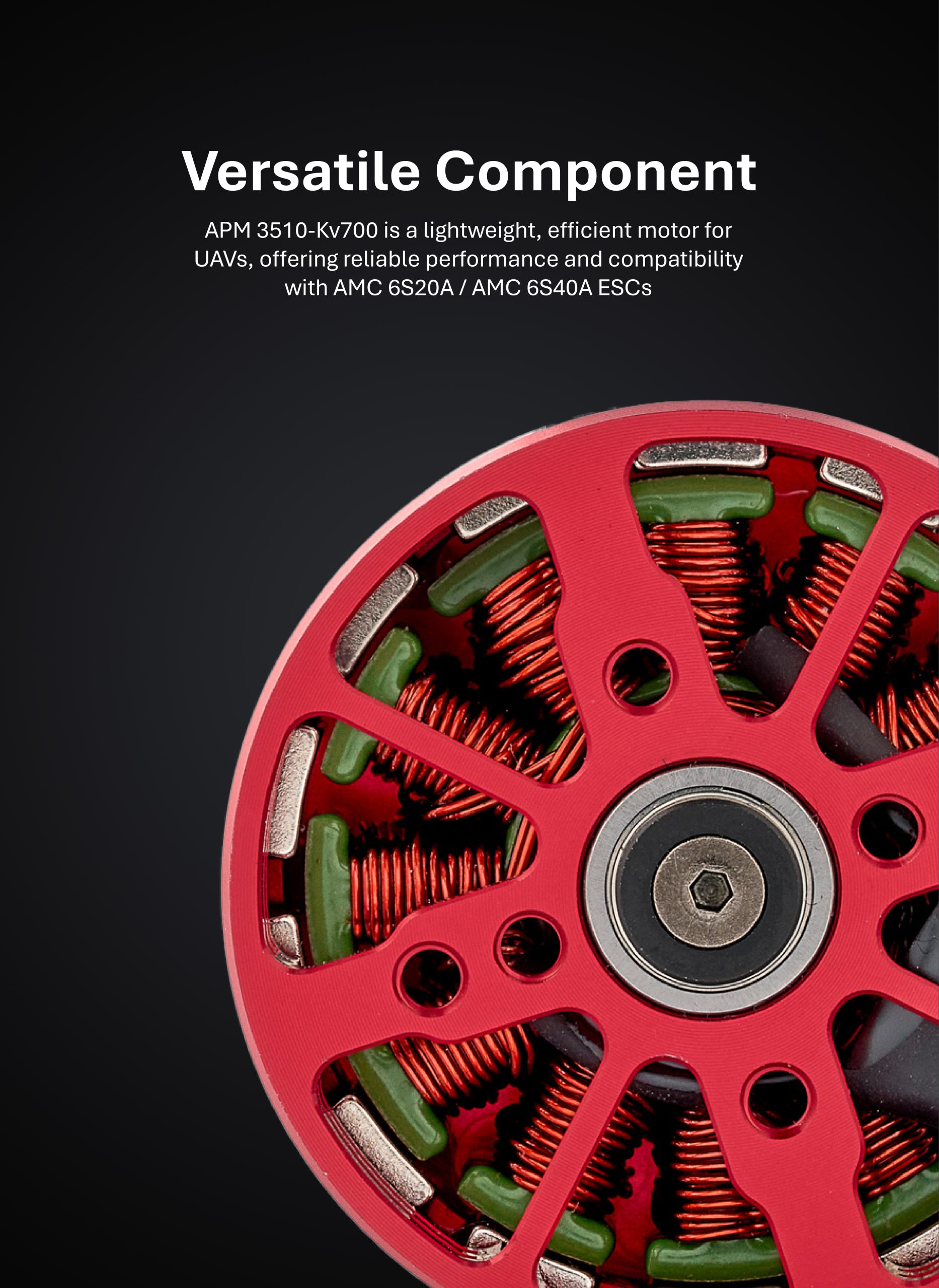

VERSATILE COMPONENT
Suited for new UAV designs and easy motor replacements, the APM 3510-Kv700 is an energy-efficient, light-to-medium-duty component that offers optimized performance across most mainstream drone uses; compatible with AMC 6S20A and AMC 6S40A ESC series.
