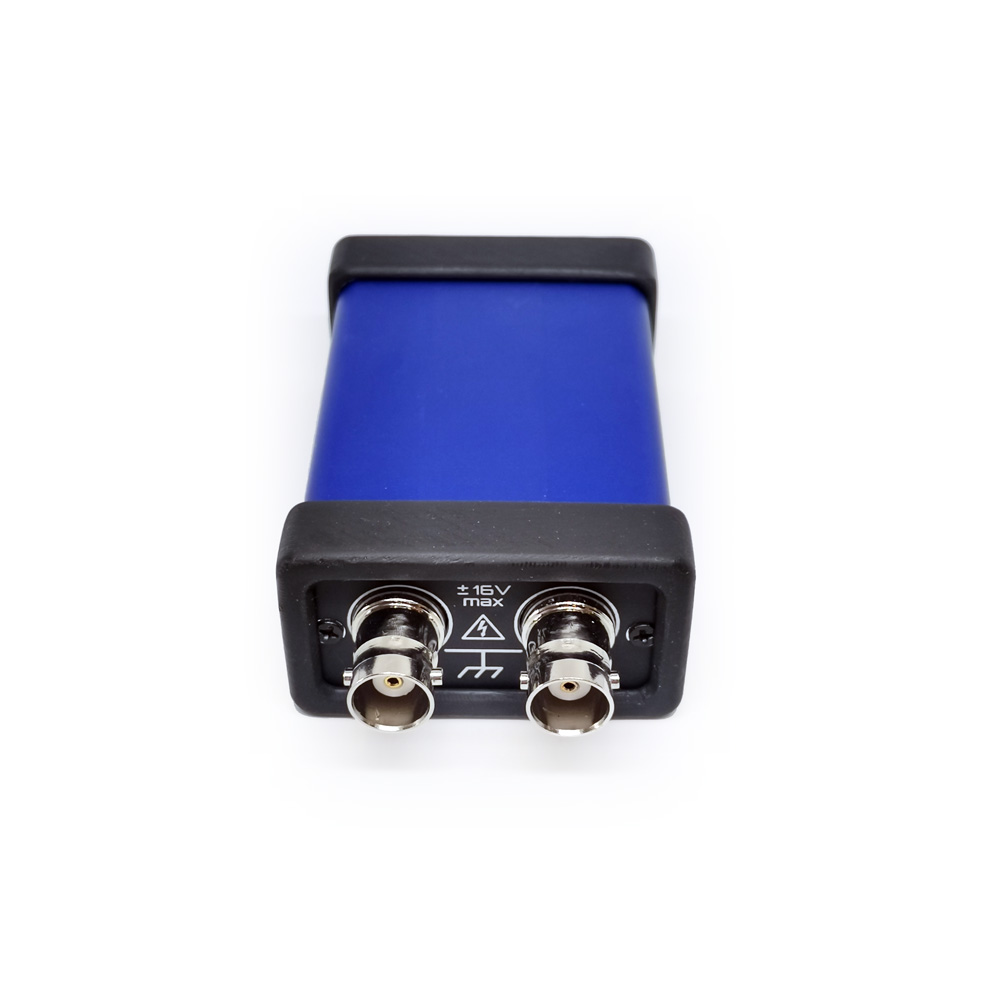

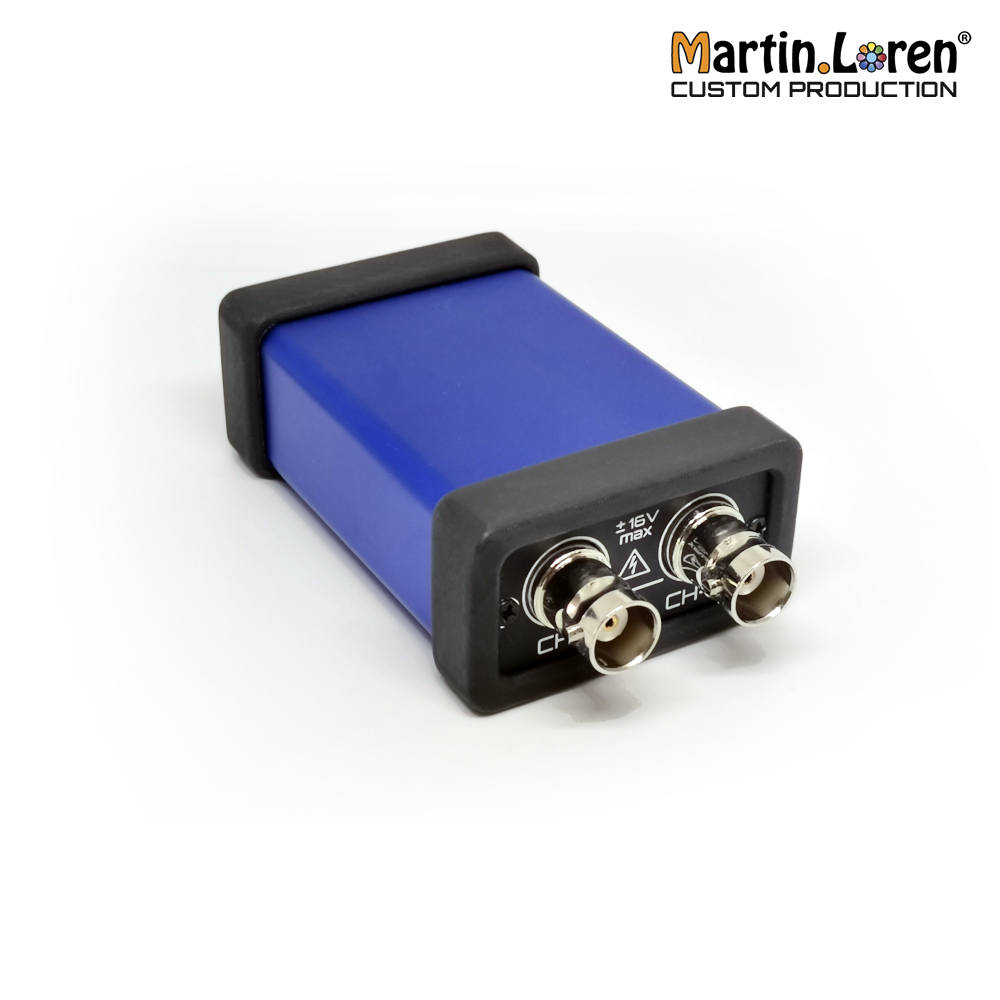

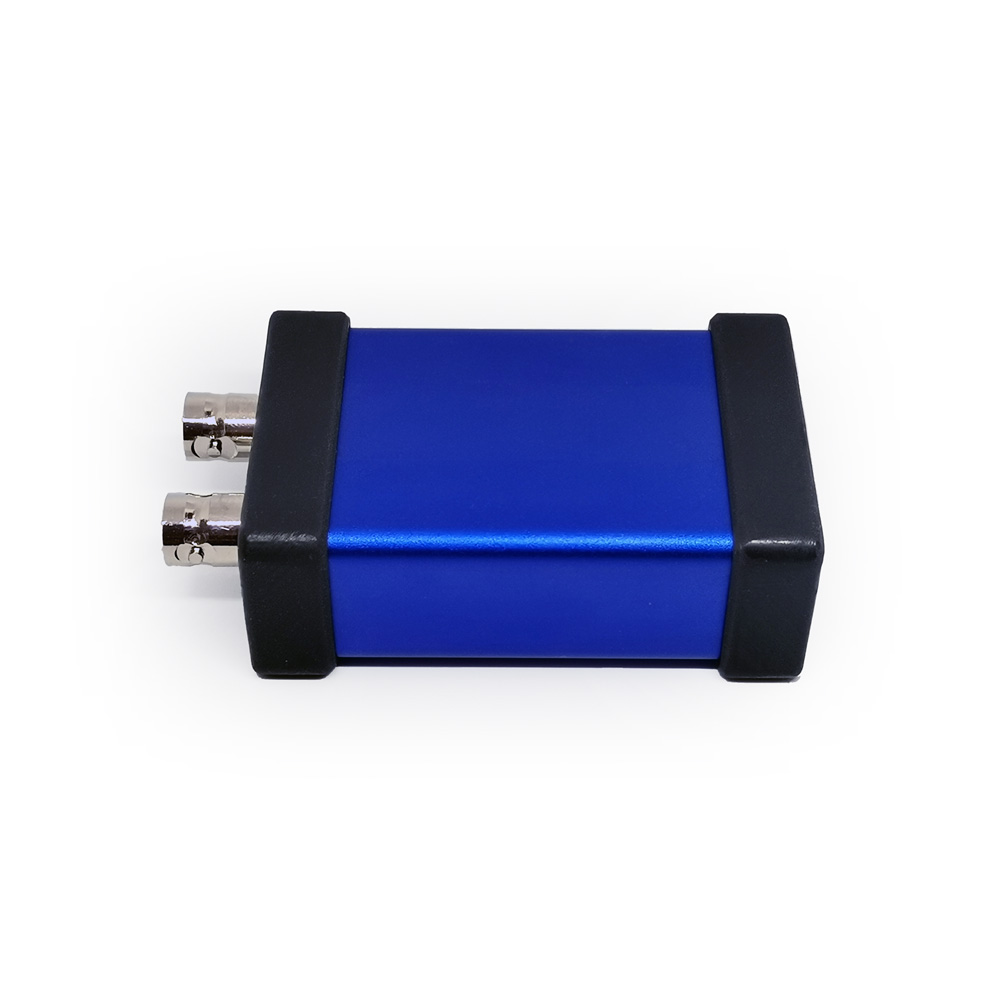

HS502 12-bit Android Portable Oscilloscope
HS502 12-bit Android Portable Oscilloscope - Image 2
HS502 12-bit Android Portable Oscilloscope - Image 3
HS502 12-bit Android Portable Oscilloscope - Image 4

HS502 12-bit Android Portable Oscilloscope

$98.00

Android portable 2-channel 12-bit Oscilloscope.

HTS Classification: 9030.20-0000

Ships From: China
Supplier: Martin Loren SKU: HS502 Categories: , Tags: , , , More From:

HS502 12-bit Android Portable Oscilloscope

Compact oscilloscope designed for the HScope Android app and ready to be used on your phone or tablet. It integrates a new ARM® Cortex®-M4 MCU (released in 2022) with a high-speed ADC up to 13 MSa/s. It is an improved version of the popular HS402 DIY Oscilloscope, but with a new core technology.

Main features

  • 2 Channels
  • ADC resolution: 8 – 12 – 16 bit
  • AC/DC Coupling
  • Hardware Trigger
  • Max rate: 13MSa/s – 8 bit, 6.5Msa/s -12 bit
  • Max input range: 16Vp
  • Max supported voltage (protection): 50Vp
  • Memory buffer: 64KB (at least 8000 Sa/channel for two channels on)
  • Low power consumption: 130mA
  • HScope app ready to use without the need to purchase an additional license (additionally, Automotive functions are enabled when the oscilloscope is connected. Annual updates after the first year or other software modules are not included).
  • OS required*: Android 7+

* Performances are dependent on Android hardware and OS version. Check the required OS Version. Suggested CPU 2.1GHz+

The package includes:

  • 1x USB-OTG High Quality Cable with EMI protection (50cm)
  • Case
  • Documentation will be emailed to you upon purchase:
  • HS5x2 User Manual
  • HS5x2 Technical Specifications (2023 First edition)

The package DOES NOT INCLUDE (need to buy it separately): 2x Oscilloscope Probes.

Technical Specifications


Software: This oscilloscope works only with the HScope app for Android.

Additional information

Weight 0.5 lbs
Dimensions 15 × 10 × 5 in
