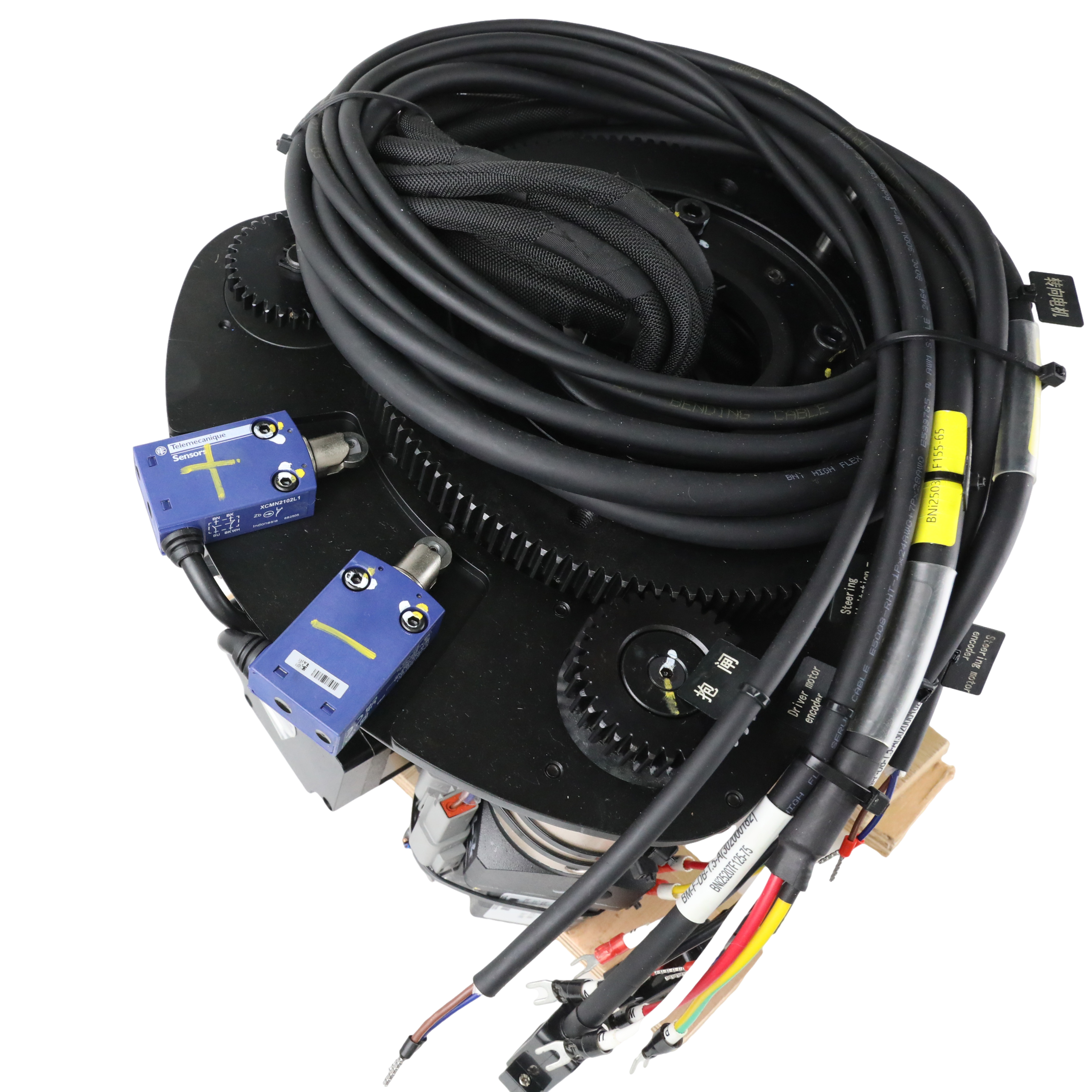

Industrial AGV Horizontal Steering Wheel Suitable for Forklift 750W Load 800kg

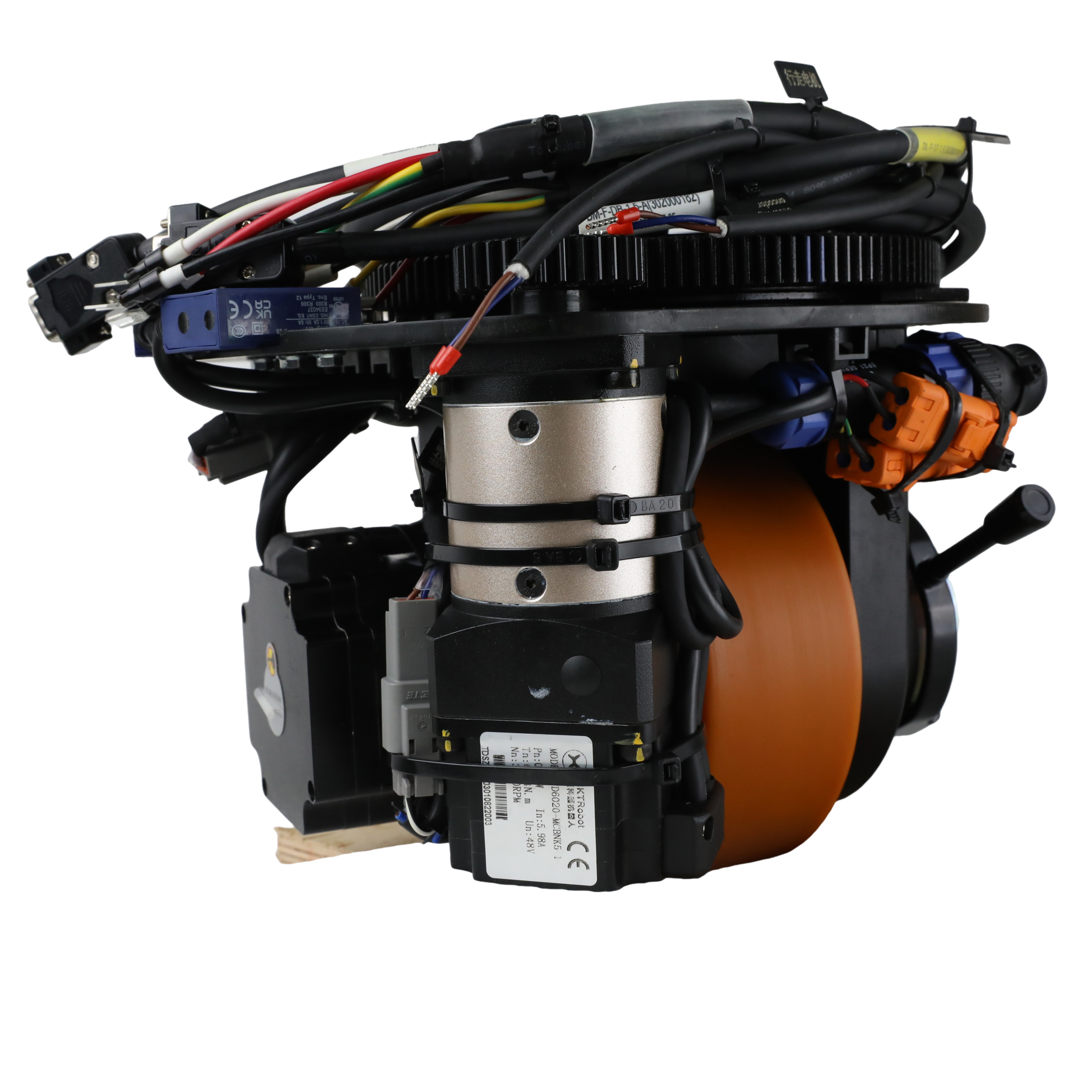

Industrial AGV Horizontal Steering Wheel Suitable for Forklift 750W Load 800kg - Image 2

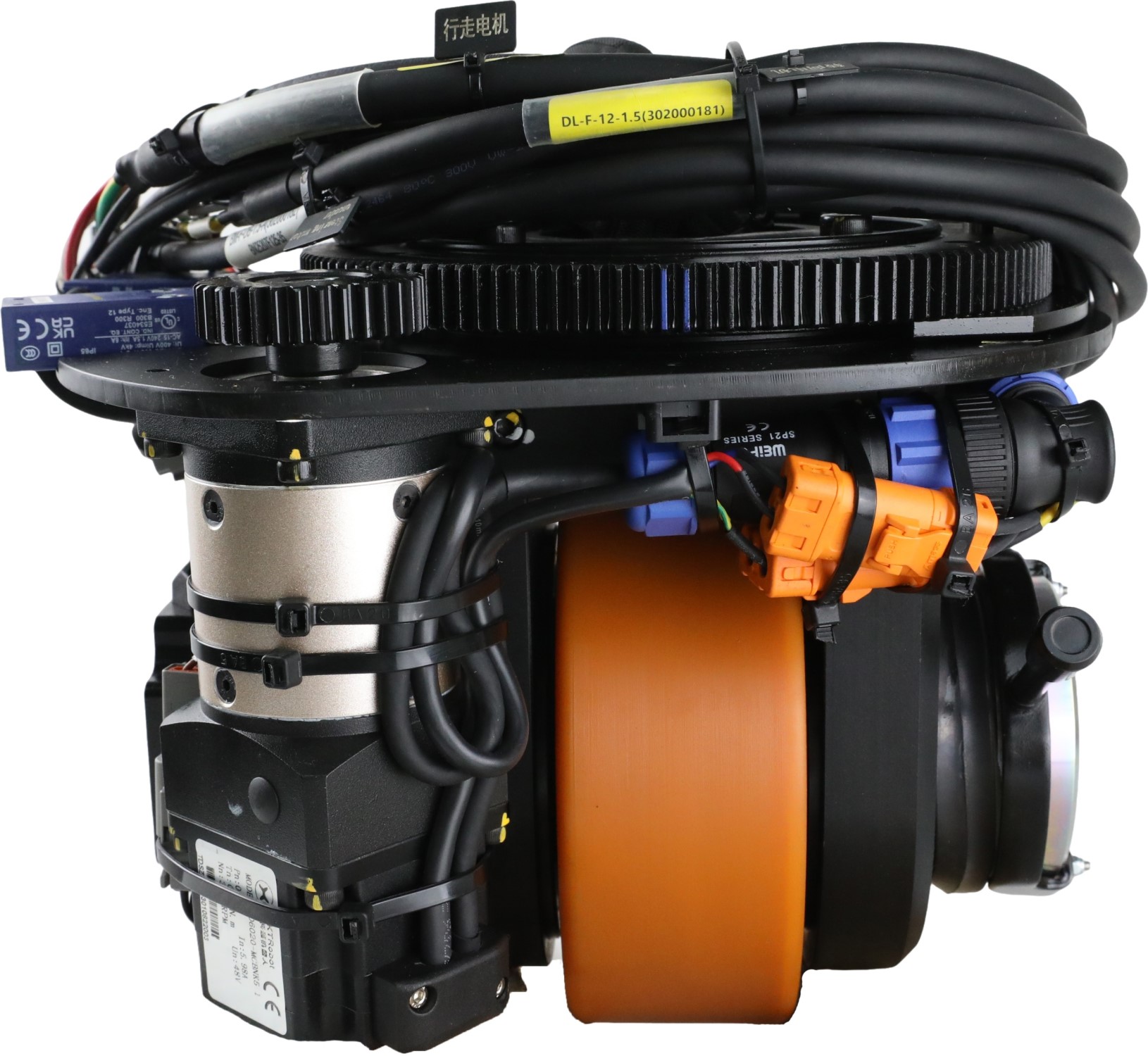

Industrial AGV Horizontal Steering Wheel Suitable for Forklift 750W Load 800kg - Image 3

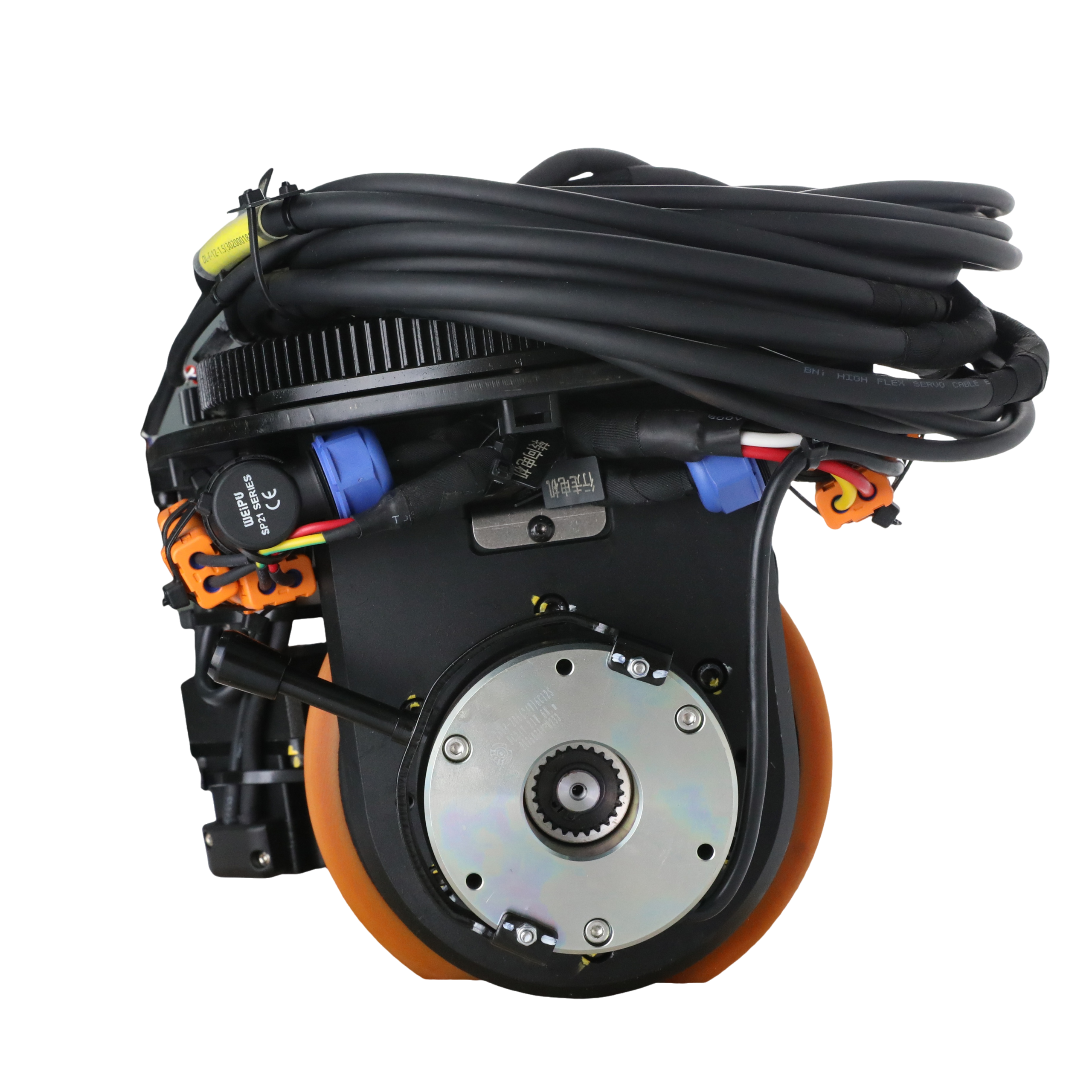

Industrial AGV Horizontal Steering Wheel Suitable for Forklift 750W Load 800kg - Image 4

Industrial AGV Horizontal Steering Wheel Suitable for Forklift 750W Load 800kg

Original price was: $1,600.00.Current price is: $1,450.00.

  • Voltage: 48V
  • Rated Load: 800kg
  • Rated Torque: 38.24 N·m
  • Drive Wheel Diameter: 160mm
  • Rated Power:750W
  • Gear Radio:21:1


Ships From: China
Brand: AGV Motor SKU: HKT-WDS-160-750-200 Categories: , , Tags: , , ,

Industrial AGV Horizontal Steering Wheel Suitable for Forklift 750W Load 800kg

The AGV system features a 750W motor with 2.39 N·m of torque, a 48V DC power source, and a maximum speed of 3000 rpm. It offers a maximum speed of 94.2m/min and supports loads of up to 800kg. The 160mm drive wheel and 180mm turning radius enhance maneuverability. The 200W steering motor provides precise control with a max turning speed of 112.5°/s. Includes safety features like ±126° electronic and ±135° mechanical limit angles, plus a 6Nm brake system. Ideal for high-speed, high-load forklift AGVs in manufacturing and logistics environments.

Equipped with a 750W motor, rated torque 2.39Nm, 48V DC voltage, motor rated current 19.9A, speed 3000r/min, speed ratio 16 (optional 21, 24, 28, 32), providing excellent power output and transmission efficiency, adapting to various industrial operation needs.

The drive wheel diameter is 160mm, and the maximum speed can reach 94.2m/min (with other speed ratios of 71.8, 62.8, 53.8, and 47.1m/min). It supports loads of up to 800kg. The turning radius of 180mm gives the AGV excellent flexibility and maneuverability in narrow spaces, perfectly adapting to forklift usage scenarios.

Compared to lower power systems, this 750W steering wheel system performs better in terms of load capacity and speed, improving the stability of the AGV under high-speed and heavy-load conditions, and optimizing overall energy efficiency.

Steering System Performance

The steering system is equipped with a 200W motor, a rated torque of 0.64Nm, a voltage of 48V DC, a motor speed of 3000rpm, and a speed ratio of 160, providing precise steering control and a fast response. With a maximum turning speed of 112.5°/second, this system improves work efficiency.

Designed with an electronic limit angle of ±126° and a mechanical limit angle of ±135°, it effectively ensures safety during steering and prevents damage caused by oversteering. Equipped with a 6Nm brake system, it provides stable braking in emergencies and further enhances operational safety.

Applicable Scenarios

This industrial AGV horizontal steering wheel system is particularly suitable for forklift AGVs that operate with high loads and speeds. It is ideal for large manufacturing workshops, heavy logistics centers, and complex warehousing environments. It is a perfect choice for efficient industrial automation and forklift applications.

Industrial AGV Horizontal Steering Wheel Suitable for Forklift 750W Load 800kg

Additional information

Dimensions 32 × 32 × 30 in
