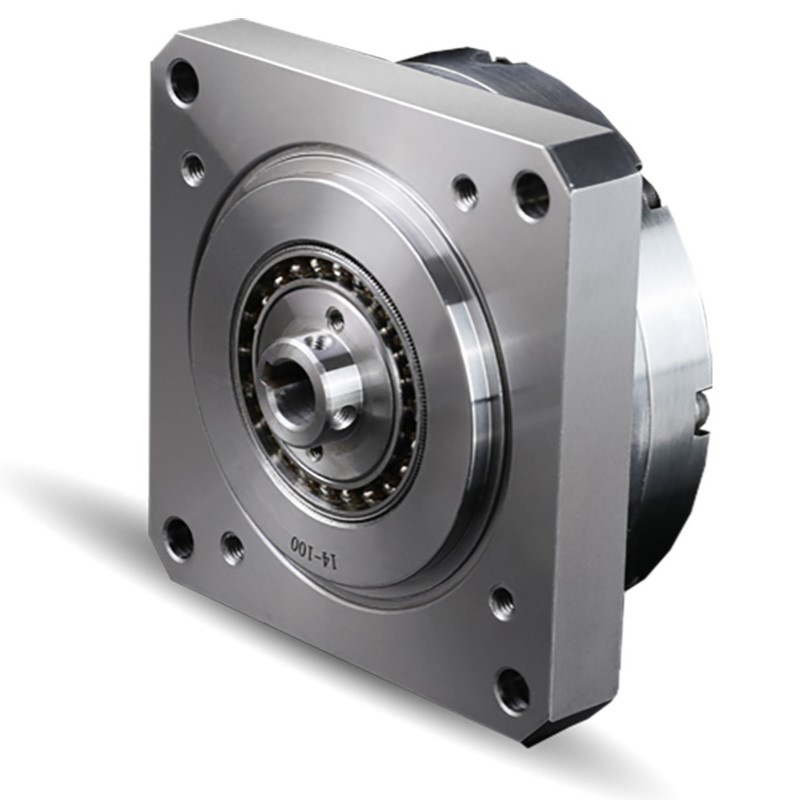

Integrated Harmonic Drive Motor with Cross Roller Bearing

Integrated Harmonic Drive Motor with Cross Roller Bearing

$1,653.00

Ultra-flat, lightweight harmonic drive actuator with a high-performance compact motor and integrated cross-roller bearing for superior torque and precision.


Ships From: China
Supplier: Honpine SKU: Integrated Harmonic Drive Motor Categories: , , , , Tags: , , , , , More From:

Integrated Harmonic Drive Motor with Cross Roller Bearing

A combination product that is lightweight and ultra-flat. Using a cross-roller bearing. It is a combined harmonic drive with a high-performance small motor, with the highest input characteristics under the same gear conditions.

Model Reduction
ratio		 Rated torque at 2000r/min input Permissible peak torque at start and stop Permissible maximum value for average load torque Permissible maximum momentary torque Permissible maximum input rotational speed(Grease) Permissible average input rotational speed(Greaae) Backlash Desian life
Nm kgfm Nm kgfm Nm kgfm Nm kgfm r/min r/min Arc Sec Hour
11 80 4.5 0.5 9.9 1.0 8.0 0.8 22.5 2.3 8500 3500 ≤20 7000
100 5.0 0.5 11 1.1 8.9 0.9 25 2.5 7000
14 50 5.4 0.55 18 1.8 6.9 0.7 35 3.6 8500 3500 ≤20 10000
80 7.8 0.8 23 2.4 11 1.1 47 4.8 10000
100 7.8 0.8 28 2.9 11 1.1 54 5.5 10000

Additional information

Weight 0.32 lbs
Dimensions 4.92 × 4.92 × 2.89 in
