Industrial 3D Depth Camera, AI SoC, High-Precision, Lightweight, Robotics – LIPSedge AE430
LIPSedge™ AE430 is a compact, lightweight, ruggedized 3D Stereo Camera designed for industrial use. With a weight of only 288 grams, compact form factor, GigE/PoE support, built-in heatsink, and IP67 dust & water-proof, the LIPSedge AE430 is an excellent 3D camera choice for robotic hand-eye and factory automation applications. LIPSedge AE430 addresses limitations in robotic arm carrying weight and space constraints, while providing fast and tight PoE connectivity with an M12 locked cable to withstand the twists and turns of the robotic arm.
Specifications
| Depth Technology |
Active Stereo |
| Depth XY Resolution |
1280×720@30fps, 640×480@60fps |
| Ideal Working Distance |
4 m |
| Depth Min. Working Distance |
~0.45 m |
| Depth Frame Rate |
Up to 60fps |
| Depth Shutter Type |
Rolling Shutter |
| Depth FoV (H x V x D) |
65° x 40° x 72° |
| Depth Z Accuracy |
≤2% (up to 2 meters and 80% of FoV)
*The Accuracy will vary with distance. |
| RGB Resolution |
1920×1080@15fps, 1280×720@30fps, 640×480@60fps |
| RGB FoV (H x V x D) |
69.4° x 42.5° x 77° |
| Illumination Type |
Infared |
| Illumination Wavelength |
850nm |
| Inertial Measurement Unit Sensor |
6-axis (3D Accelerator & Gyroscope) |
| Neural Processing Unit (NPU) ARM Cortex |
Quad Core ARM Corex-A73, paired with a Dual Core
Cortex A-53 CPU, ARM Mali-G52 GPU
Run neural network applications at 5.0 TOPS |
| Dimension (mm) |
118 x 32 x 60 mm |
| Weight(g) |
Approximately 280 g |
| Ambient Temperature |
0 ~ 40˚C |
| Storage Temperature |
-40 ~ 60˚C |
| Built-In |
Industrial Heatsink |
| Output Interface |
M12 to Gigabit Ethernet cable for power and data |
| Power |
PoE (IEEE 802.3 at/af)
M12-to-RJ45 Cable (included)
Power wire (12V, 1A) with M8 standard connector |
| Working Environment |
Indoor / Outdoor |
| SDK |
Multiple Frameworks supported: OpenNI, OpenCV, NVIDIA Isaac, ROS/ROS2, Halcon |
| OS |
Windows 10
Ubuntu 18.04 / 20.04 / 22.04 LTS |
| Environment |
Indoor / Outdoor |
Developer Friendly
- Free SDK (OpenNI/ OpenCV Compatible) Download & Support from LIPS
- For product customization requests, please contact LIPS.
Package Includes:
- AE430*1

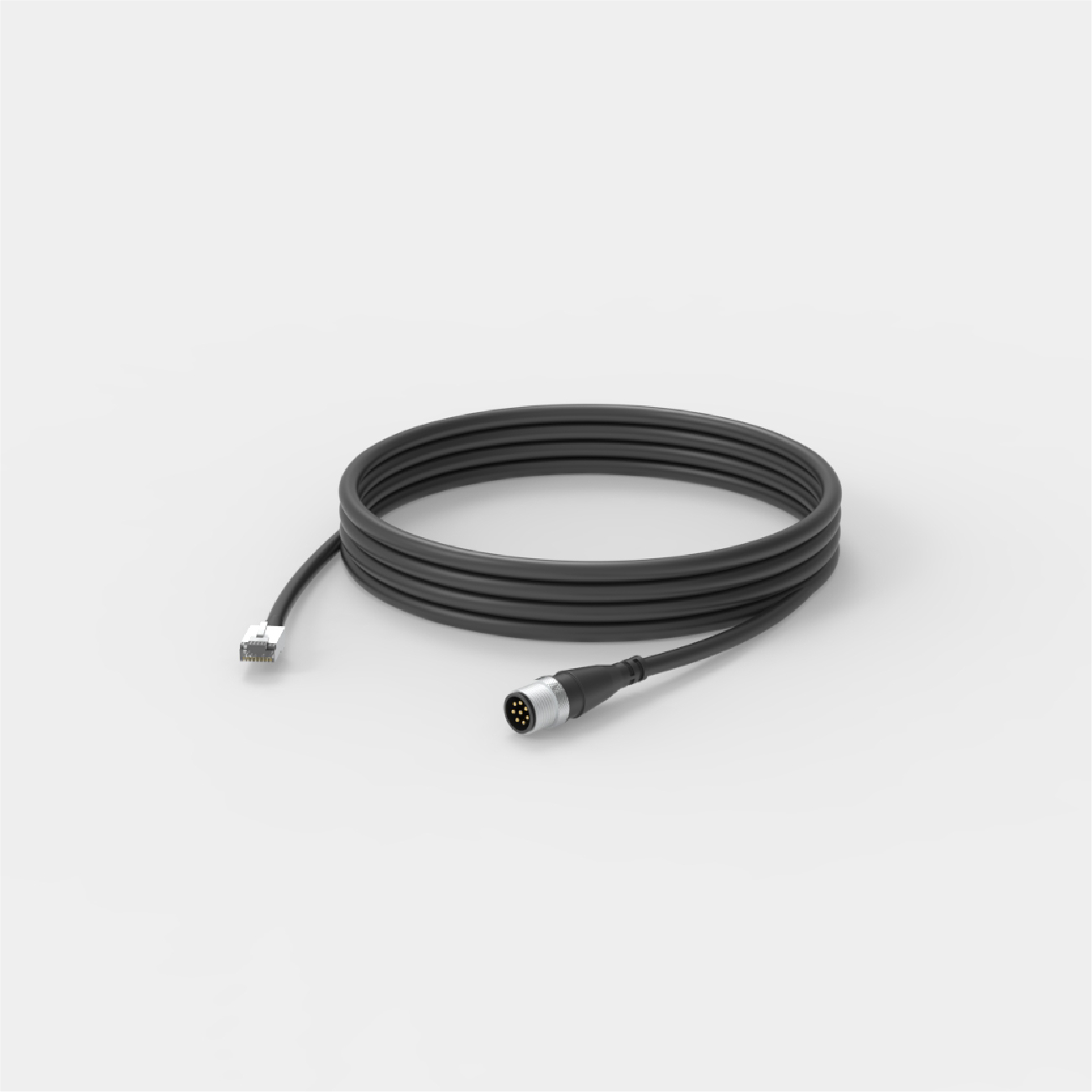

- M12 to RJ45 Cable*1
