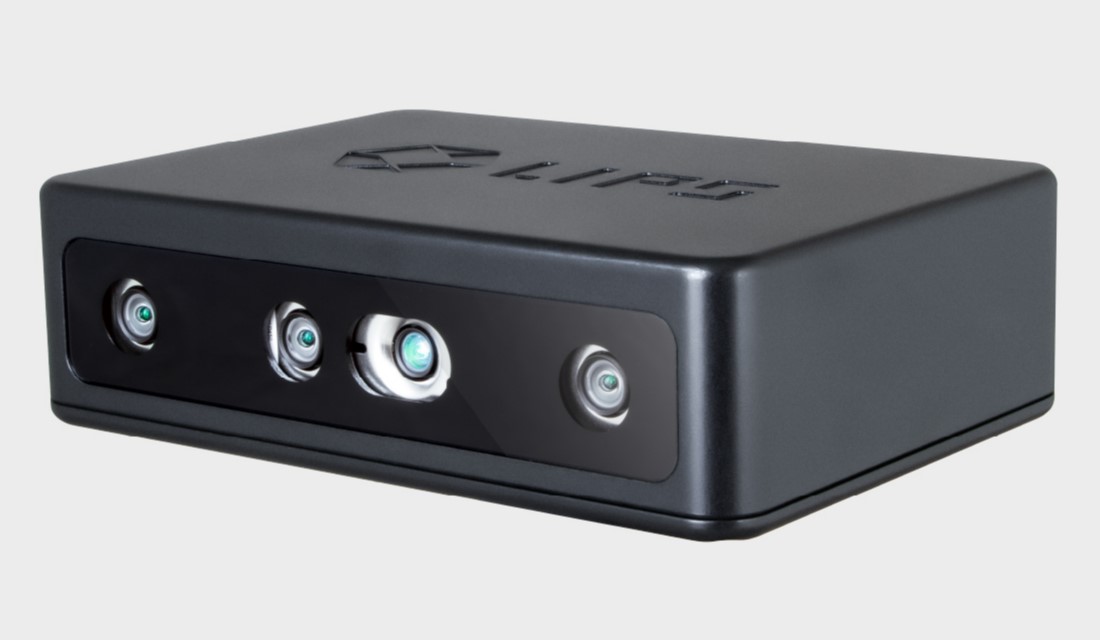

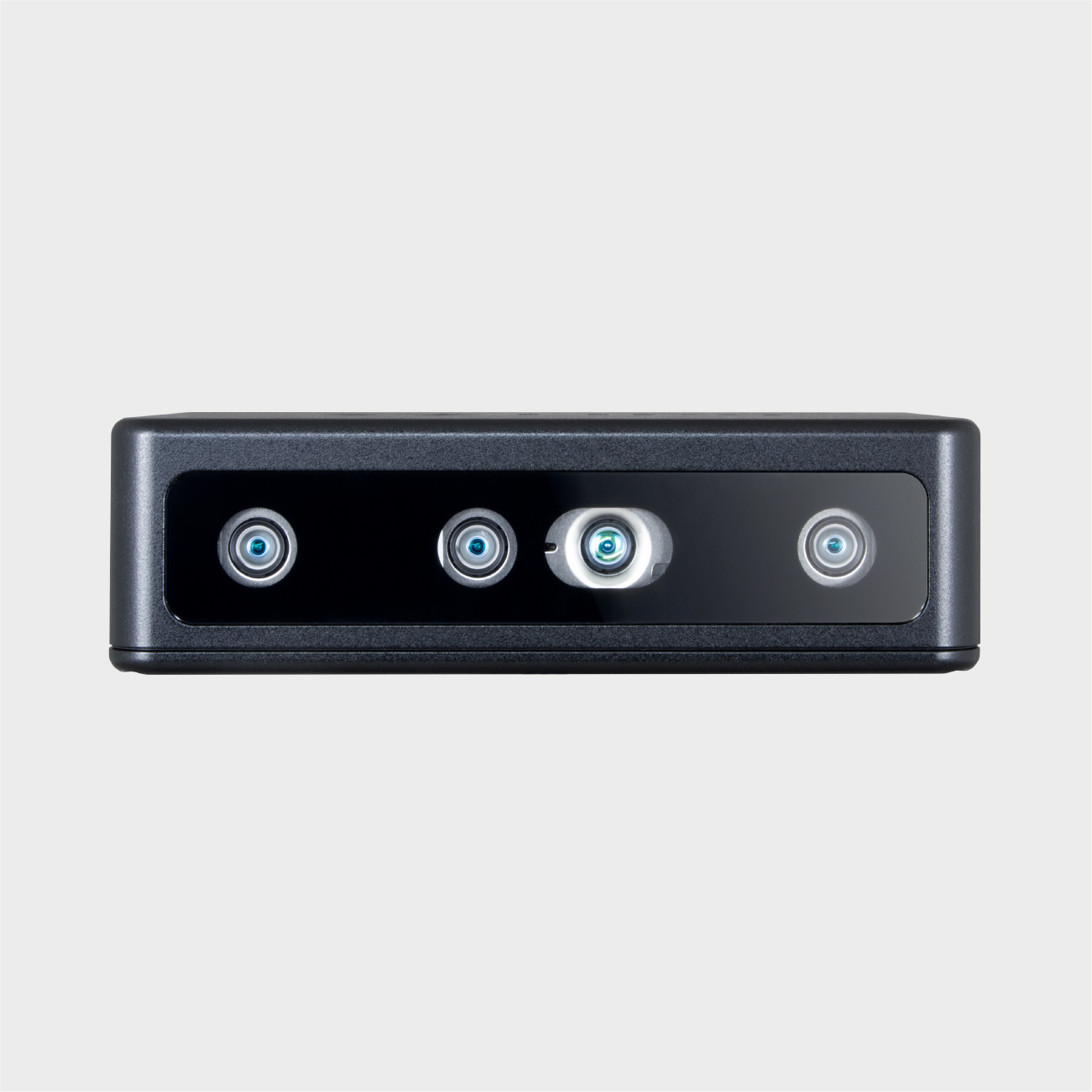

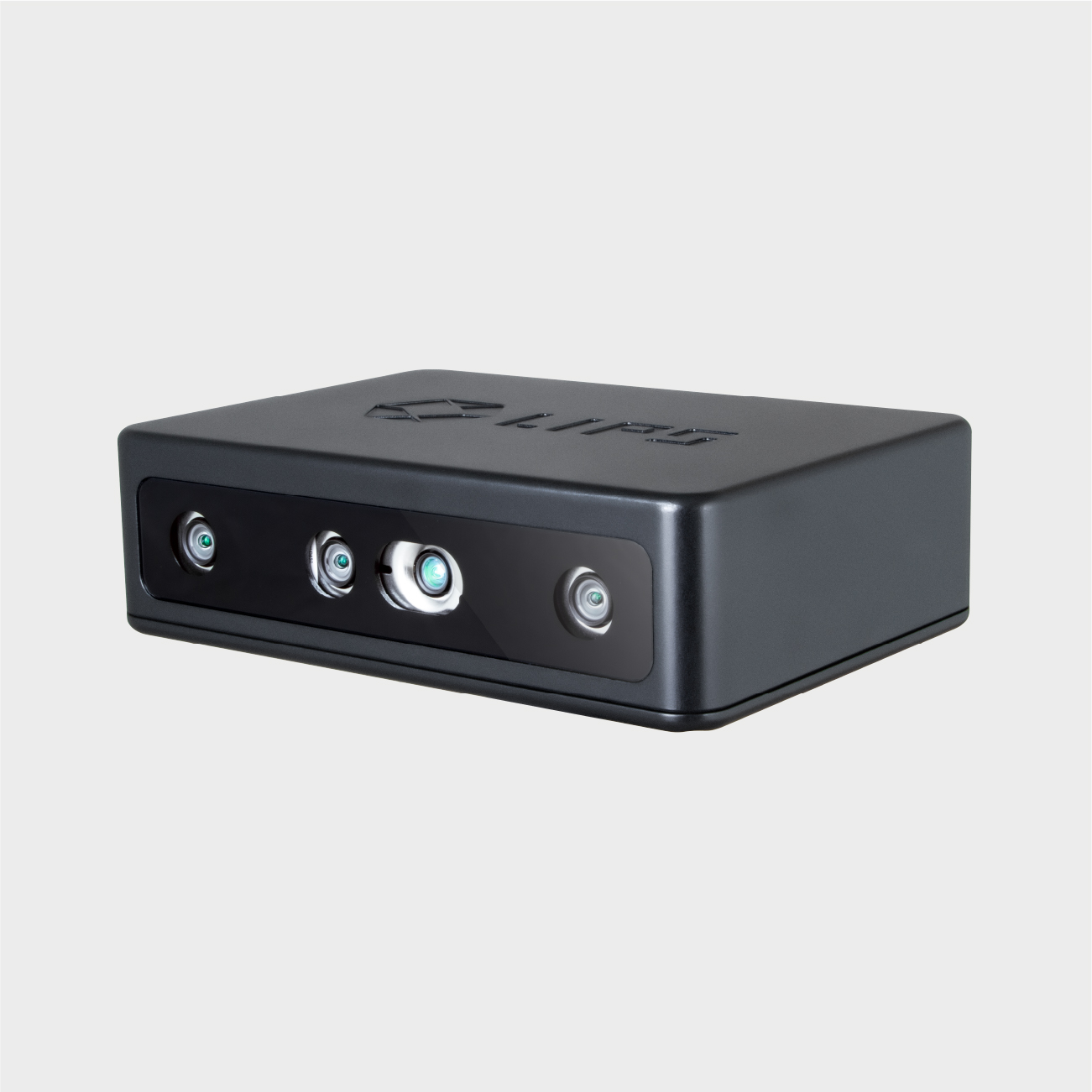

Industrial 3D Depth Camera, Long-Range, Automated Inspection, Robotics – LIPSedge AE450
LIPSedge AE450 is our next-generation, ruggedized 3D active stereo camera, offering heavy-duty users enhanced depth precision and detection range. With the depth sensor baseline expanded to 95 mm, LIPSedge AE450 can see more than 10 meters while minimizing Z-axle measurement error to ≤ 2% at 4 meters. LIPSedge AE450 features GigE/PoE, an IP67 rating, and a built-in IMU & heatsink. Best of all, LIPSedge AE 450 supports a variety of industrial 3D frameworks, including ROS, NVIDIA Isaac, OpenNI, OpenCV, and HALCON.
| Depth Technology |
Active Stereo |
| Depth Baseline |
95mm |
| Ideal Working Distance |
0.6~6 m |
| Depth Min. Working Distance |
0.52m |
| Depth Frame Rate |
1280×720@30fps |
| Depth Shutter Type |
Global Shutter |
| Depth FoV (H x V x D) |
87° x 58° x 95° |
| Depth Z Accuracy |
≤2% (up to 4 meters and 80% of FoV)
*The Accuracy will vary with distance. |
| RGB Resolution |
1280×800@30fps |
| RGB FoV (H x V x D) |
87° x 58° x 95° |
| RGB Shutter Type |
Global Shutter |
| Illumination Type |
Infared |
| Illumination Wavelength |
850nm |
| Illumination Pattern Type |
Static |
| Illuminating Component |
Vertical-cavity surface-emitting laser (VCSEL) |
| Inertial Measurement Unit Sensor |
BMI085 |
| Inertial Measurement Unit Sensor Type |
6 degrees of freedom (6-DoF) |
| Dimension (mm) |
145 x 102 x 43 mm |
| Ambient Temperature |
0 ~ 40˚C |
| Storage Temperature |
-40 ~ 70˚C |
| Built-In |
Industrial Heatsink |
| Power |

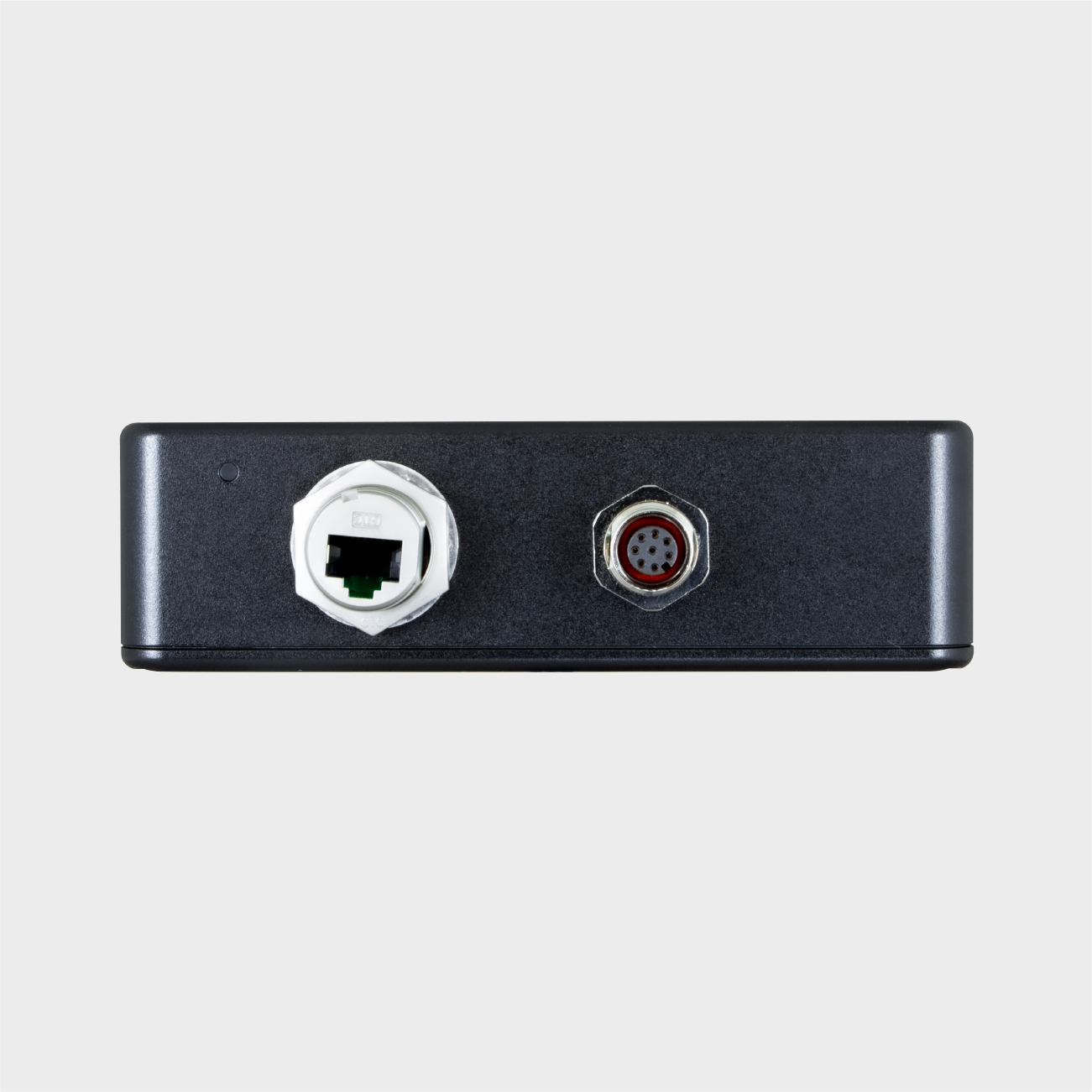

PoE (IEEE 802.3 at/at)
RJ-45 Connector with M12 Lock
Power Wire (12V, 2A) |
| Mounting Mechanism |
1/4” camera screw compatible (1/4 – 20 UNC),
4 * M5 thread 70 * 70 mm mounting point (Optional VESA 75 * 75 adapter) |
| SDK |
Multiple Frameworks supported: OpenNI, OpenCV, ROS/ROS2, NVIDIA Isaac, Halcon. |
| OS |
Windows 10
Ubuntu 16.04 / 18.04 / 20.04 / 22.04 LTS |
| Environment |
Indoor / Outdoor |
| Environment IP Rating |
IP67 |
| Environment Altitude Test |
With reference to IEC 60068-2-13 Test M |
| Environment Sine Vibration Test |
With reference to IEC 60068-2-6 Test Fc |
| Environment Random Vibration Test |
With reference to MIL-STD-810E Method 514 |
| Environment Mechanical Shock Test |
With reference to MIL-STD-810G Method 516.6; Procedure I fig. 516.6-10 |
| Environment Salt Spray Test |
ASTM B-117 |
Developer Friendly
- Free SDK (OpenNI/ OpenCV Compatible) Download & Support from LIPS
- For product customization requests, please contact LIPS.
Package Includes:
- AE450*1
- RJ45 Cable*1
- M12 Cable*1
