Low Cost ibeacon Sensor Low Energy 4.2 Chipset Ble Bluetooth Beacon

$3.99

HCBB35 is a low-cost Bluetooth beacon with a ble 4.2 chipset solution. waterproof IP67 ibeacon, 5years lifetime ble beacon. Mostly used in promotional marketing, attendance, asset tracking, and indoor positioning RTL systems.

Minimum Order Quantity: 3 Pieces

Low-Cost ibeacon Sensor Low Energy 4.2 Chipset Ble Bluetooth Beacon

HCBB35 is a Bluetooth beacon based on a low-power Bluetooth chip. It has a CR2477 button lithium manganese battery and a life of up to 3 years (at 0dBm transmit power, 1s broadcast interval case). HCBB35 can broadcast Bluetooth name, Bluetooth MAC address, UUID, Major, Minor, RSSI@1m, battery power, and other information. The Bluetooth name, UUID, Major, Minor, transmission power, and broadcast interval can be used through the mobile phone app (KTBB Connect) Make settings. All broadcast content can be customized according to customer needs.

The HCBB35 broadcast distance is up to 100 meters (open sight distance) and can be installed and fixed using 3M glue or screws. HCBB35 is divided into connectable type and non-connectable type. The connectable type can change the broadcast parameters related to Bluetooth beacons through a mobile phone connection and supports OTA upgrades (connectable type). HCBB35 is widely used in indoor positioning, indoor navigation, scenic area navigation, exhibition navigation, patrol check-in, information push, asset management, item tracking, and other application scenarios.

Features

  • Ultra-low power consumption, battery life of up to 5 years (0dBm/1s, ambient temperature 25°C)
  • The broadcasting distance is up to 100 meters ( open sight distance )
  • Beacon parameters can be flexibly configured through the mobile APP
  • Support Bluetooth BLE4.2/5.0 protocol
  • Support OTA upgrade
  • IP68 waterproof rating;

Specifications

Basic specifications

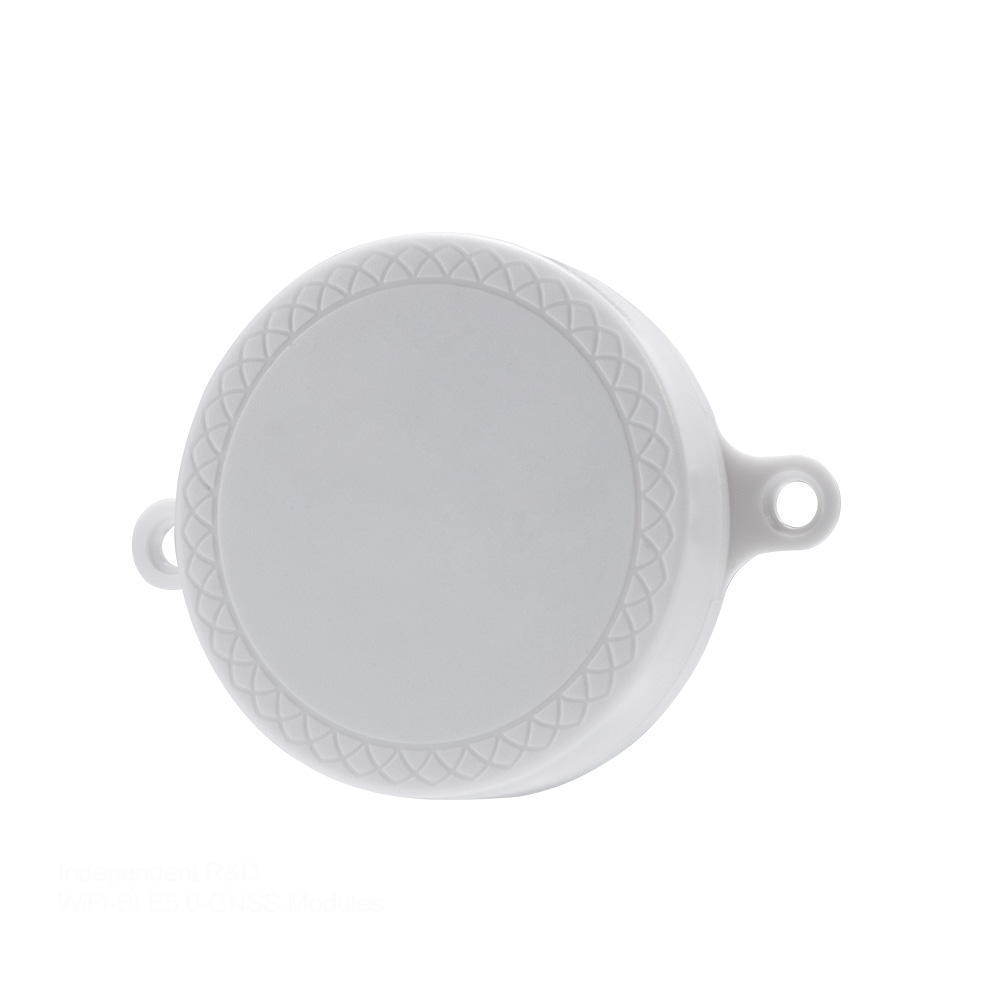

Product number HCBB35: round shape without ears (with 3M glue)

HCBB35-E: round with ears (with screws)

Product size

(diameter*height)

48*17mm


product weight

HCBB35, standard with 3M glue, 25.6g HCBB35E, NO 3M glue, 25.5g

HCBB35E, with 3M glue, 25.9g

Shell material/color ABS/white (default)
waterproof level IP68
Installation method 3M adhesive/screw installation
battery model Button lithium manganese battery CR2477
battery voltage 3.0V
battery capacity 1000mAh
Can the battery be

replaced?

Can
Whether to support OTA Support (firmware selects connectable type)
Configure APP HC Connect
Technical specifications
Bluetooth version BLE4.2/5.0
Broadcast data format iBeacon or customized according to customer needs
Frequency Range 2400MHz~2483.5MHz
Transmit power -19.5dBm~+2.5dBm (default 0dBm)
